Climate Control Pinpoint Test 3: A/C Does Not Operate/Does Not Operate Properly

CLIMATE CONTROL PINPOINT TEST 3: A/C DOES NOT OPERATE/DOES NOT OPERATE PROPERLY

NOTE:Before carrying out the following test, diagnose any PCM DTCs.
NOTE:Before carrying out the following test, check that the A/C system pressure is above 290 kPa (42 psi). If the pressure is below 290 kPa (42 psi), See - A/C Evaporator / Condenser Core - On-Vehicle Leak Test.
NOTE:The ambient temperature must be over 6°C (43°F).

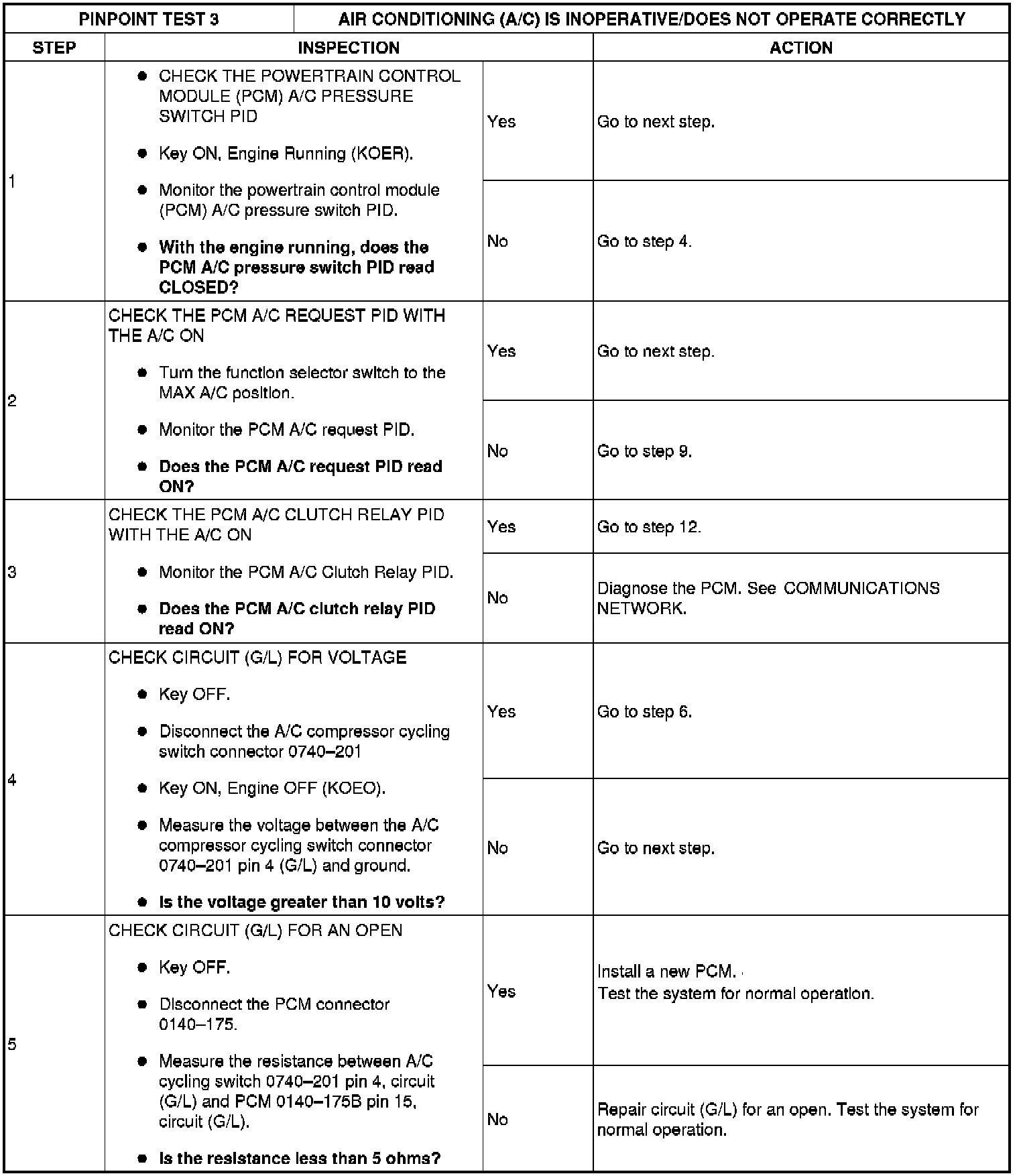

Step 1-Step 5:

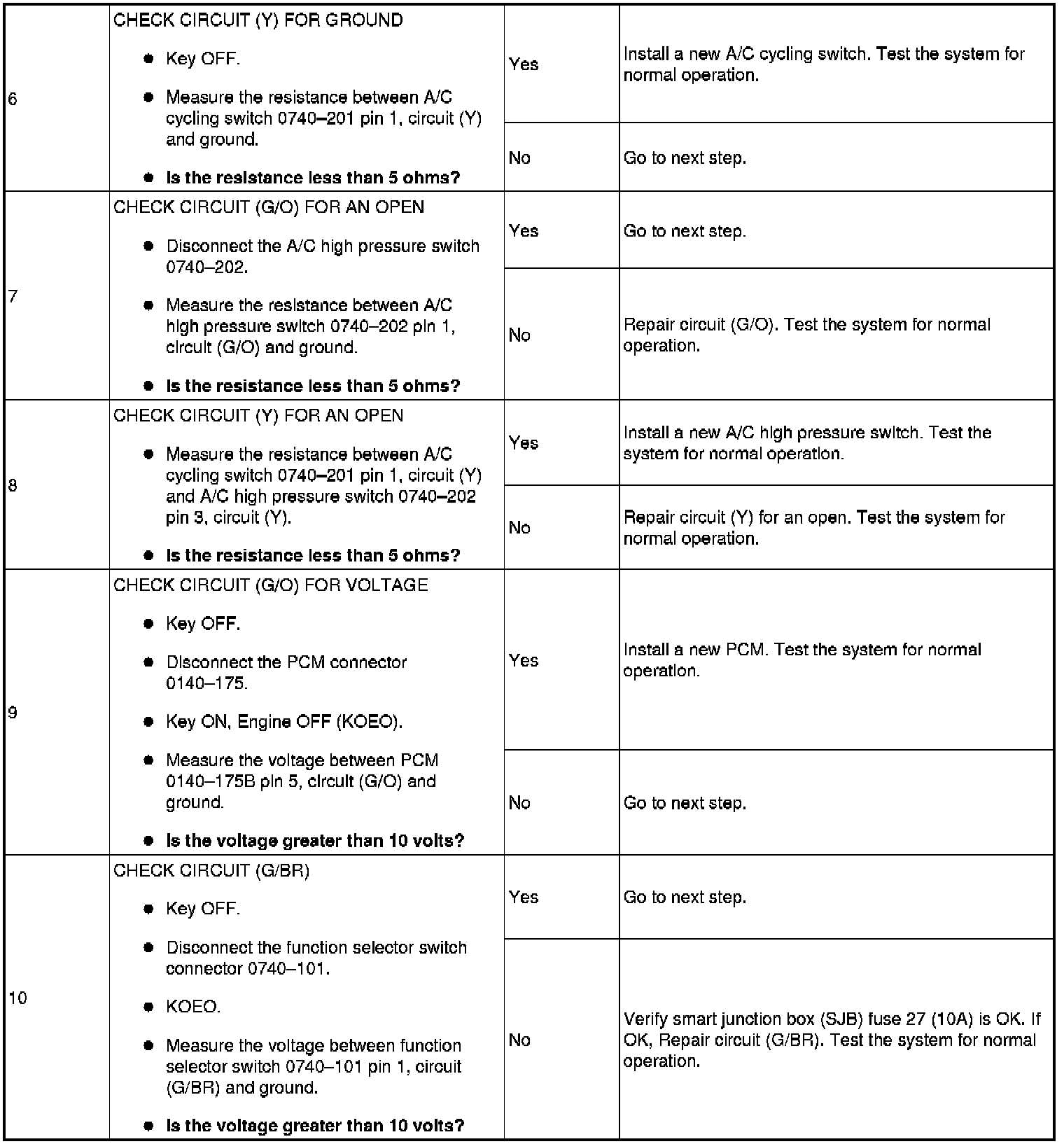

Step 6-Step 10:

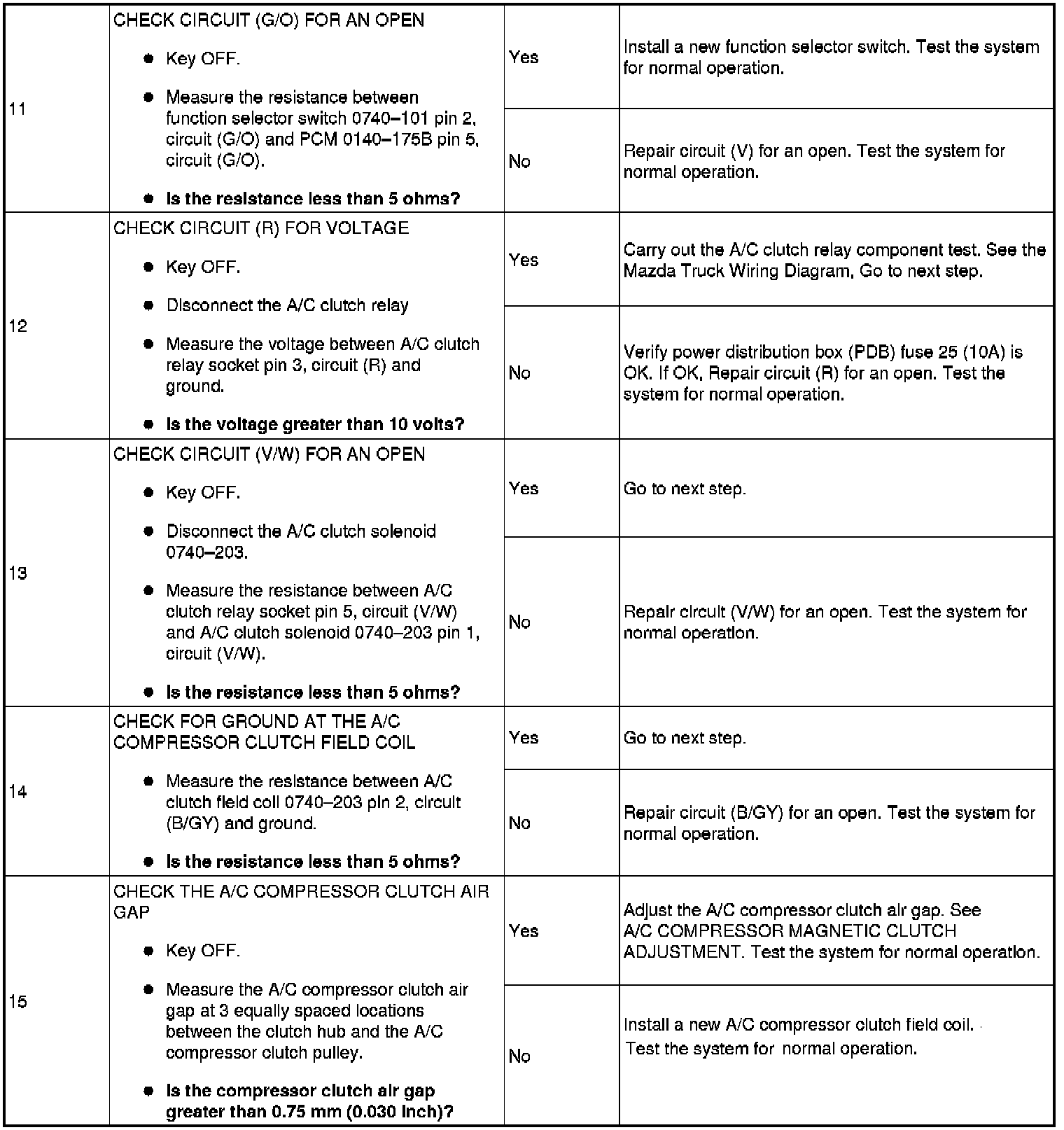

Step 11-Step 15:
