Knock Sensor: Service and Repair

-
KNOCK SENSOR (KS) REMOVAL / INSTALLATION - 4.0L









1. Remove the intake manifold. See - Service and Repair.

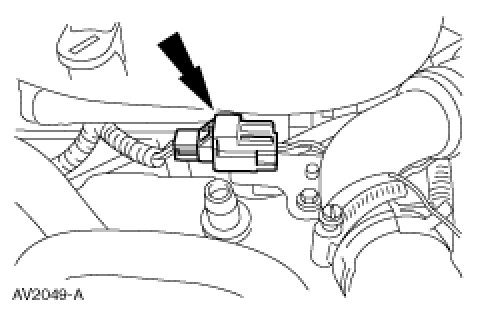

1. Disconnect the knock sensor (KS) electrical connector.

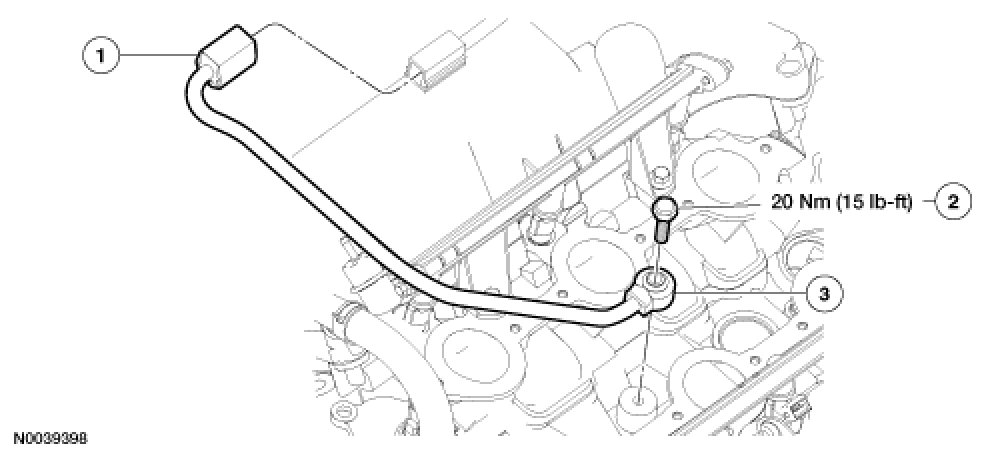

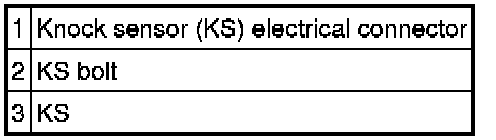

1. Remove the KS.

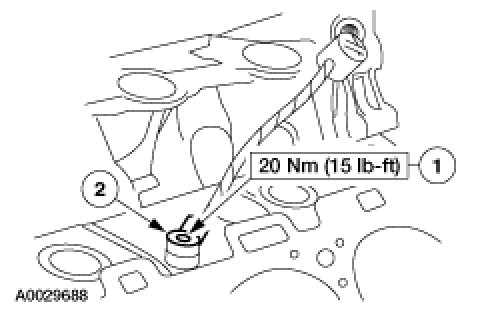

a. Remove the bolt.

b. Remove the sensor.

2. To install, reverse the removal procedure.
