System Specifications

ENGINE SPECIFICATIONS - 4.0L






SPECIFICATIONS

Engine Specifications

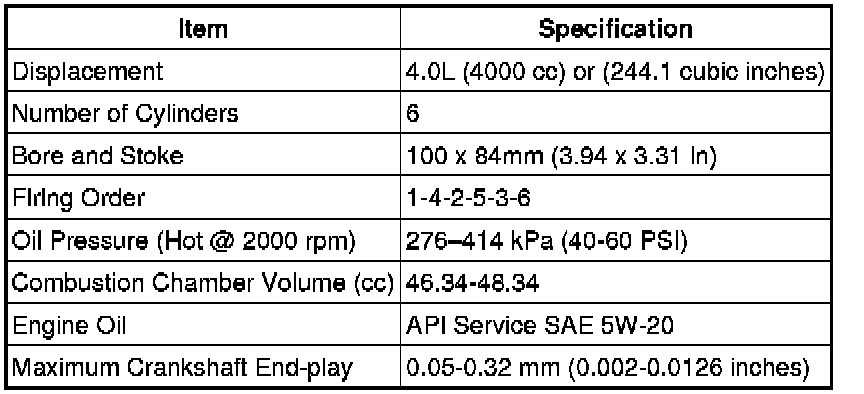

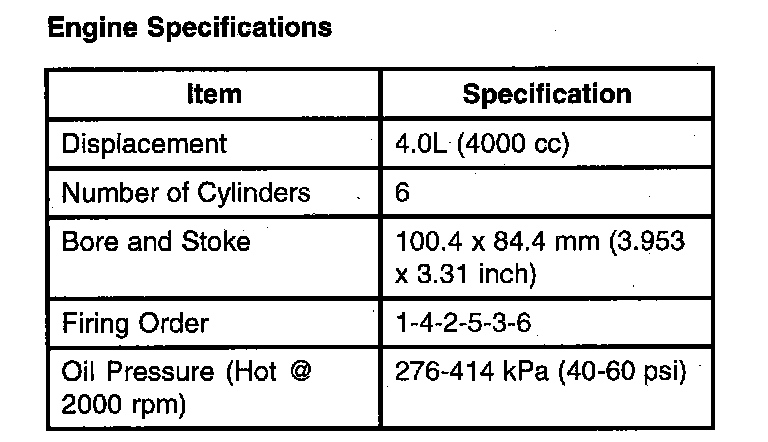

Engine Specifications:

Cylinder Head and Valve Specifications

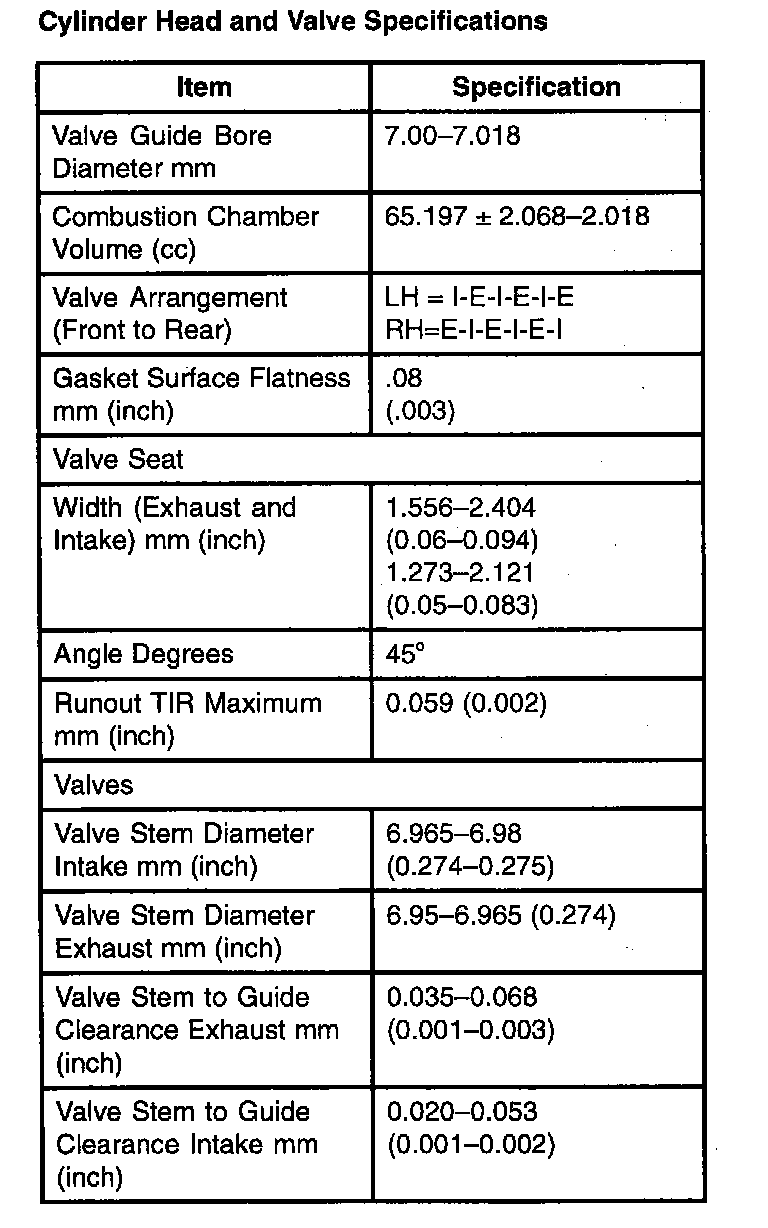

Cylinder Head and Valve Specifications (Part 1):

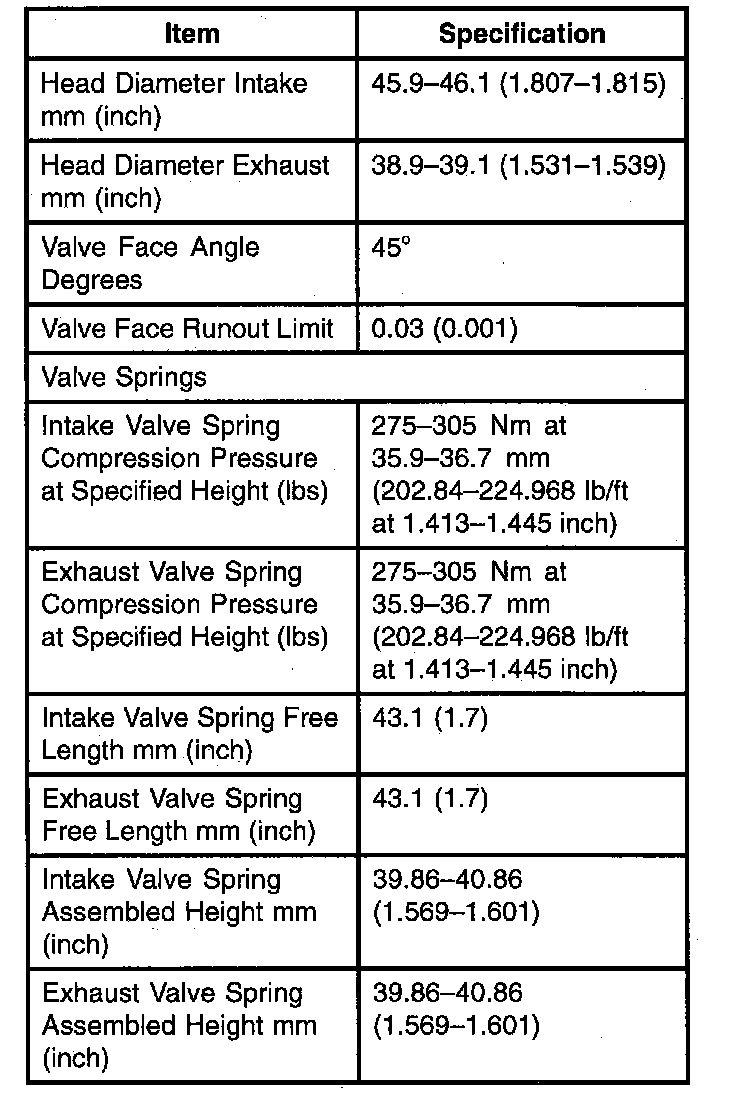

Cylinder Head and Valve Specifications (Part 2):

Camshaft Specifications

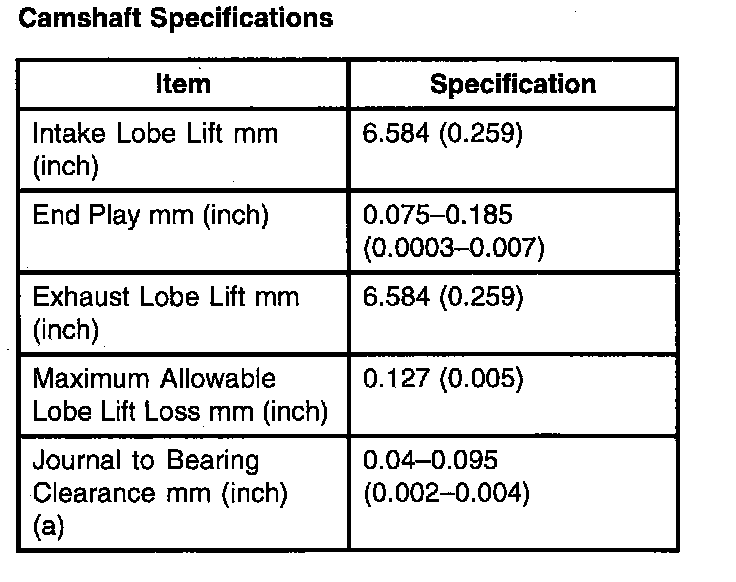

Camshaft Specifications (Part 1):

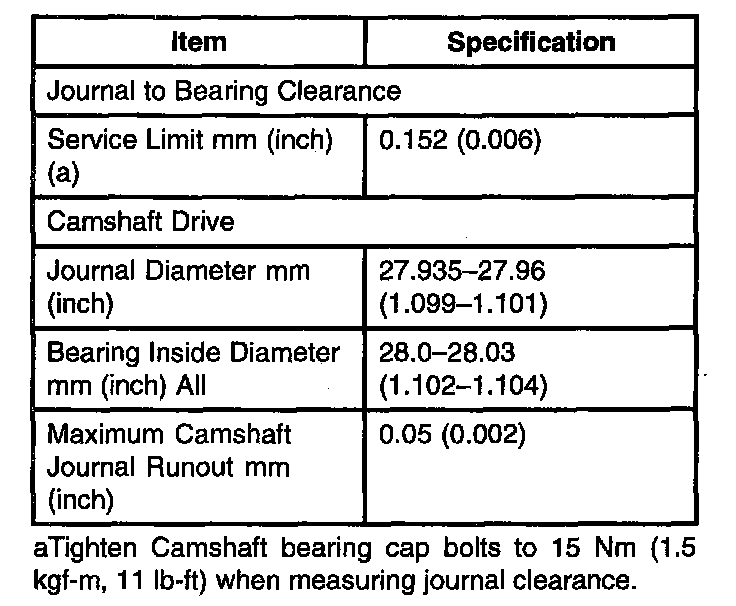

Camshaft Specifications (Part 2):

a Tighten Camshaft bearing cap bolts to 15 Nm (1.5 kgf-m, 11 lb-ft) when measuring journal clearance.

Cylinder Block Specifications

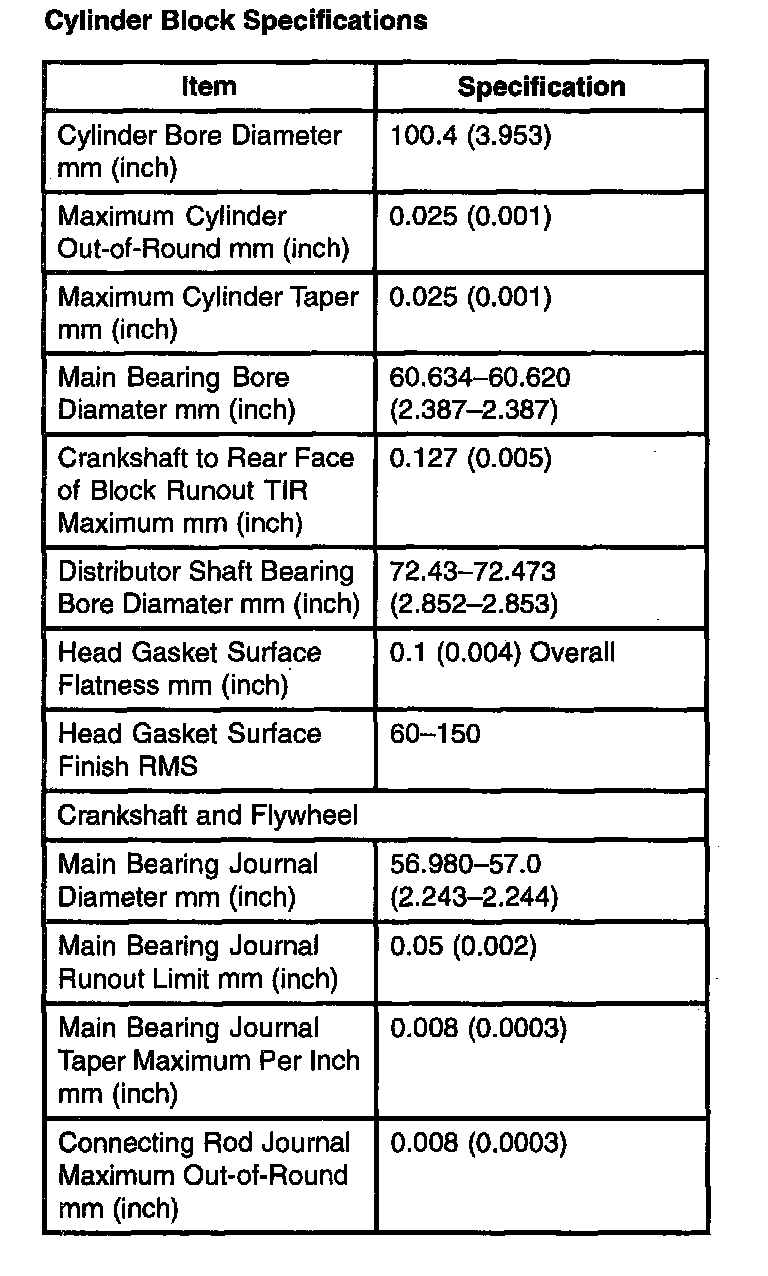

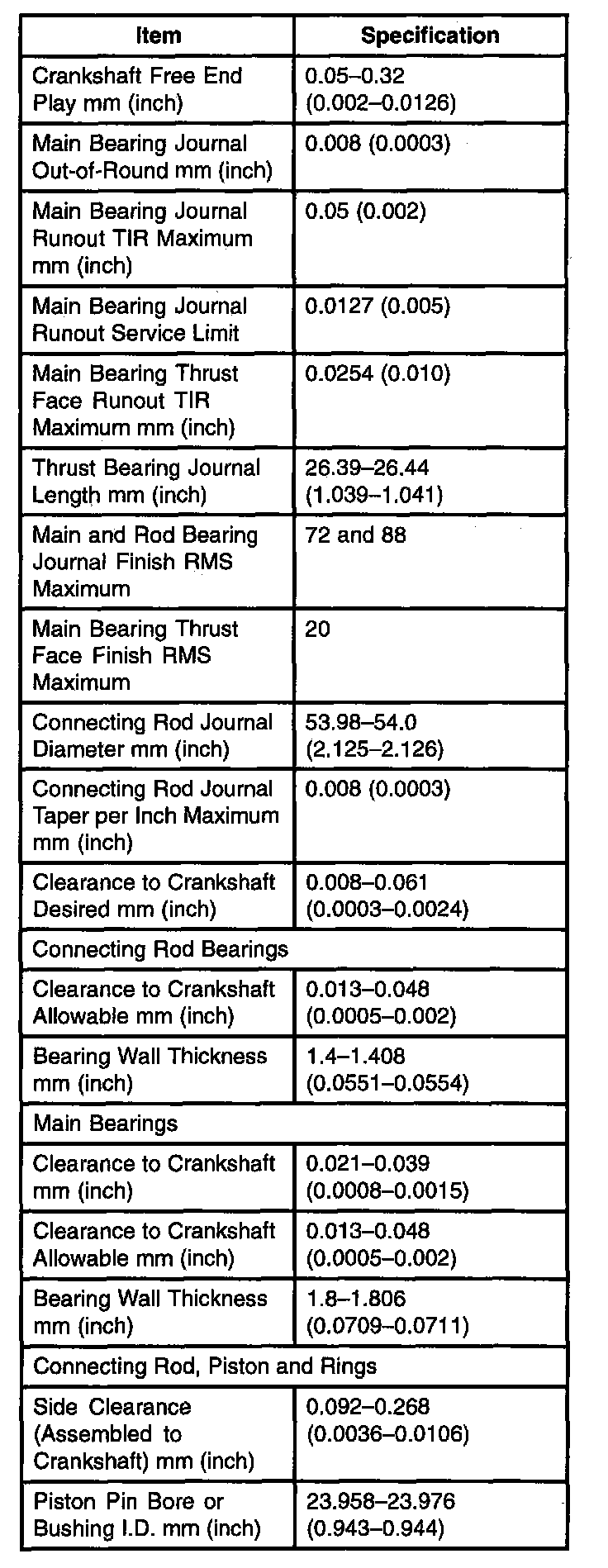

Cylinder Block Specifications (Part 1):

Cylinder Block Specifications (Part 2):

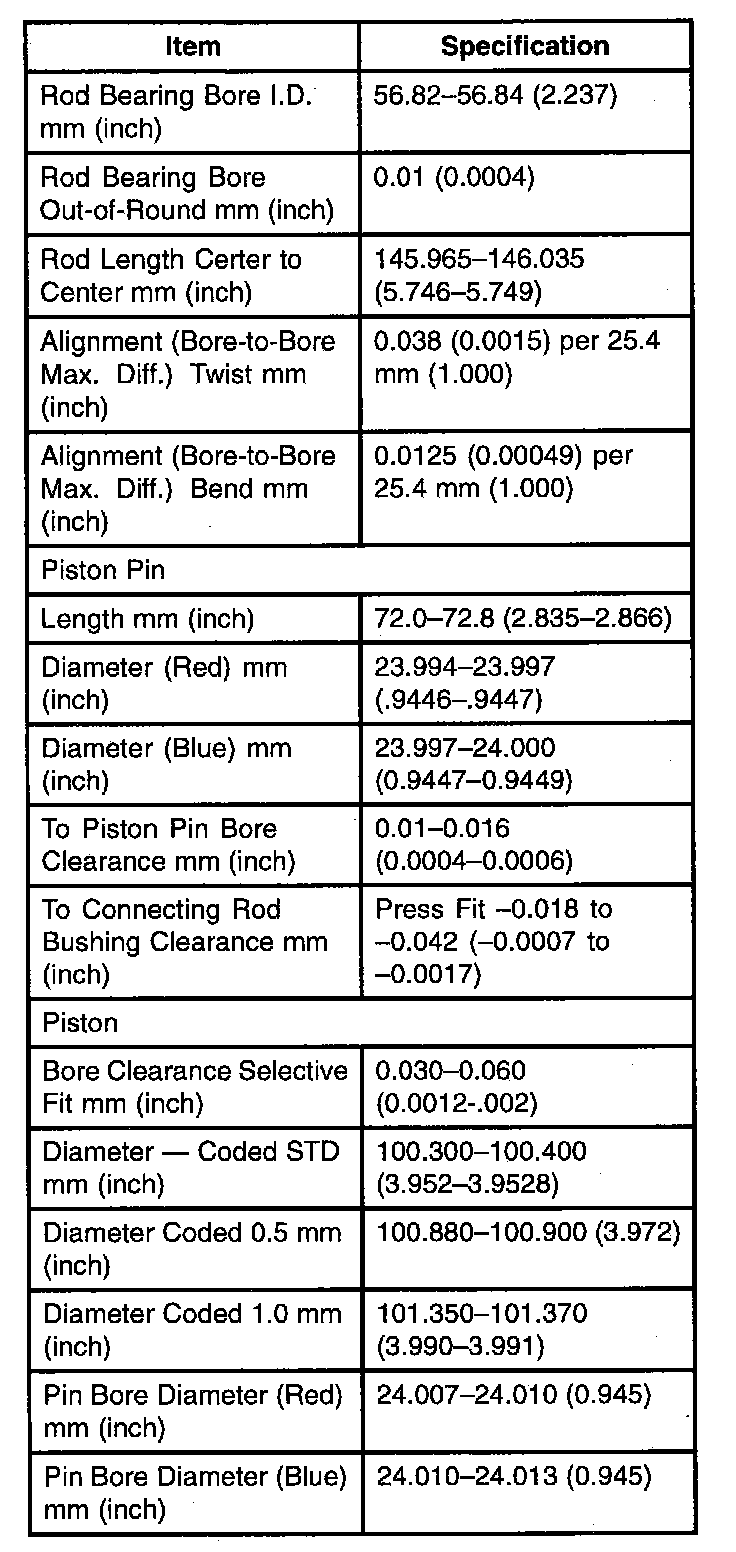

Cylinder Block Specifications (Part 3):

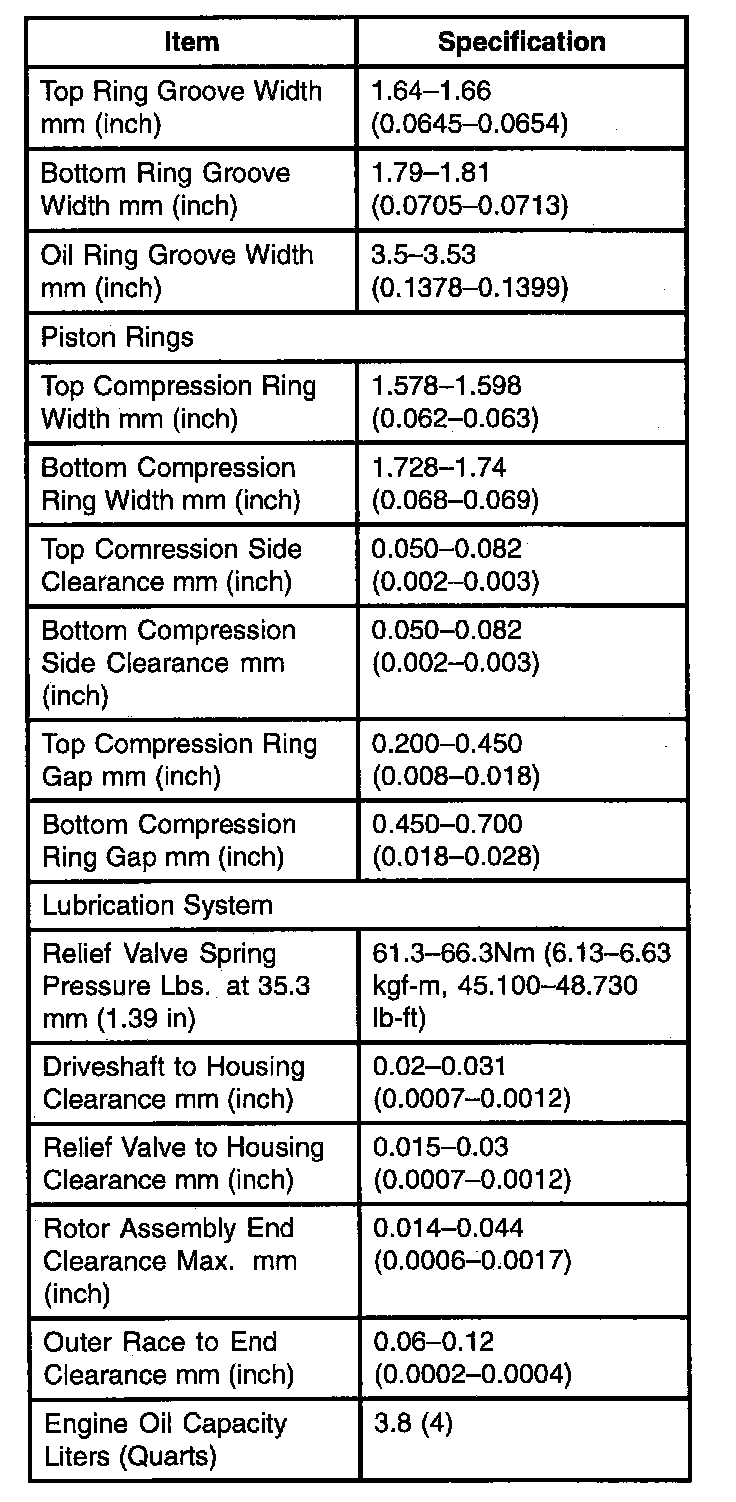

Cylinder Block Specifications (Part 4):
