No.1 Door Cannot Be Locked/Unlocked By Transmitter (Card Key) [Advanced Keyless And Start System]




NO.1 DOOR CANNOT BE LOCKED/UNLOCKED BY TRANSMITTER (CARD KEY) [ADVANCED KEYLESS AND START SYSTEM]

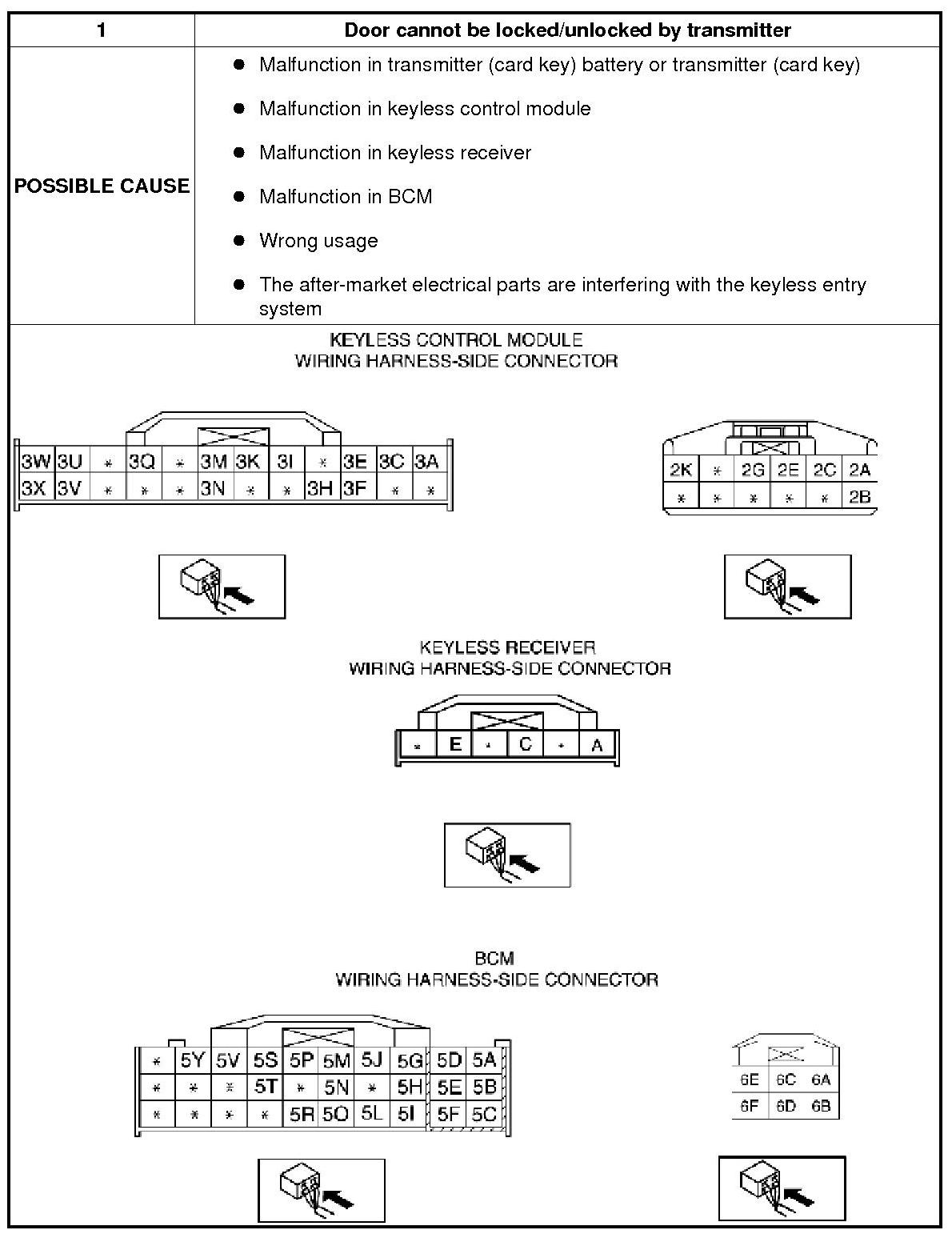

Possible Cause:





Diagnostic procedure

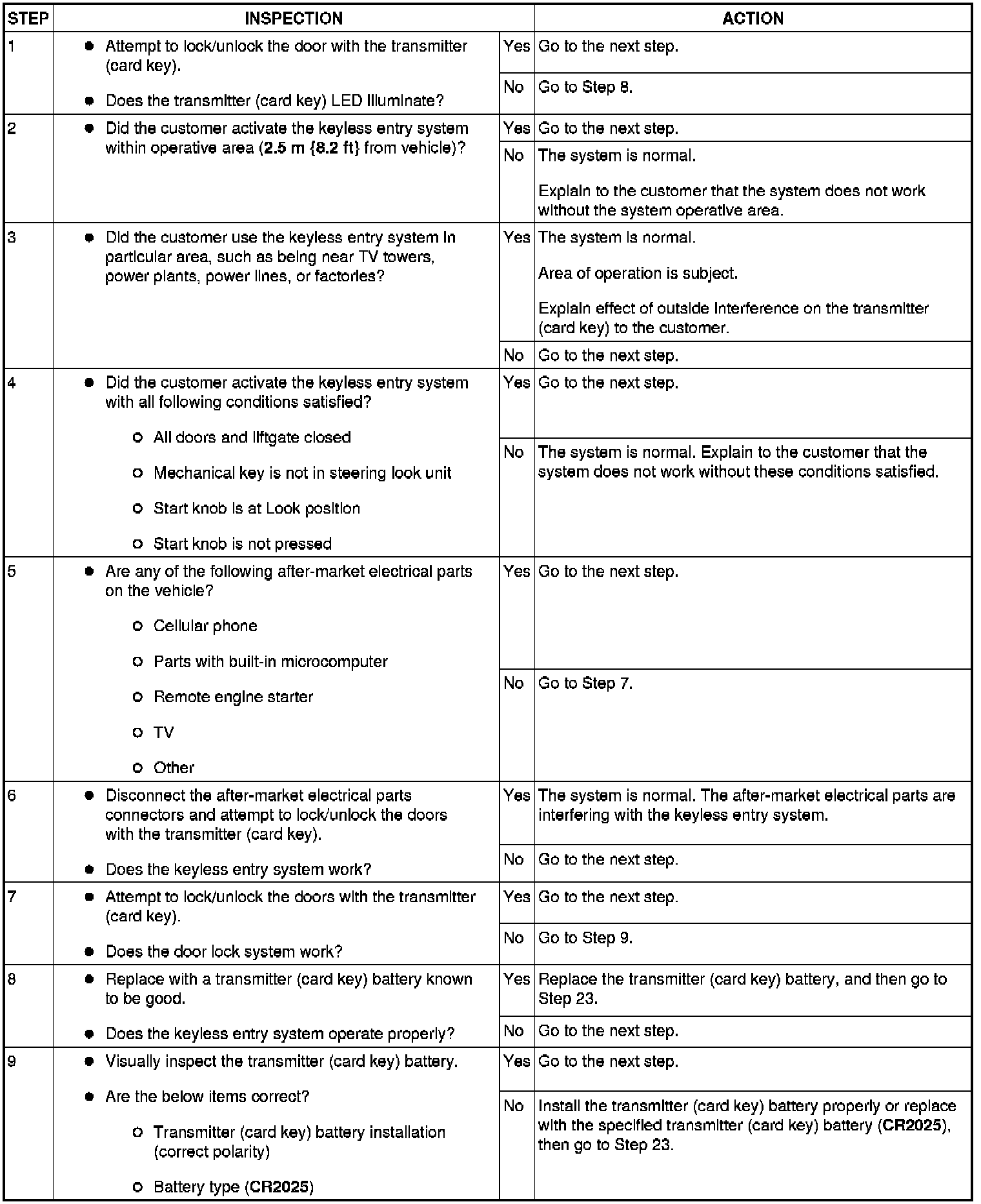

Step 1-Step 9:

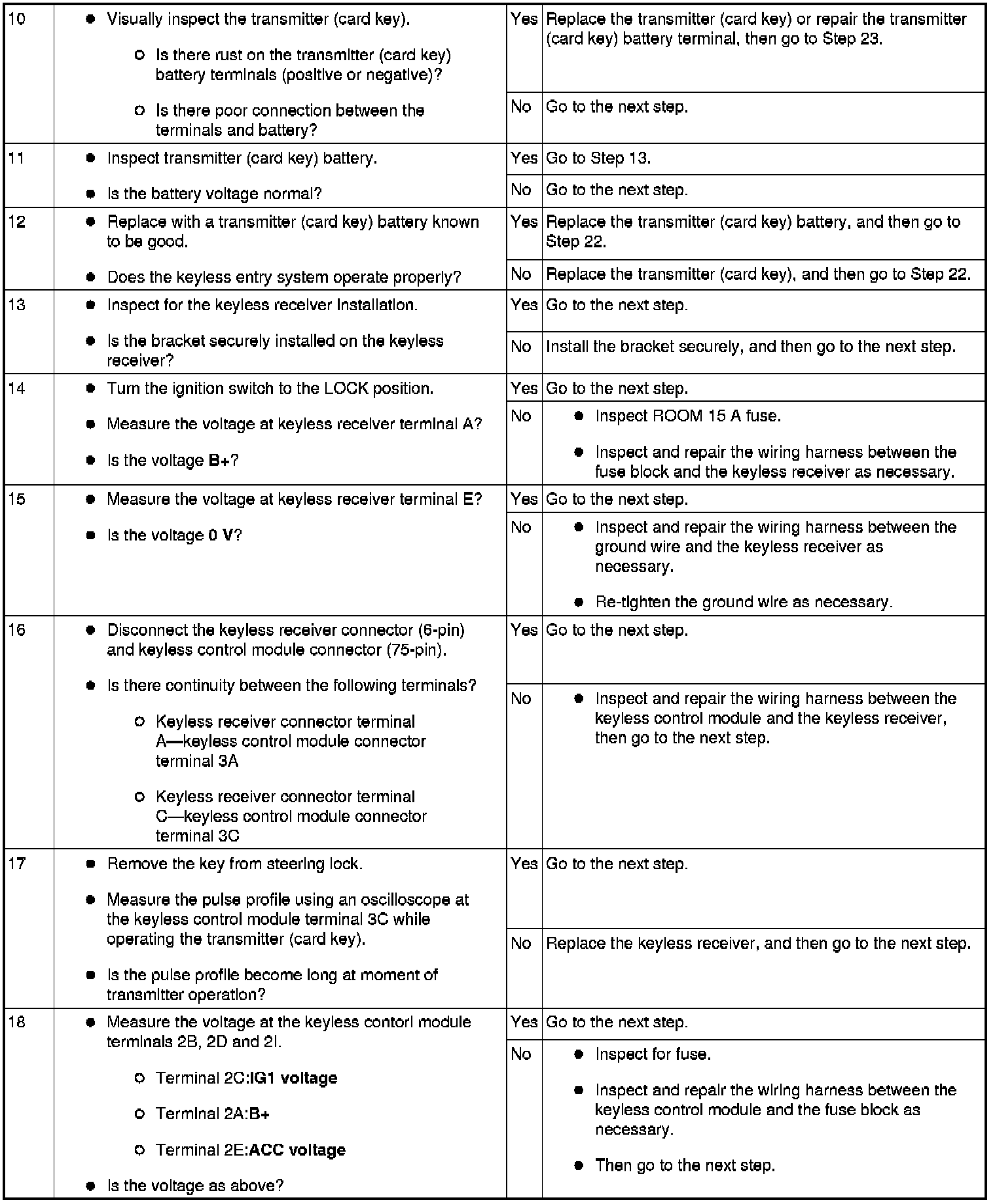

Step 10-Step 18:

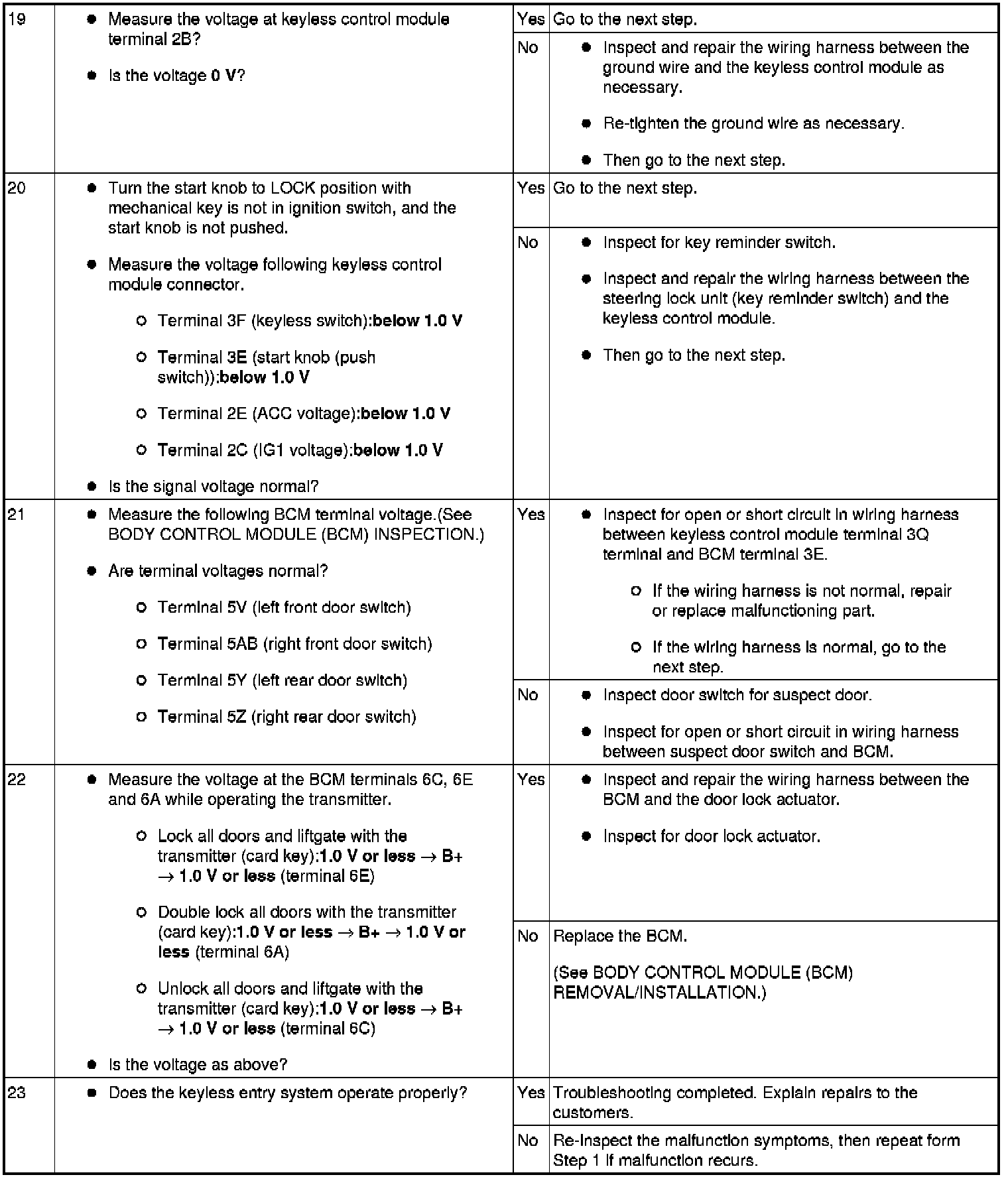

Step 19-Step 23:
