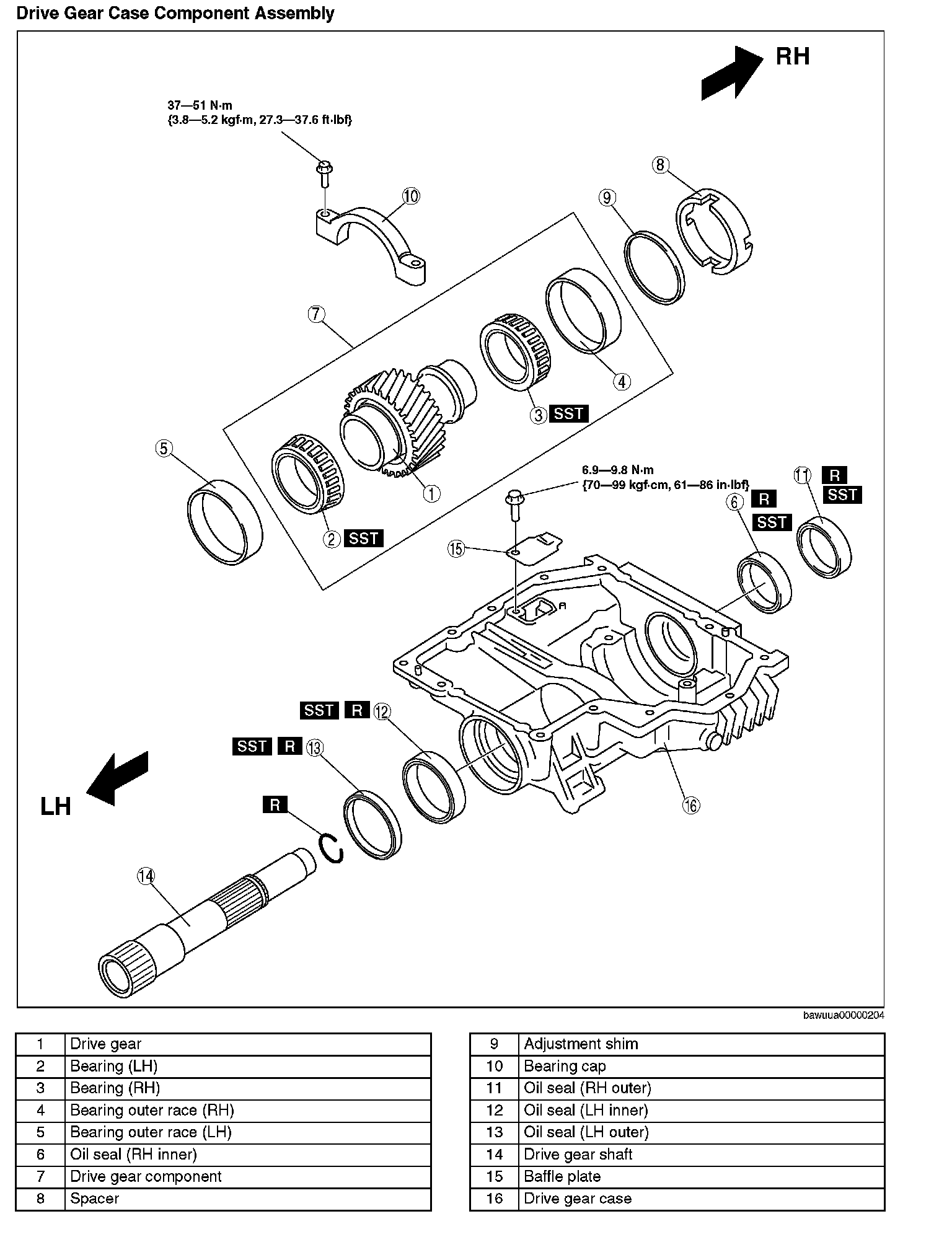

Drive Gear Case Component Assembly

Drive Gear Case Component Assembly

Drive Gear Case Component Assembly:
