No.1 Unable To Communicate With Generic Electronic Module (GEM) [Power Window Systems (Exterior Open/Close Function)]




No.1 UNABLE TO COMMUNICATE WITH GENERIC ELECTRONIC MODULE (GEM) [POWER WINDOW SYSTEMS (EXTERIOR OPEN/CLOSE FUNCTION)]

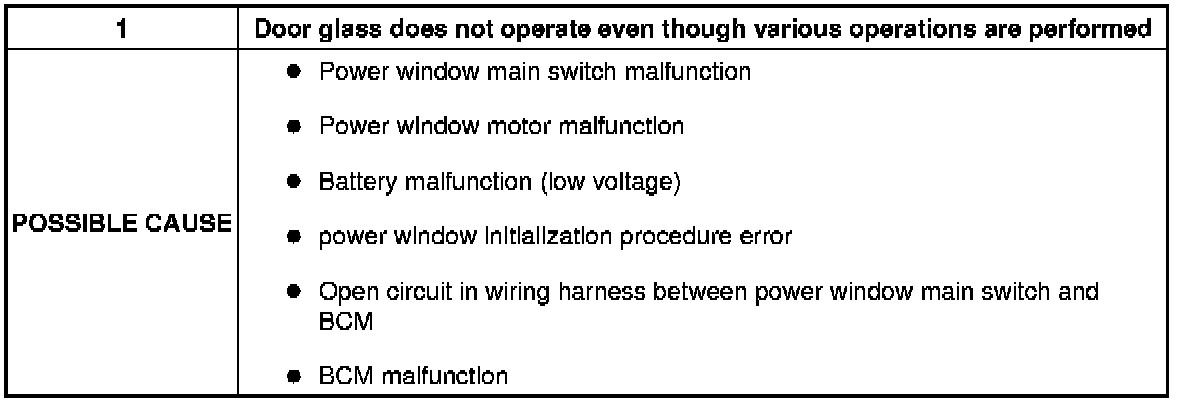

Possible Cause:

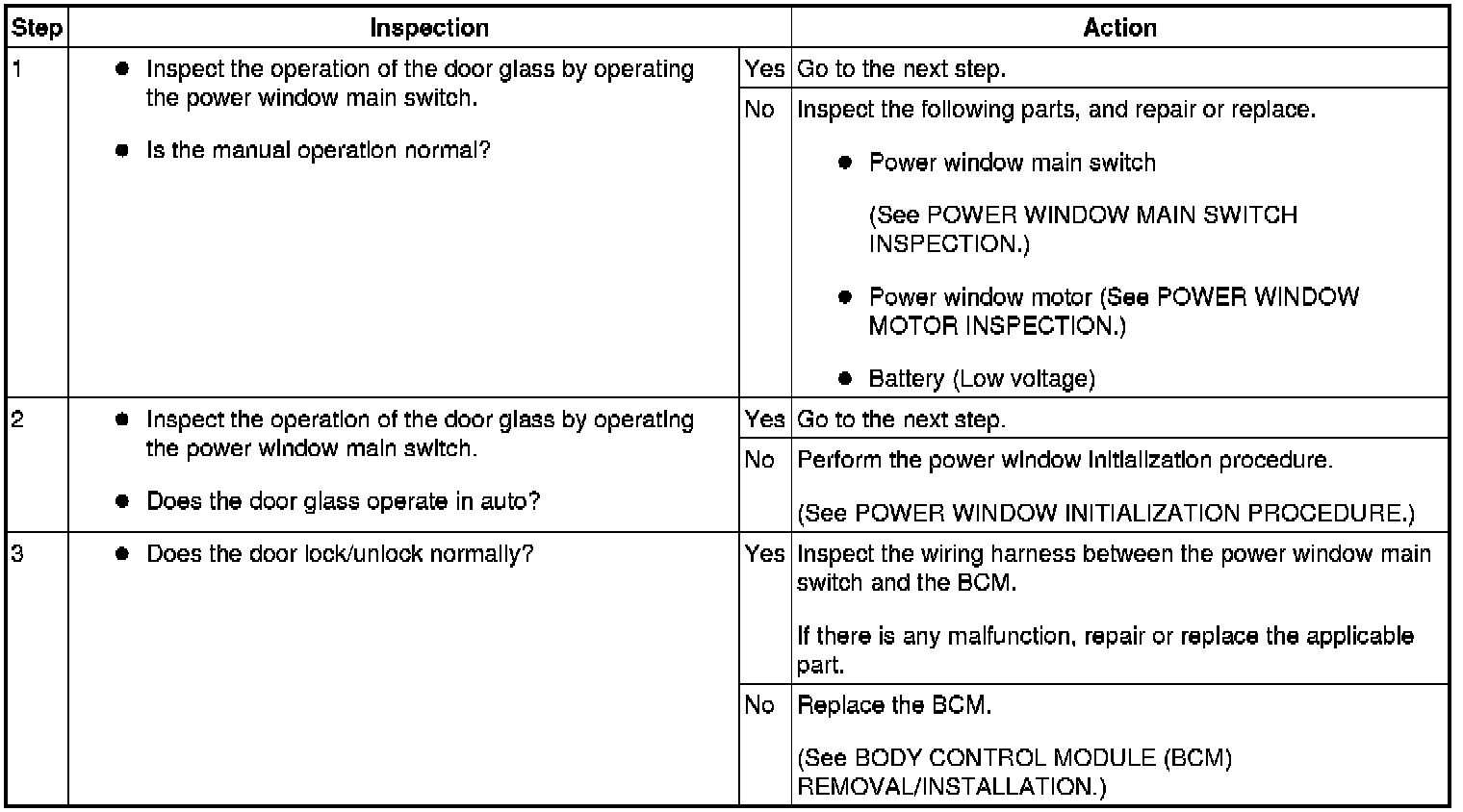

Diagnostic Procedure

Step 1-Step 3:
