Pinout Values and Diagnostic Parameters

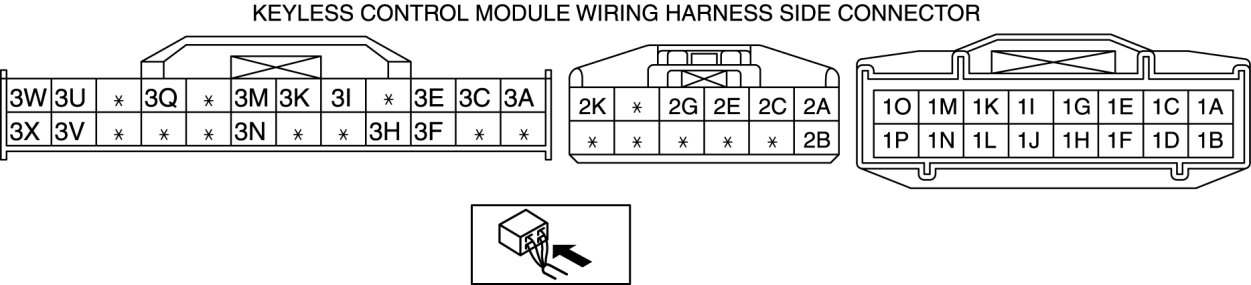

KEYLESS CONTROL MODULE INSPECTION [ADVANCED KEYLESS SYSTEM]

Terminal Voltage Table (Reference)

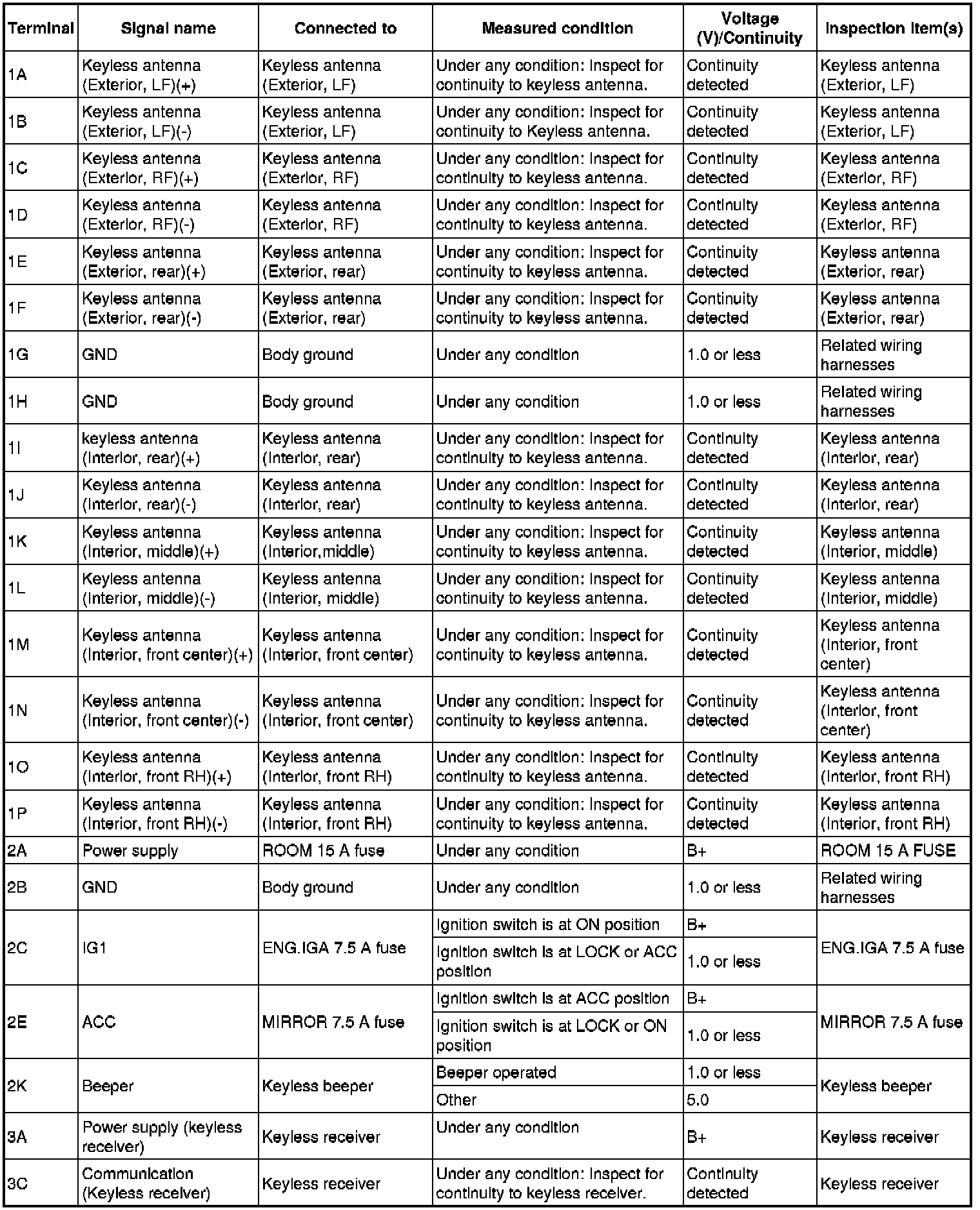

Terminal Voltage Table (Reference) (Part 1):

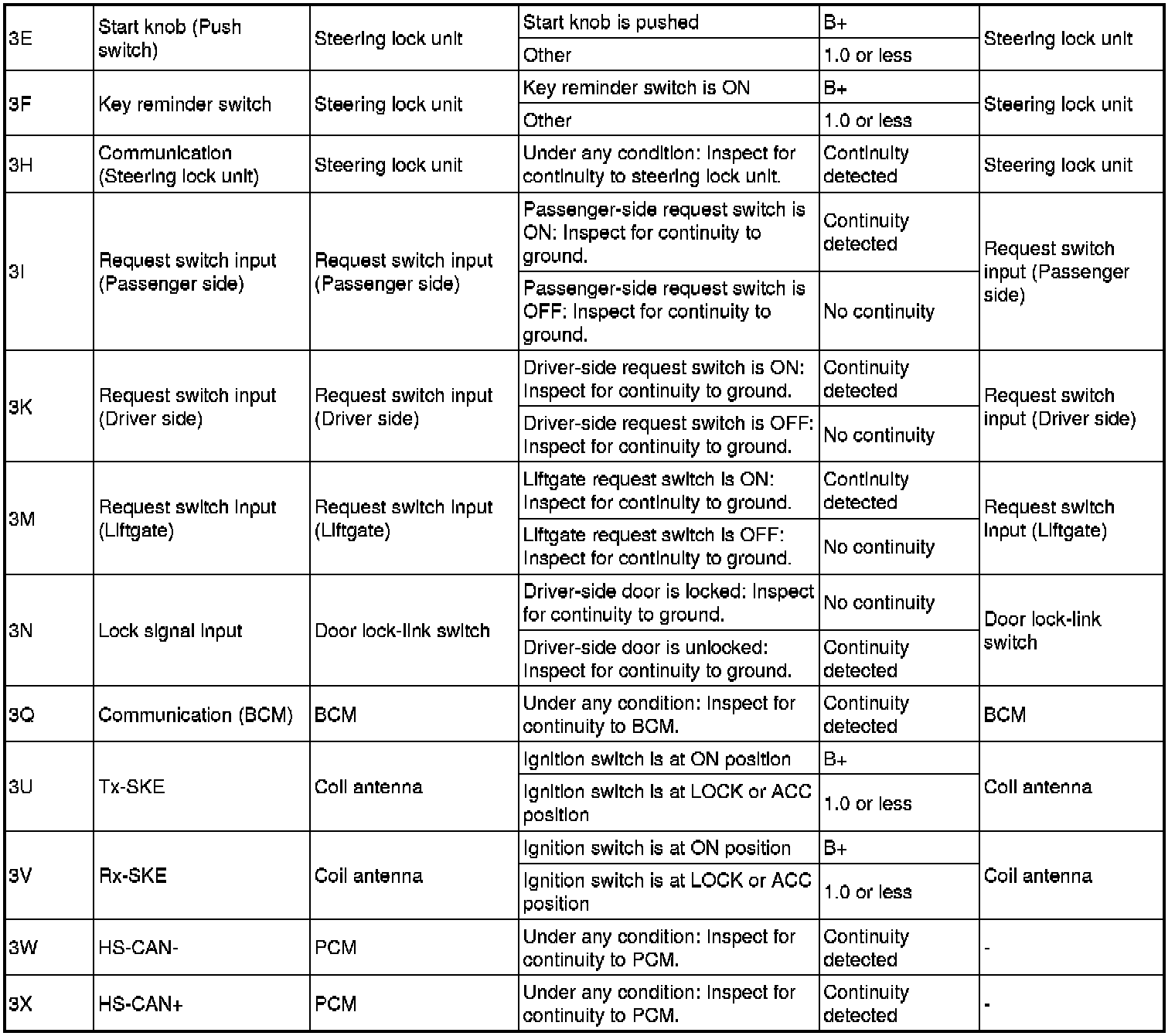

Terminal Voltage Table (Reference) (Part 2):
