Keyless Receiver Inspection [Advanced Keyless System]




KEYLESS RECEIVER INSPECTION [ADVANCED KEYLESS SYSTEM]

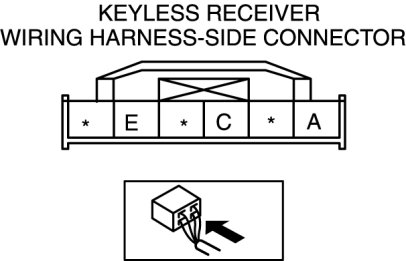

1. Measure the voltage at the auto light/wiper control module terminals as indicated below.

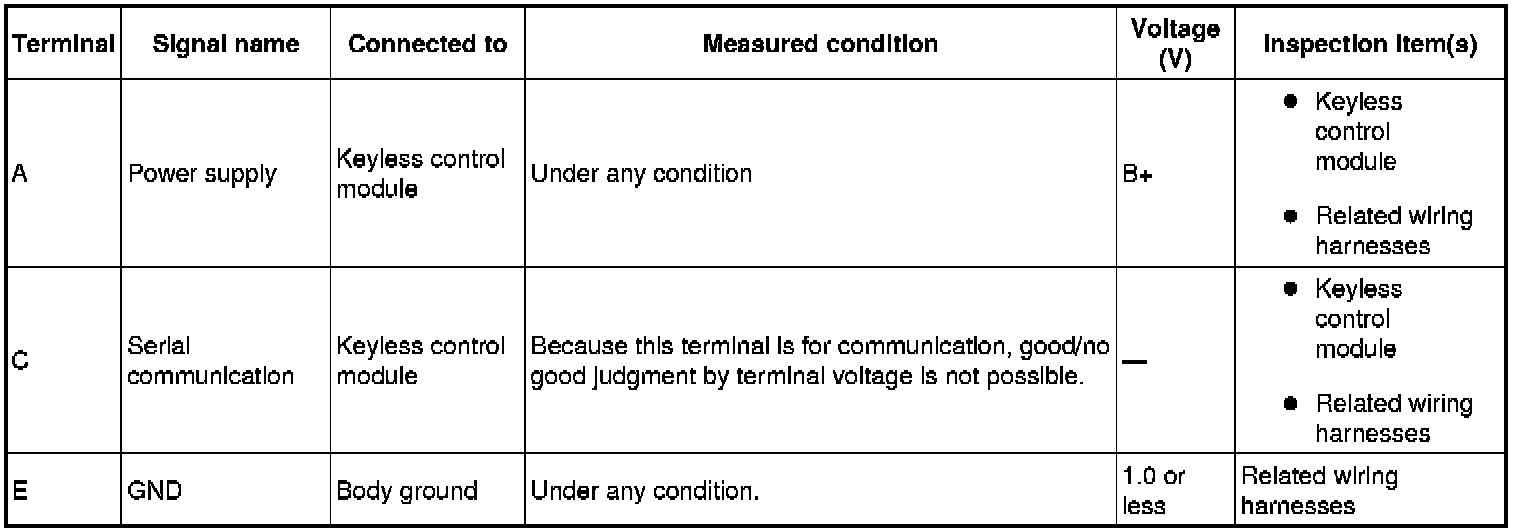

Terminal Voltage Table (Reference)






Terminal Voltage Table (Reference):
