No.3 Advanced Keyless Entry Function Inoperative [Advanced Keyless And Start System]




NO.3 ADVANCED KEYLESS ENTRY FUNCTION INOPERATIVE [ADVANCED KEYLESS AND START SYSTEM]

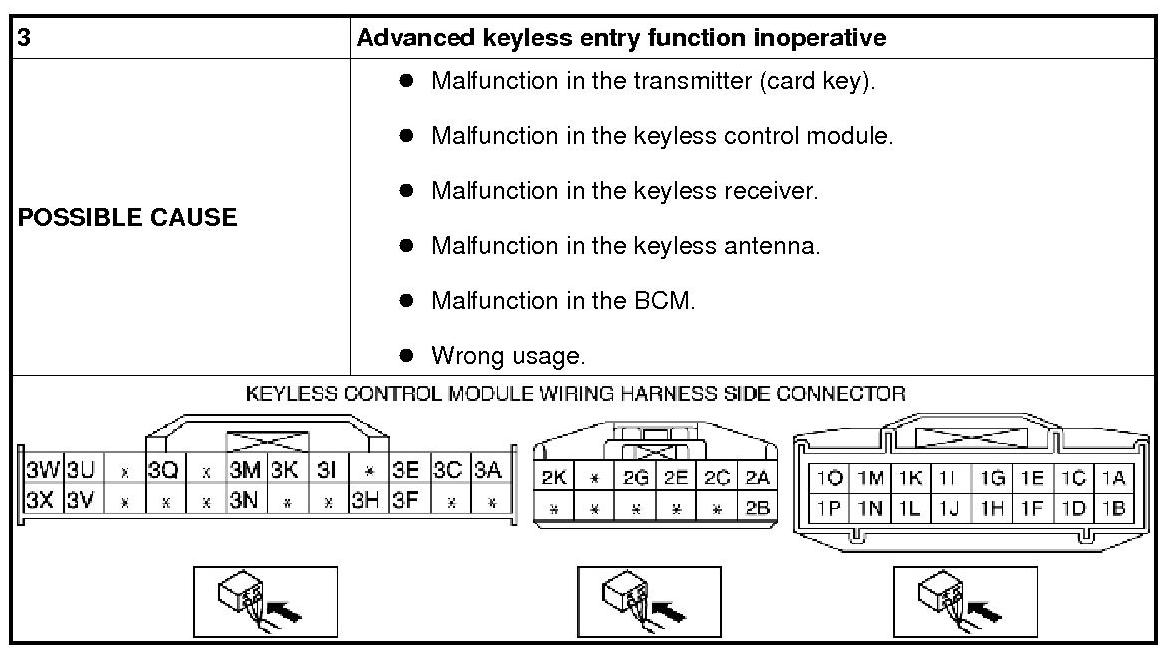

Possible Cause:





Diagnostic procedure

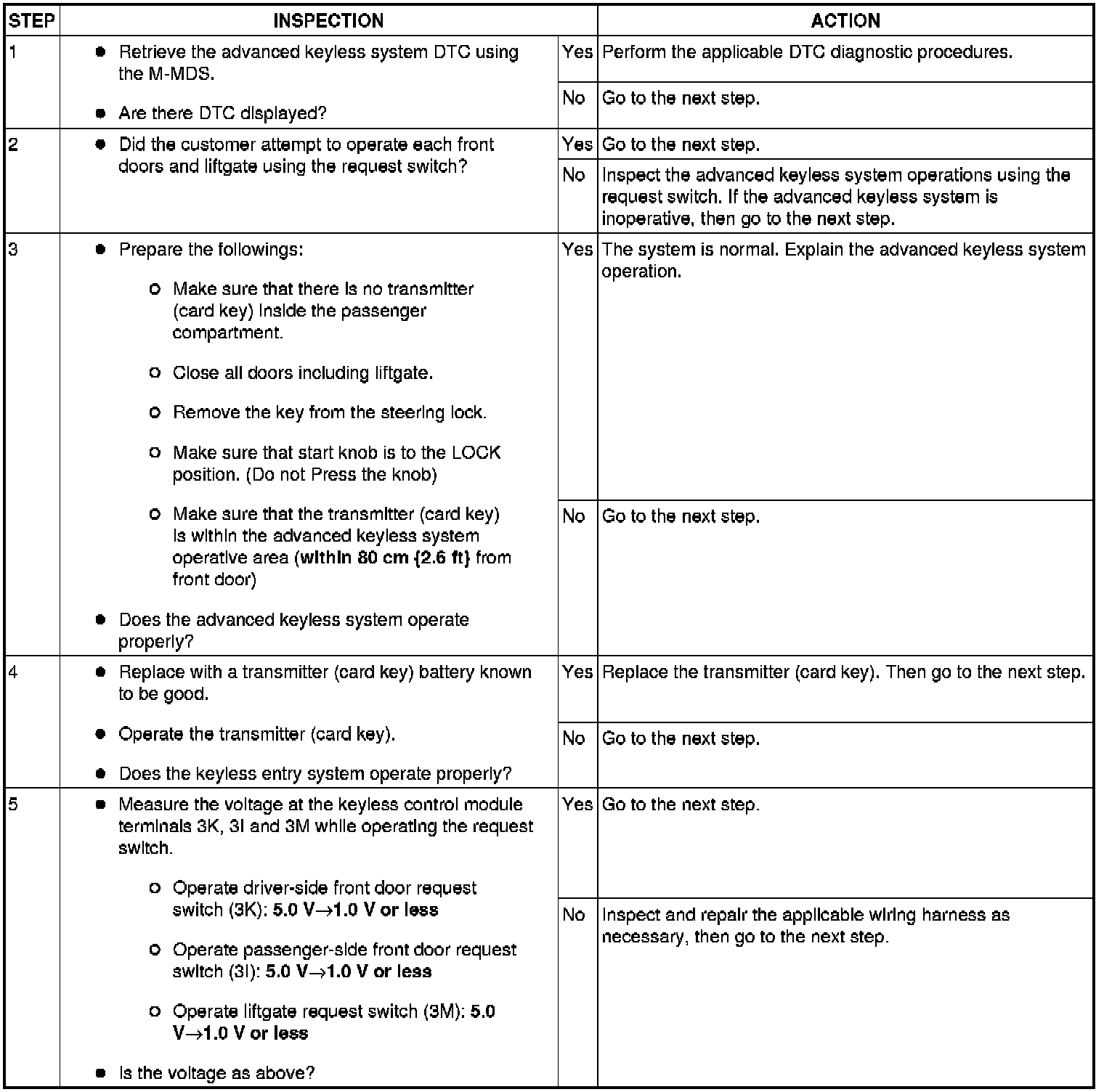

Step 1-Step 5:

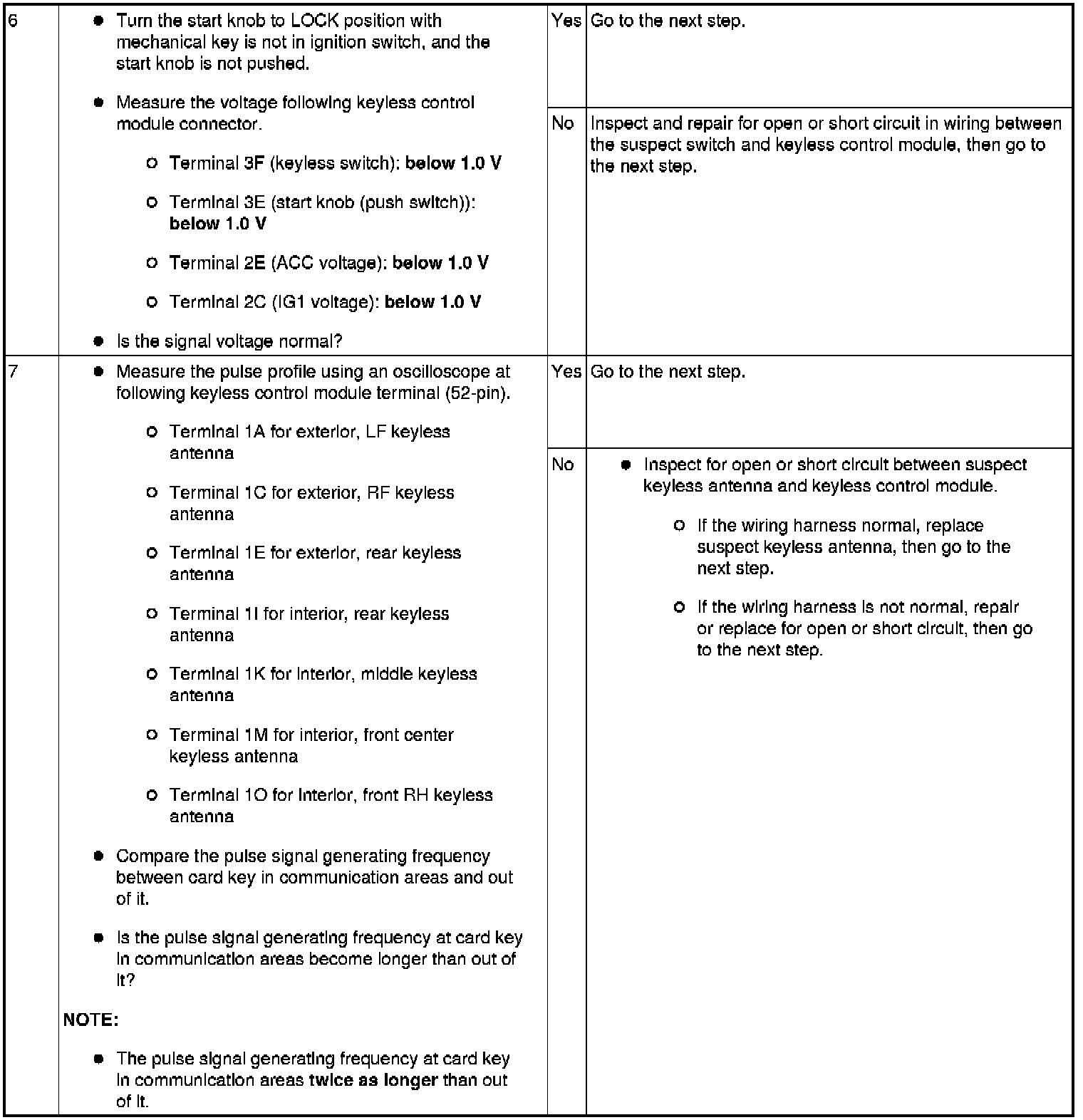

Step 6-Step 7:

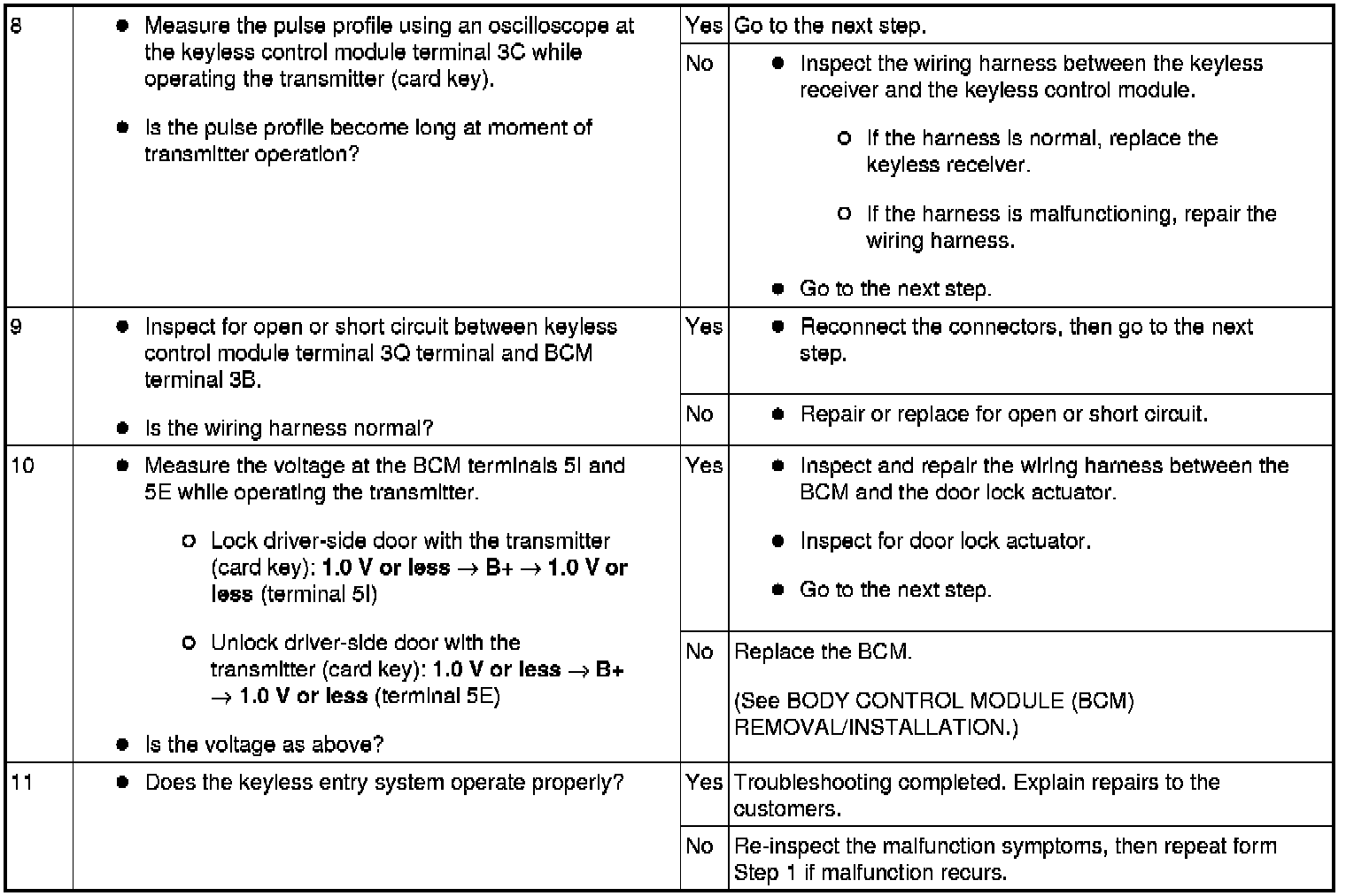

Step 8-Step 11:
