No.4 Advanced Keyless Start Function Inoperative [Advanced Keyless And Start System]




NO.4 ADVANCED KEYLESS START FUNCTION INOPERATIVE [ADVANCED KEYLESS AND START SYSTEM]

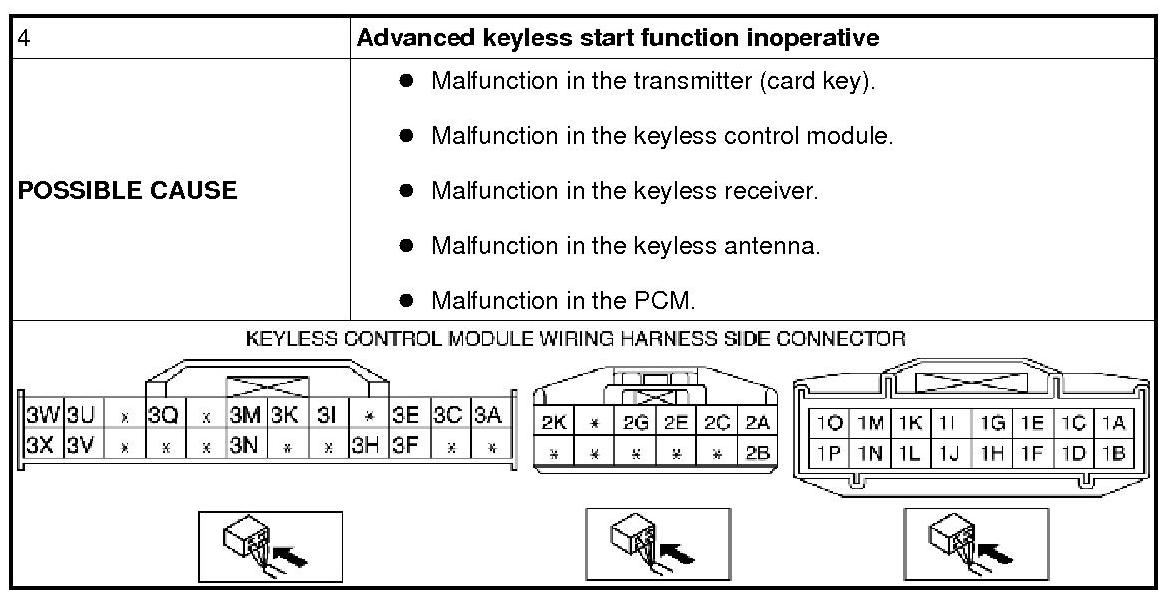

Possible Cause:





Diagnostic procedure

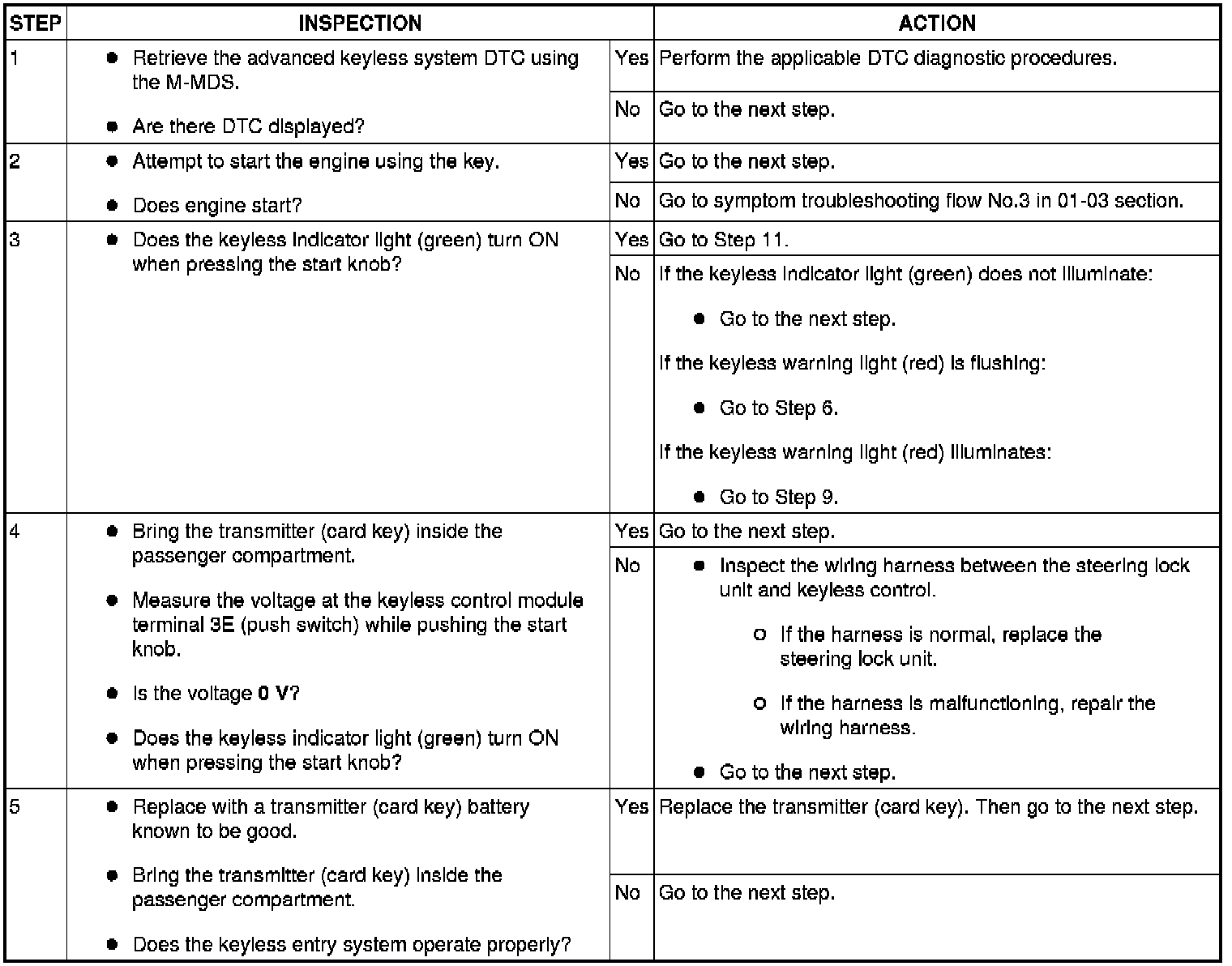

Step 1-Step 5:

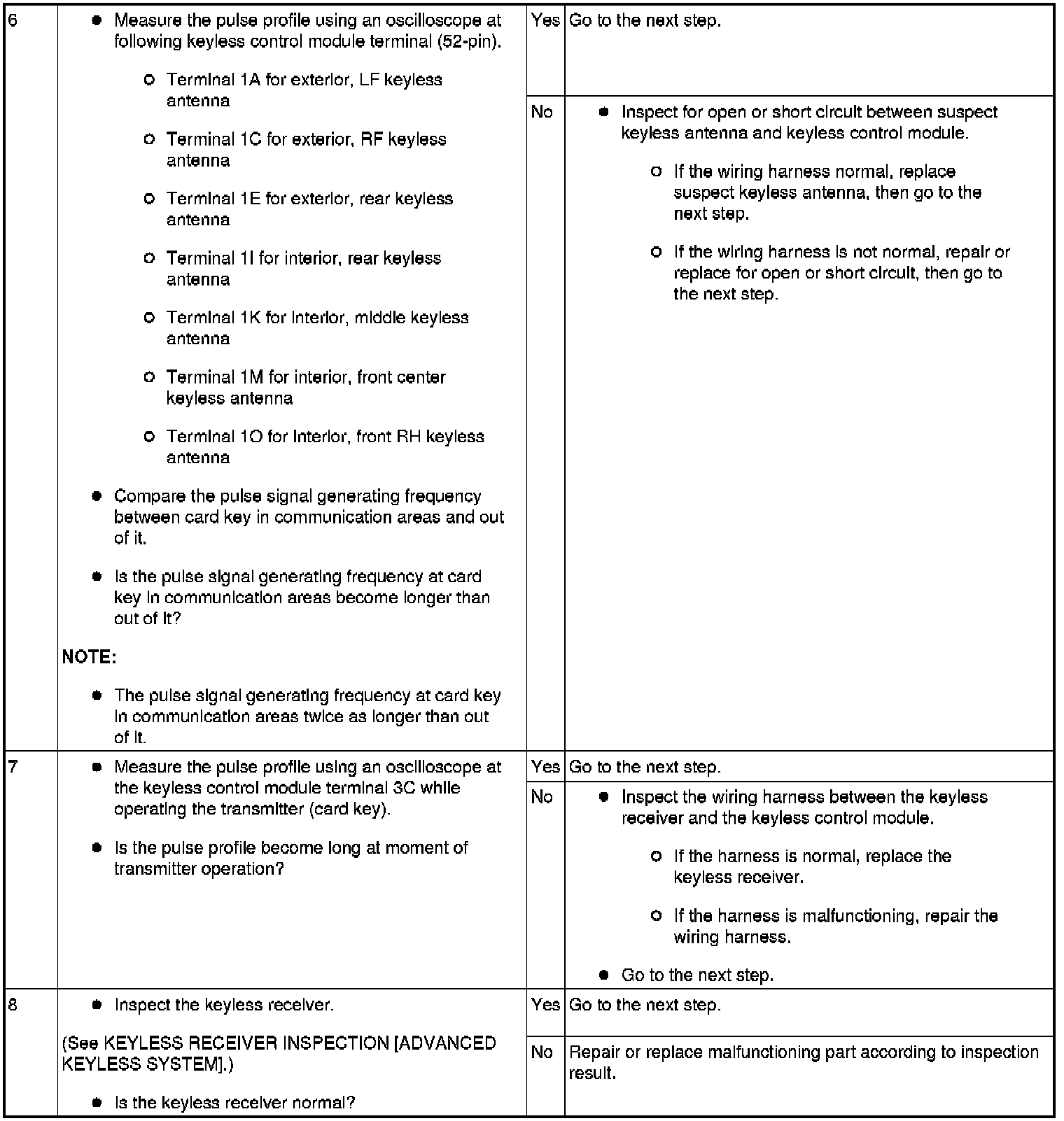

Step 6-Step 8:

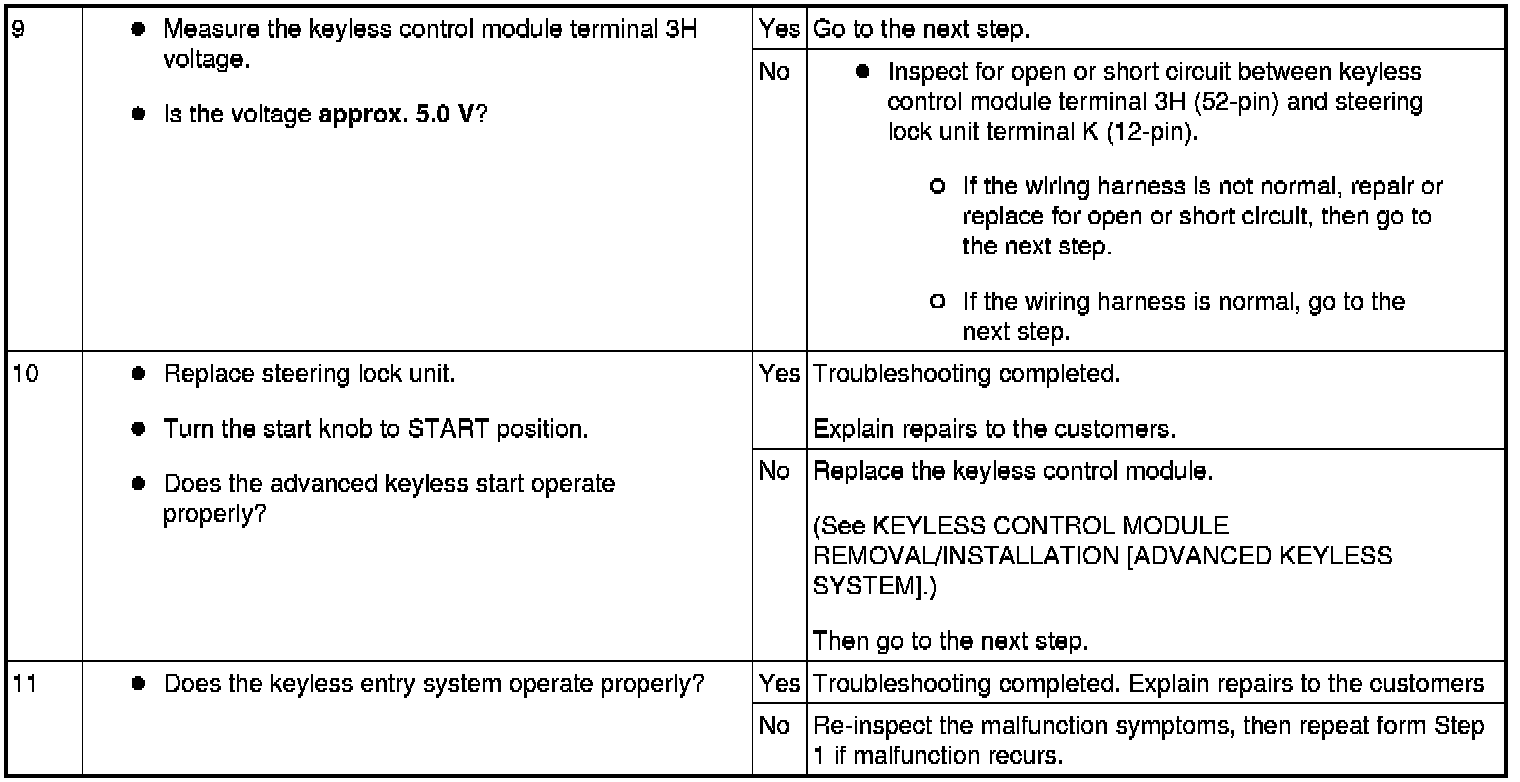

Step 9-Step 11:
