Power Trunk / Liftgate Control Module: Service and Repair

POWER LIFTGATE (PLG) CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Trunk box

b. Seat side box (LH) Seat Side Box Removal/Installation

c. Trunk end trim Trunk End Trim Removal/Installation

d. Third-row seat Third-Row Seat Removal/Installation

e. Third-row seat belt lower anchor installation bolt (LH) Third-Row Seat Belt Removal/Installation

f. Trunk side trim (LH) (See )

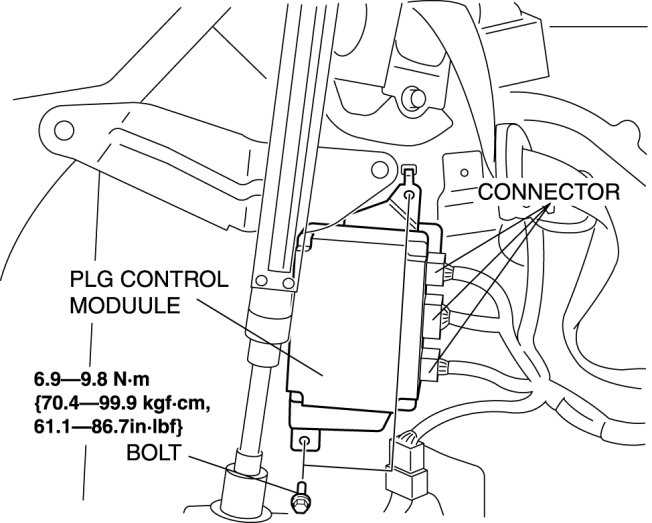

3. Disconnect the PLG control module connector.

4. Remove the bolts.






5. Remove the PLG control module.

6. Install in the reverse order of removal.
