Engine Control Module: Service and Repair

PCM REMOVAL/INSTALLATION [MZI-3.7]

NOTE:
- For replace the PCM, Setup the M-MDS and perform the PCM configuration. Programming and Relearning

1. Disconnect the negative battery cable.

2. Remove the battery and battery tray. (See Removal and Replacement)

NOTE:
- Only 2 PCM connectors.

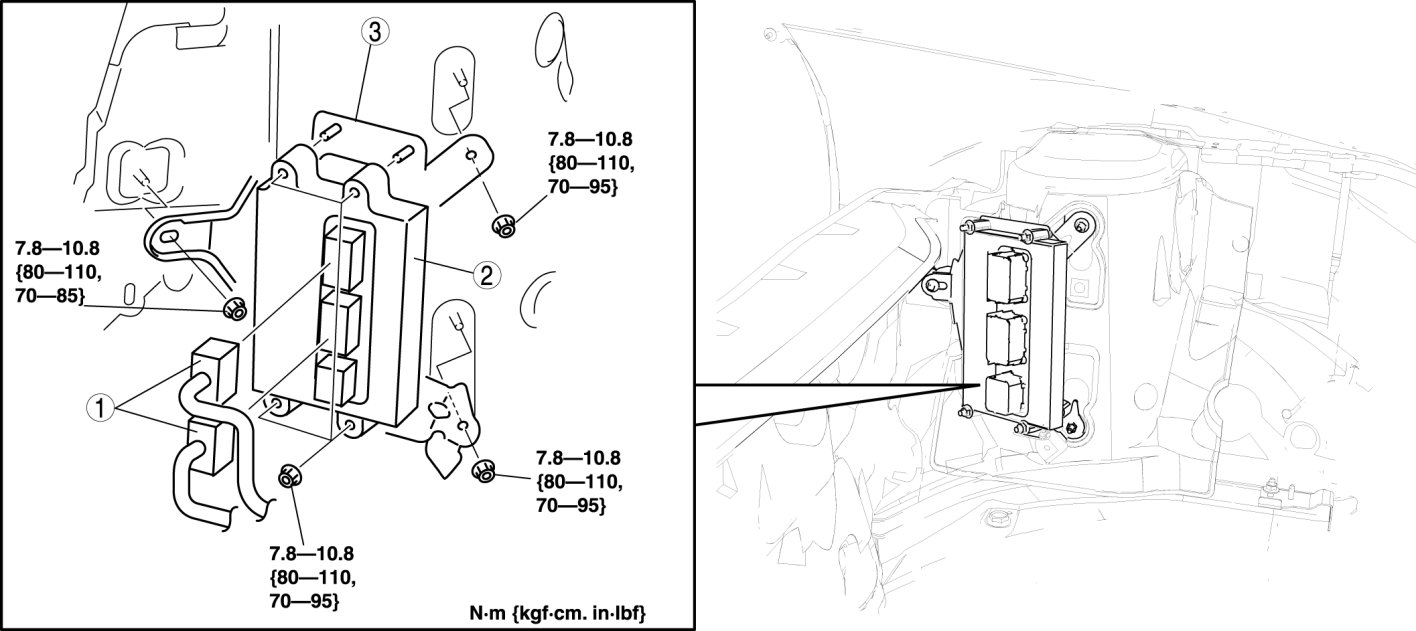

3. Disconnect connectors.

4. Remove PCM and bracket as and assembly.

5. Remove PCM from bracket.

6. When replacing the PCM on the vehicles, perform the following.

- PCM parameter reset. Advanced Keyless System Keyless Entry System

7. Install in the reverse order of removal.
