Circuit Open/Short Inspection: Notes

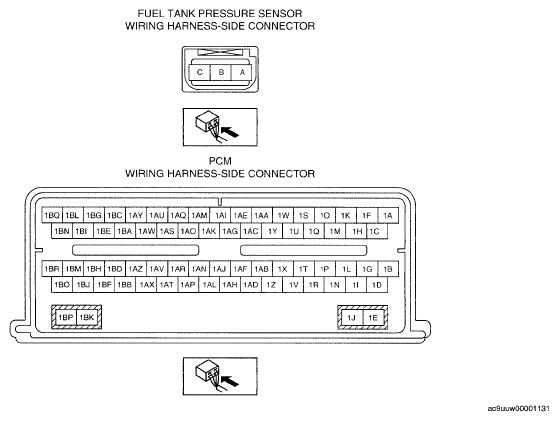

Fig 1: Identifying Fuel Tank Pressure Sensor Wiring Harness Side Connector
G05507987Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. See PCM REMOVAL/INSTALLATION [MZI-3.7] .
  2. Disconnect the fuel tank pressure sensor connector.
  3. Inspect the following wiring harnesses for open or short. (Continuity inspection)
