Circuit Open/Short Inspection: Notes

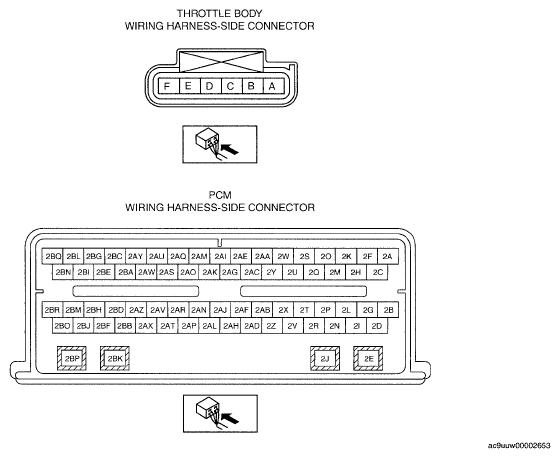

Fig 1: Throttle Body Wiring Harness Side Connector & PCM Wiring Harness Side-Connector
G05507962Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. See PCM REMOVAL/INSTALLATION [MZI-3.7] .
  2. Inspect the following wiring harnesses for open or short circuit. (Continuity inspection)
