Door Lock Switch LH

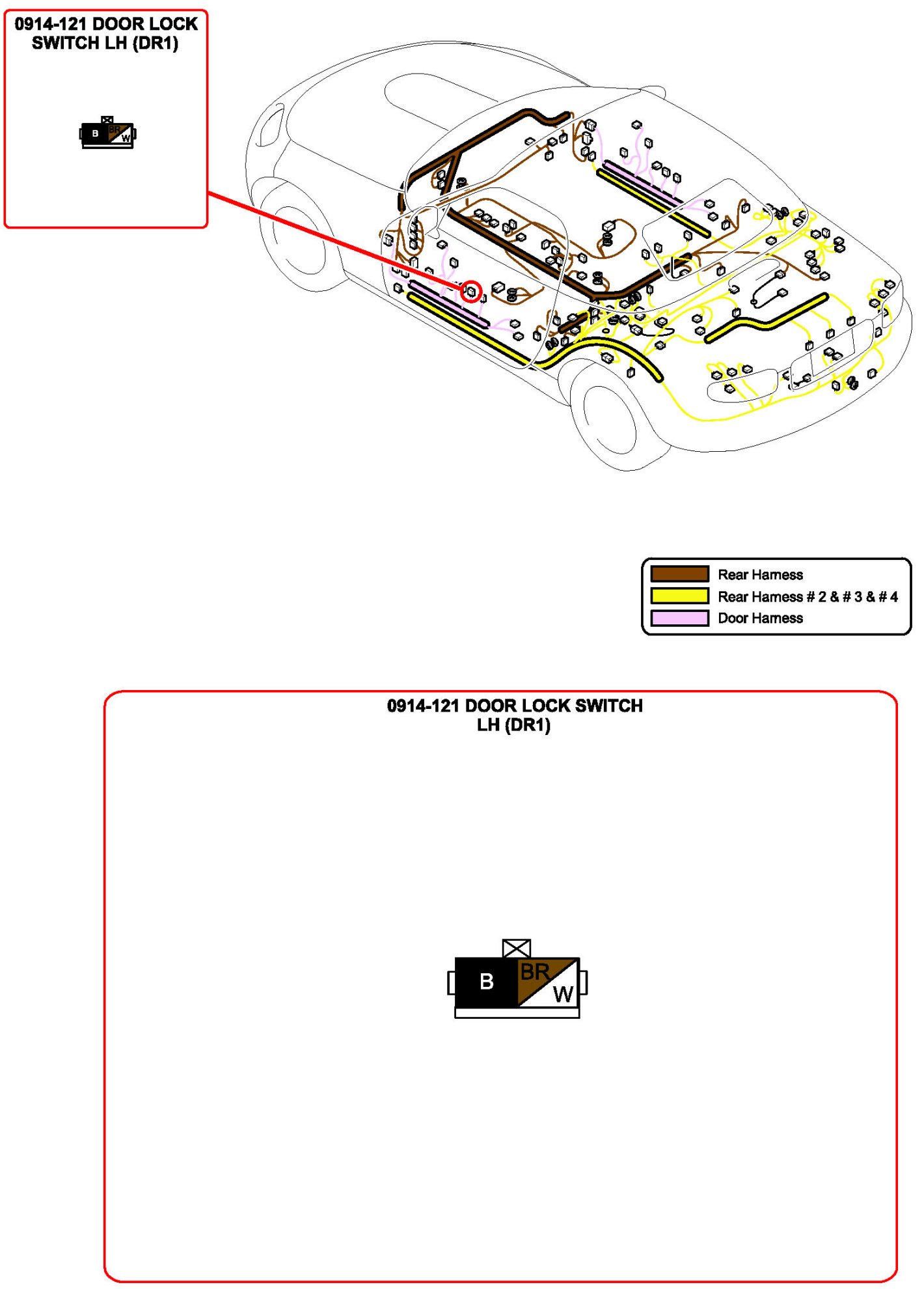

Door Lock Switch LH:

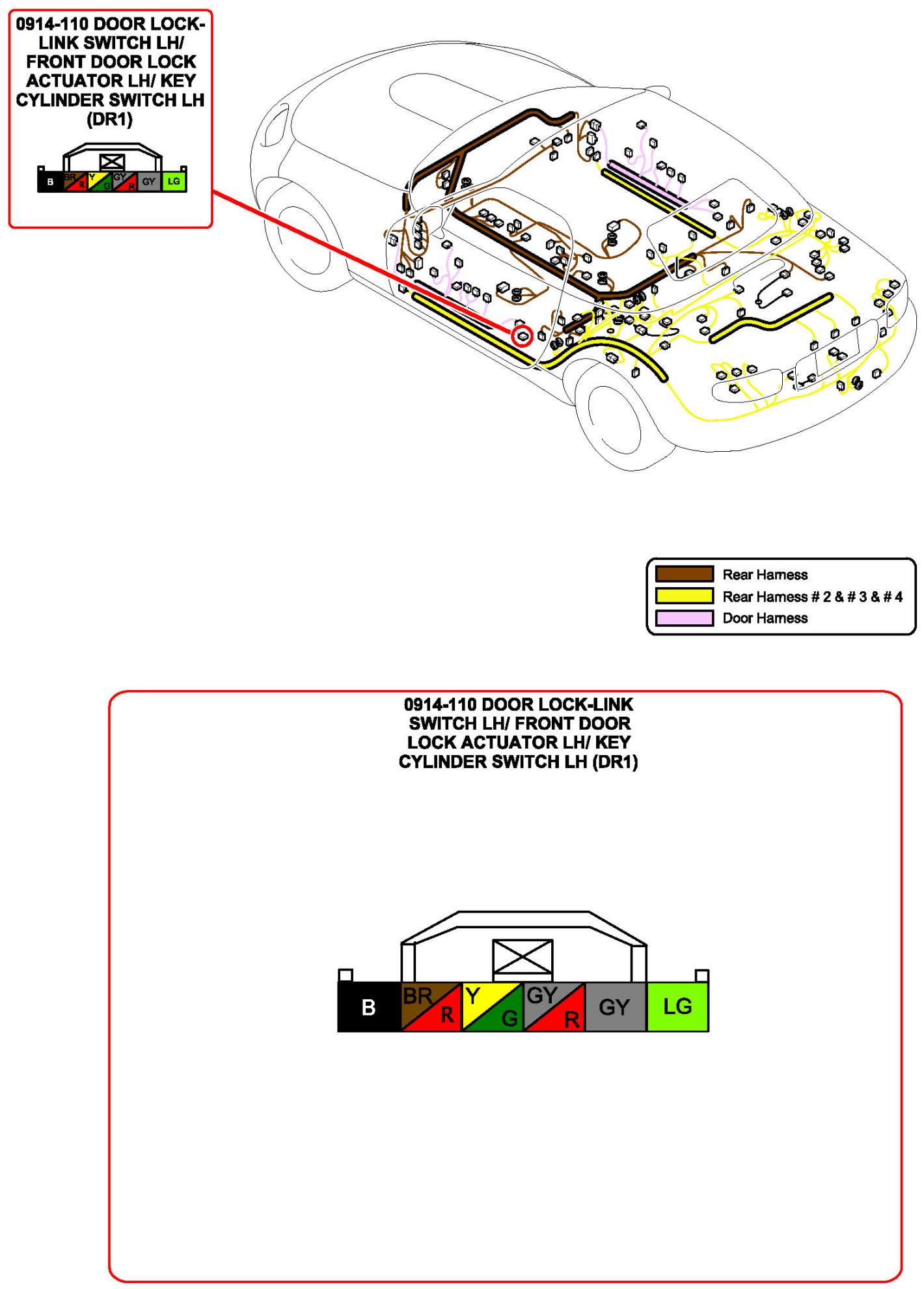

Door Lock-Link Switch LH/Front Door Lock Actuator LH/Key Cylinder Switch LH:

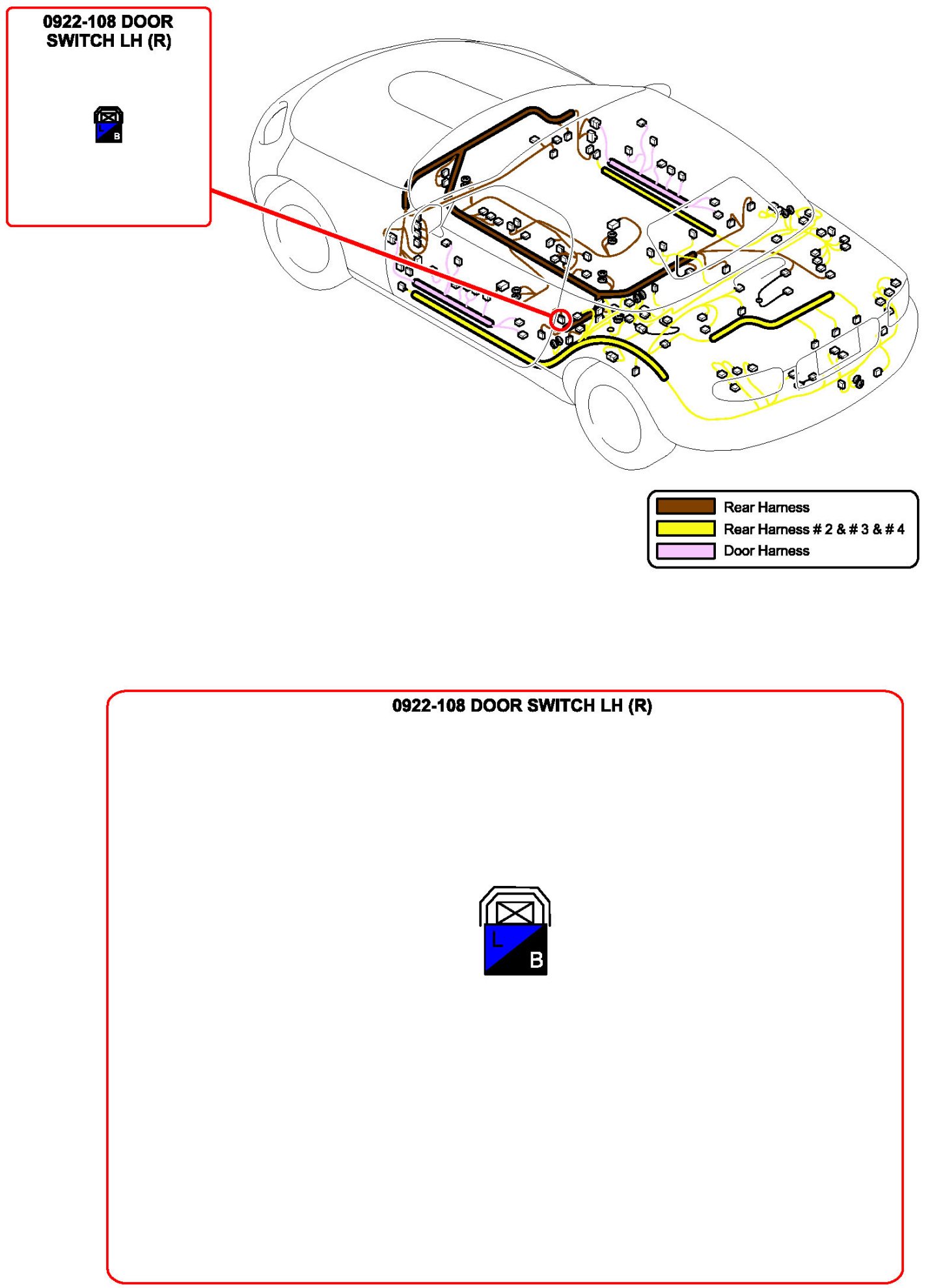

Door Switch LH:

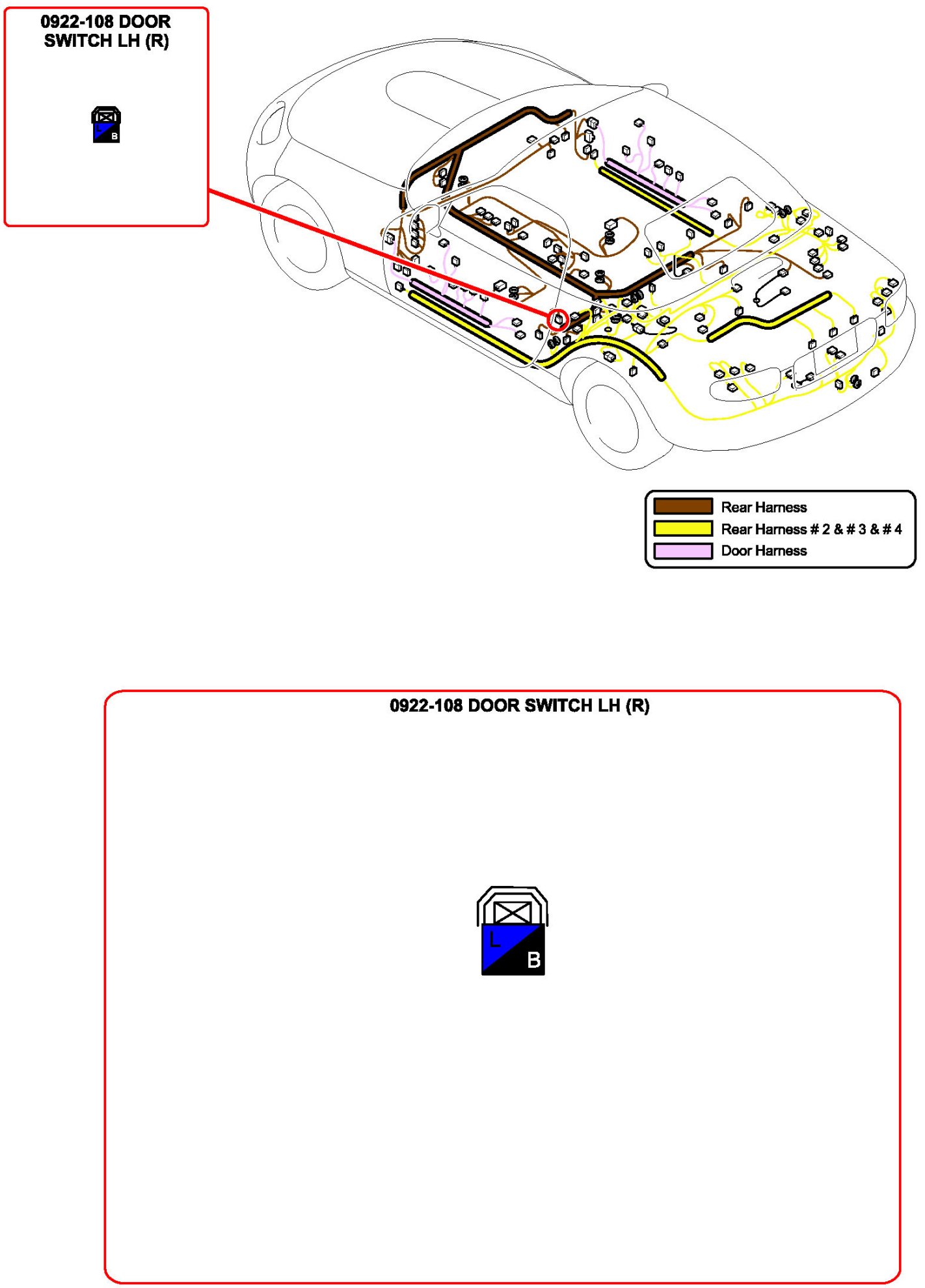

Door Switch LH:

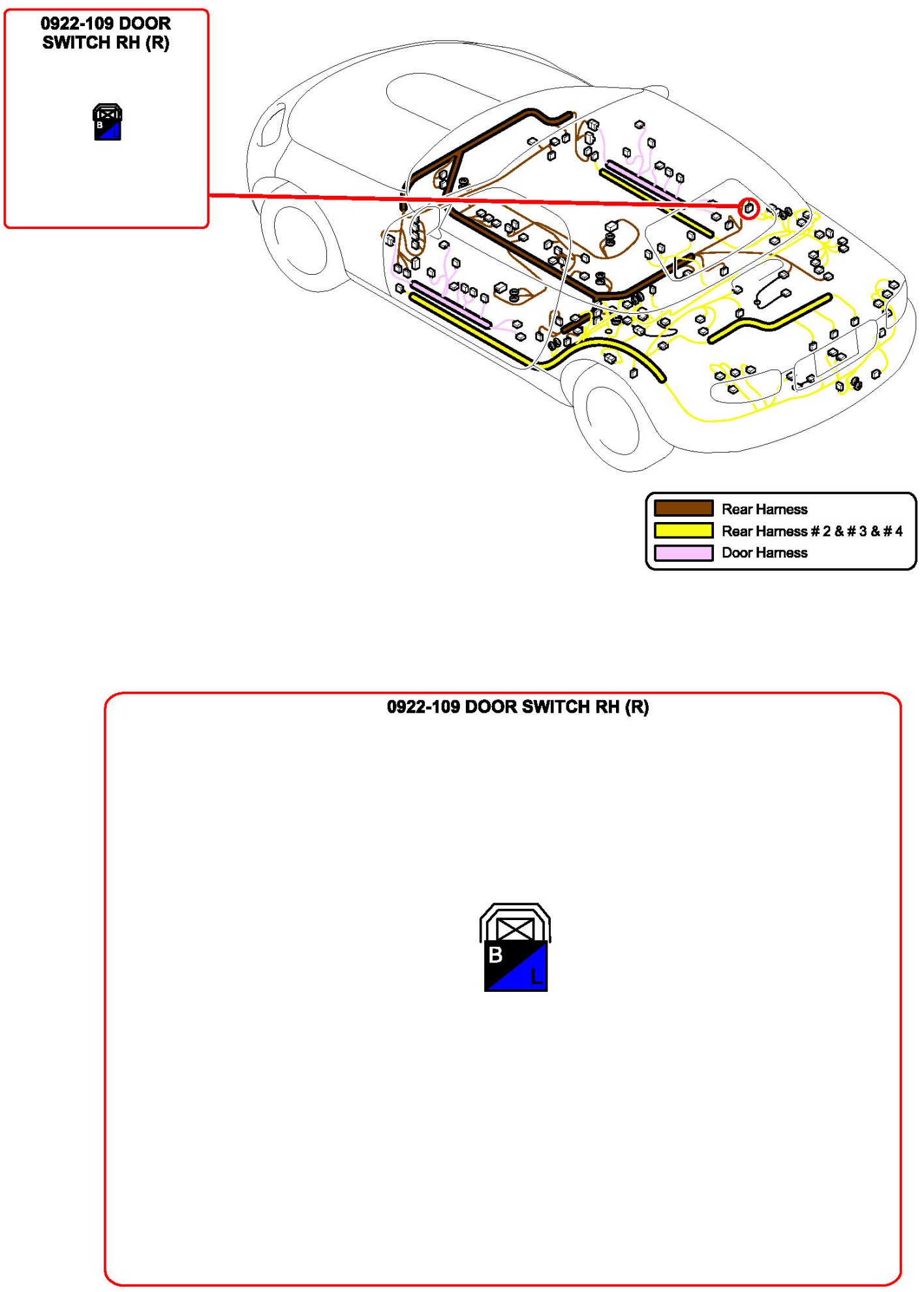

Door Switch RH:

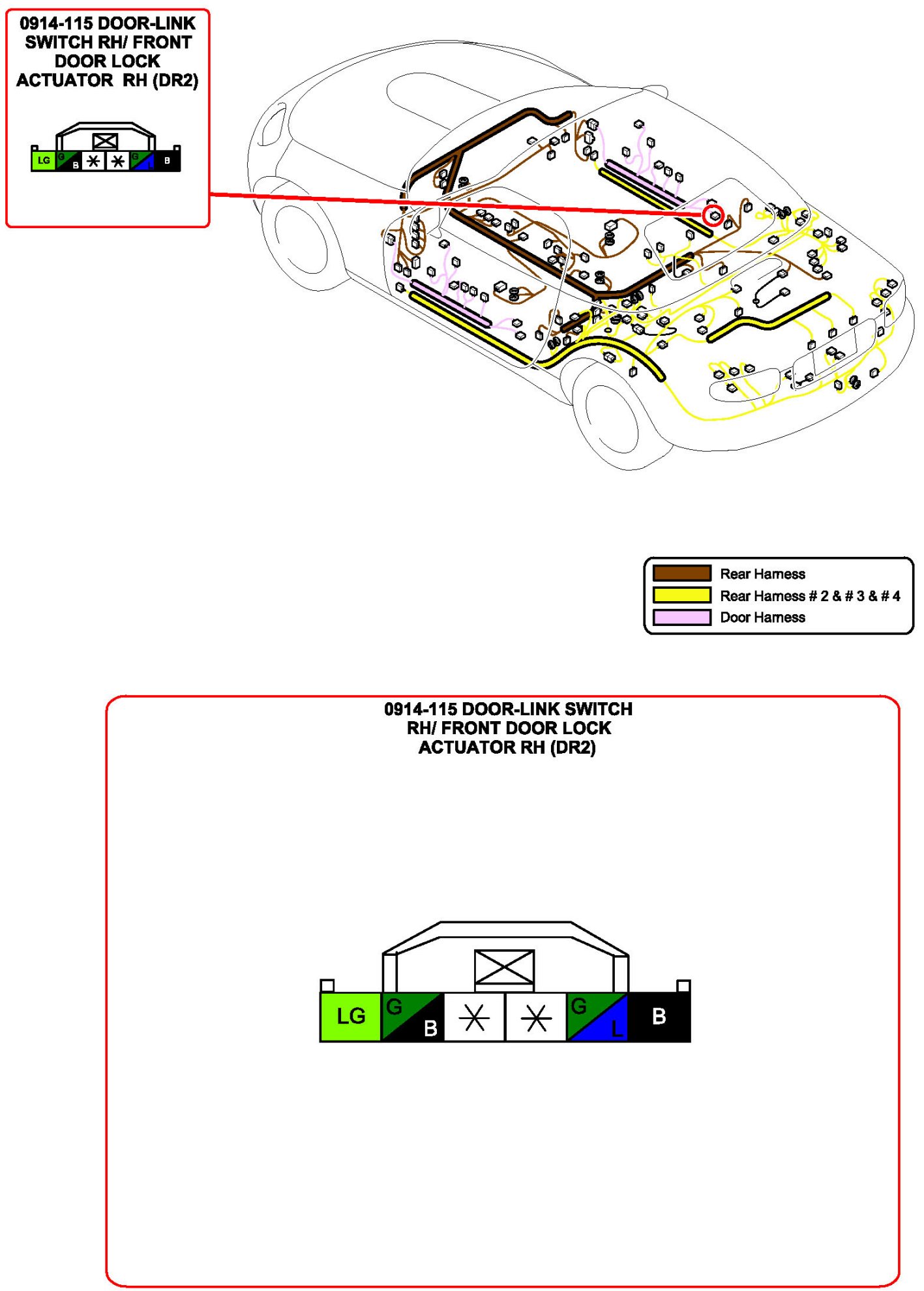

Door-Link Switch RH/Front Door Lock Actuator RH:

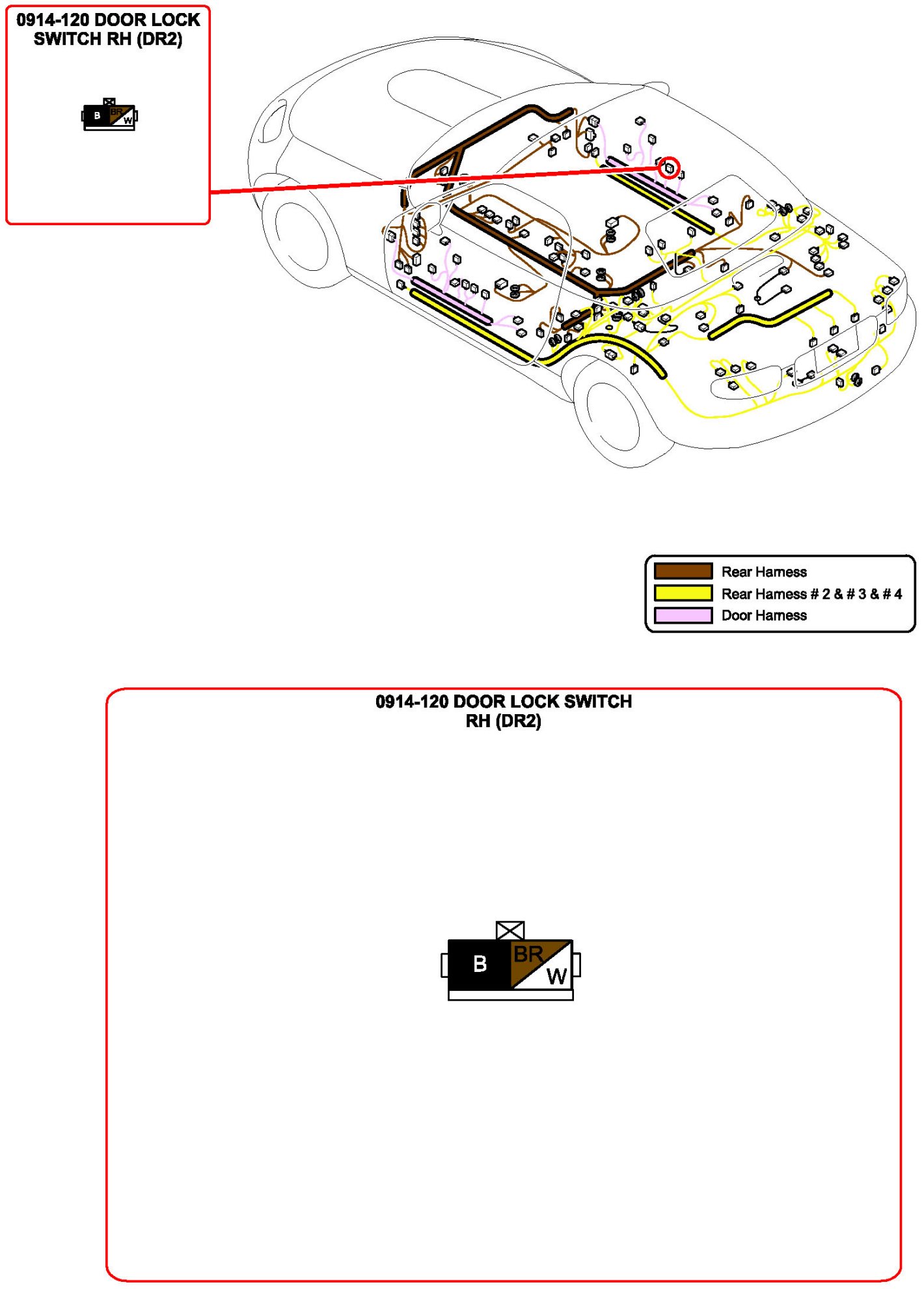

Door Lock Switch RH:
