Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [LF] )
  2. Inspect the following wiring harness for open or short circuit (continuity Inspection).

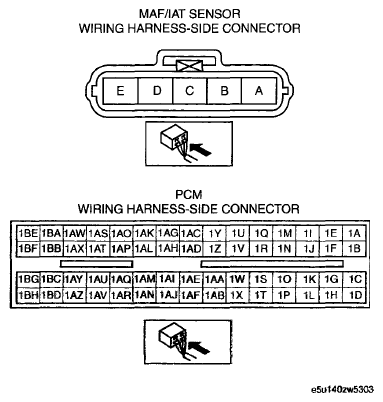

Fig 1: Identifying MAF/IAT Sensor And PCM Connector
G06151074Courtesy of MAZDA MOTORS CORP.
