PCM Connector Connected Note

CAUTION:

If the PCM connector is inserted at an angle and the lever is moved, the connector could be damaged. Verify that the PCM connector is inserted straight.

Fig 1: Identifying PCM Connector Correct And Incorrect Position

Courtesy of MAZDA MOTORS CORP.

Verify that the PCM connector lever is tilted towards the wiring harness side as shown in the illustration.
Insert the PCM connector straight until it contacts the PCM and verify that the lever reverts upward naturally.

Fig 2: Identifying PCM Connector
Courtesy of MAZDA MOTORS CORP.

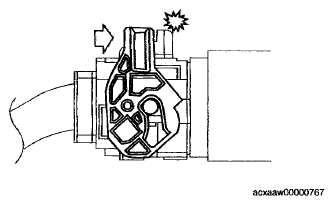

Push the lever until a click is heard.

Fig 3: Pushing Lever Until
Courtesy of MAZDA MOTORS CORP.
