Circuit Open/Short Inspection: Notes

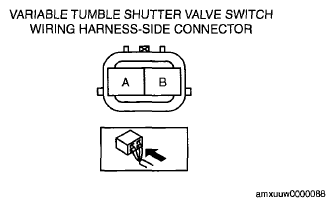

Fig 1: Identifying Variable Tumble Shutter Valve Switch Connector
G06151064Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector.
  2. Inspect the following harness for an open or short wiring. (Continuity inspection)

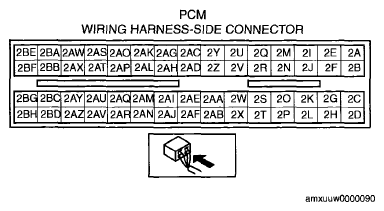

Fig 2: Identifying PCM Connector
G06151063Courtesy of MAZDA MOTORS CORP.
