Oil Pressure Sensor: Service and Repair

OIL PRESSURE SENSOR REMOVAL/INSTALLATION [13B-MSP]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the extension manifold (upper). (See Intake Manifold Removal/Installation)

4. Remove the extension manifold (lower). (See Intake Manifold Removal/Installation)

5. Disconnect the oil pressure sensor connector.

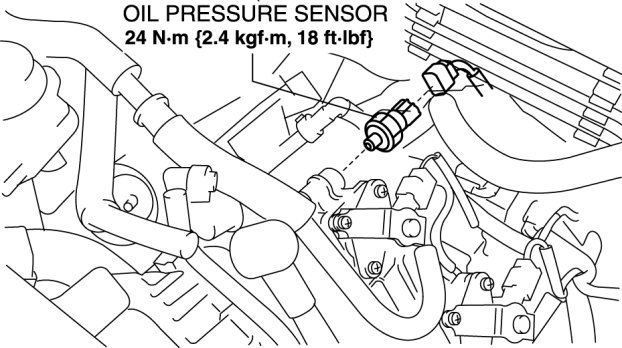

6. Remove the oil pressure sensor.






7. Install in the reverse order of removal.
