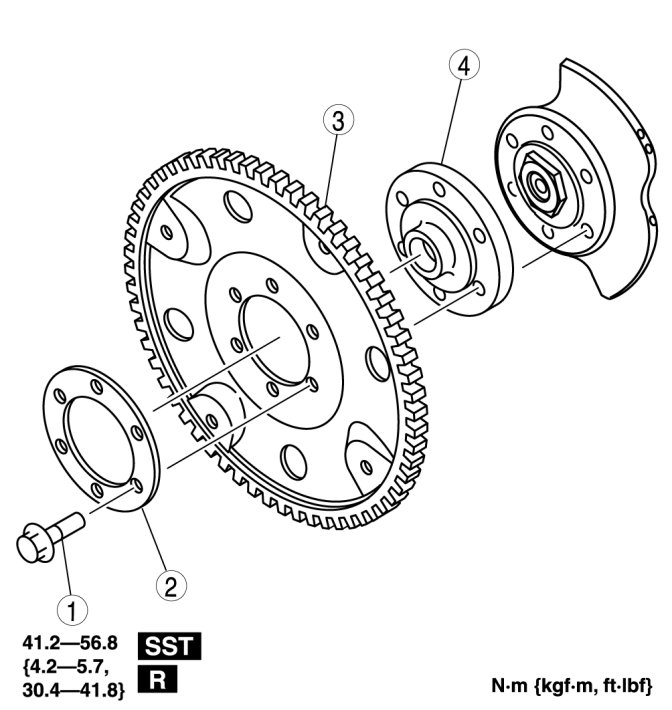

Flex Plate

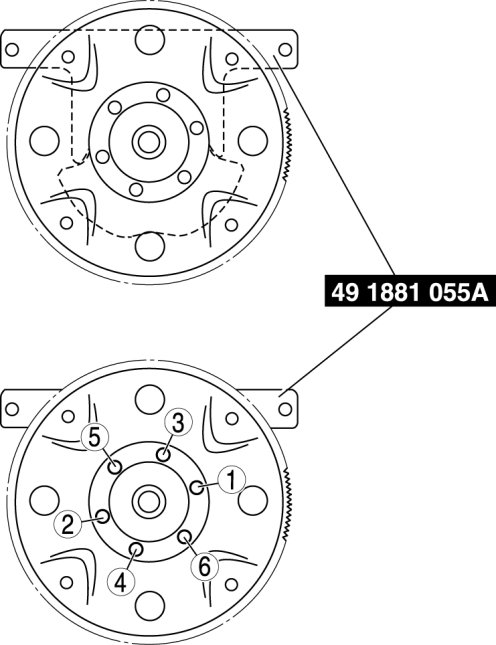

Tighten the drive plate mounting bolts in two or three steps in the order as shown in the figure.

Tightening torque 41.2-56.8 Nm {4.2-5.7 kgf-m, 30.4-41.8 ft-lbf}
