Flywheel

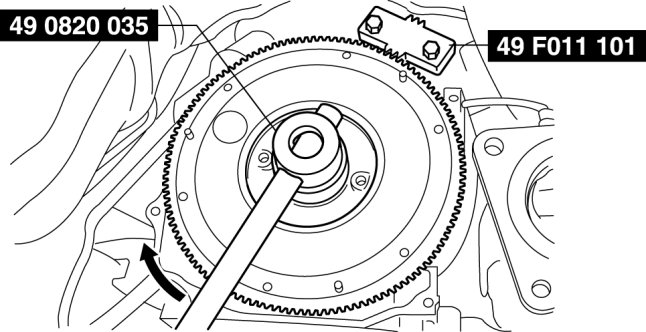

Install the SST to the flywheel. Tighten the locknut using the SST.







Tightening torque 392-490 Nm {40.0-49.9 kgf-m, 289-361 ft-lbf}
