Manual Transmission/Transaxle

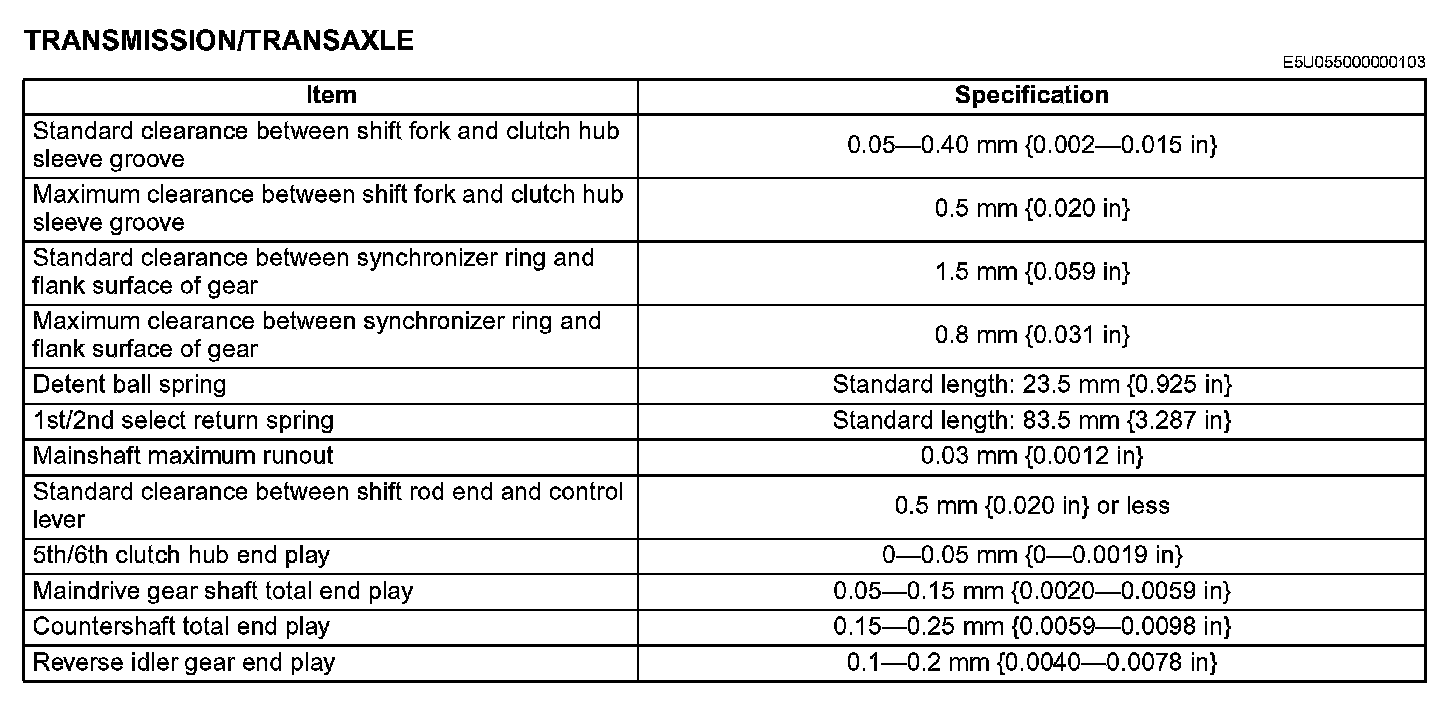

TRANSMISSION/TRANSAXLE





Technical Data:





5th/6th clutch hub retaining ring

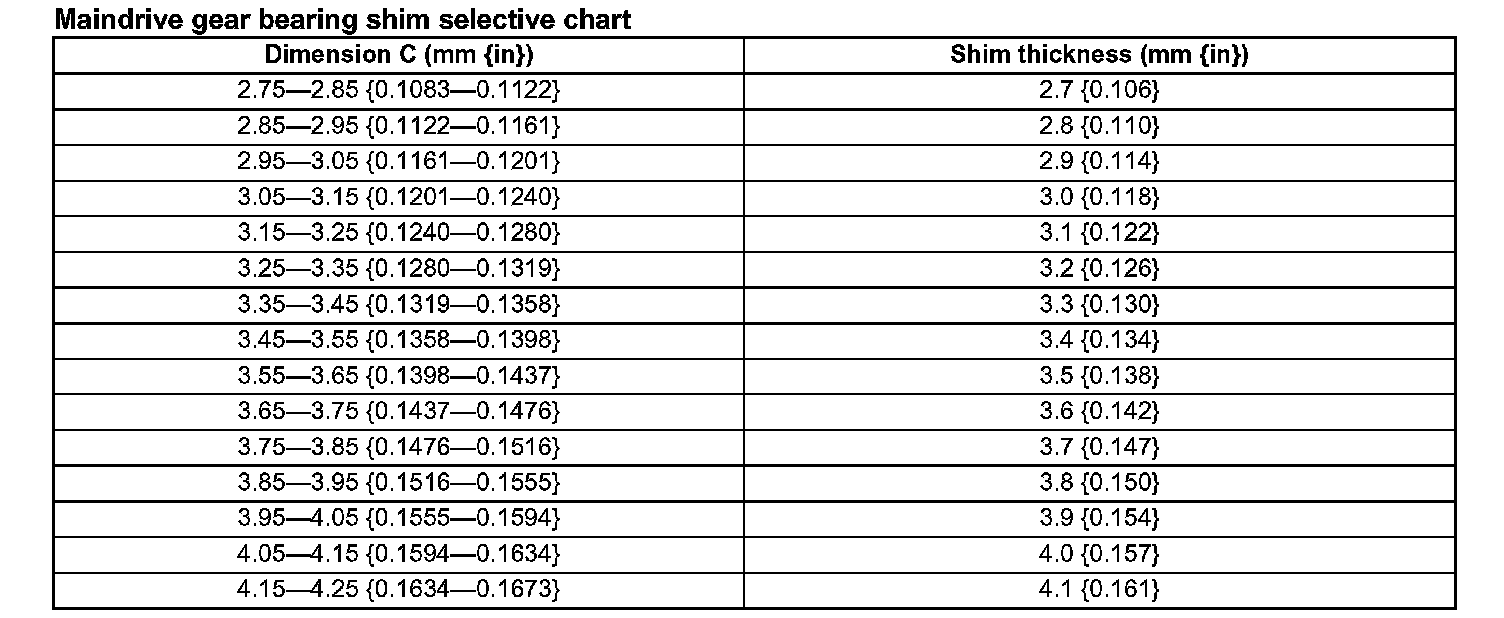

Maindrive gear bearing shim selective chart





Dimension C (mm (in)) Shim thickness (mm (in))

Countershaft front bearing shim selective chart





Reverse idler gear retaining ring
