Steering Control Module: Service and Repair

EPS CONTROL MODULE REMOVAL/INSTALLATION

CAUTION:
- If the EPS control module is replaced, set the EPS system to the neutral position. If not set to the neutral position, the system may not operate correctly. Programming and Relearning
- Do not drop the EPS control module. Replace the EPS control module if it subjected to an impact.

1. Remove the following parts:
a. Engine cover. Service and Repair

b. Battery cover. Removal and Replacement

c. PCM cover Service and Repair

d. PCM Service and Repair

e. PCM bracket No.1 Service and Repair

f. PCM bracket No.2 Service and Repair

g. PCM bracket No.3 Service and Repair

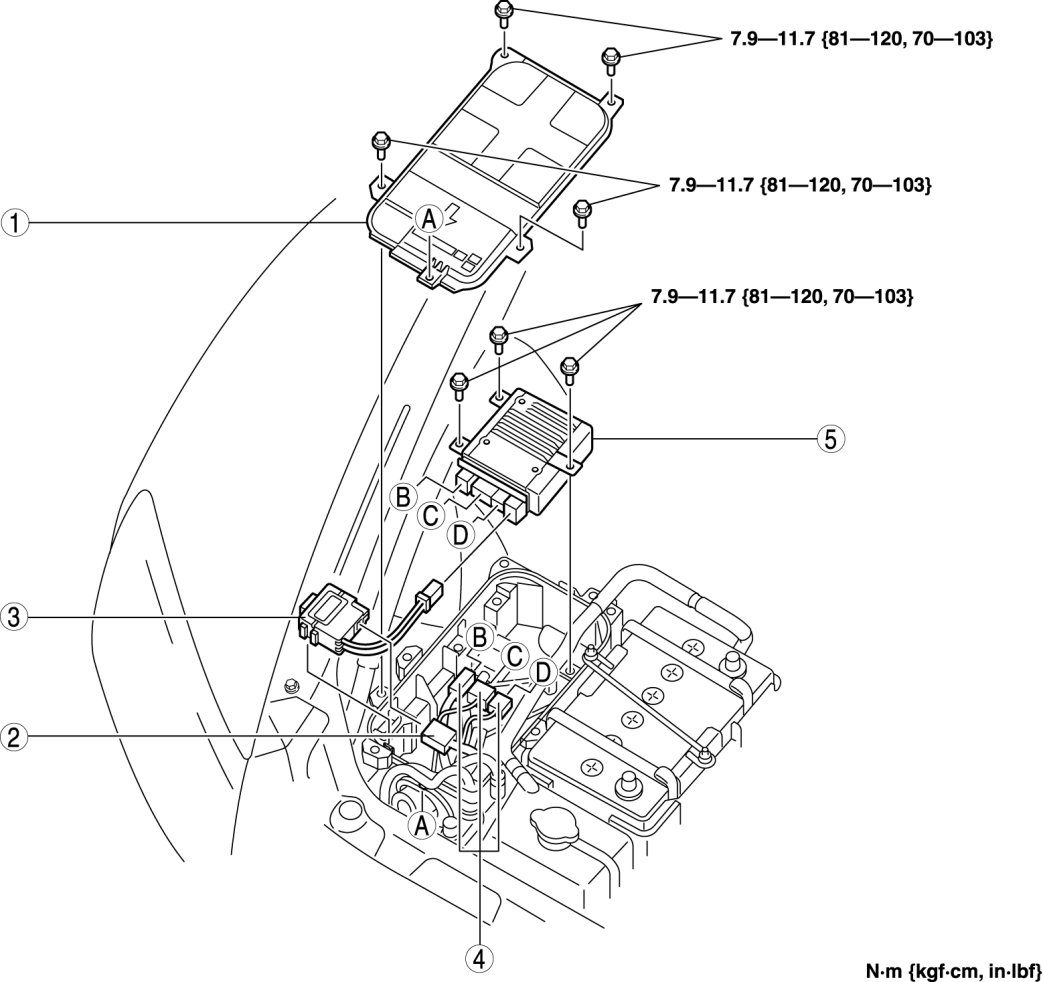

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. After installation, set the EPS system to the neutral position. Programming and Relearning
