DC/DC Converter Module

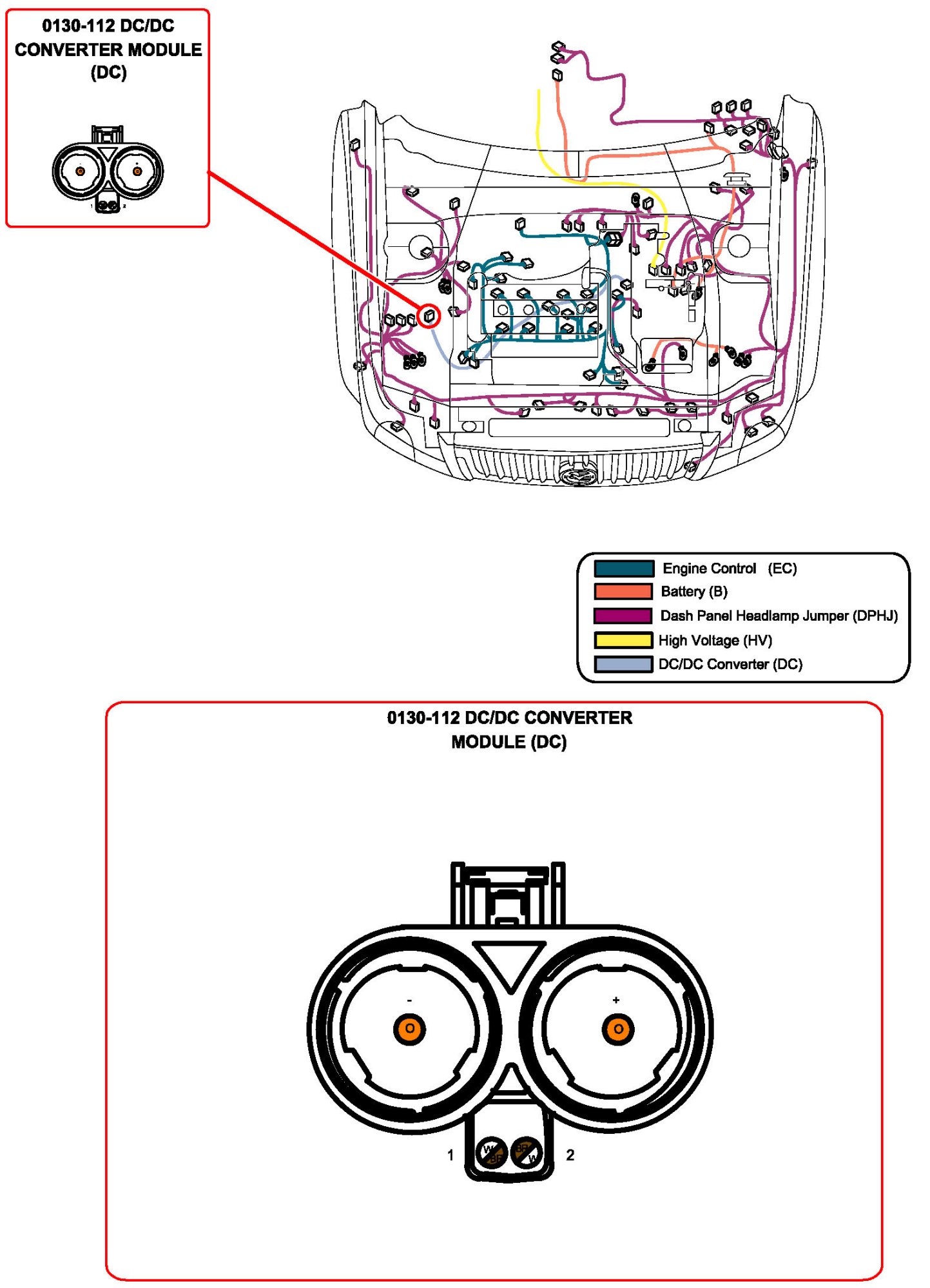

DC/DC Converter Module:

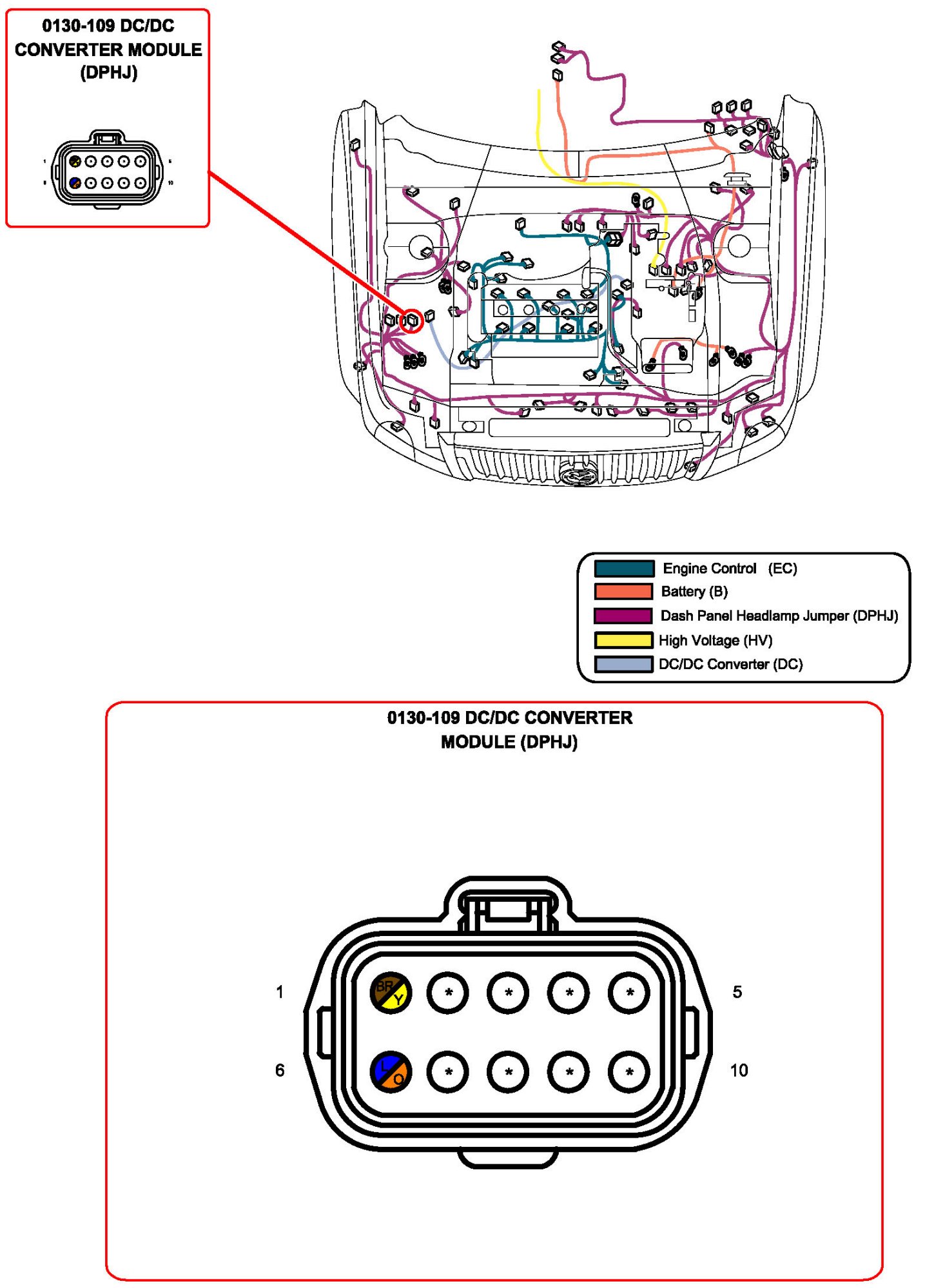

DC/DC Converter Module:

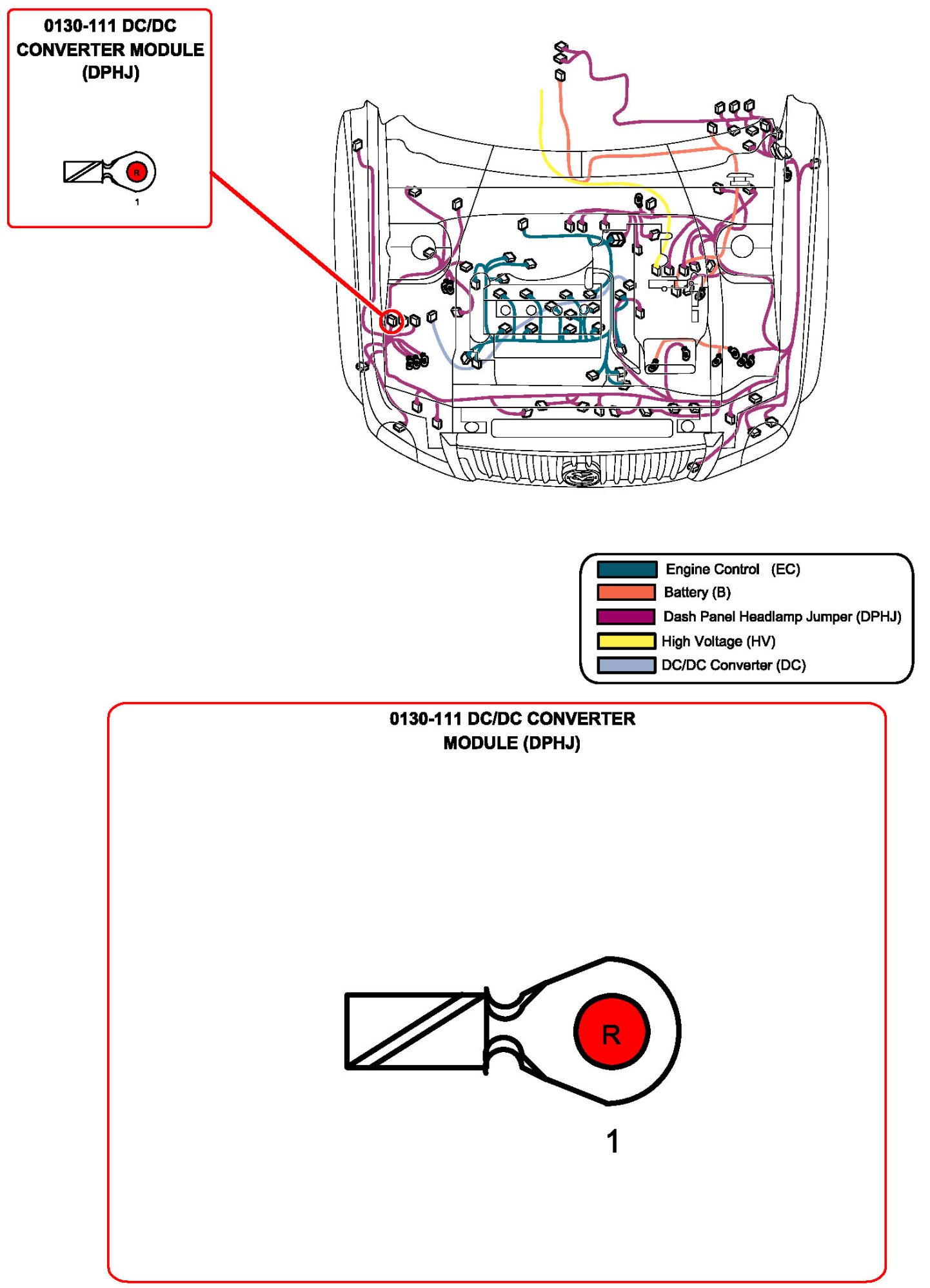

DC/DC Converter Module:

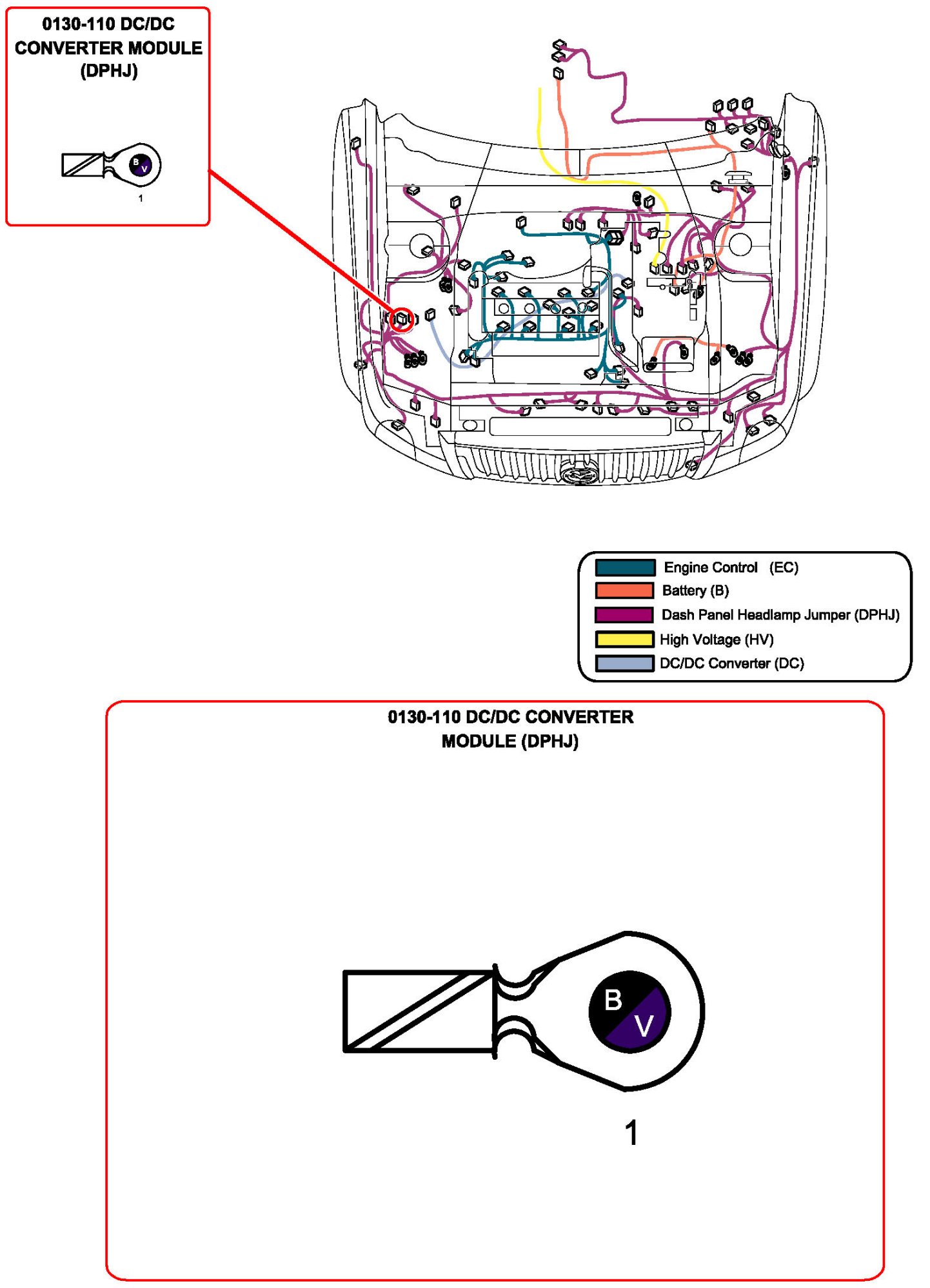

DC/DC Converter Module:
