Dual Automatic Temperature Control Module

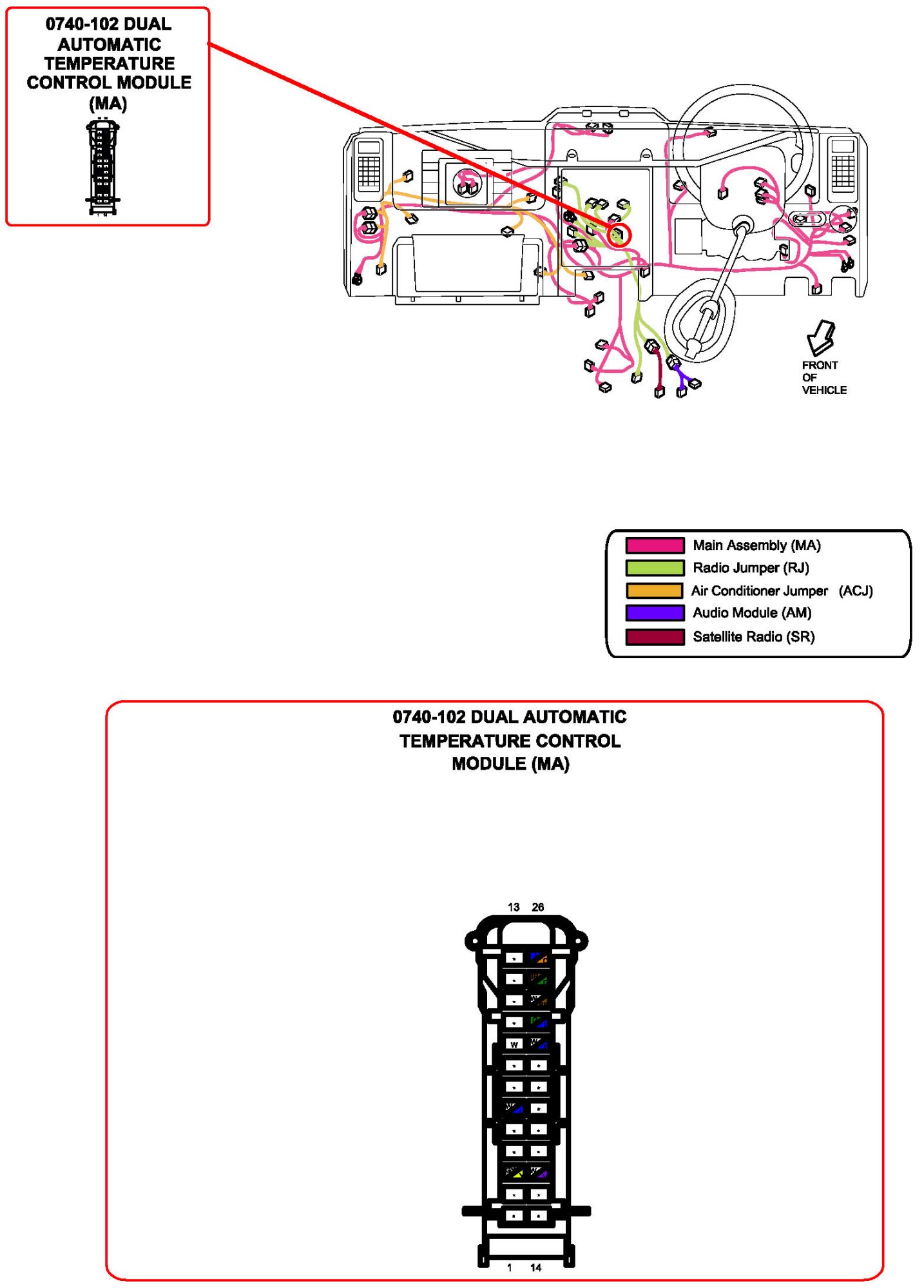

Dual Automatic Temperature Control Module:

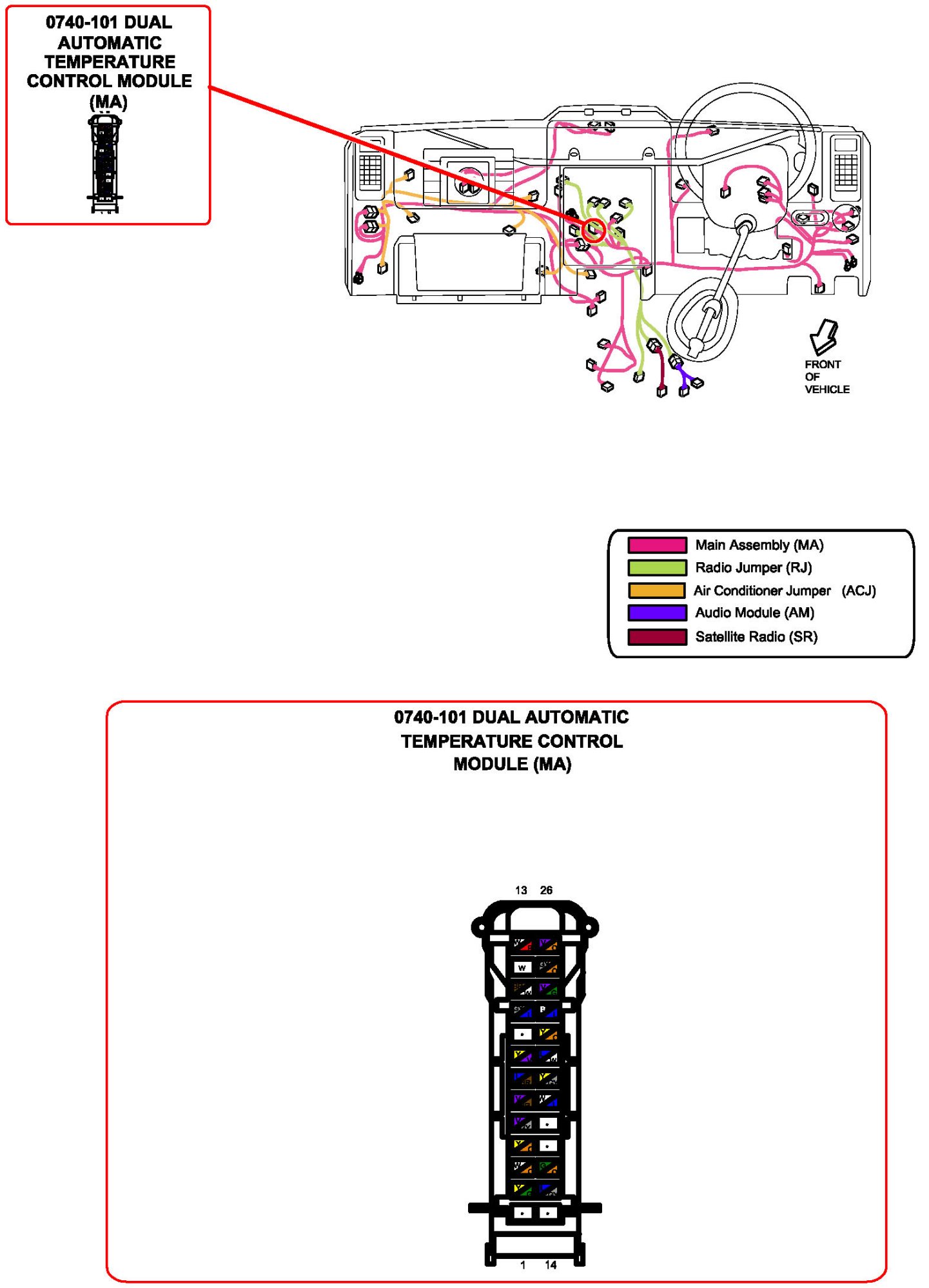

Dual Automatic Temperature Control Module:

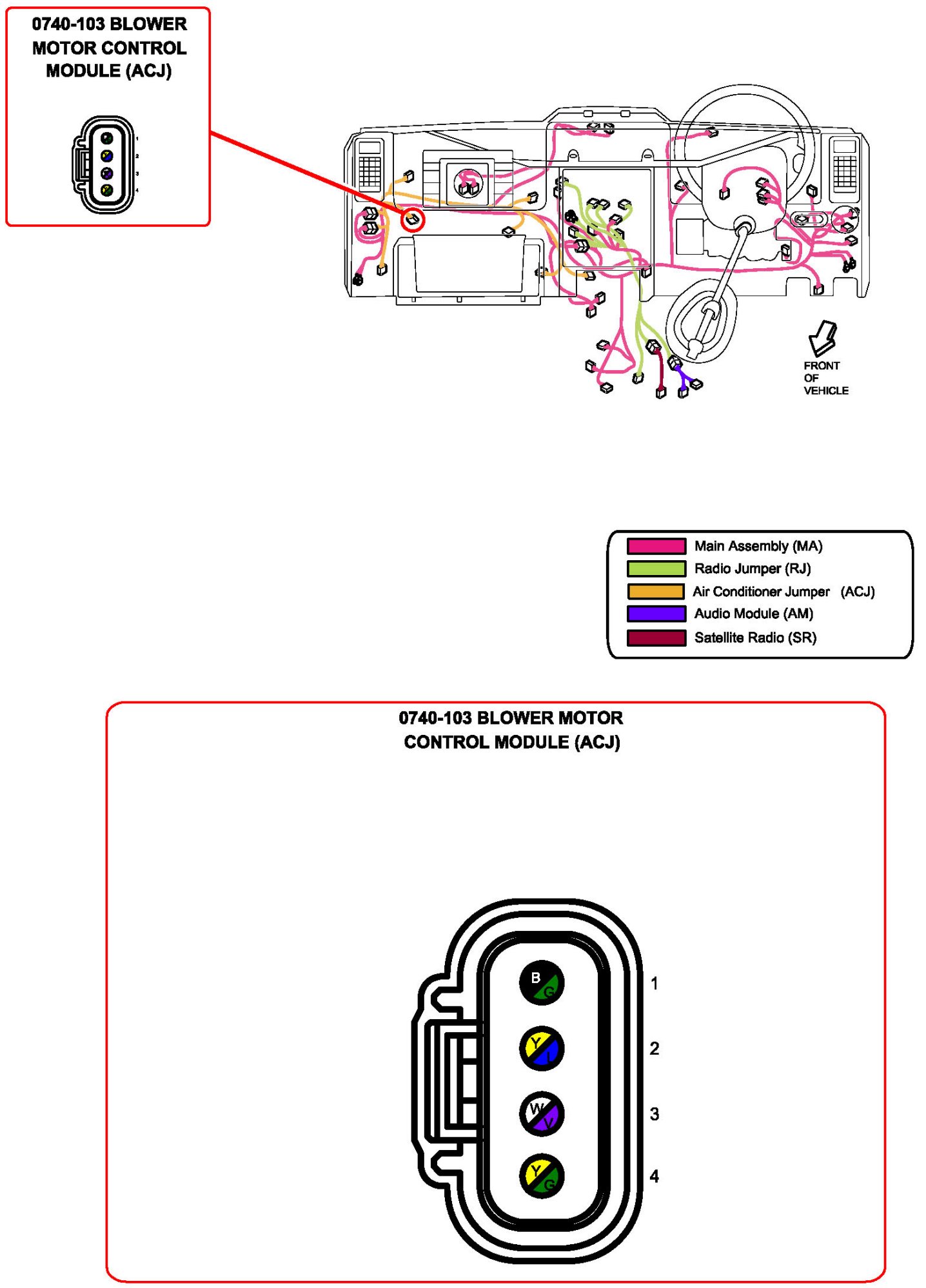

Blower Motor Control Module:
