Master Window Adjust Switch

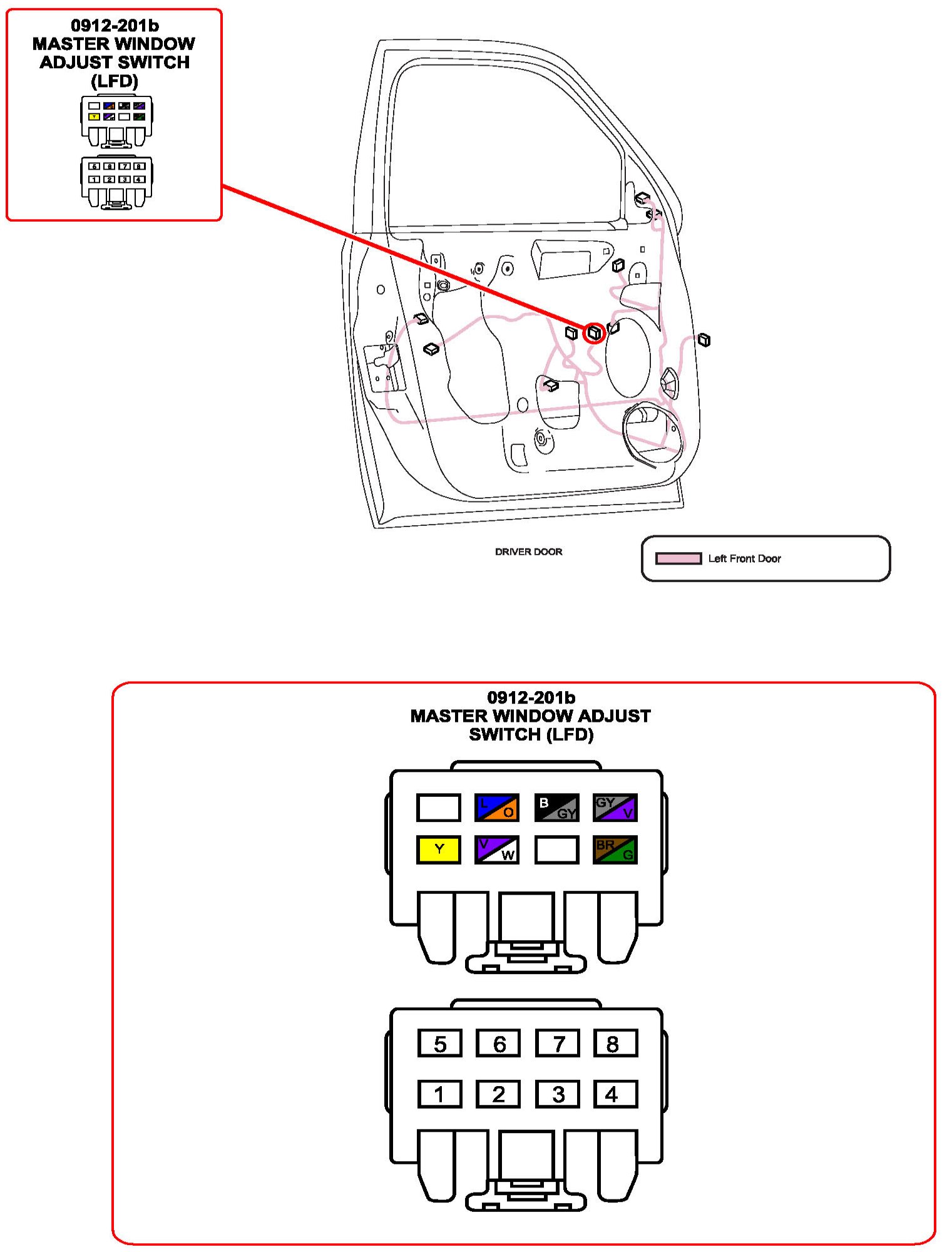

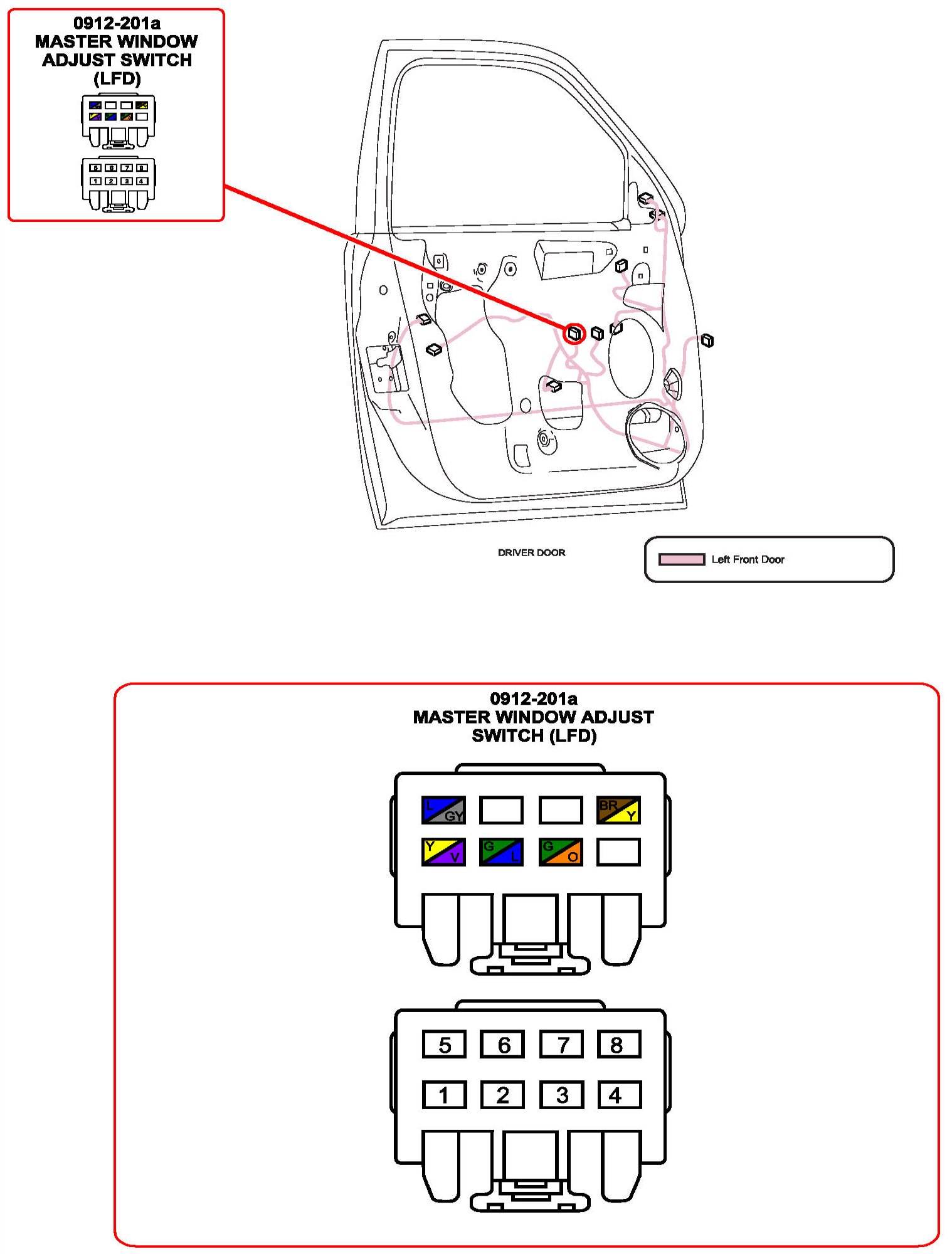

Master Window Adjust Switch:



Master Window Adjust Switch:

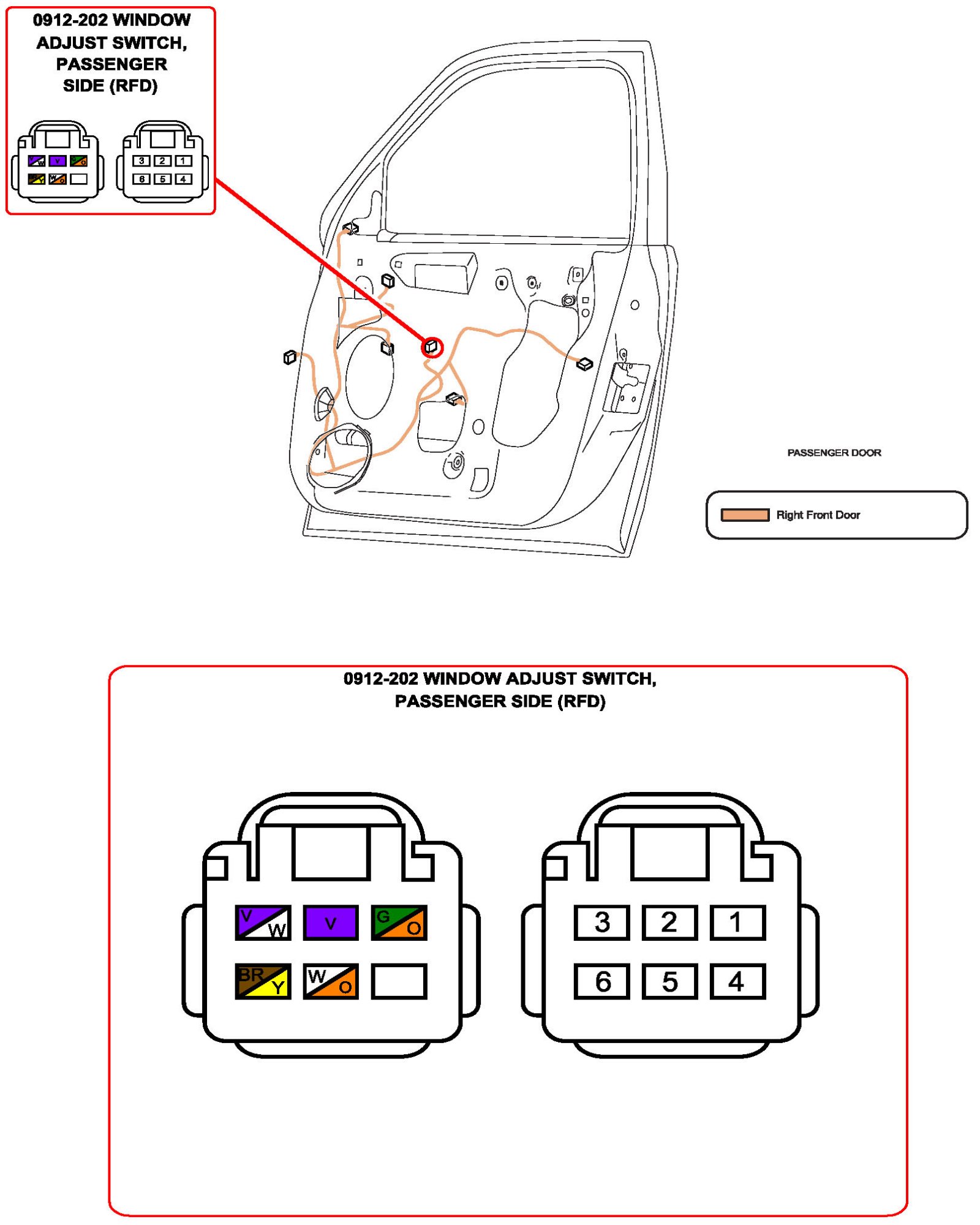

Window Adjust Switch, Passenger Side:

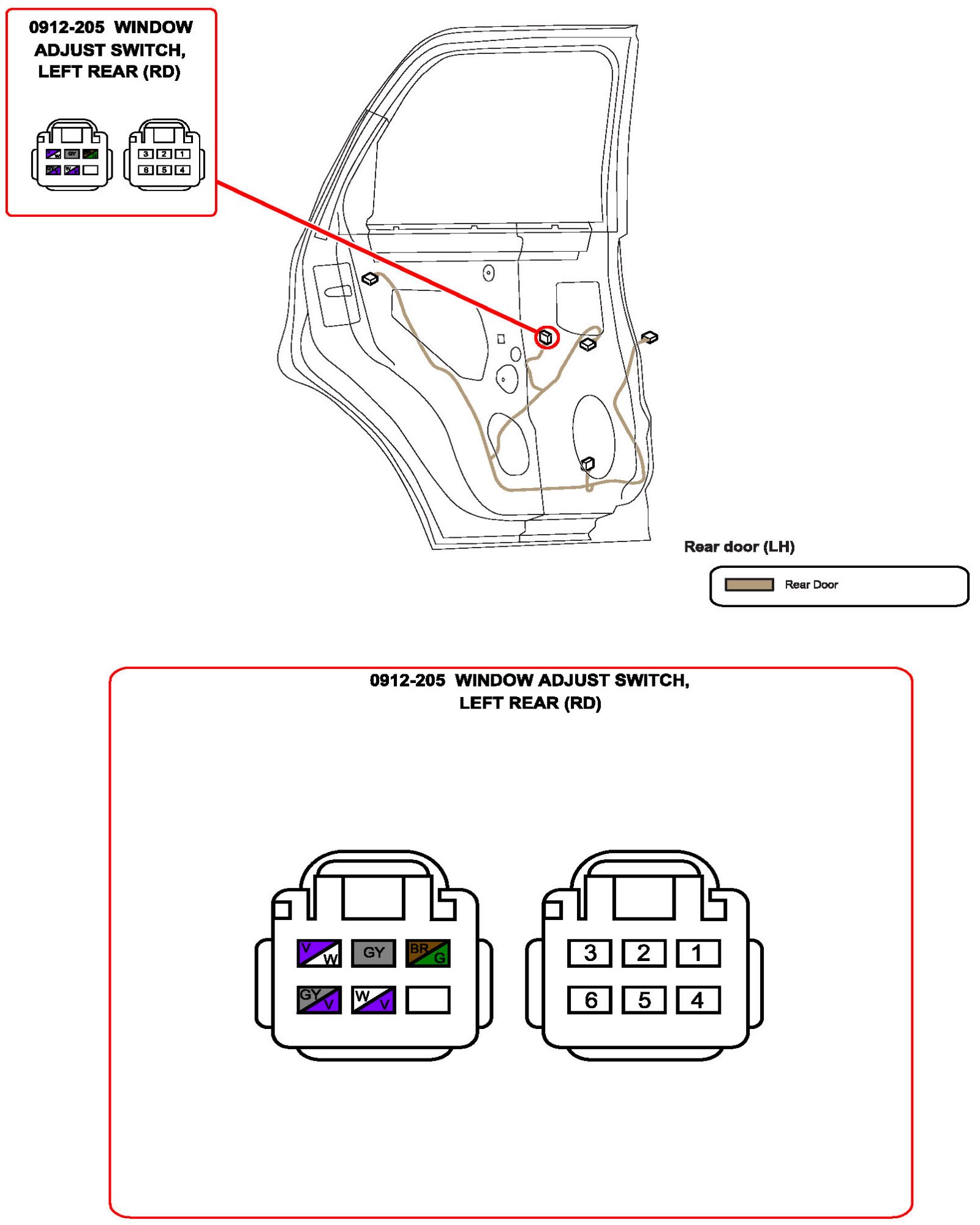

Window Adjust Switch, Left Rear:

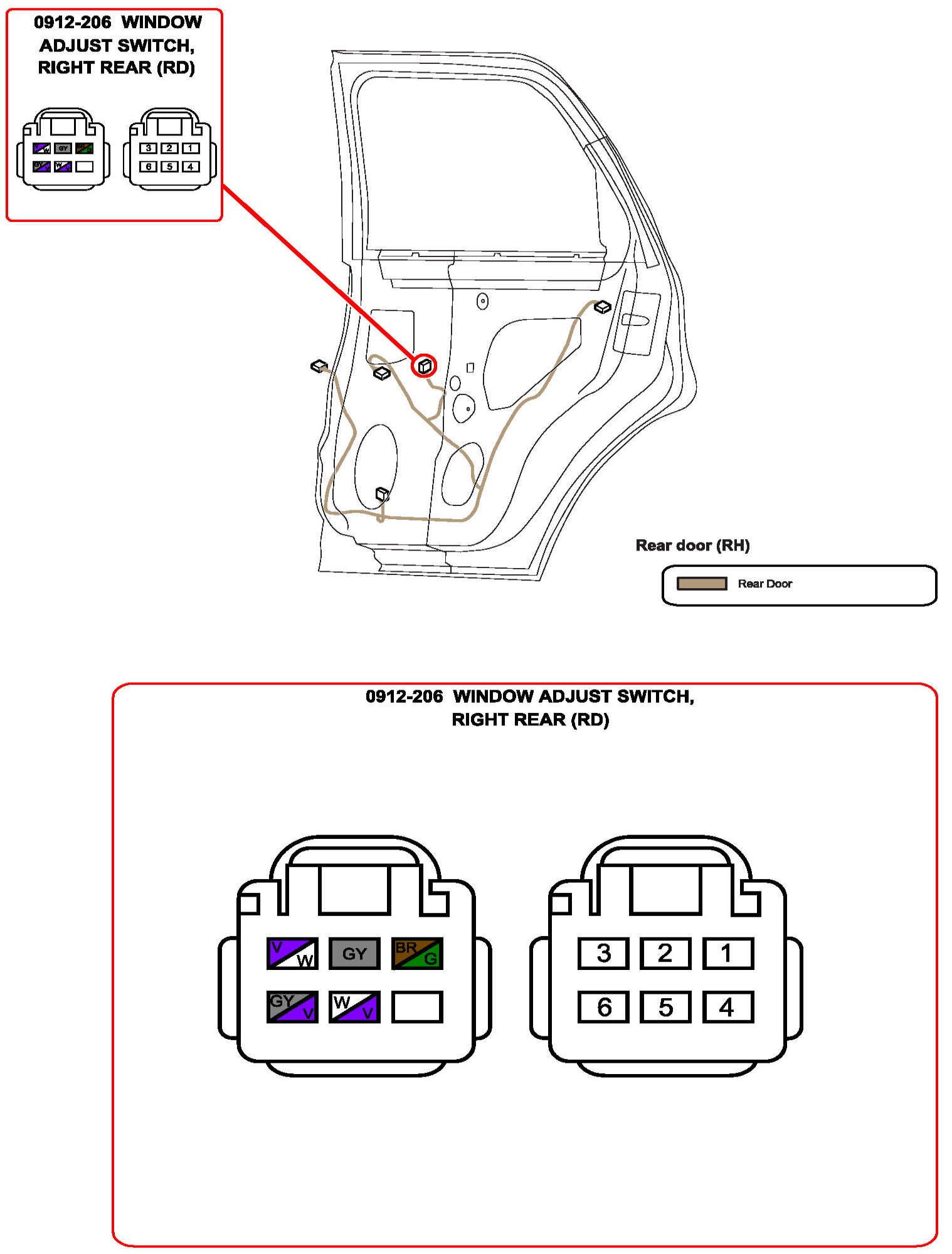

Window Adjust Switch, Right Rear:
