Side Impact Sensor, Driver

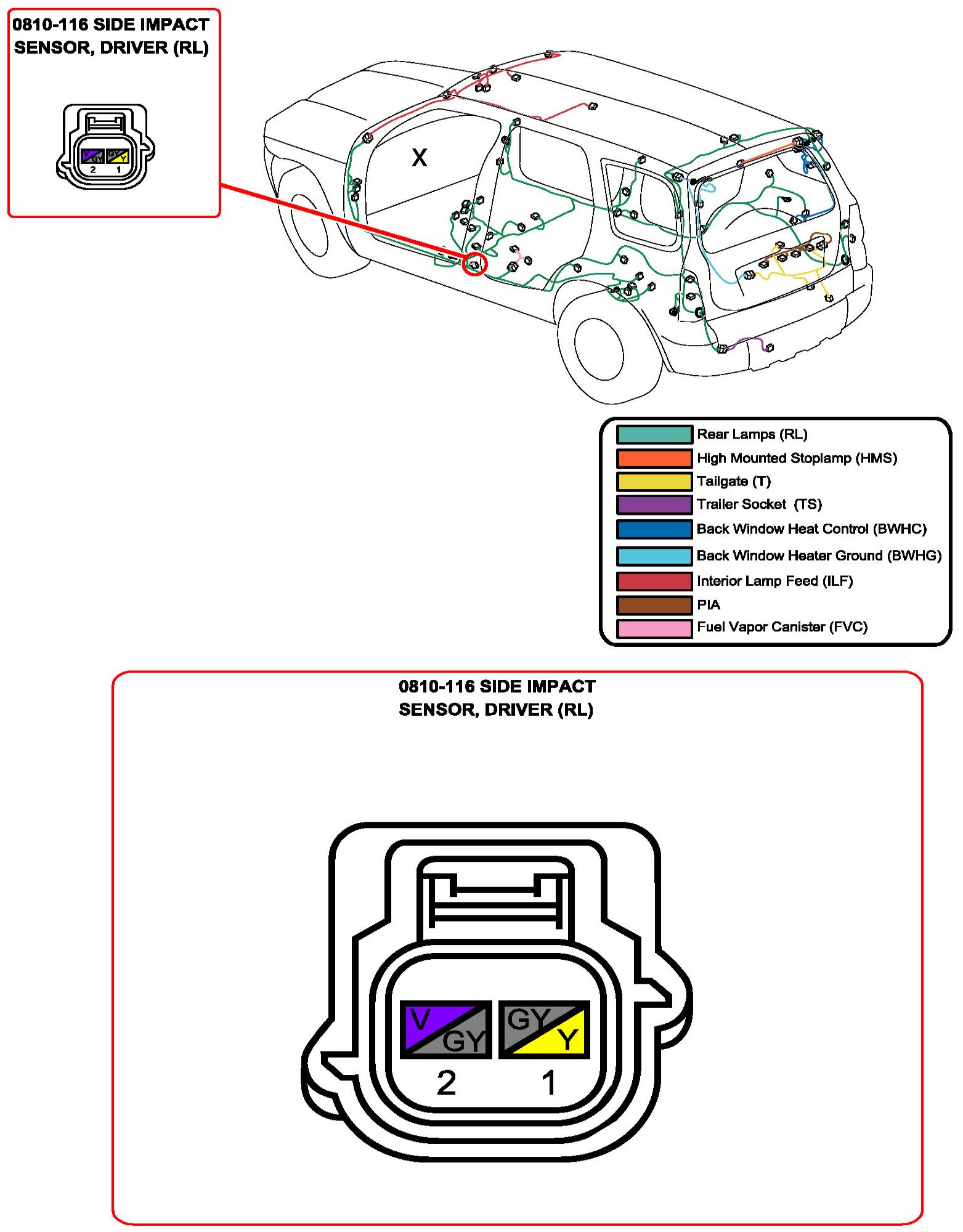

Side Impact Sensor, Driver:

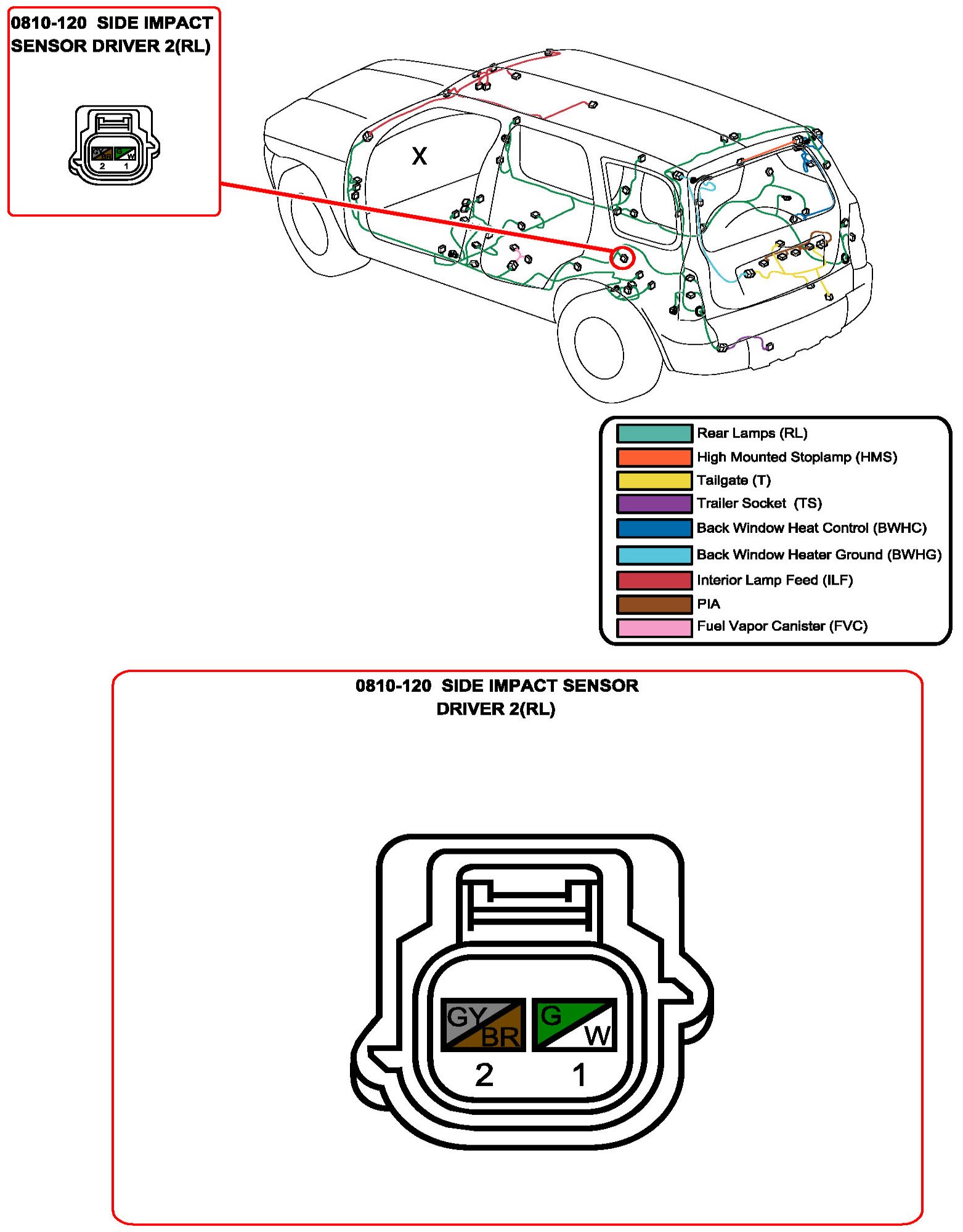

Side Impact Sensor Driver 2:

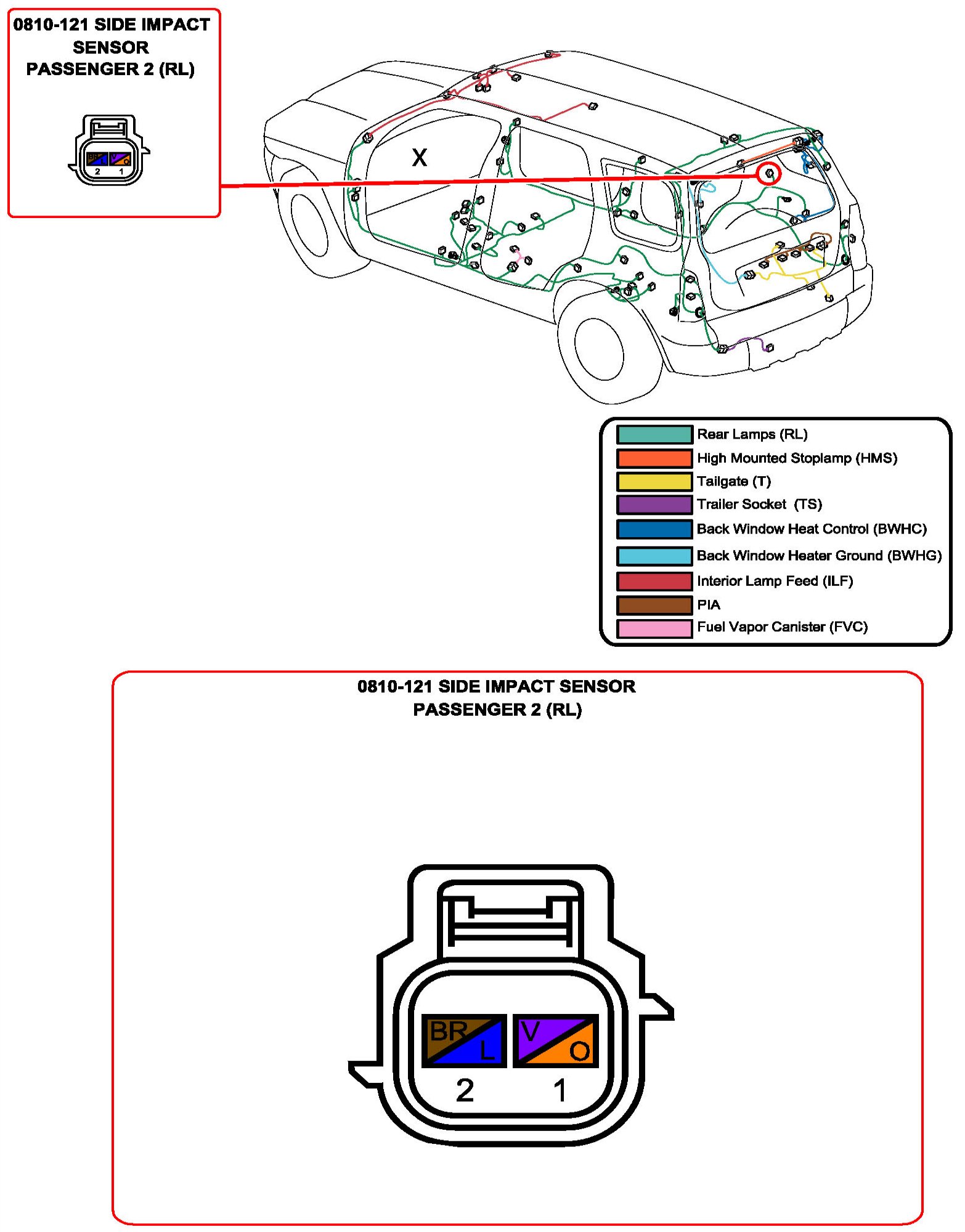

Side Impact Sensor Passenger 2:



Front Impact Sensor Left:



Front Impact Sensor Right:
