System Diagram



-

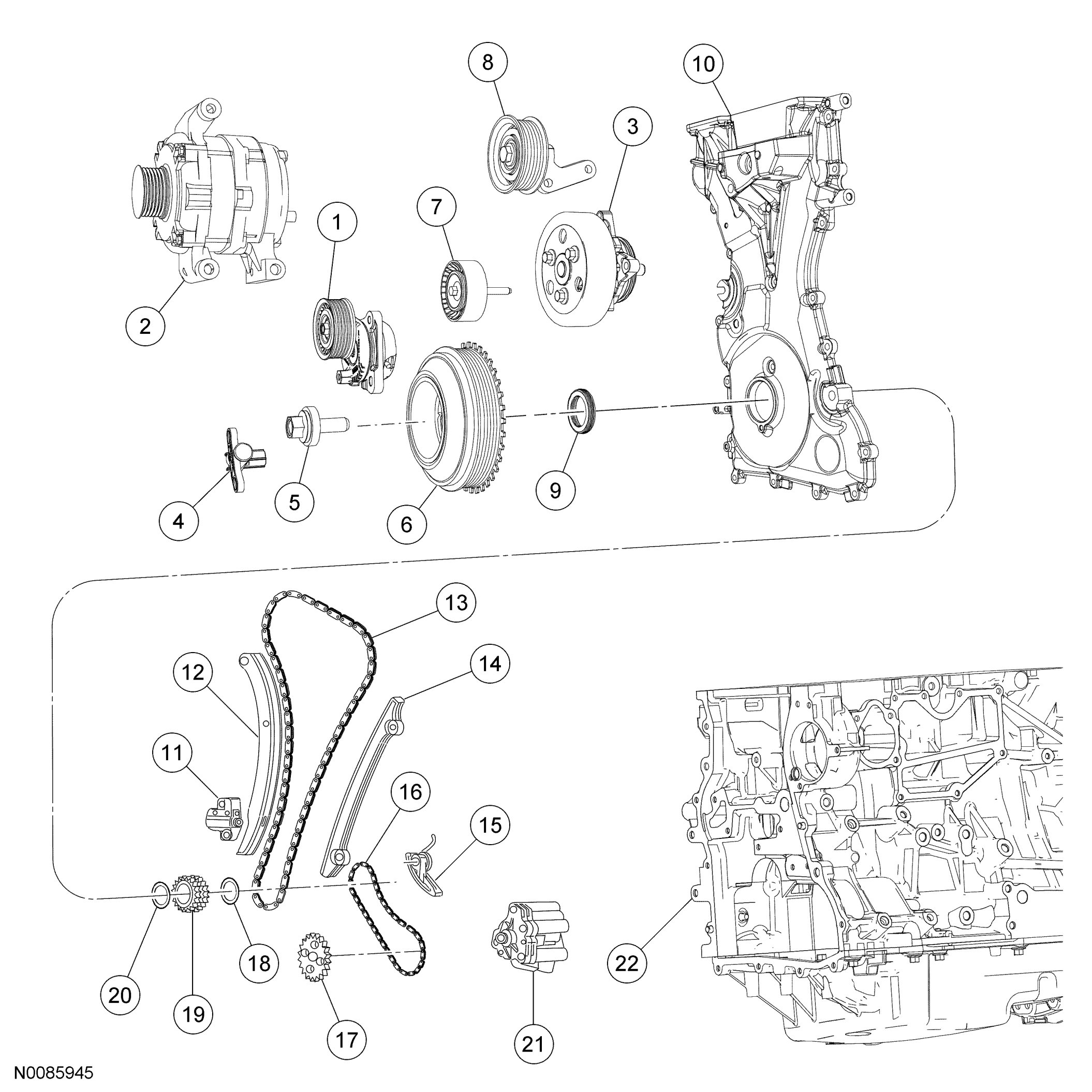

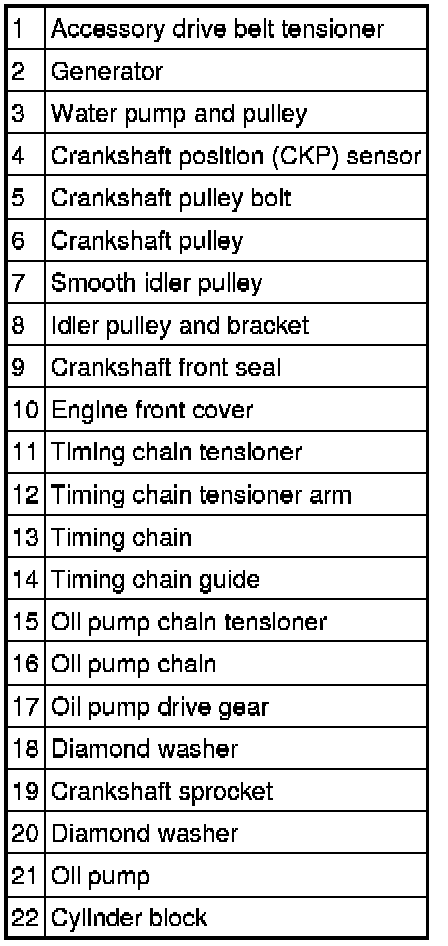

FRONT ENGINE BLOCK EXPLODED VIEW - 2.5L










1. For additional information, see the procedures.
