Timing Components



-

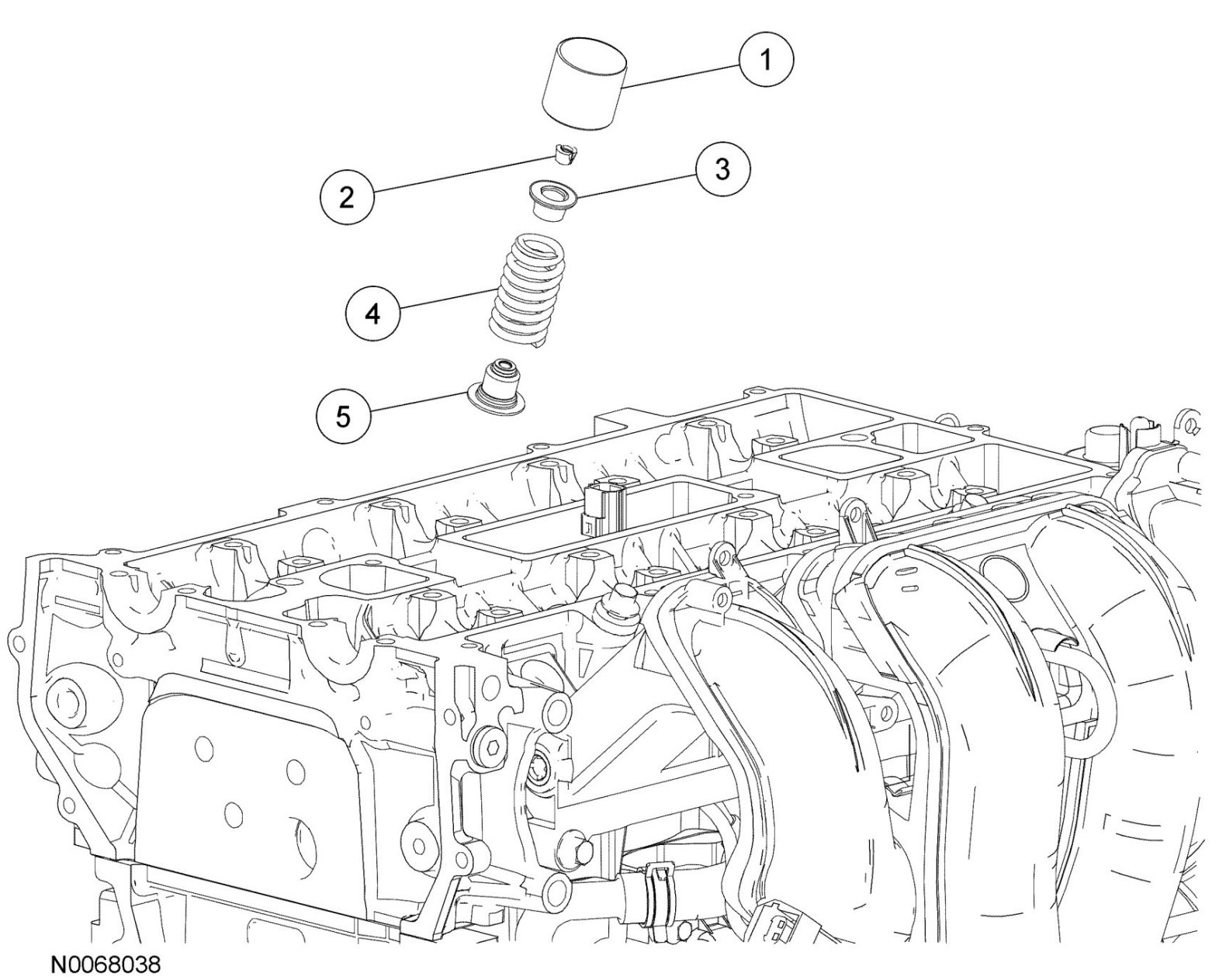

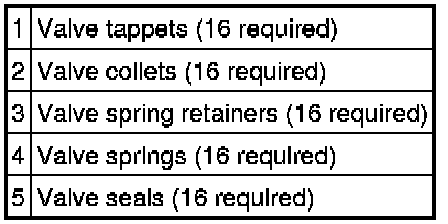

VALVE TRAIN COMPONENTS EXPLODED VIEW - 2.5L










1. For additional information, see the procedures.
