Steering



-

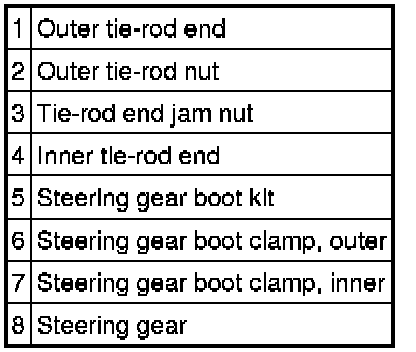

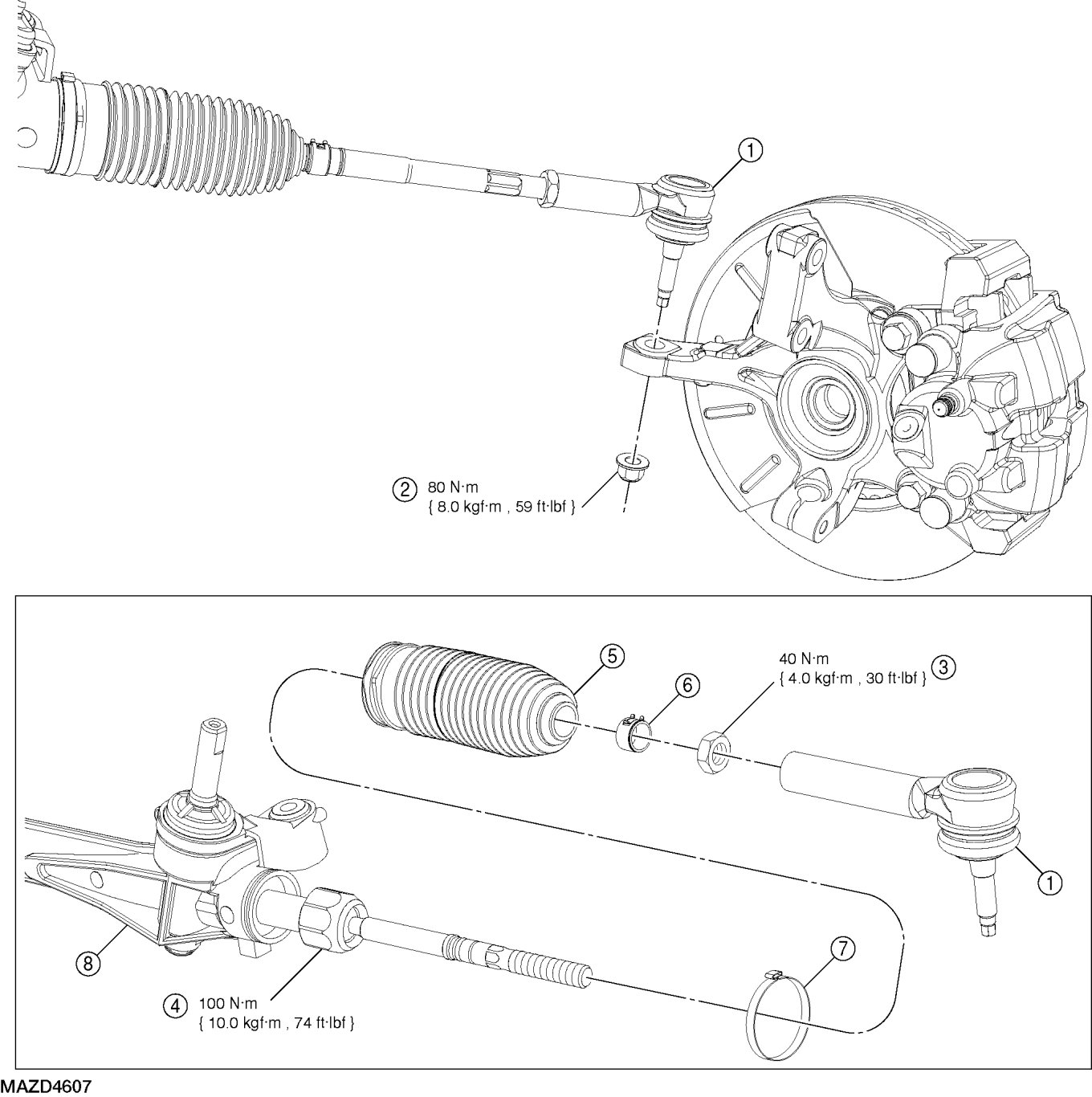

STEERING LINKAGE - EXPLODED VIEW










1. For additional information, see the procedures.
