Crankshaft Position Sensor: Testing and Inspection
CRANKSHAFT POSITION (CKP) SENSOR MALFUNCTION

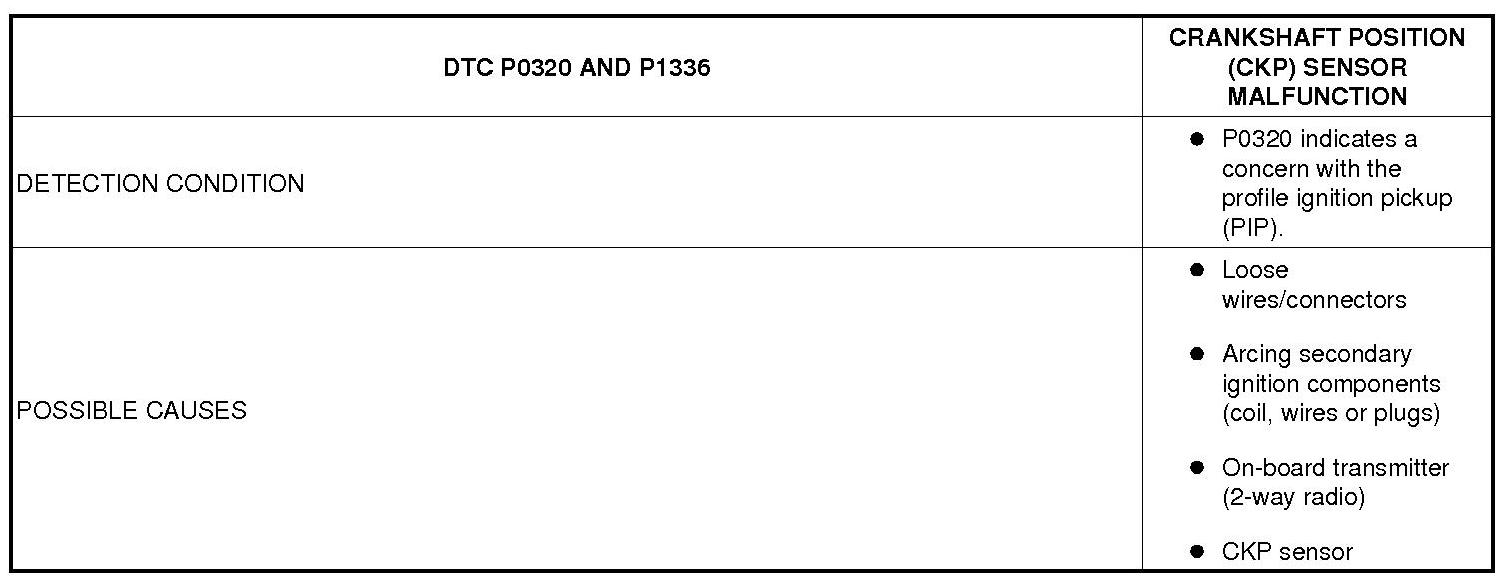

Detection Condition/Possible Causes (Part 1):
Detection Condition/Possible Causes (Part 2):
Detection Condition/Possible Causes (Part 3):

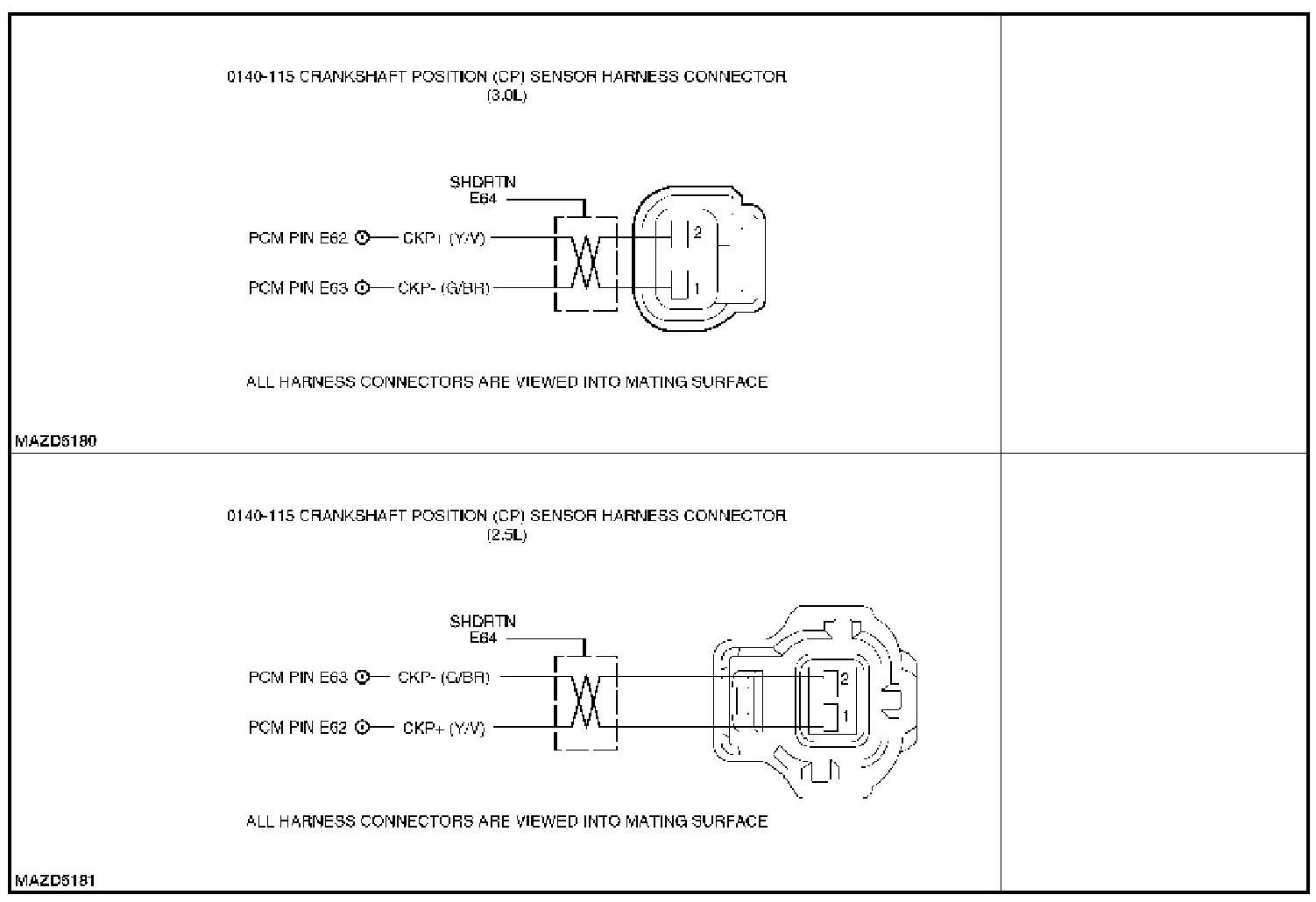

For PCM connector views or reference values, see Tribute wiring diagram.

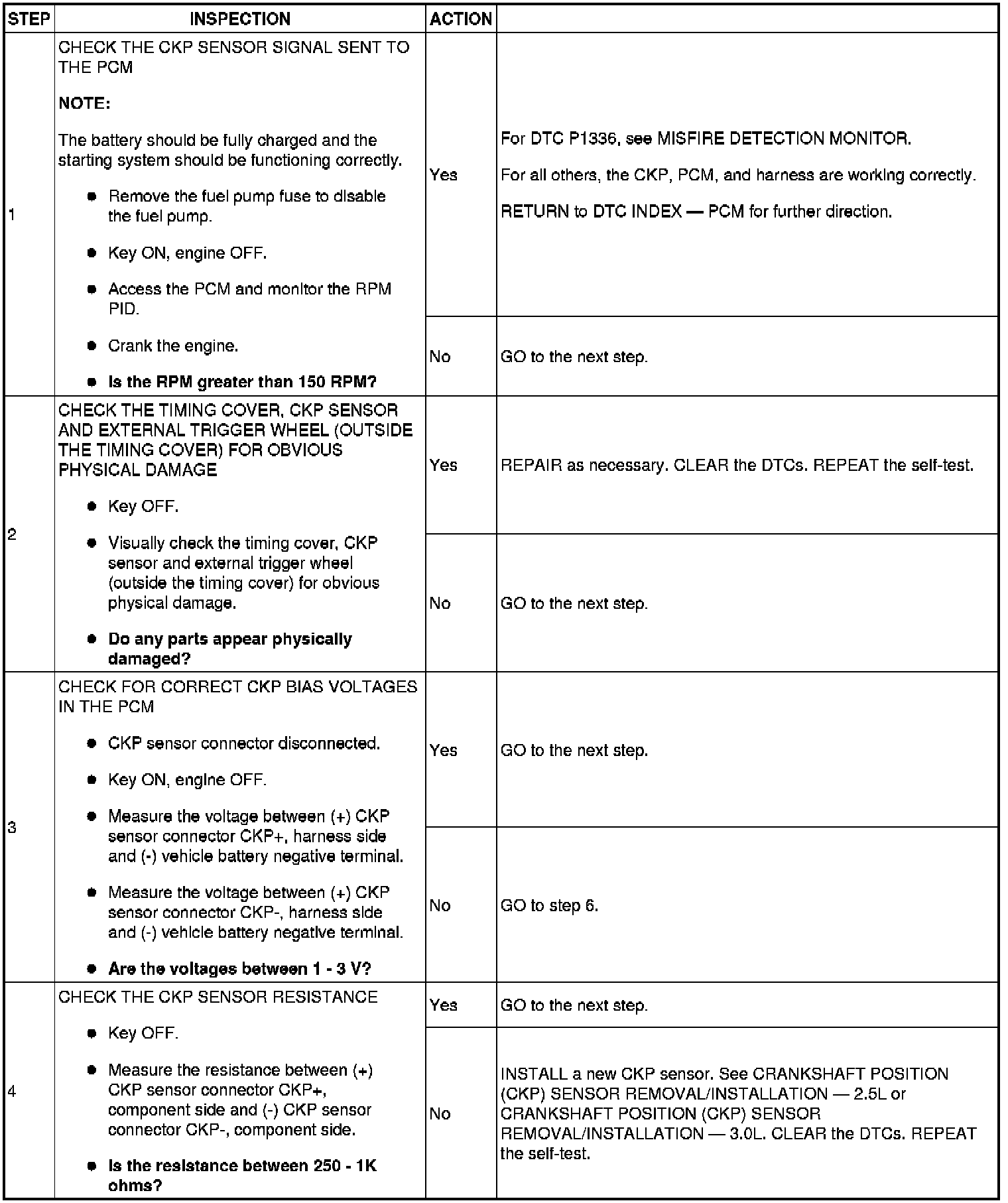

Step 1-Step 4:

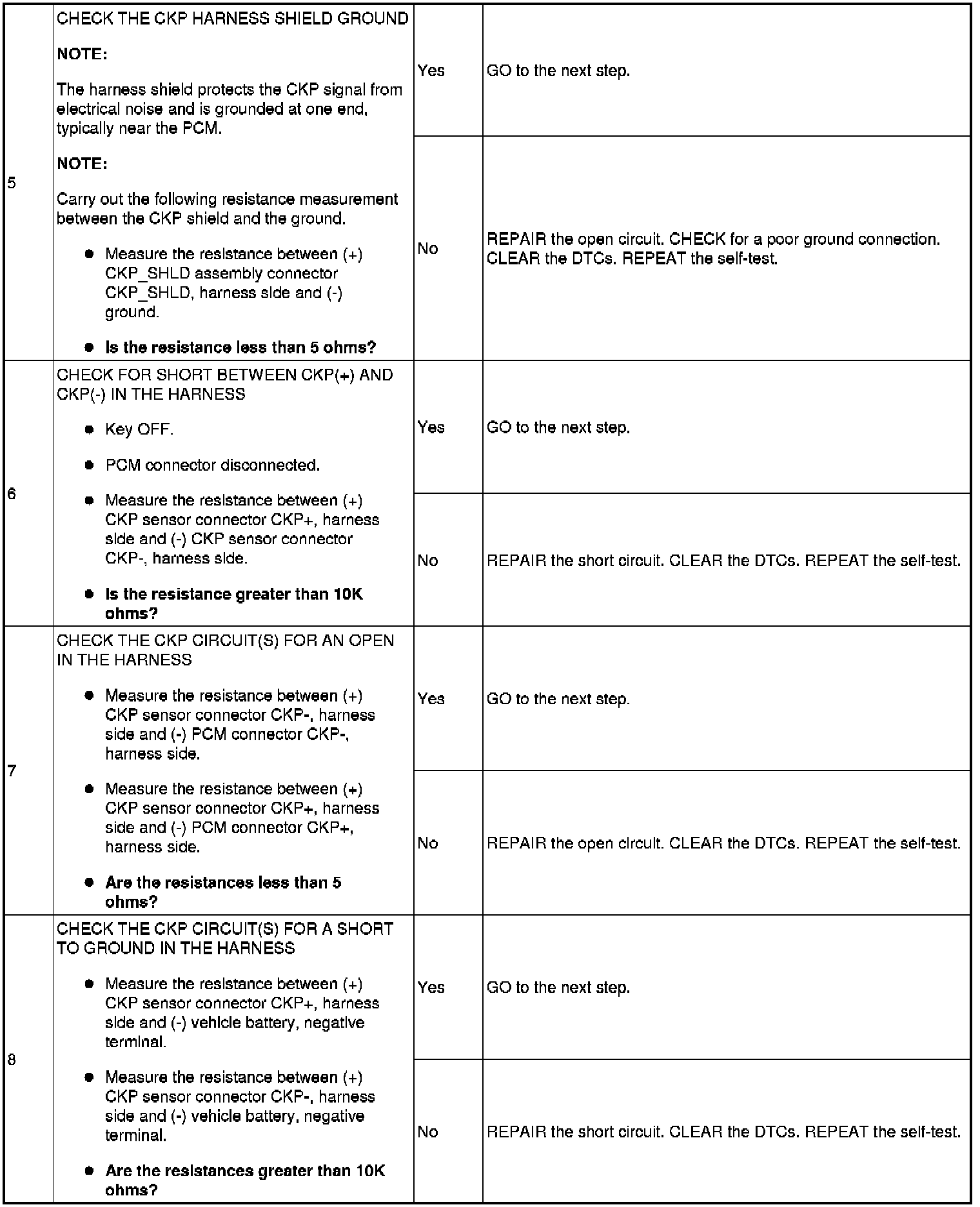

Step 5-Step 8:
