Knock Sensor: Testing and Inspection




KNOCK SENSOR MALFUNCTION

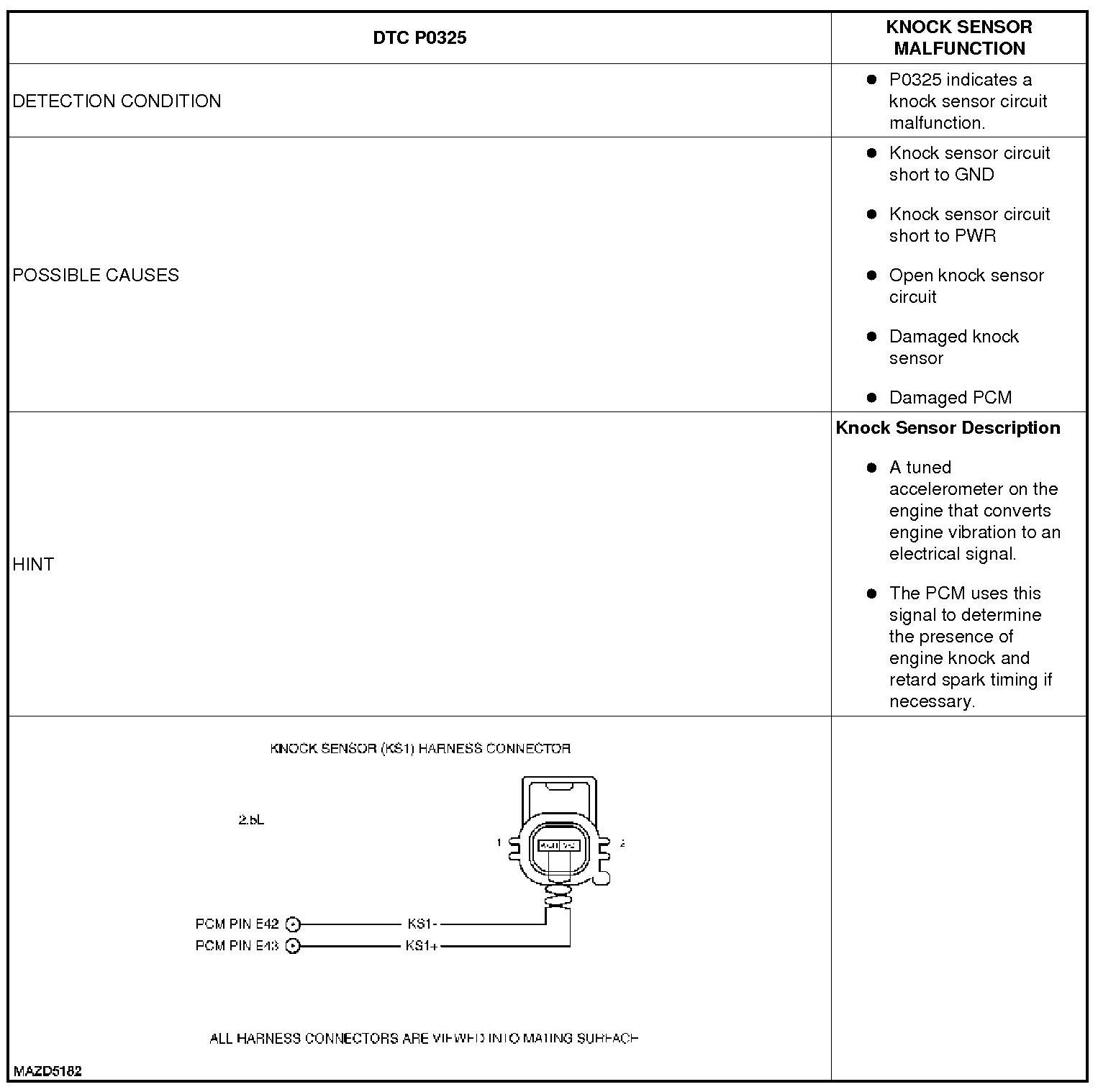

Detection Condition/Possible Causes (Part 1):

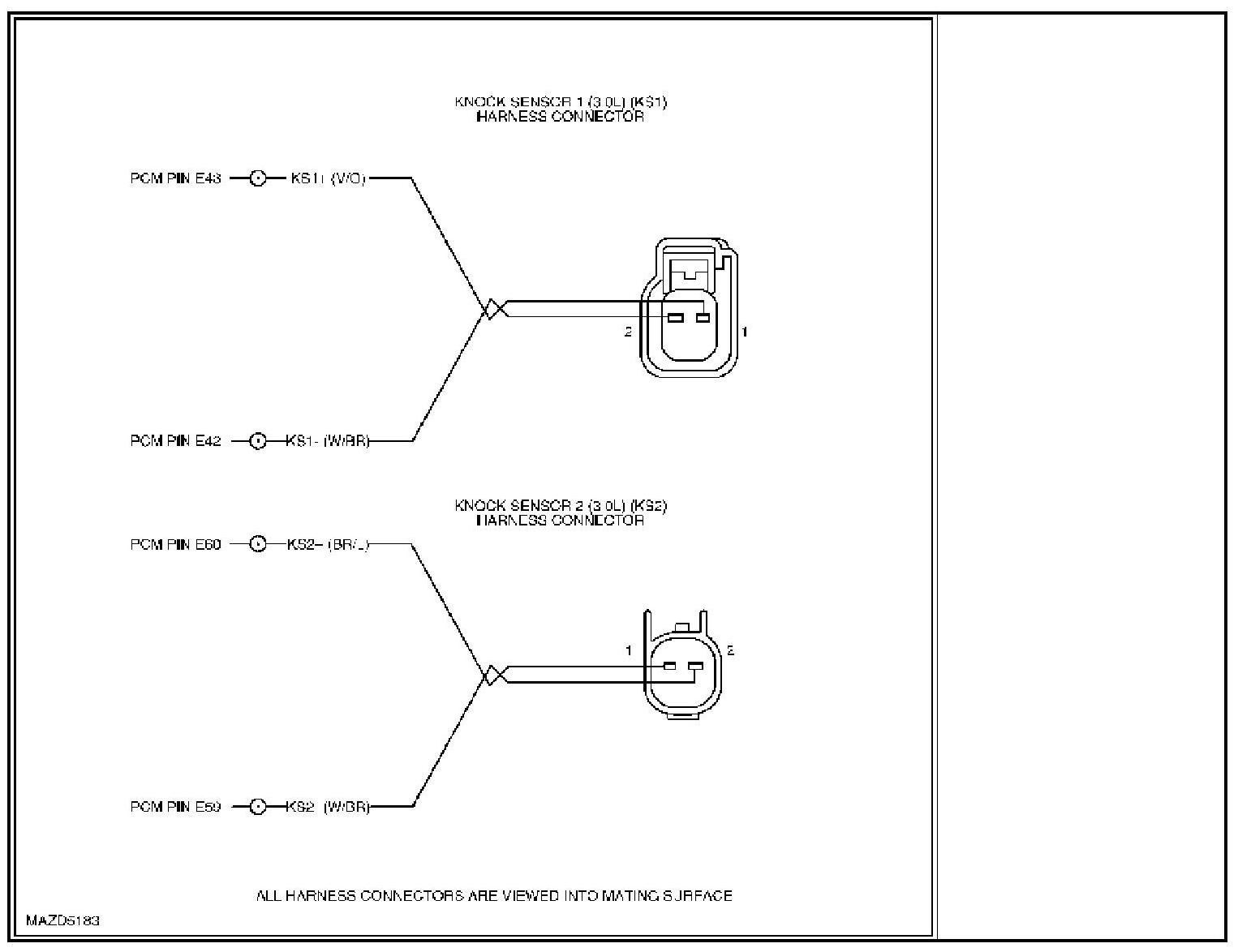

Detection Condition/Possible Causes (Part 2):

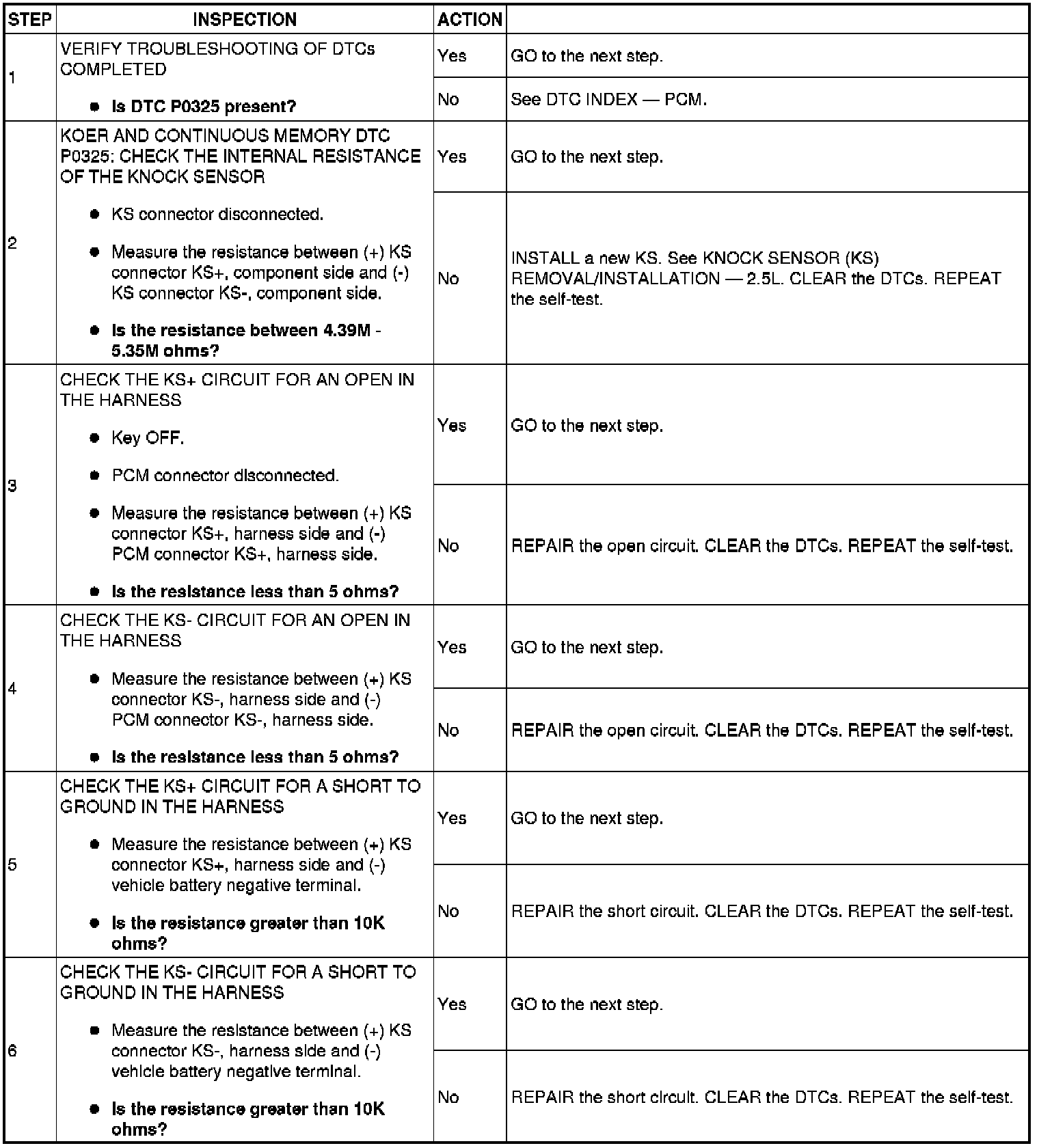

Step 1-Step 6:

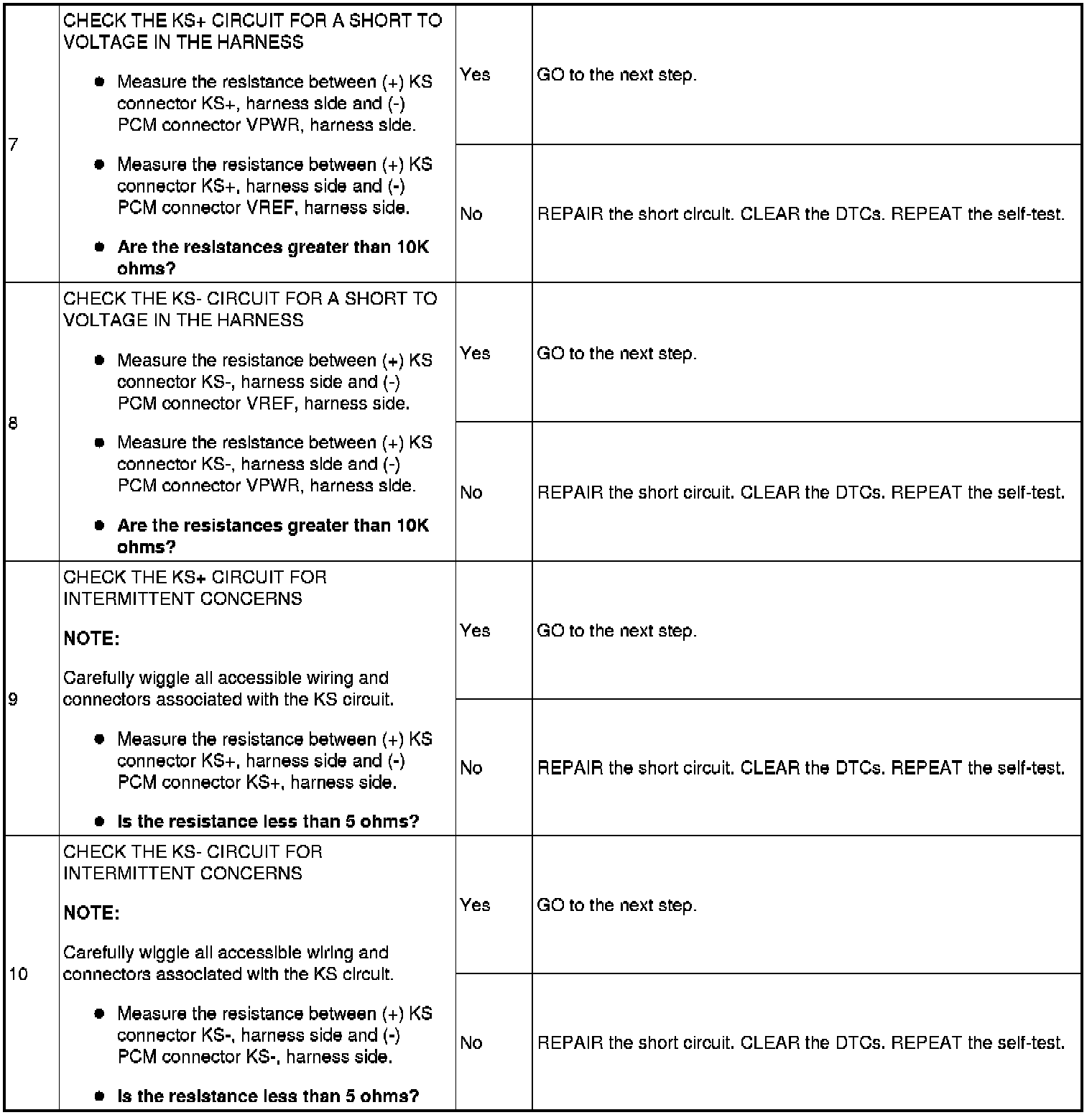

Step 7-Step 10:

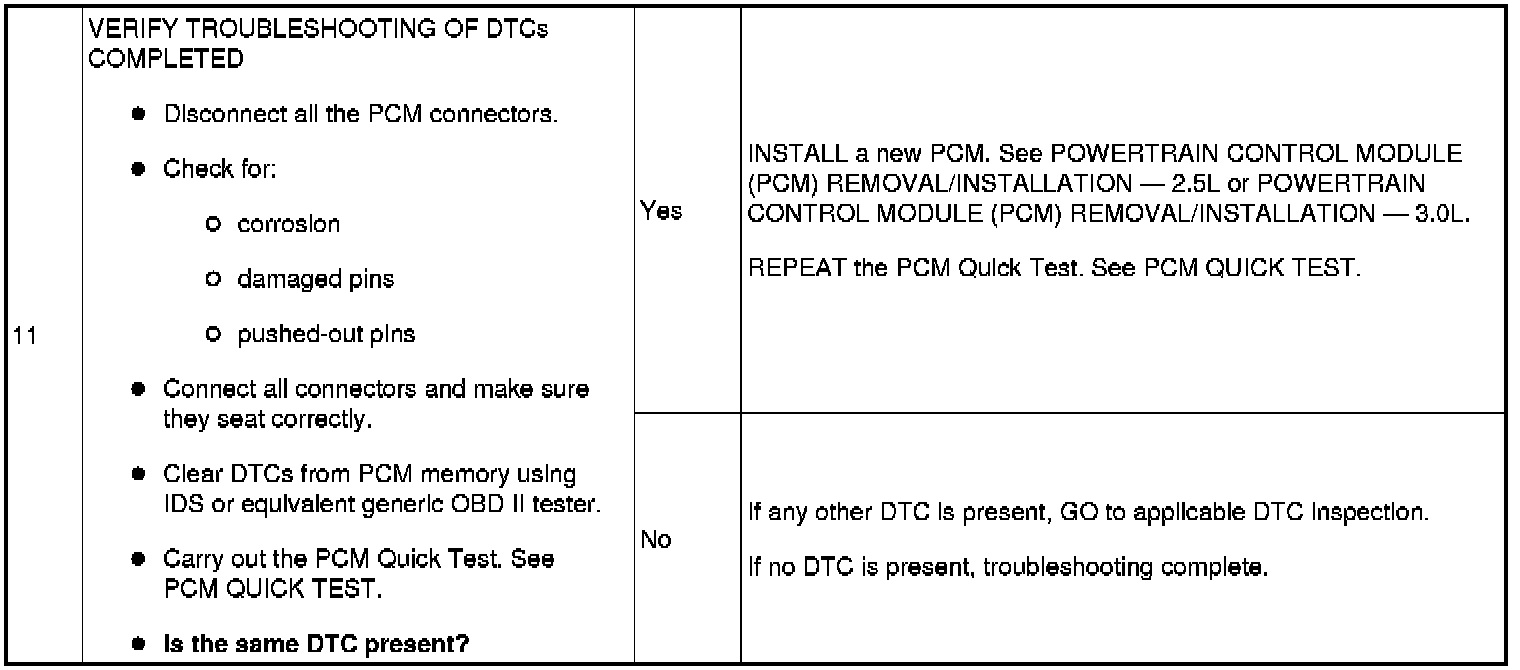

Step 11:
