Windshield Wiper/Washer Switch Inspection

WINDSHIELD WIPER/WASHER SWITCH INSPECTION

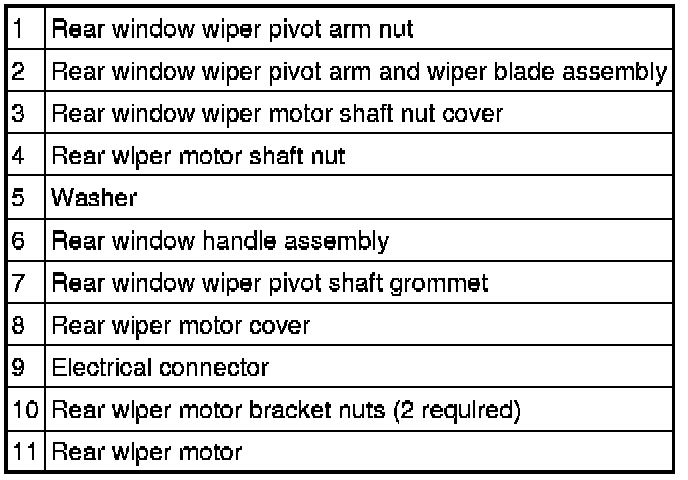

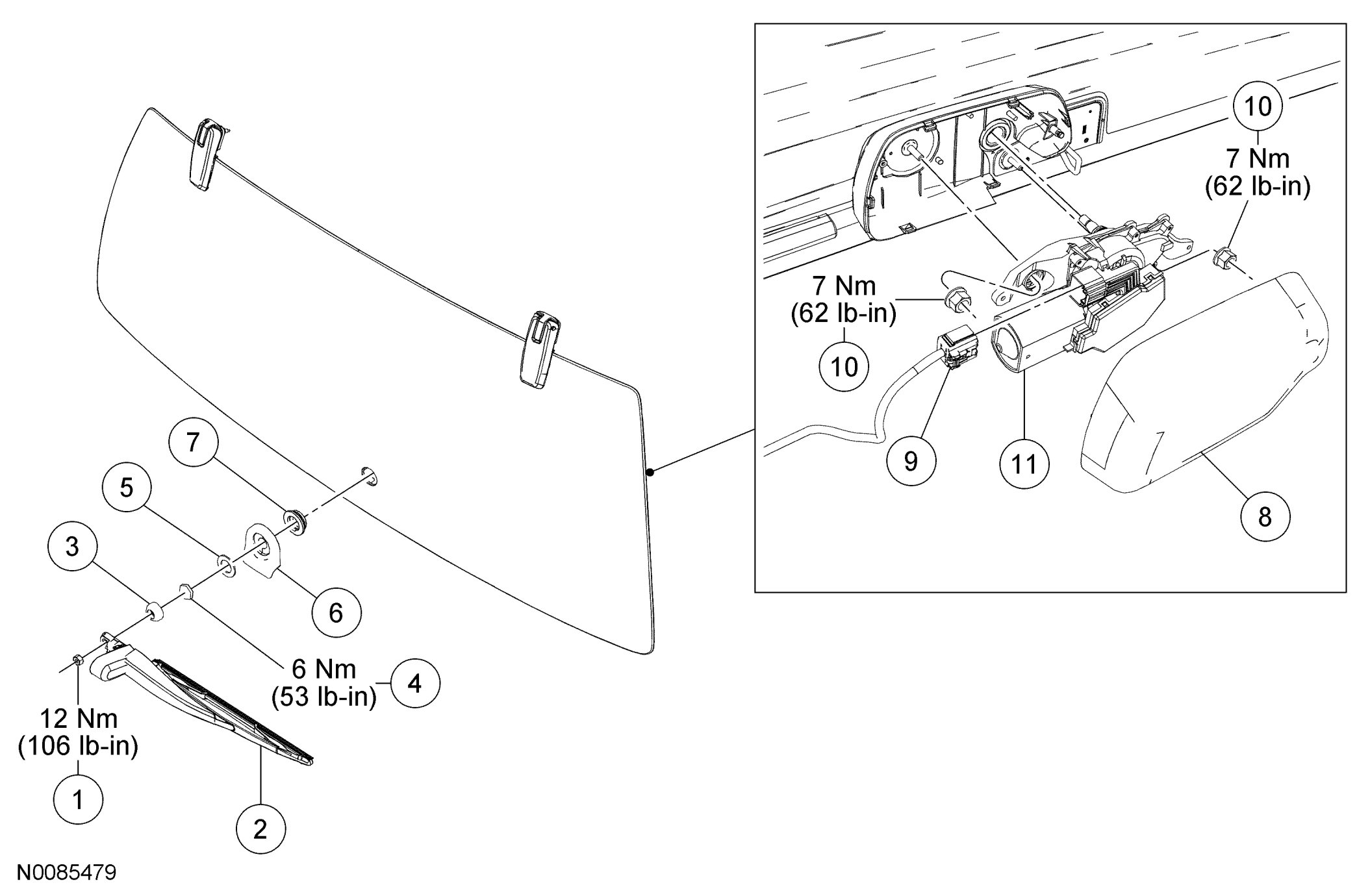

Wiper and Washer System - Exploded View, Rear

1. Remove the windshield wiper/washer switch.

2. Inspect for continuity between the windshield wiper/washer switch terminals using an ohmmeter.

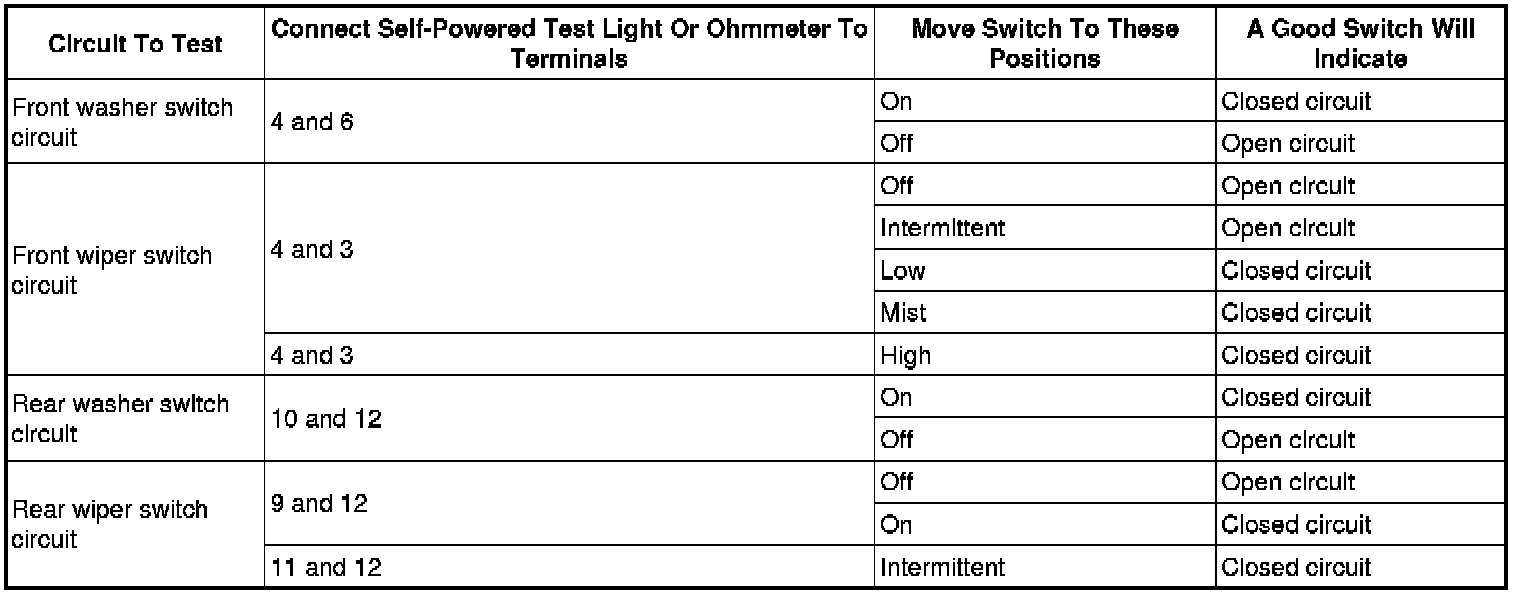

Inspection

3. If not as specified, install a new windshield wiper/washer switch.
