Passenger Air Bag Module

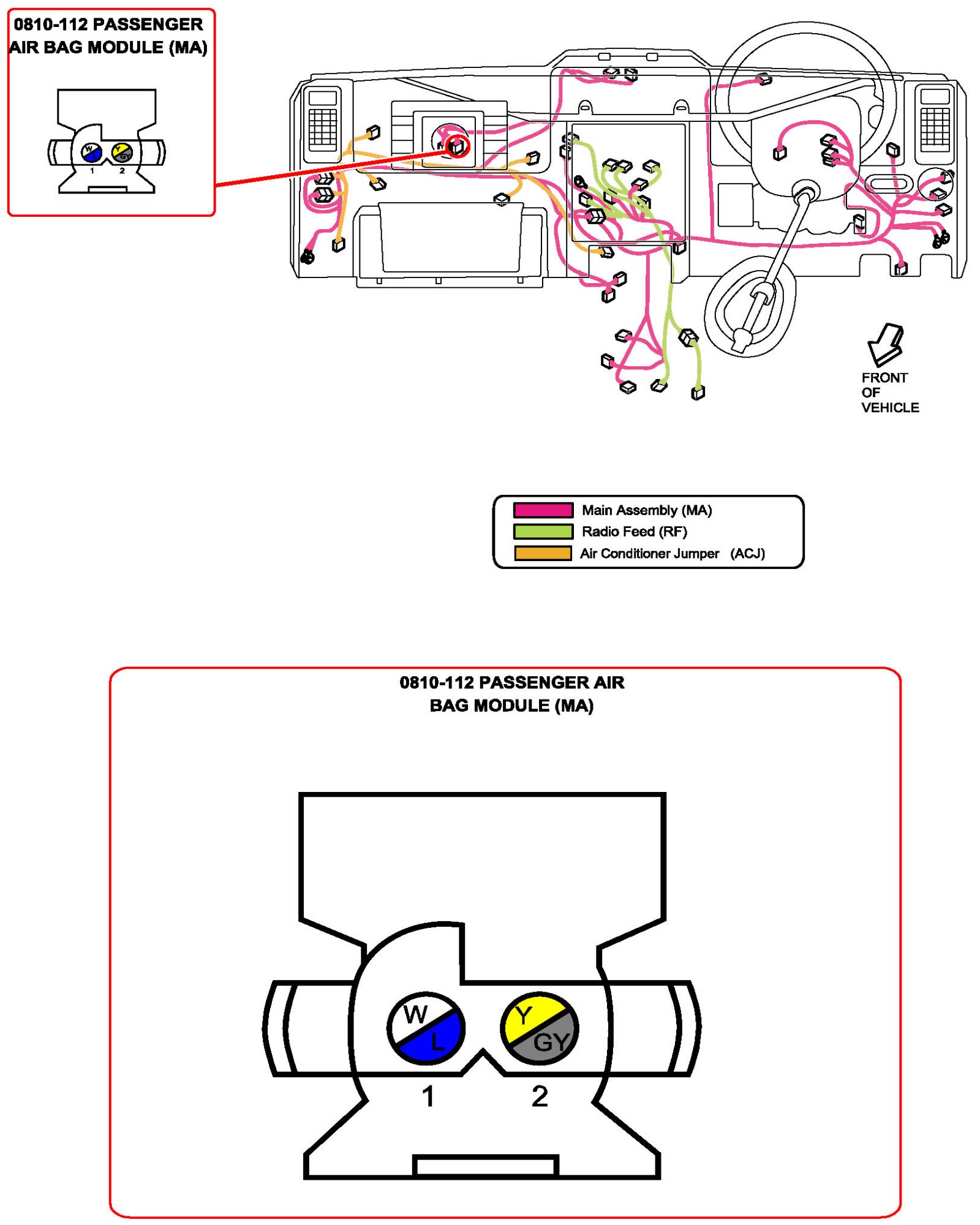

Passenger Air Bag Module:

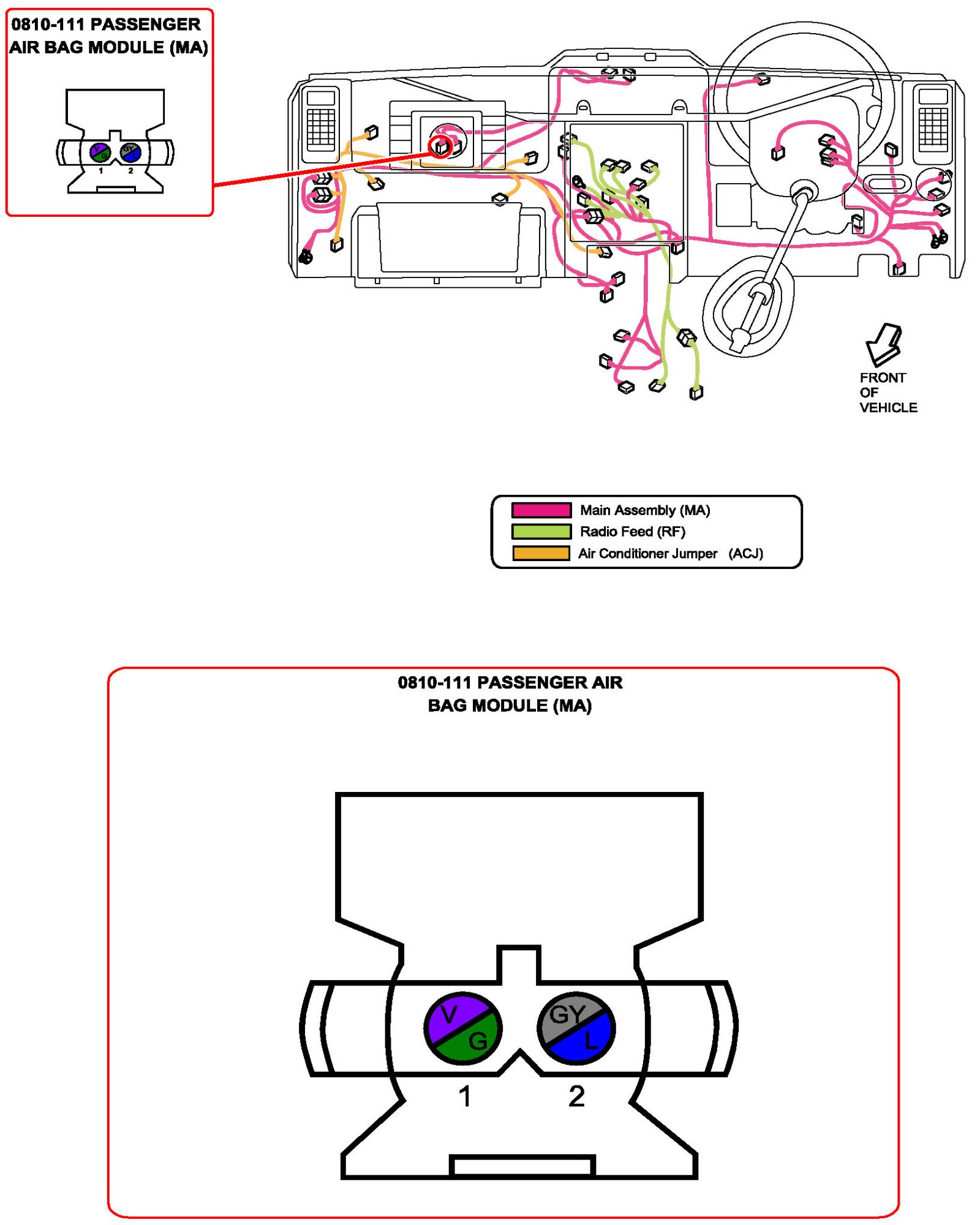

Passenger Air Bag Module:

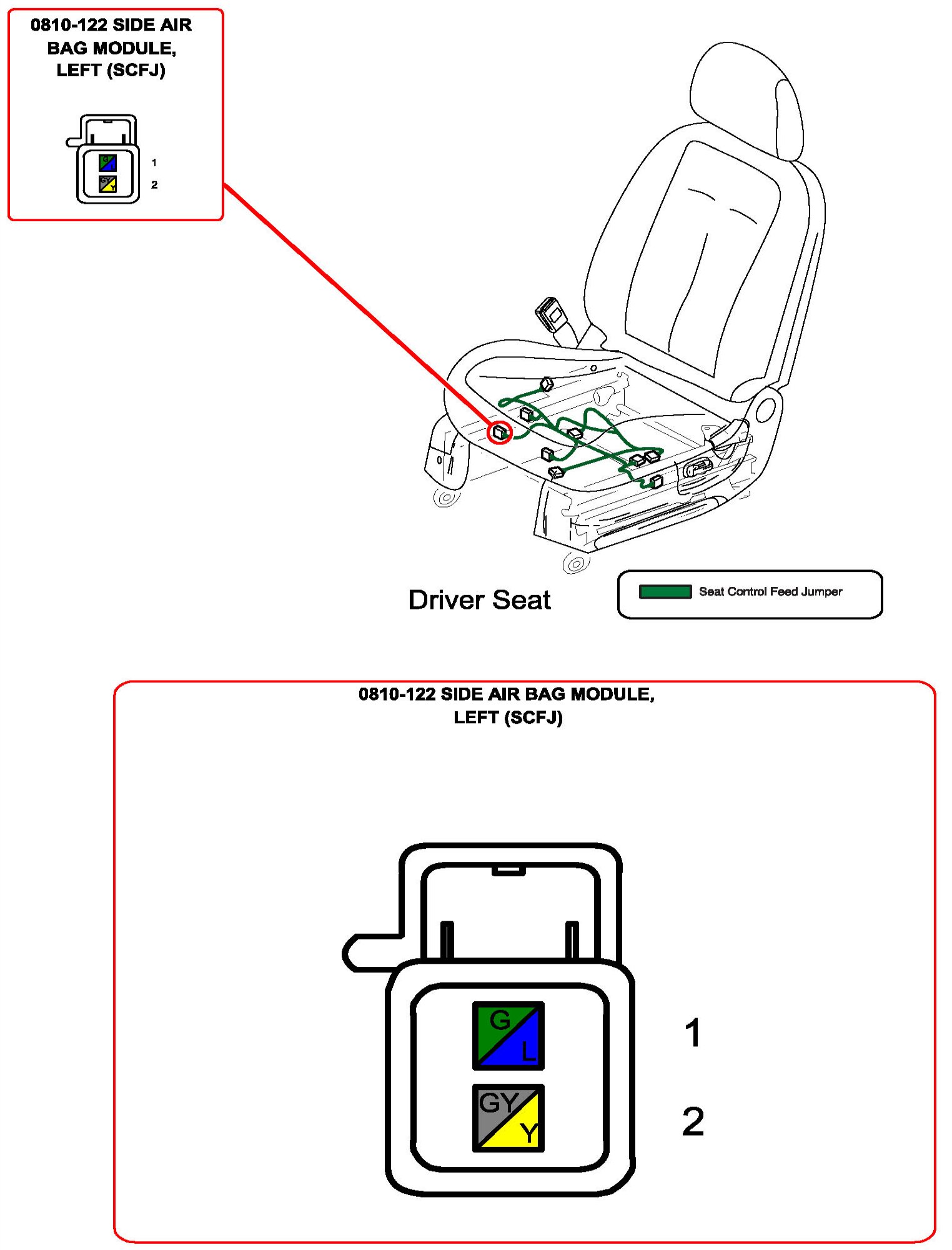

Side Air Bag Module, Left:
Side Air Bag Module, Right:
