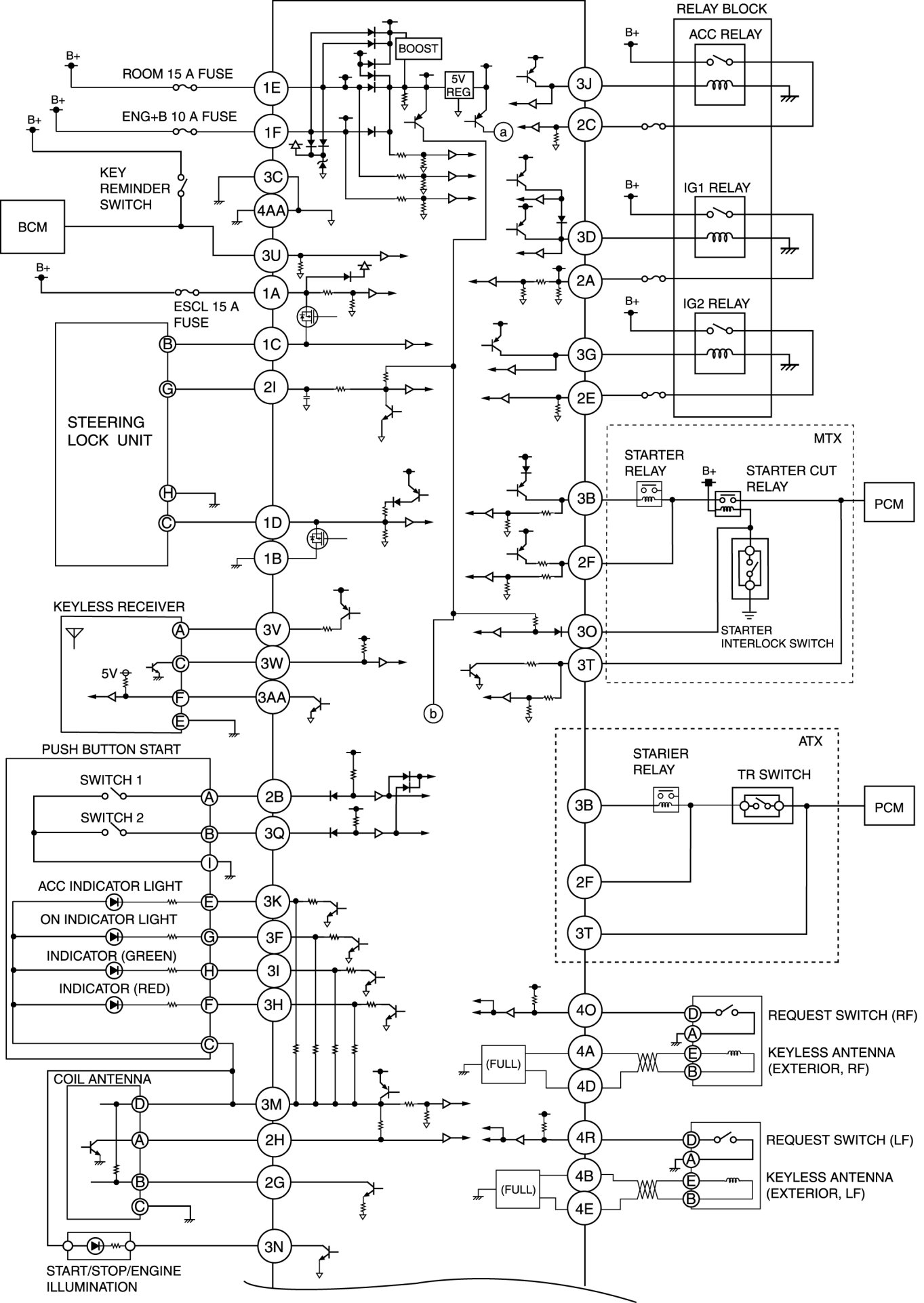

Keyless Entry System Wiring Diagram - Advanced Keyless Entry And Push Button Start System




KEYLESS ENTRY SYSTEM WIRING DIAGRAM [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
