ECT Sensor No. 2

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L5] .)
  2. Disconnect the negative battery cable.
  3. Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS .)
  4. Disconnect the ECT sensor No. 2 connector.
  5. Remove the ECT sensor No. 2 using the SST.
    NOTE:
    • Wipe off any oil or engine coolant if it gets on the ECT sensor No. 2 installation area.
  6. Install in the reverse order of removal.
  7. Refill the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS .)

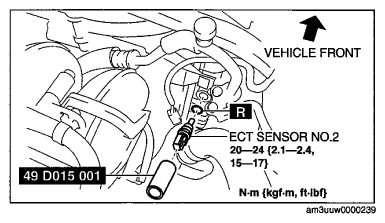

Fig 1: ECT Sensor No. 2 Replacement Components With Torque Specifications
G06730868Courtesy of MAZDA MOTORS CORP.
