DTC P2126:00: Notes

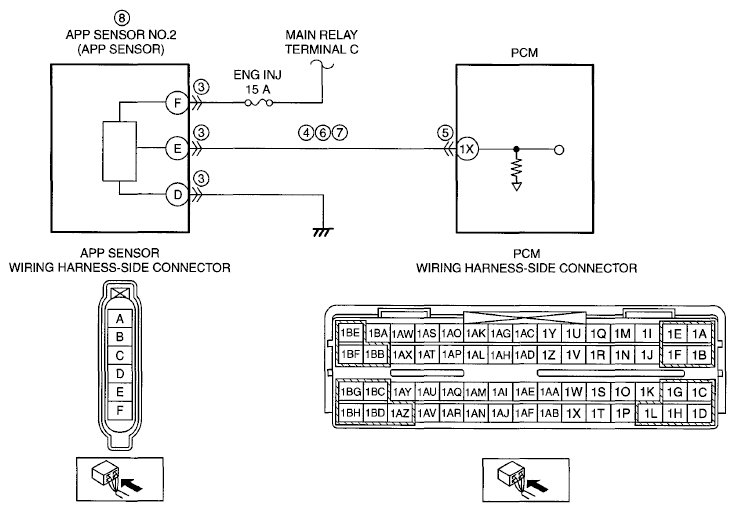

DTC P2126:00 (LF, L5) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P2126:00 |
APP sensor No. 2 circuit range/performance no sub type information |
| DETECTION CONDITION |
- The PCM monitors the APP sensor duty signal. If the input signal (duty signal) is too high or too low than the set value, or the input signal intervals are too short or too long, the PCM determines that the APP sensor No. 2 has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- APP sensor connector or terminals malfunction
- Short to ground in wiring harness between APP sensor terminal E and PCM terminal 1X
- PCM connector or terminals malfunction
- Short to power supply in wiring harness between APP sensor terminal E and PCM terminal 1X
- Open circuit in wiring harness between APP sensor terminal E and PCM terminal 1X
- APP sensor No. 2 malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
