DTC P2502:00: Notes

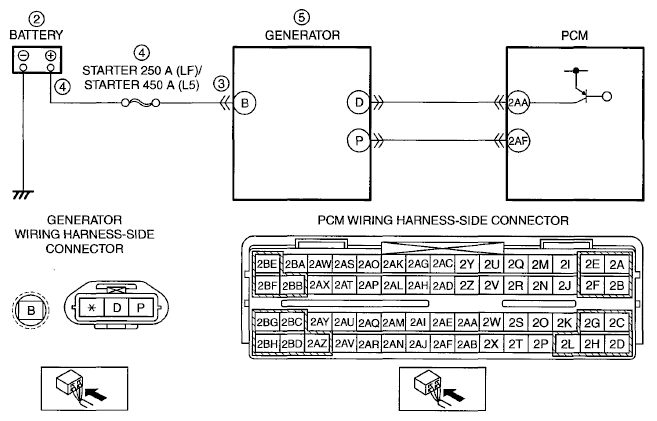

DTC P2502:00 (LF, L5) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P2502:00 |
Charging system voltage problem |
| DETECTION CONDITION |
- The PCM determines that the generator output voltage is above 17 V
or battery voltage is below 11 V
while the engine is running.
Diagnostic support note
- This is a continuous monitor (other).
- The MIL does not illuminate.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is not available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Battery malfunction
- Poor installation of generator terminal
- Short to ground or open circuit in generator power supply circuit
- Short to ground in wiring harness between generator terminal B and battery positive terminal
- STARTER fuse 250 A (LF)/450 A (L5) malfunction
- Open circuit in wiring harness between generator terminal B and battery positive terminal
- Generator malfunction
- PCM malfunction
|
