Control System Device And Control Relationship Chart

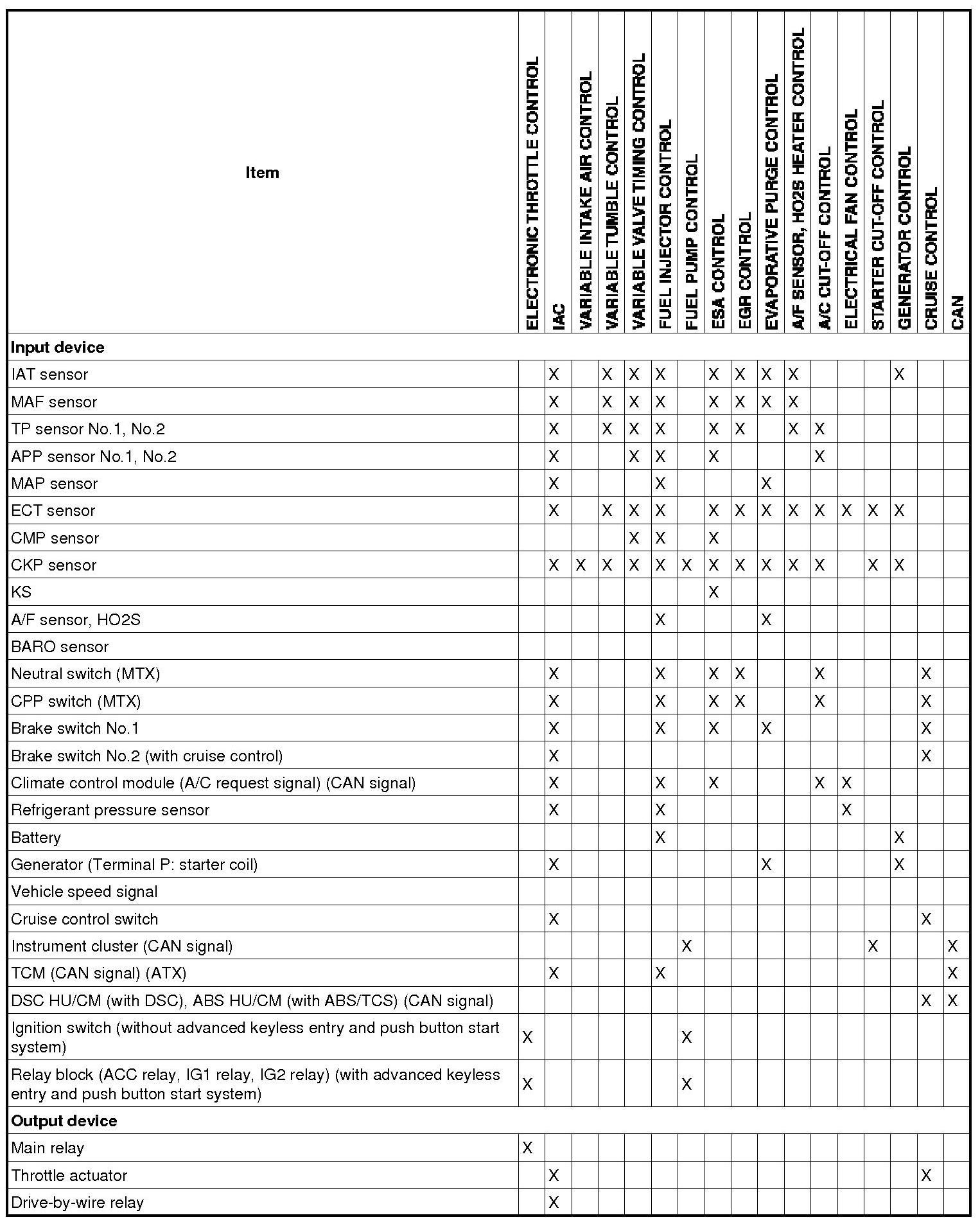

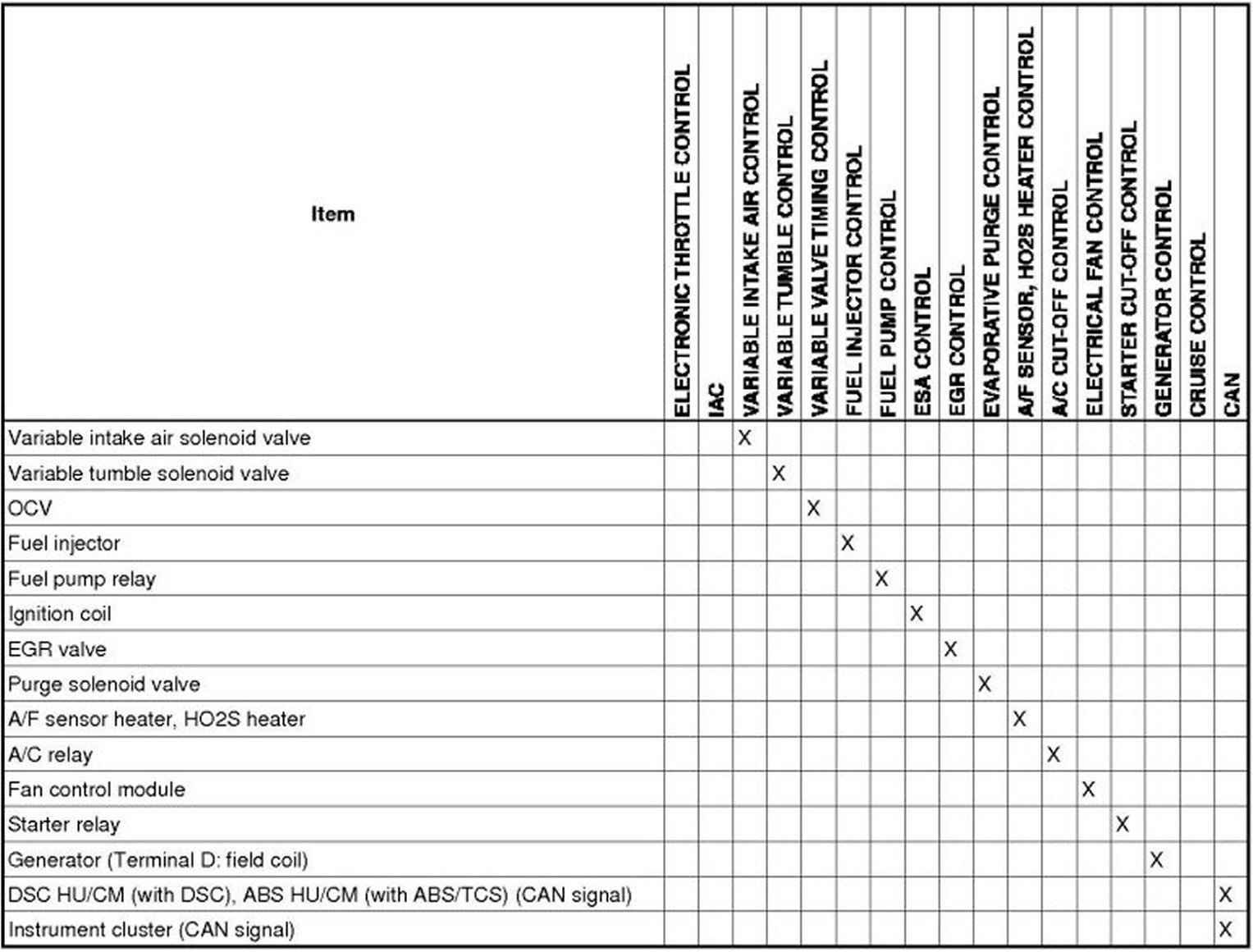

CONTROL SYSTEM DEVICE AND CONTROL RELATIONSHIP CHART [L5]
X: Applied
