Power Steering Pressure Switch: Testing and Inspection

POWER STEERING PRESSURE (PSP) SWITCH INSPECTION [L5]

Continuity Inspection

1. Inspect the following if the power steering is inoperative (See Testing and Inspection.):

- Power steering fluid level
- Power steering fluid leakage
- Power steering fluid pressure

2. Disconnect the PSP switch connector.

3. Start the engine.

4. Inspect for continuity between the PSP switch terminal and ground using a tester.

- If not as specified, replace the PSP switch. (See Removal and Replacement.)

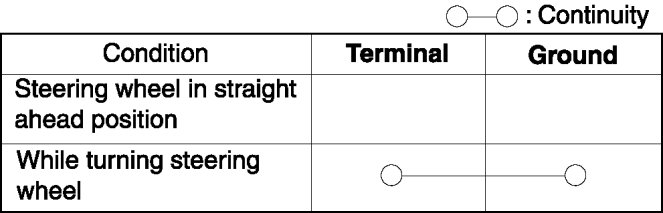

Specification
