No.1 Door Cannot Be Locked/Unlocked By Transmitter (Advanced Key) - Advanced Keyless Entry and Start System




NO.1 DOOR CANNOT BE LOCKED/UNLOCKED BY TRANSMITTER (ADVANCED KEY) [ADVANCED KEYLESS ENTRY AND START SYSTEM]

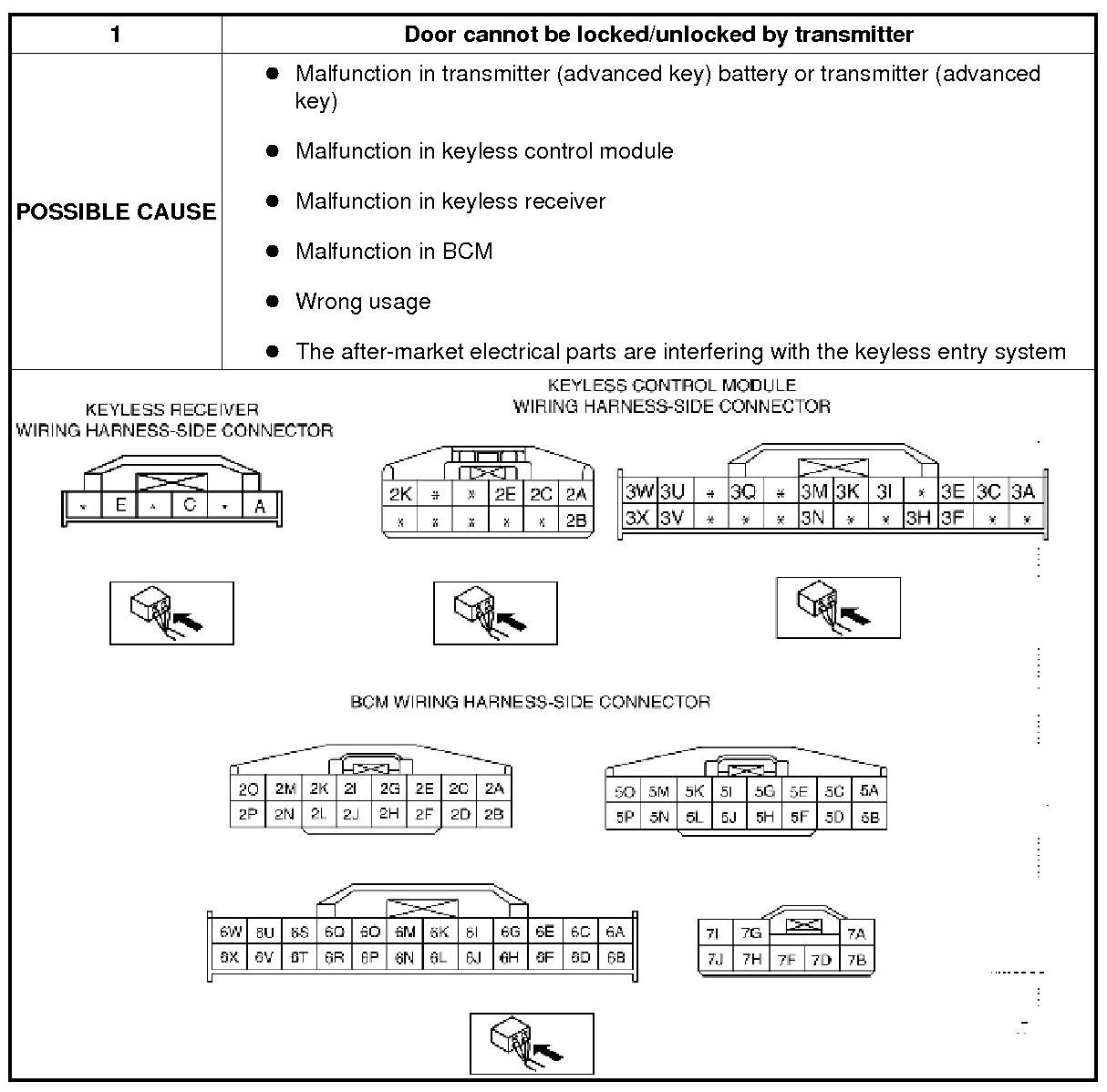

Possible Cause:





Diagnostic procedure

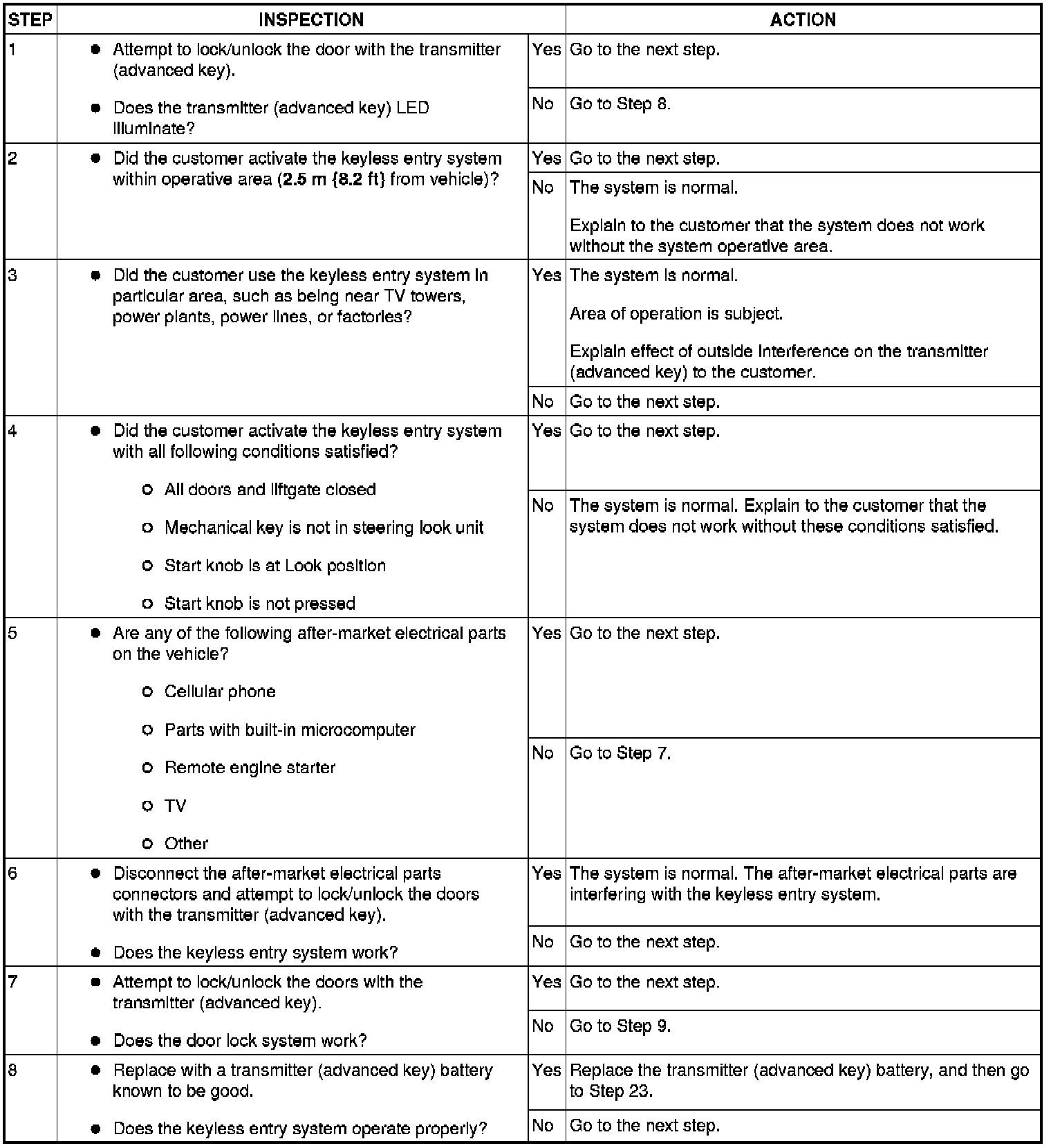

Step 1-Step 8:

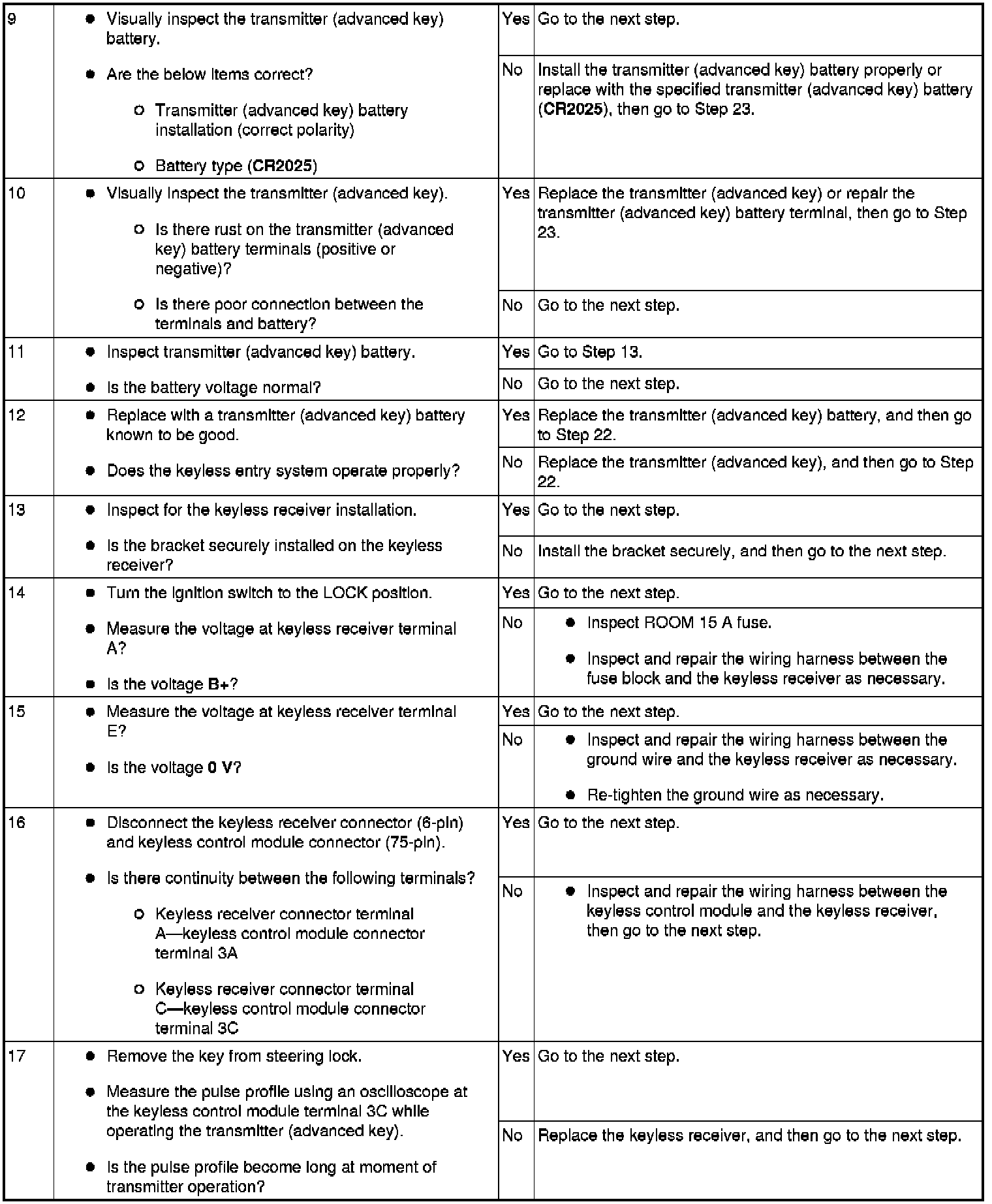

Step 9-Step 17:

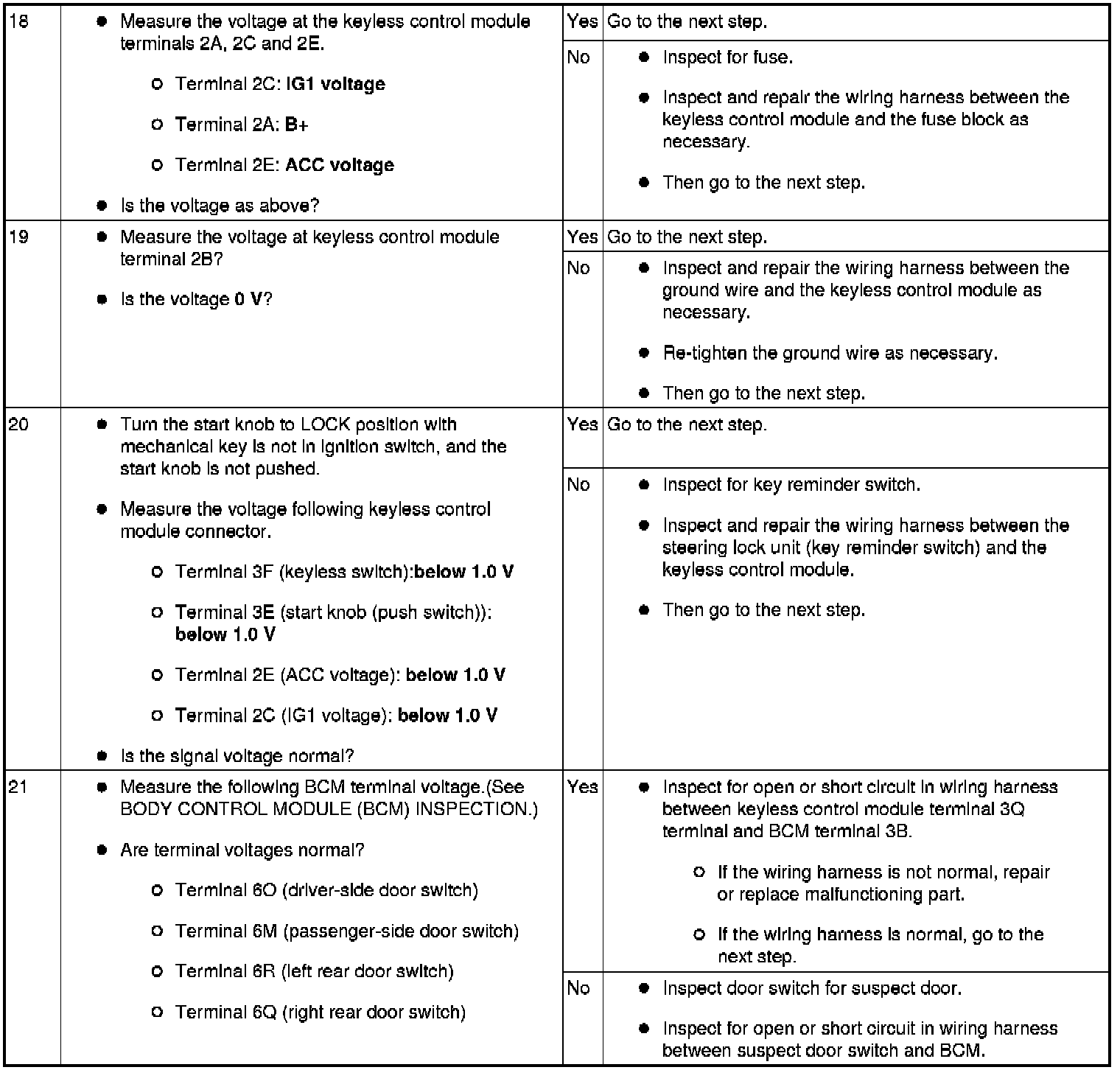

Step 18-Step 21:





Step 22-Step 23:
