PID/Data Monitor Table - Auto Light/Wiper Control Module




PID/DATA MONITOR TABLE [AUTO LIGHT/WIPER CONTROL MODULE]

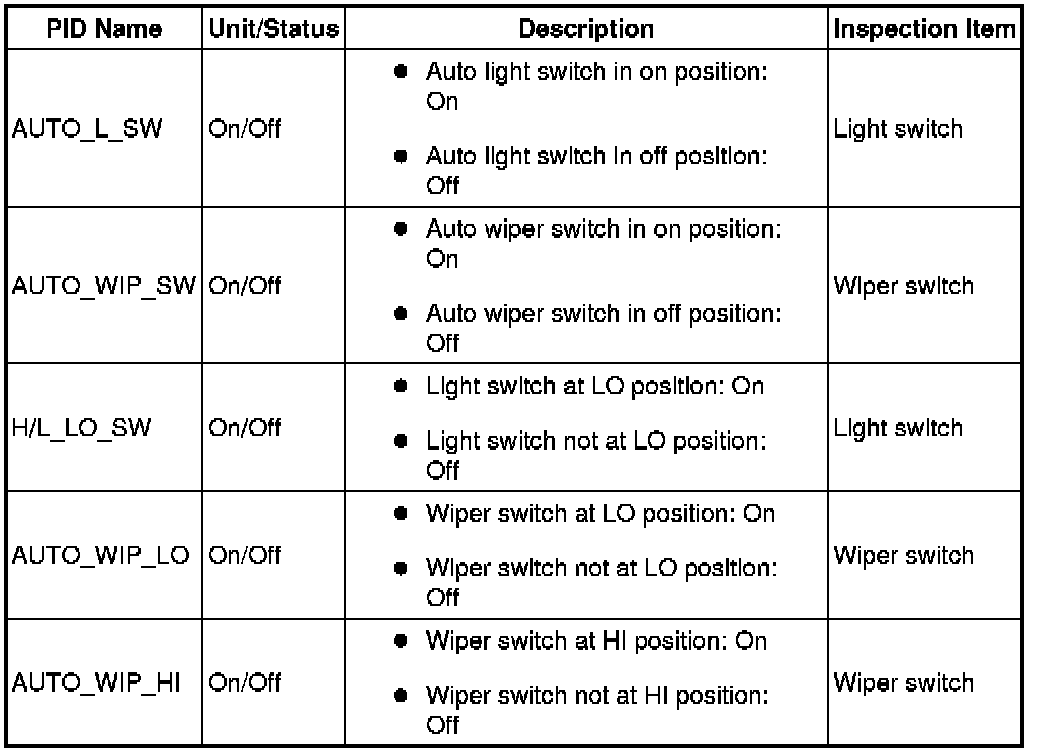

PID/DATA Monitor Table:
