Advanced Keyless Entry And Start System/Immobilizer System

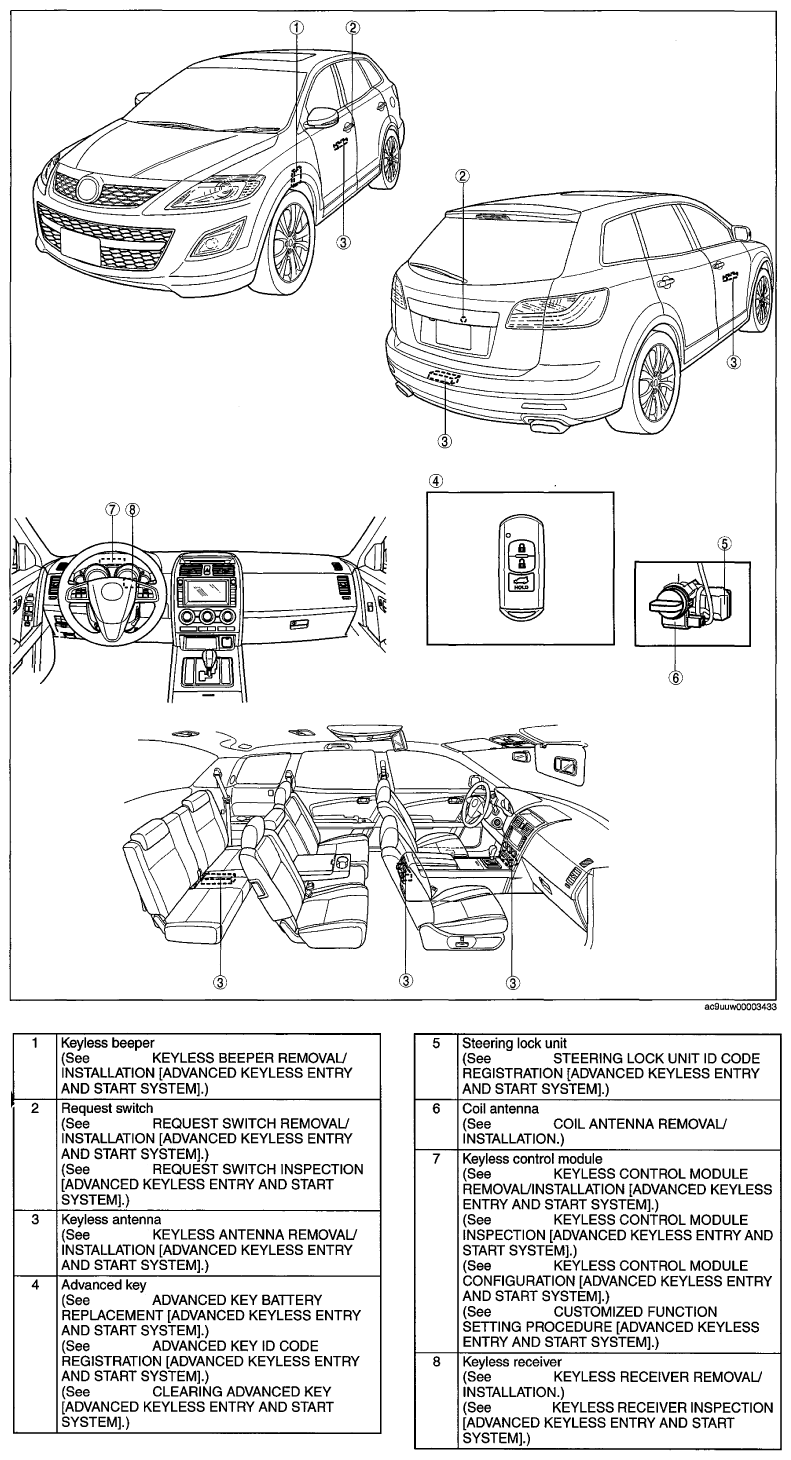

Fig 1: Identifying Advanced Keyless Entry And Start System/Immobilizer System Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
