Keyless Control Module Connector End View

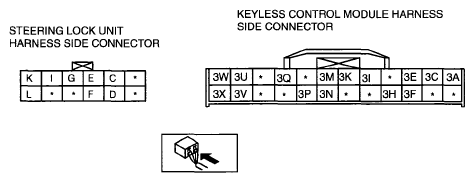

Fig 1: Keyless Control Module Connector End View
G05985629Courtesy of MAZDA MOTORS CORP.
