Seat Weight Sensor Control Module Connector End View

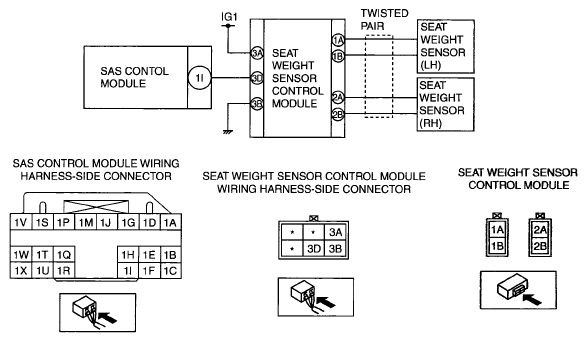

Fig 1: Seat Weight Sensor Control Module Connector End View
G05985520Courtesy of MAZDA MOTORS CORP.
