Connector Locations

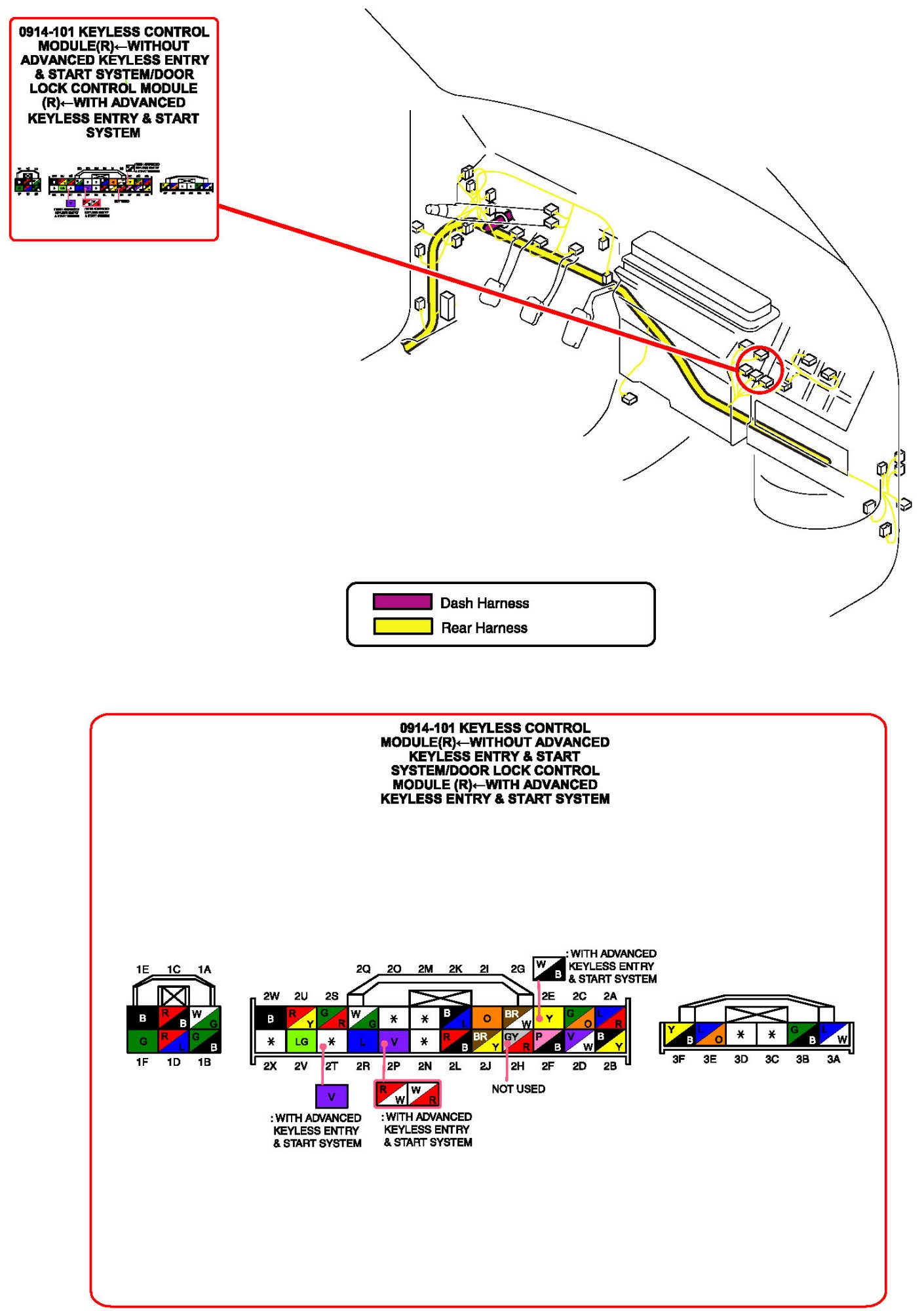

Keyless Control Module<-Without Advanced Keyless Entry & Start System/Door Lock Control Module<-With Advanced Keyless Entry & Start System:




Keyless Control Module:
