Air Flow Meter/Sensor: Testing and Inspection

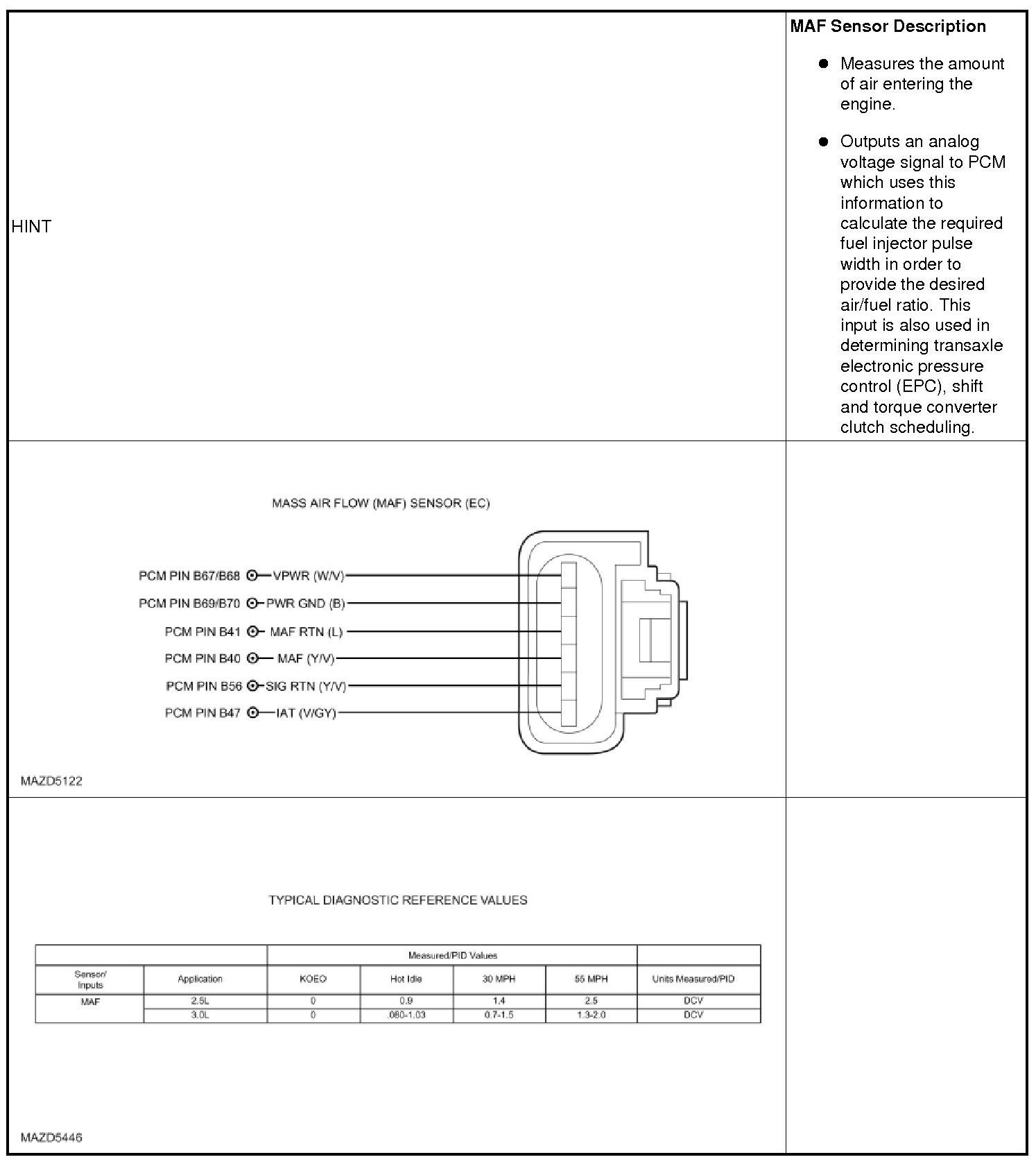

MASS AIR FLOW (MAF) SENSOR

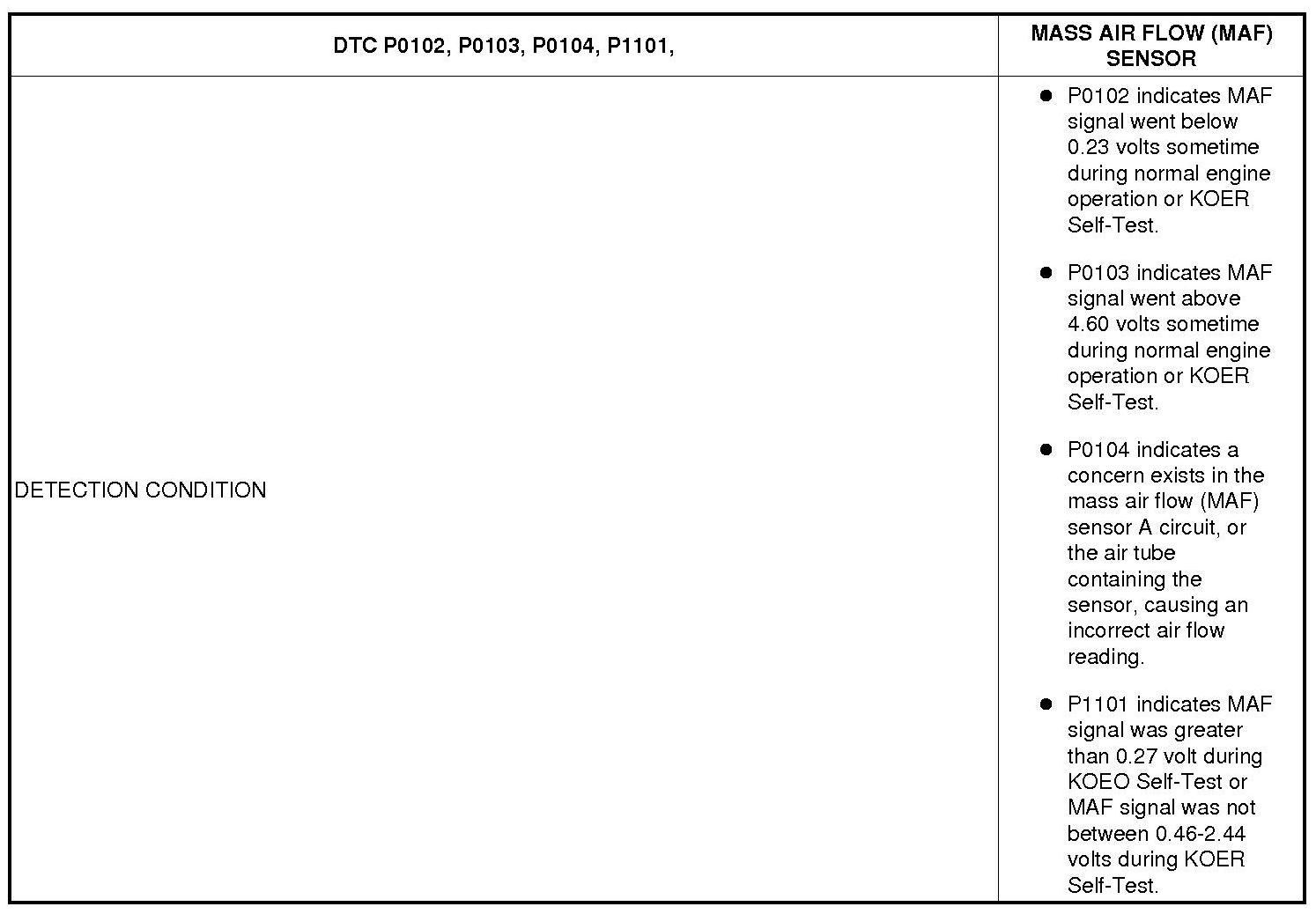

Detection Condition:

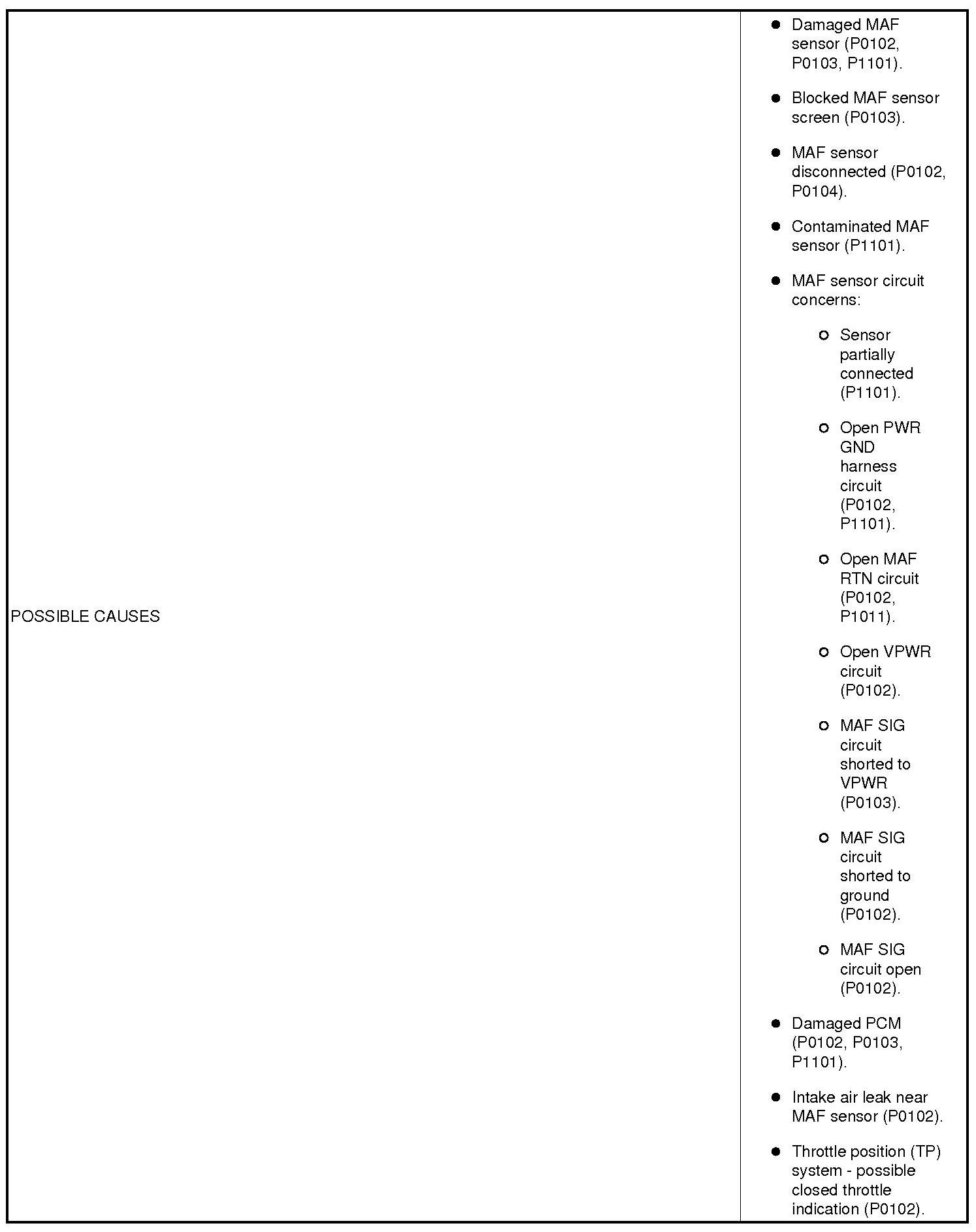

Possible Causes:

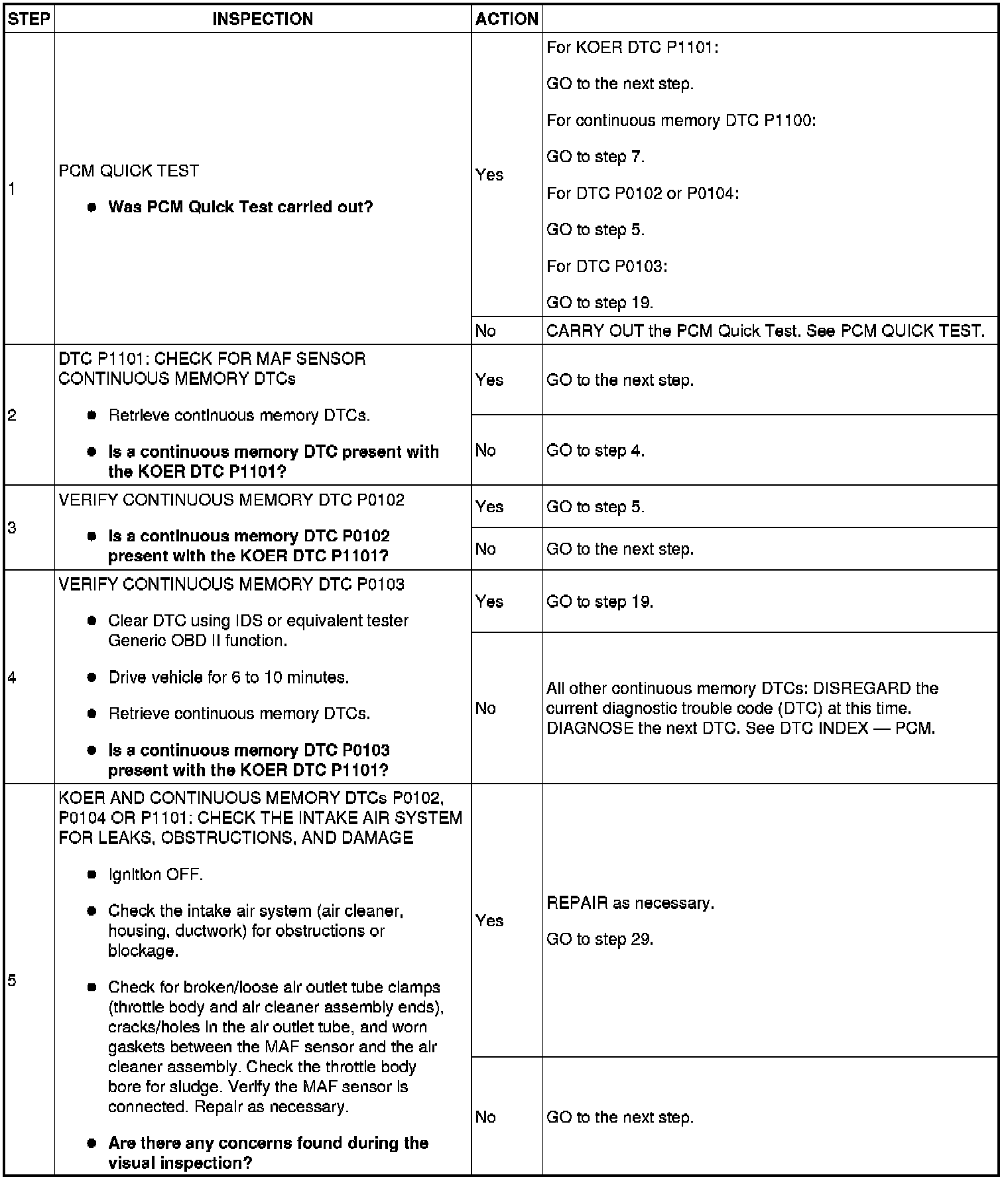

Step 1-Step 5:

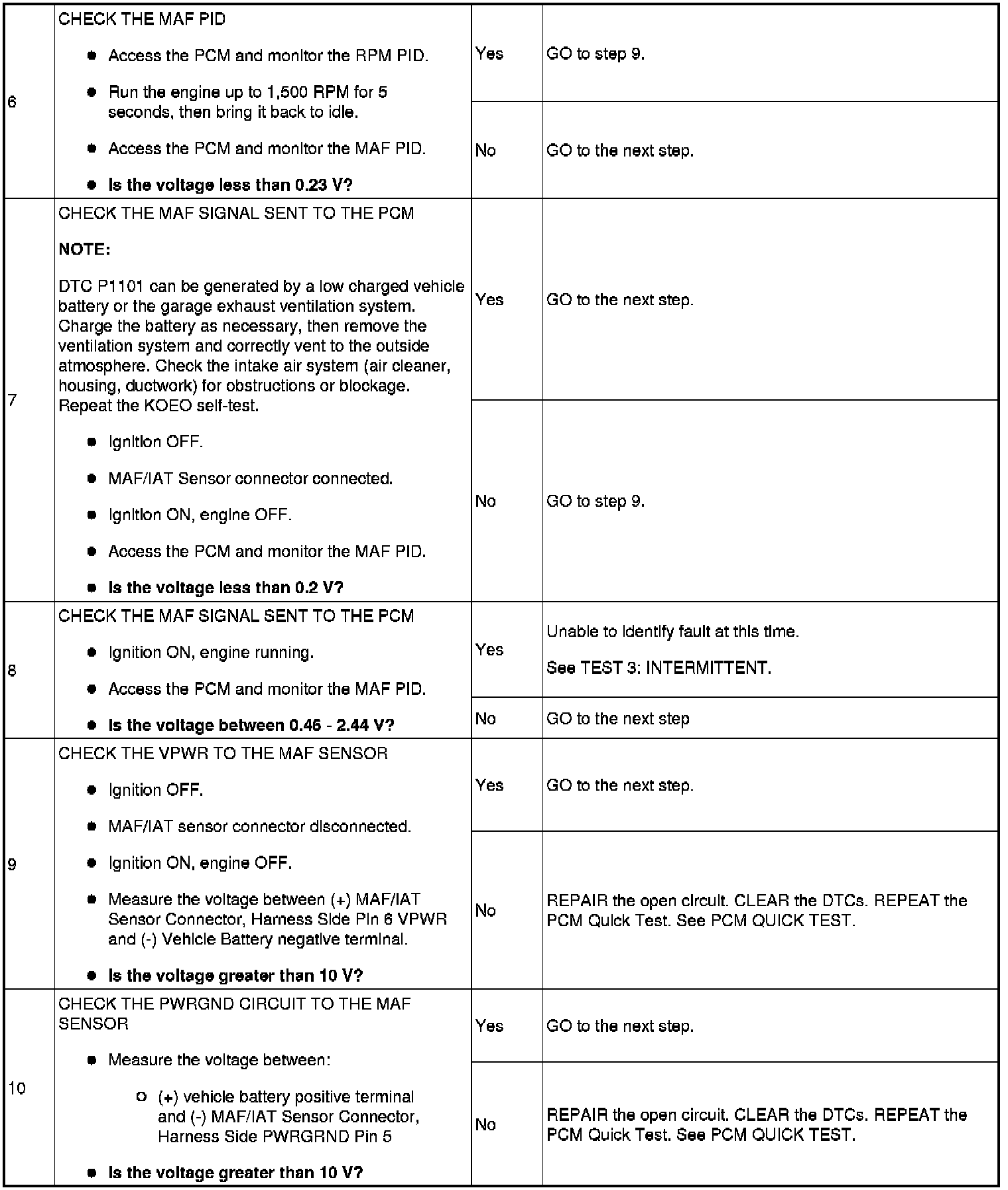

Step 6-Step 10:

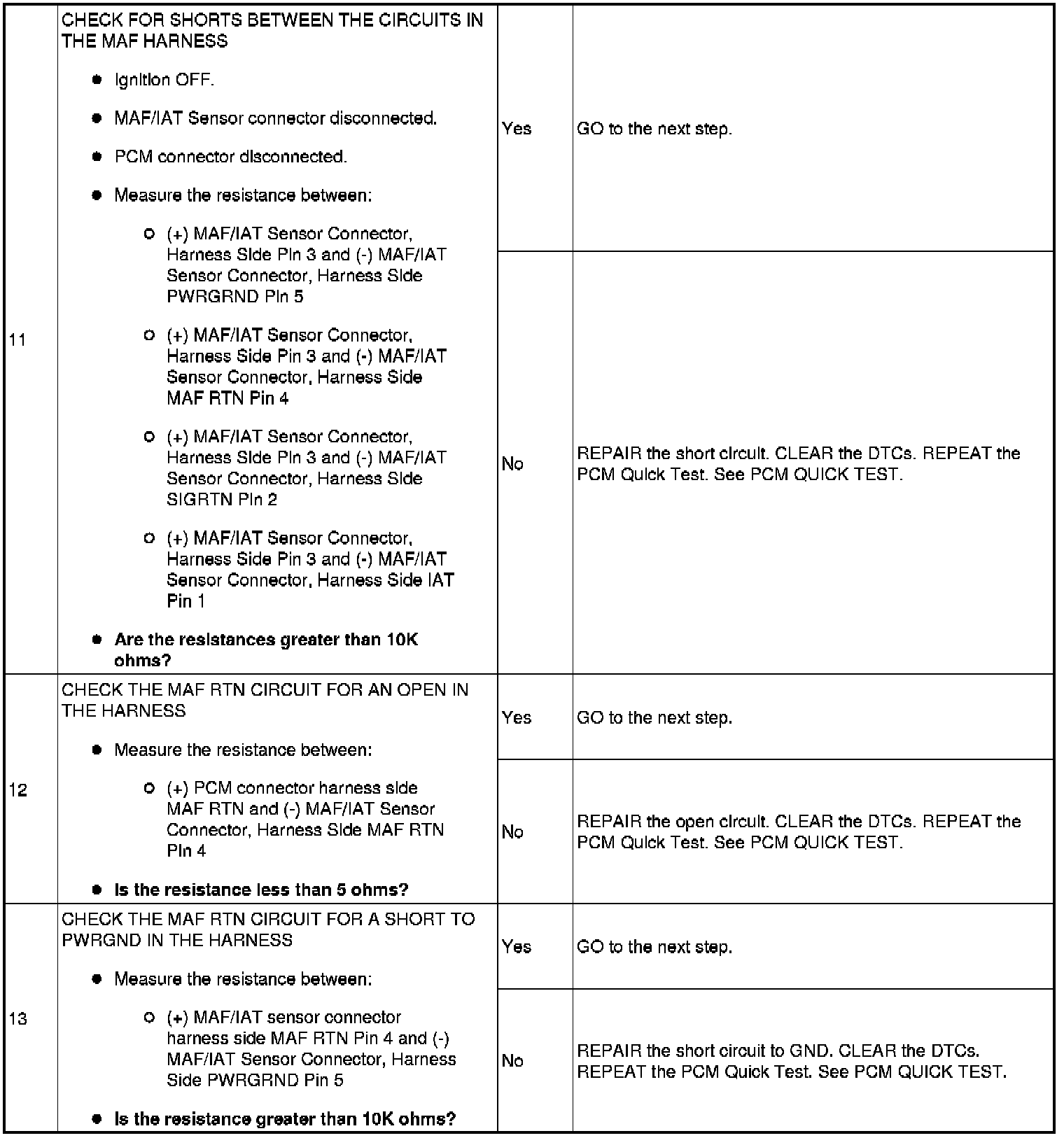

Step 11-Step 13:

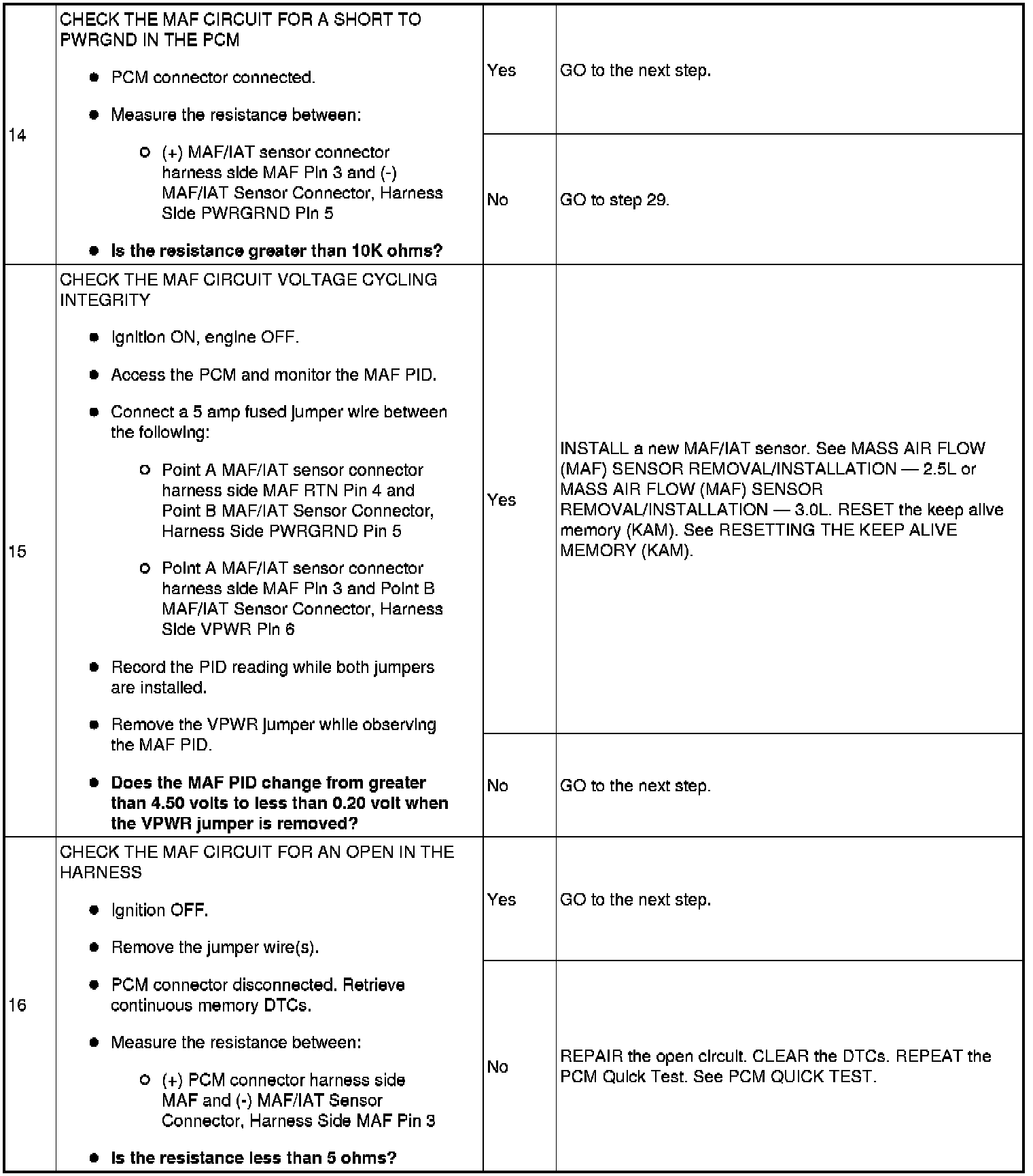

Step 14-Step 16:

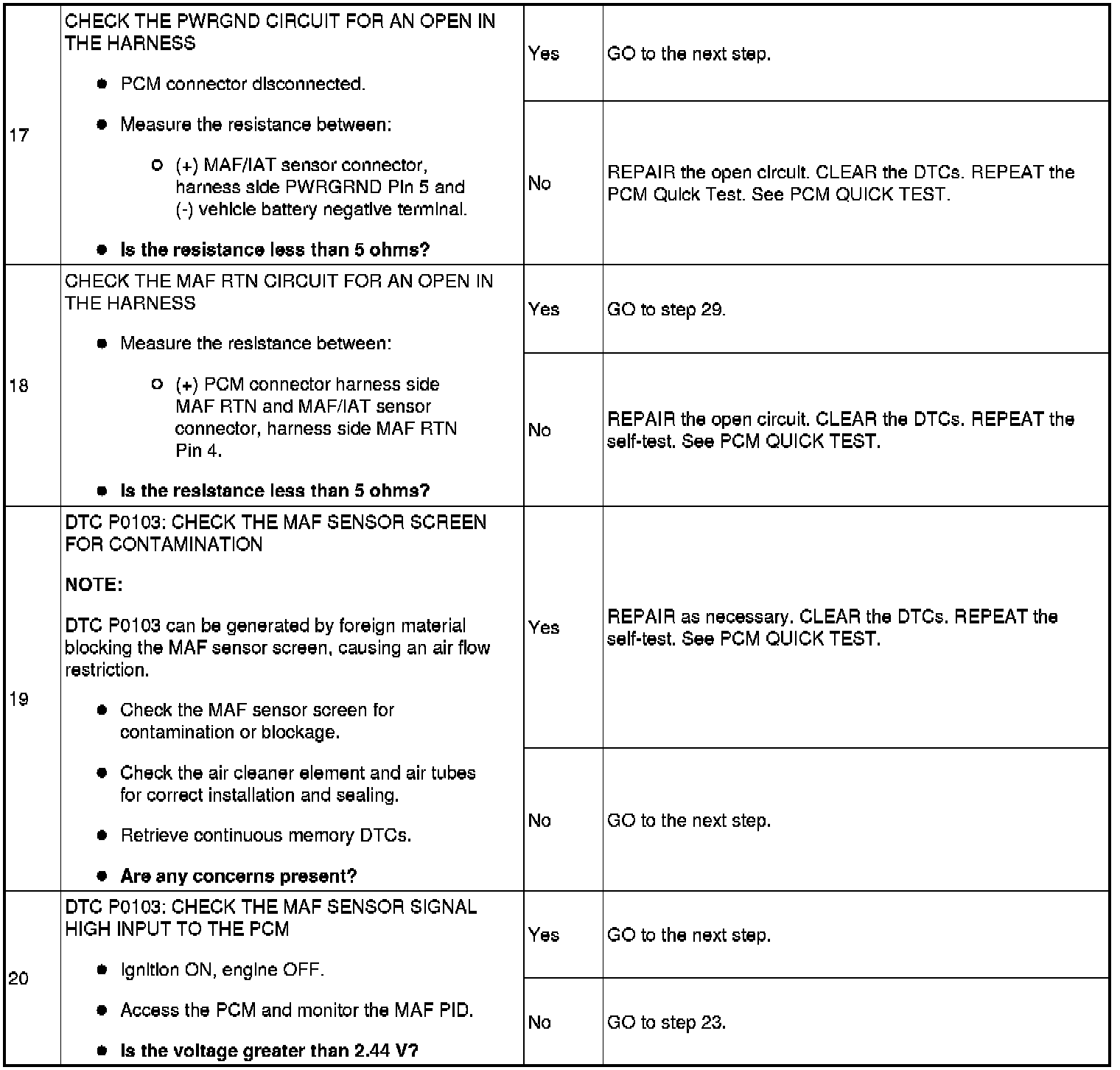

Step 17-Step 20:

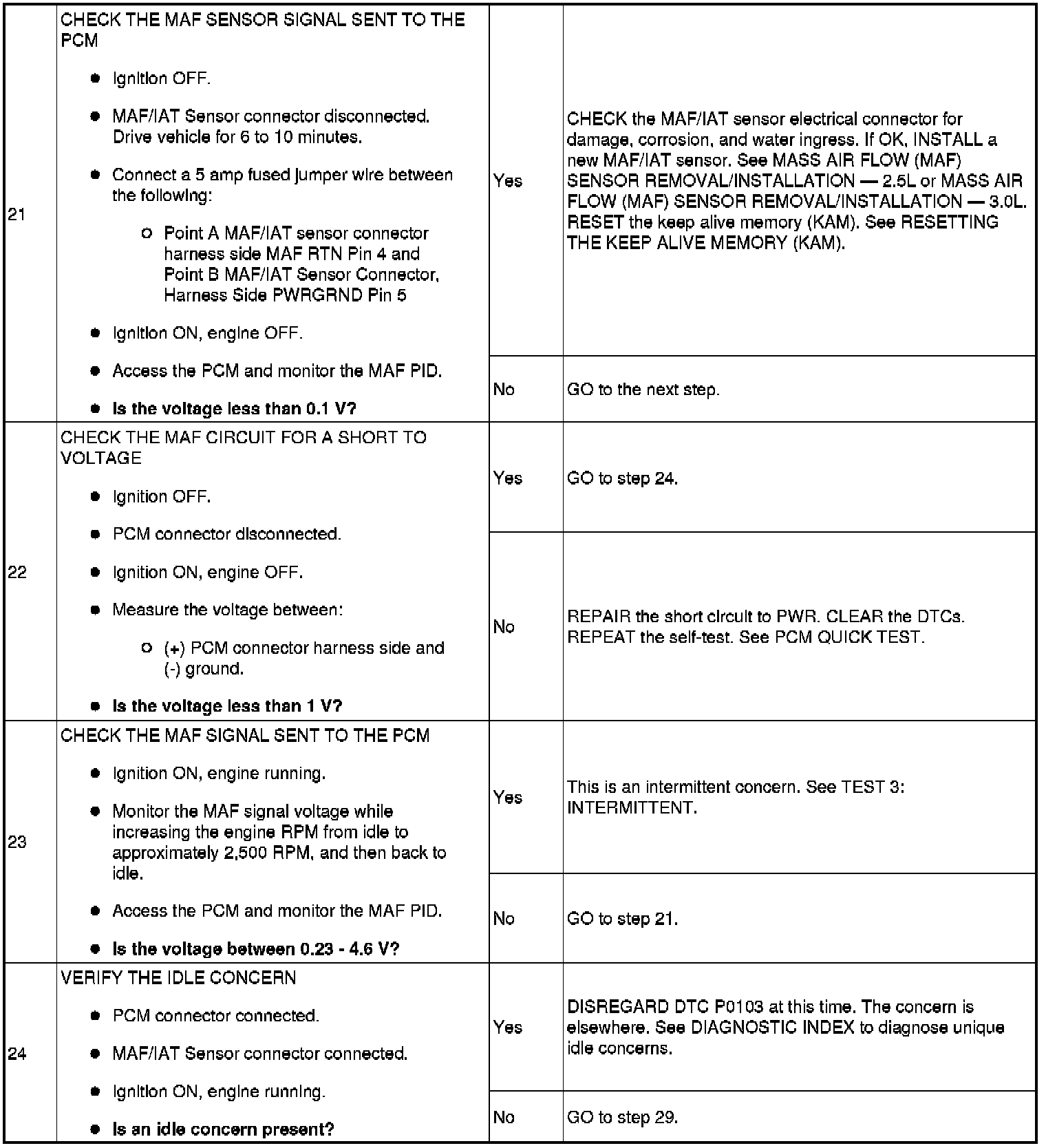

Step 21-Step 24:

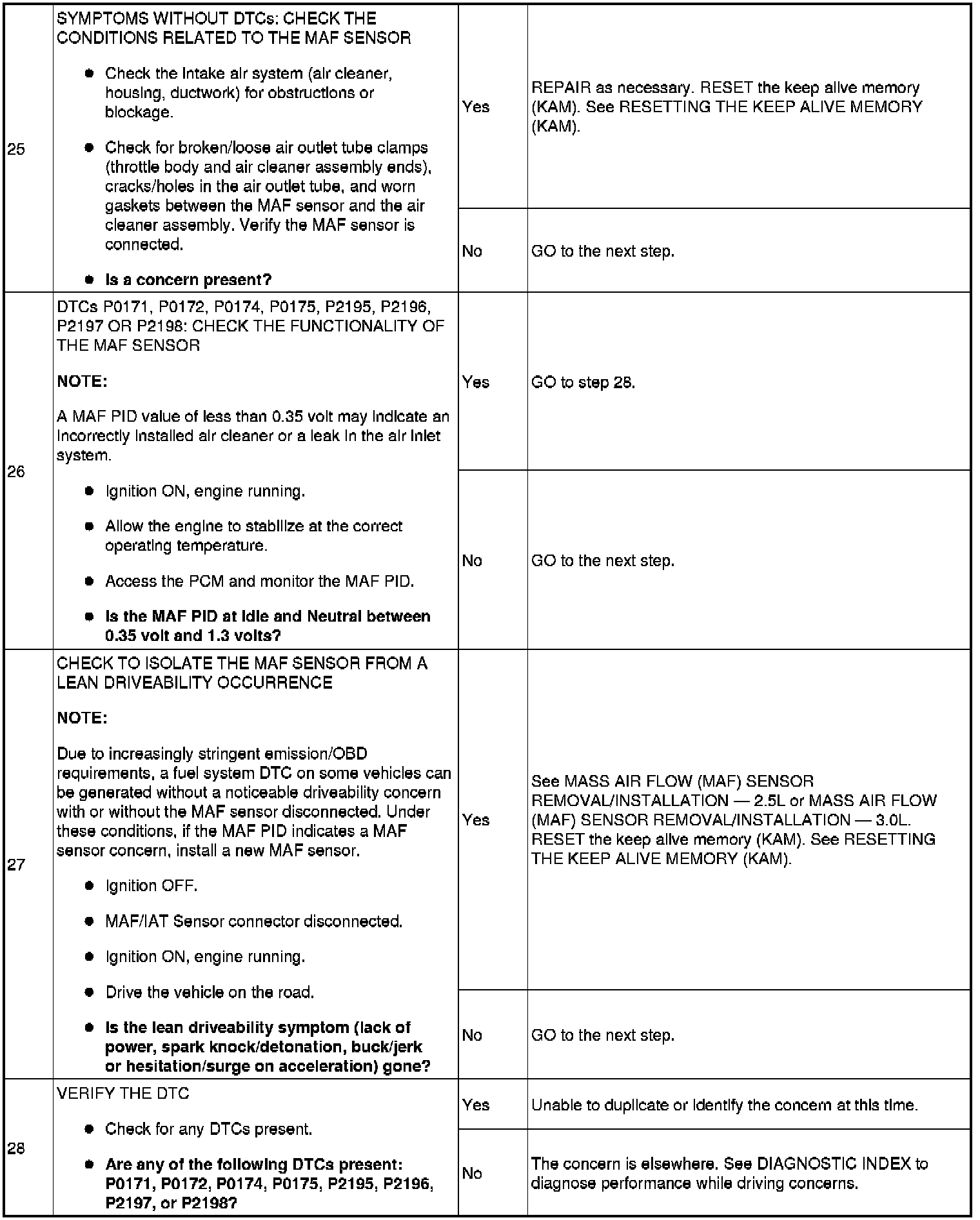

Step 25-Step 28:

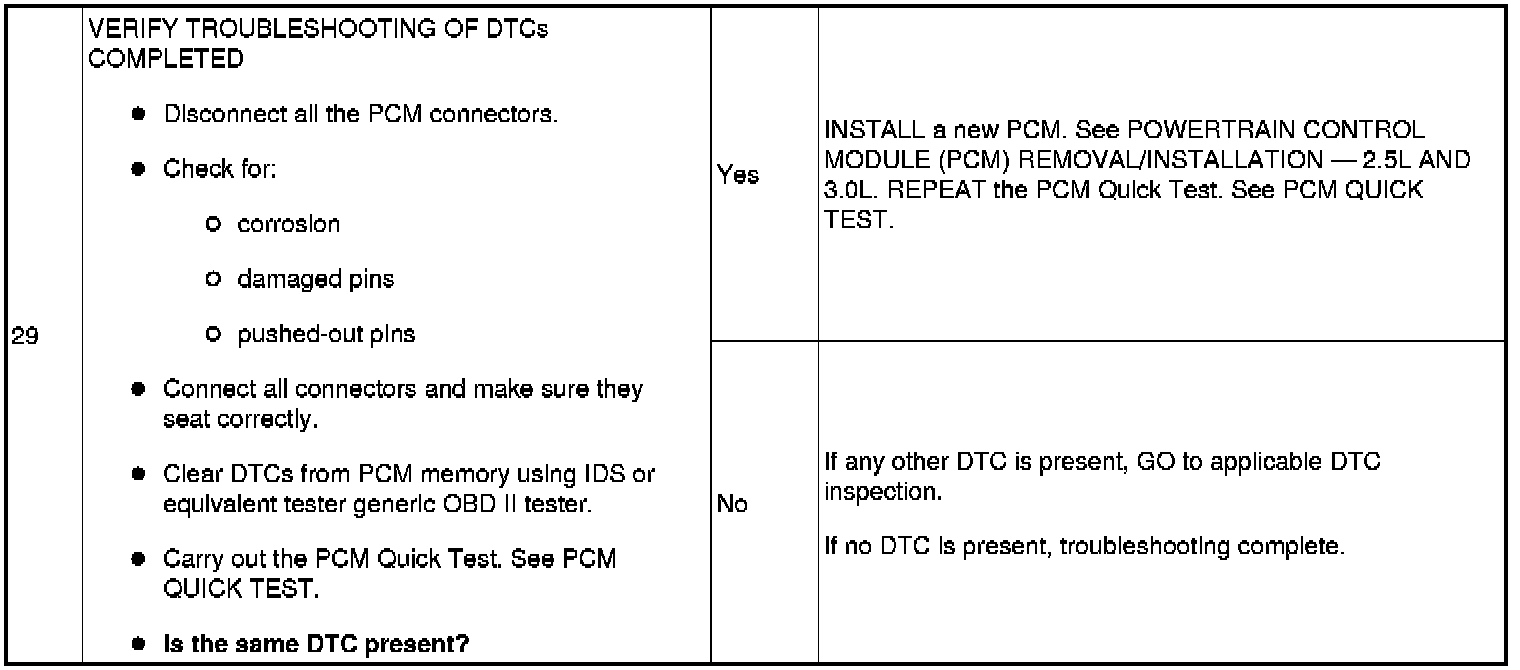

Step 29:
