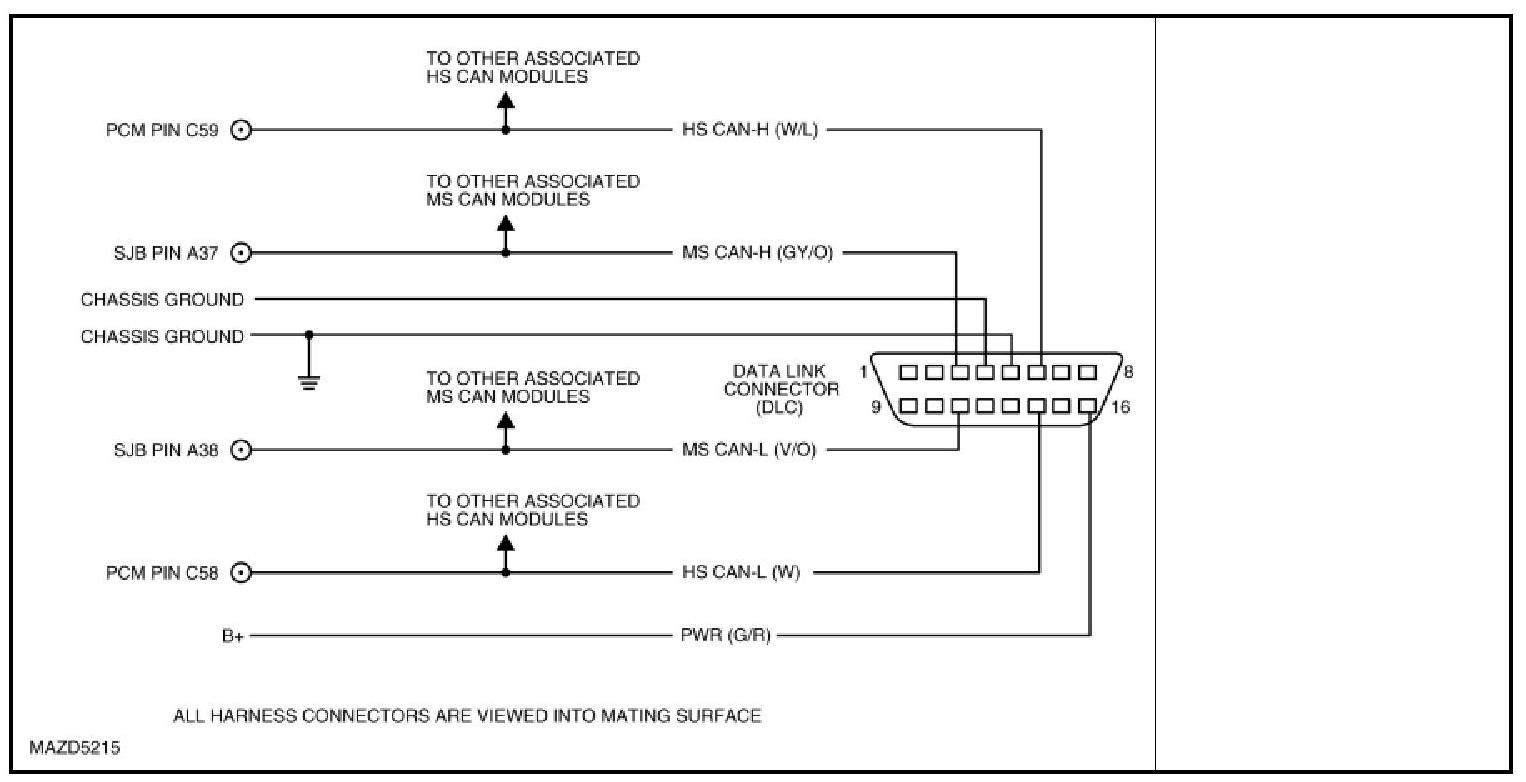

Data Link Connector: Testing and Inspection




DATA LINK CONNECTOR (DLC) MALFUNCTION

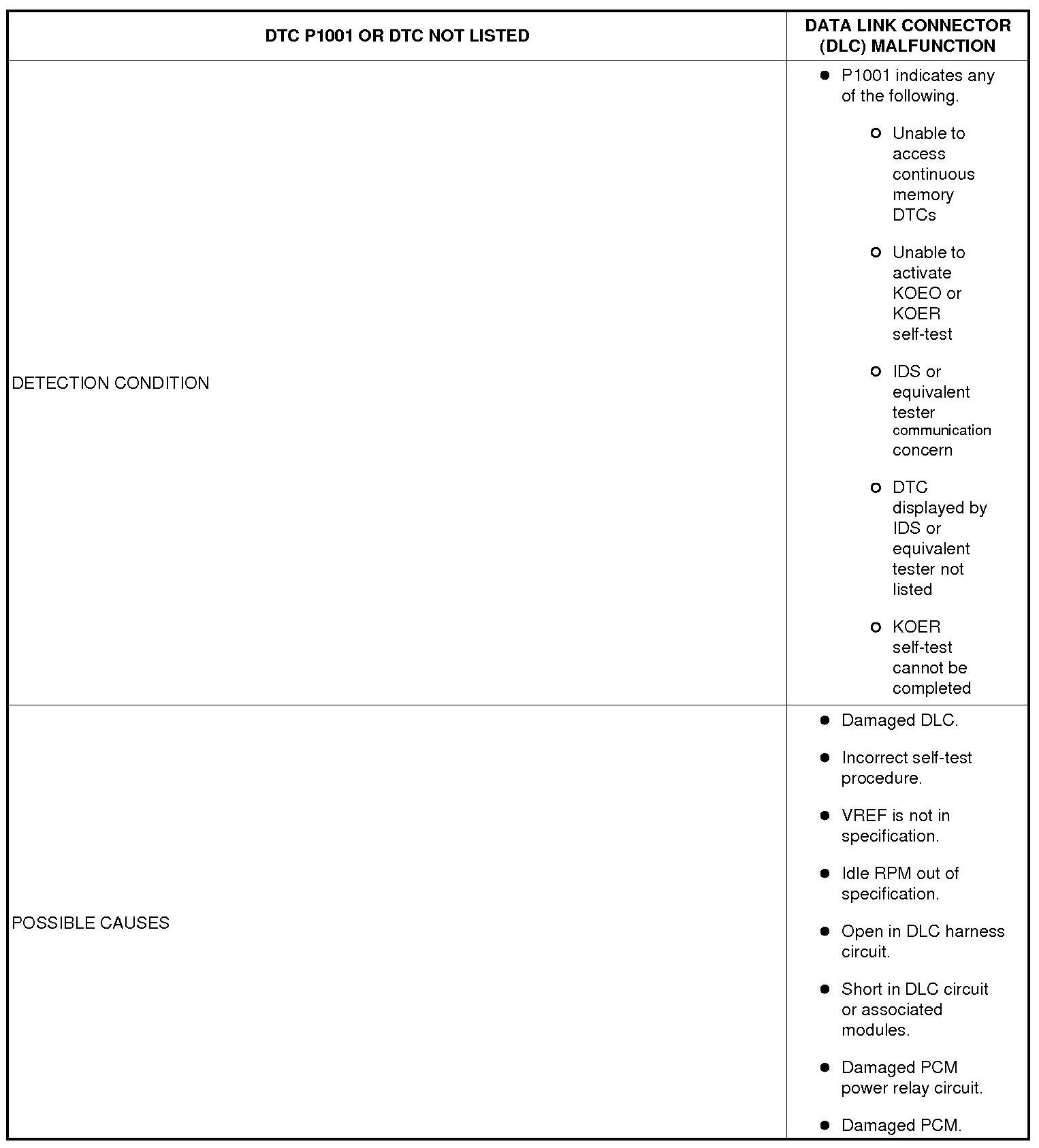

Detection Condition/Possible Causes:

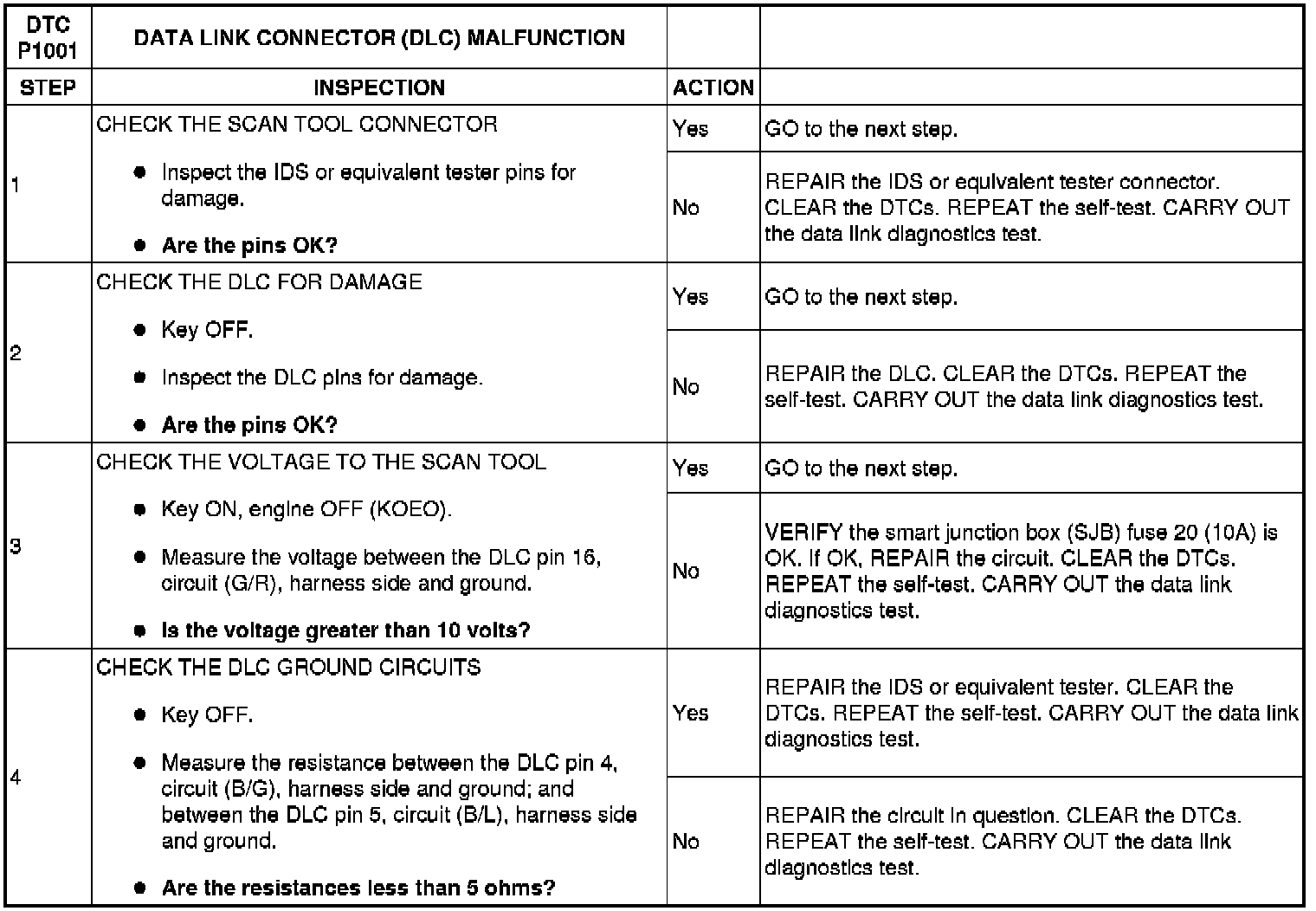

Step 1-Step 4:
