Engine Temperature Sensor: Testing and Inspection

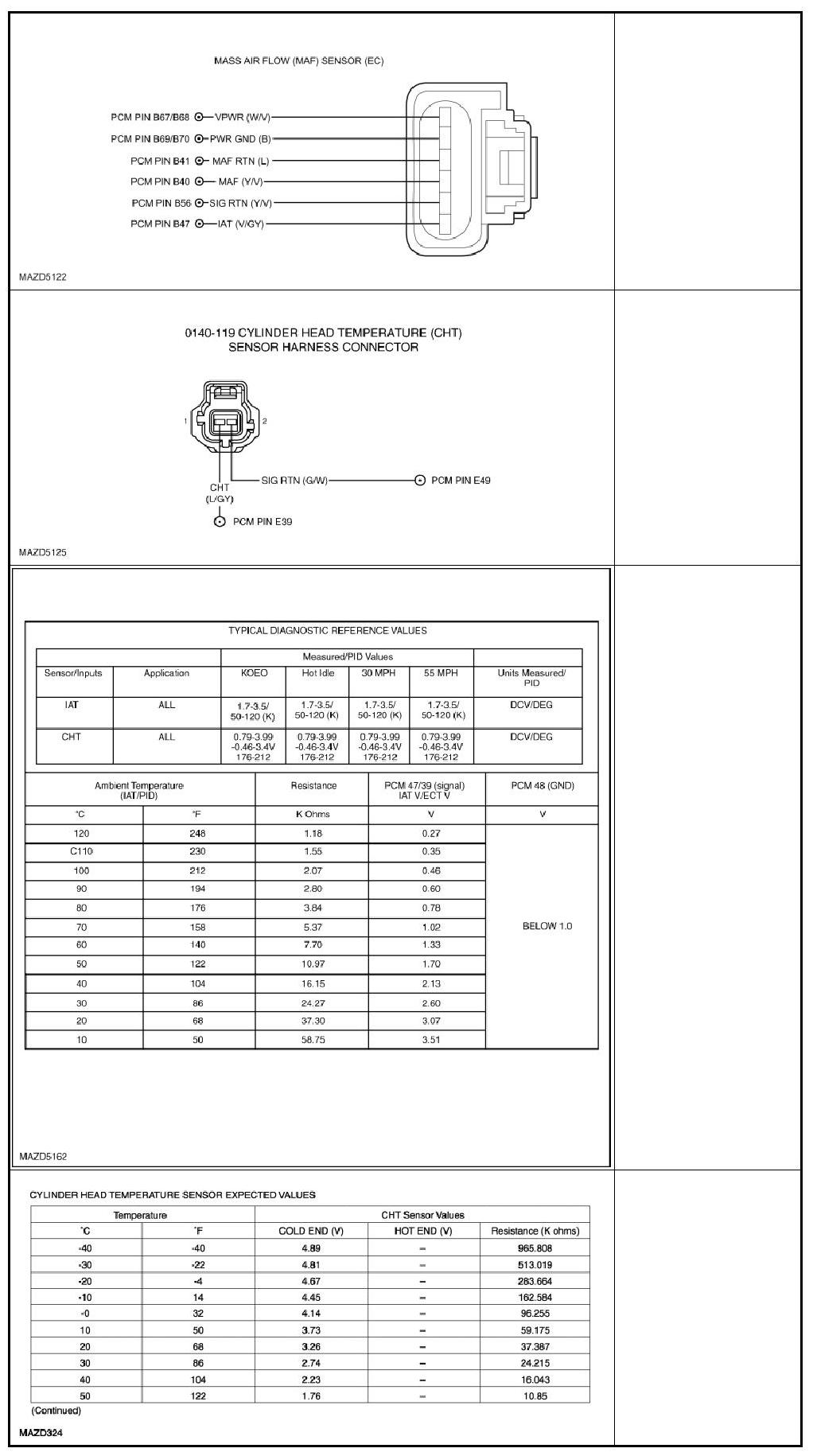

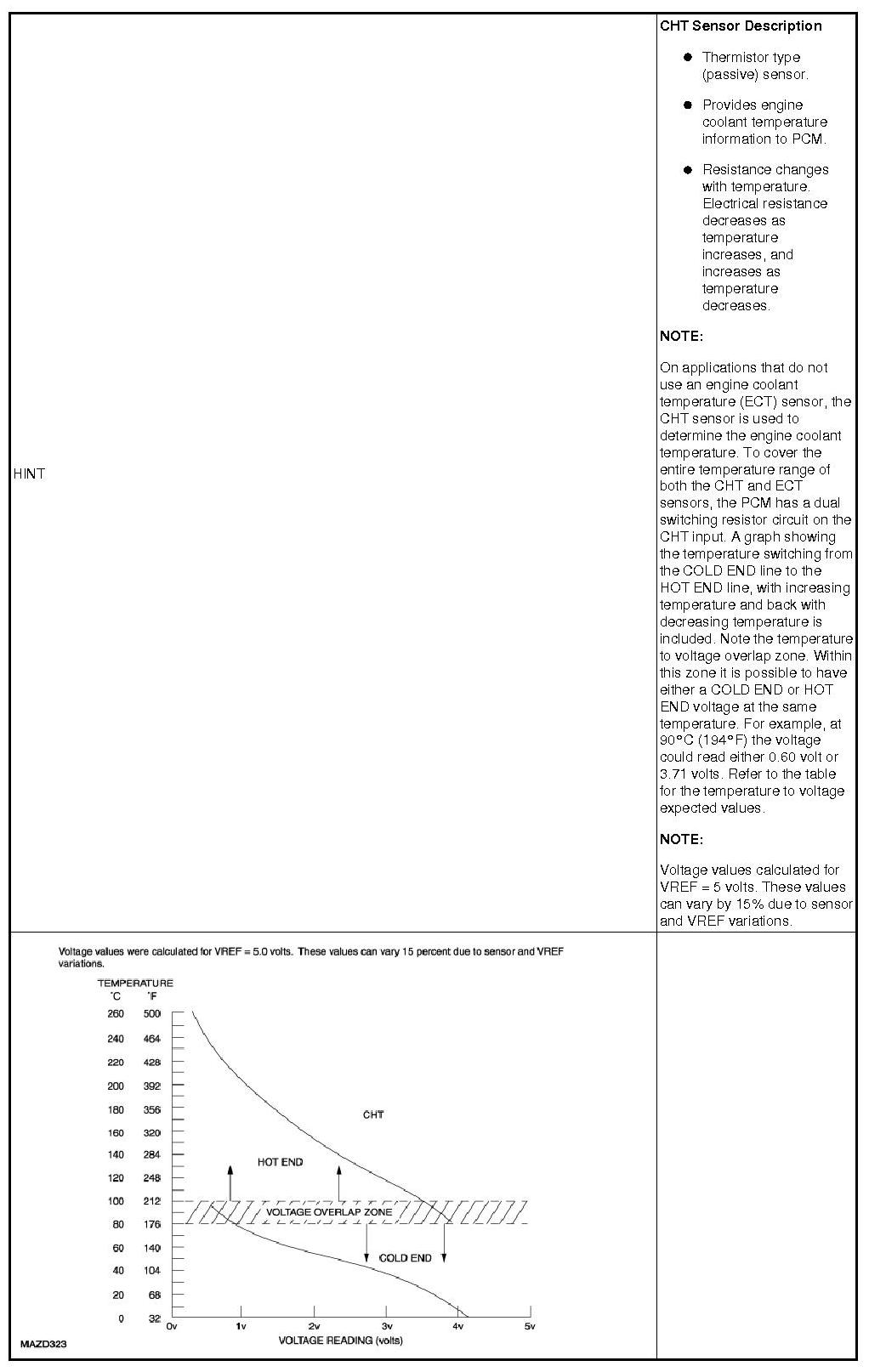

CYLINDER HEAD TEMPERATURE (CHT) SENSOR

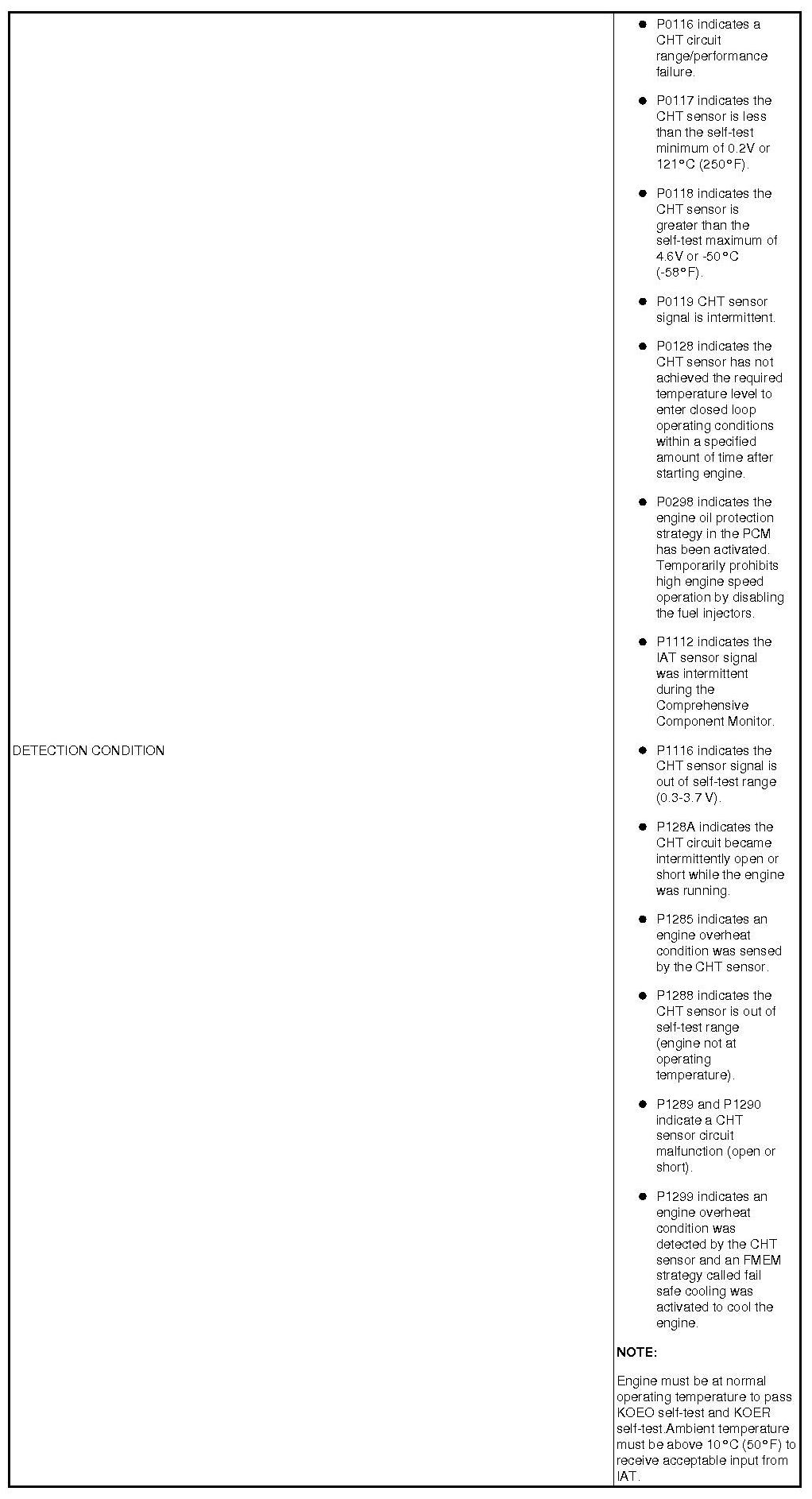

Detection Condition:

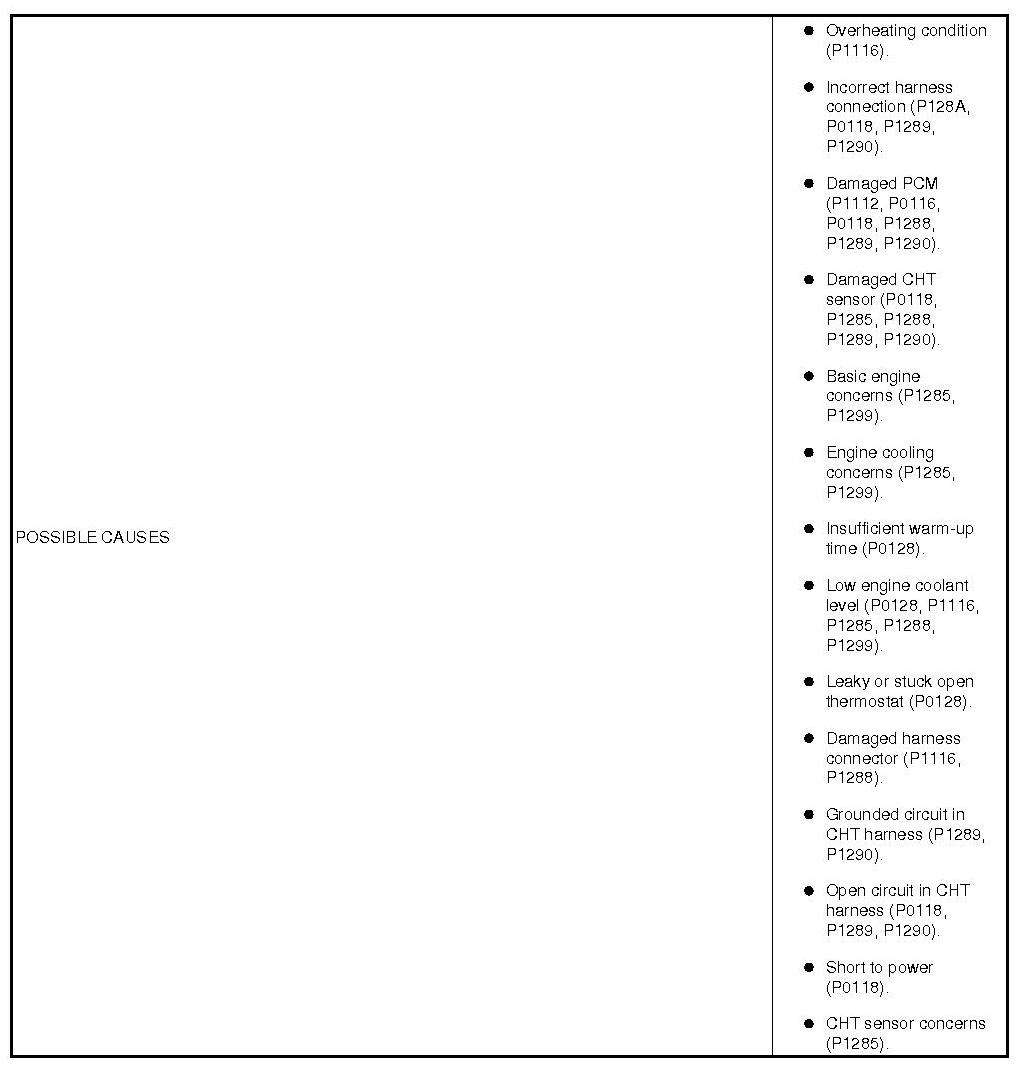

Possible Causes:

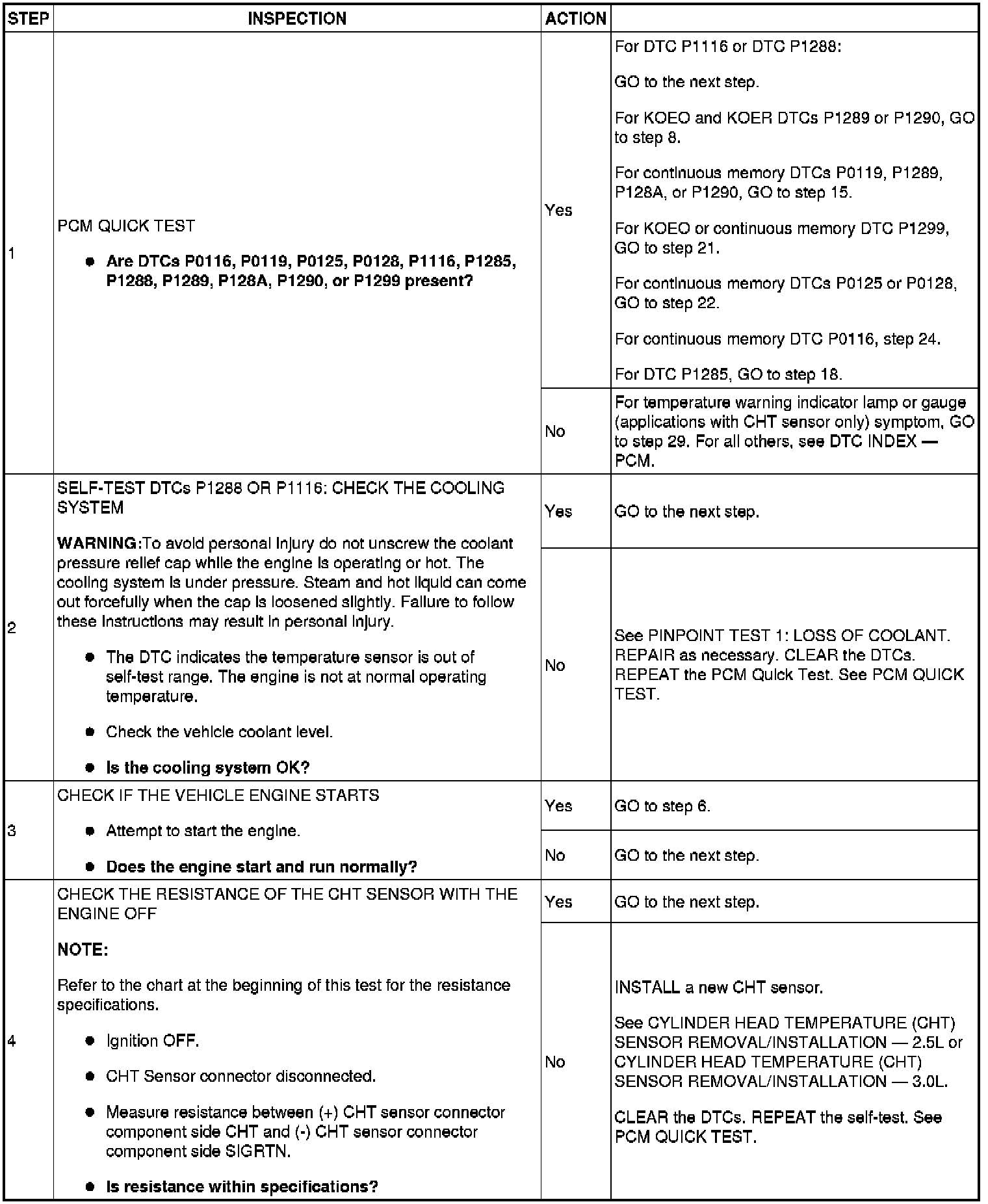

Step 1-Step 4:

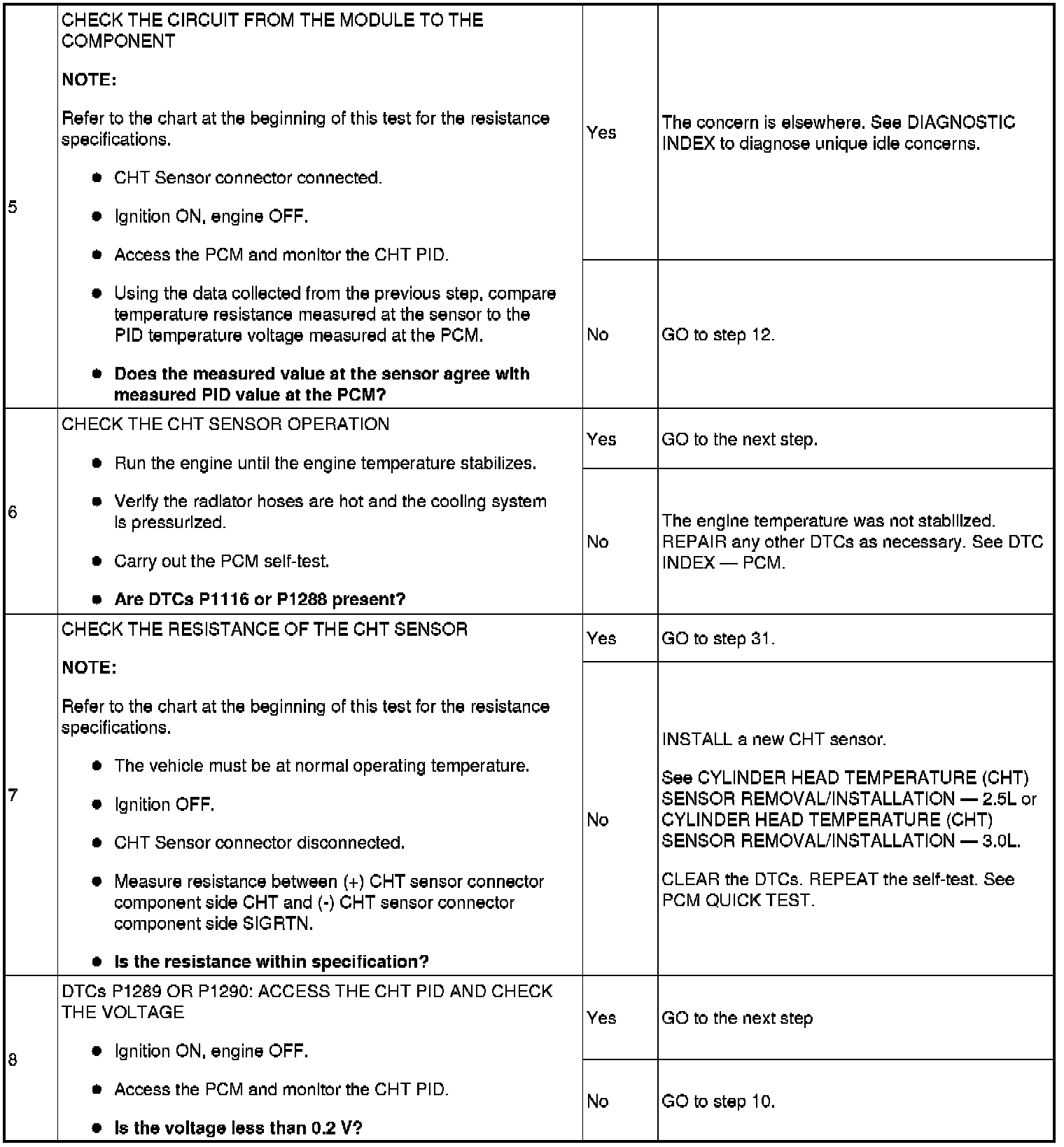

Step 5-Step 8:

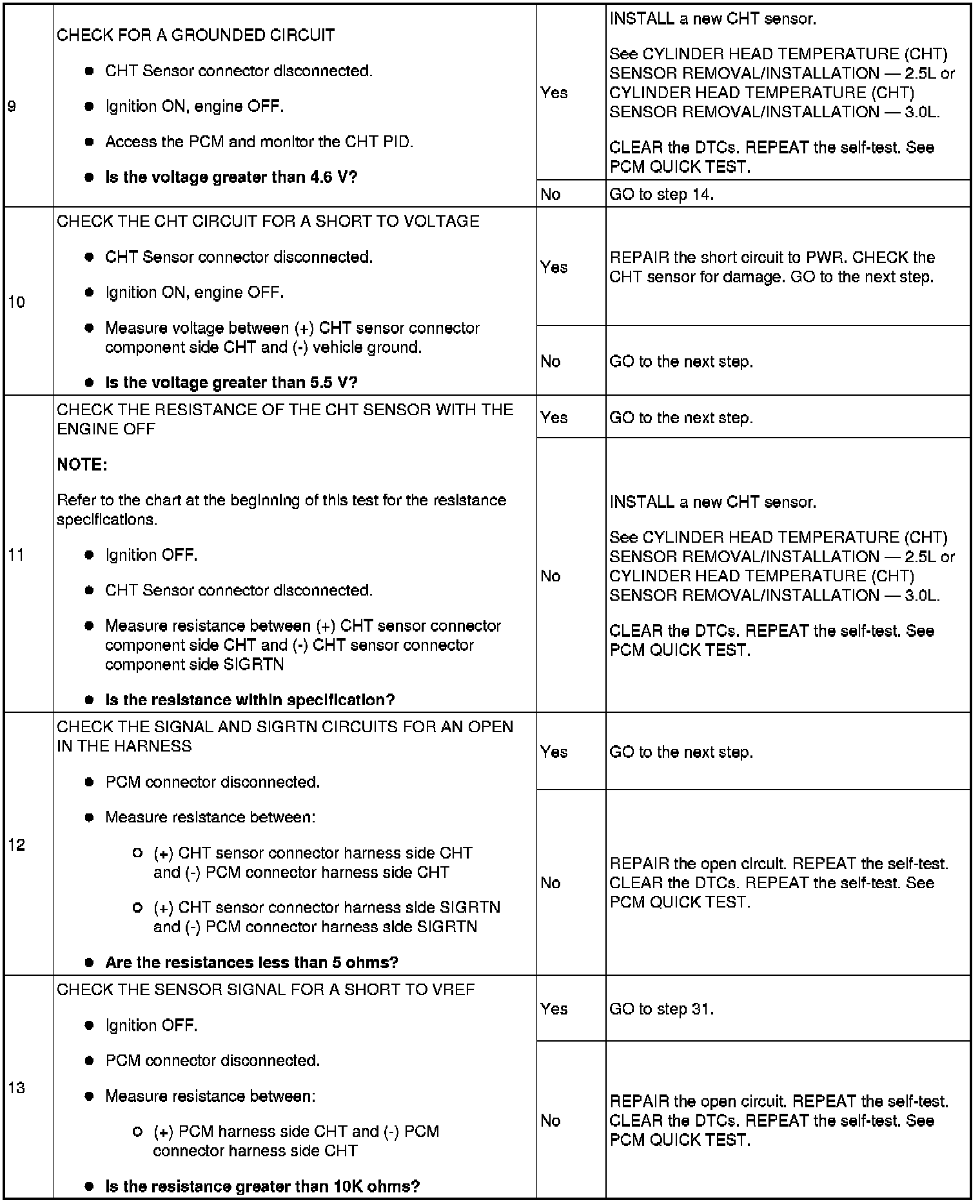

Step 9-Step 13:

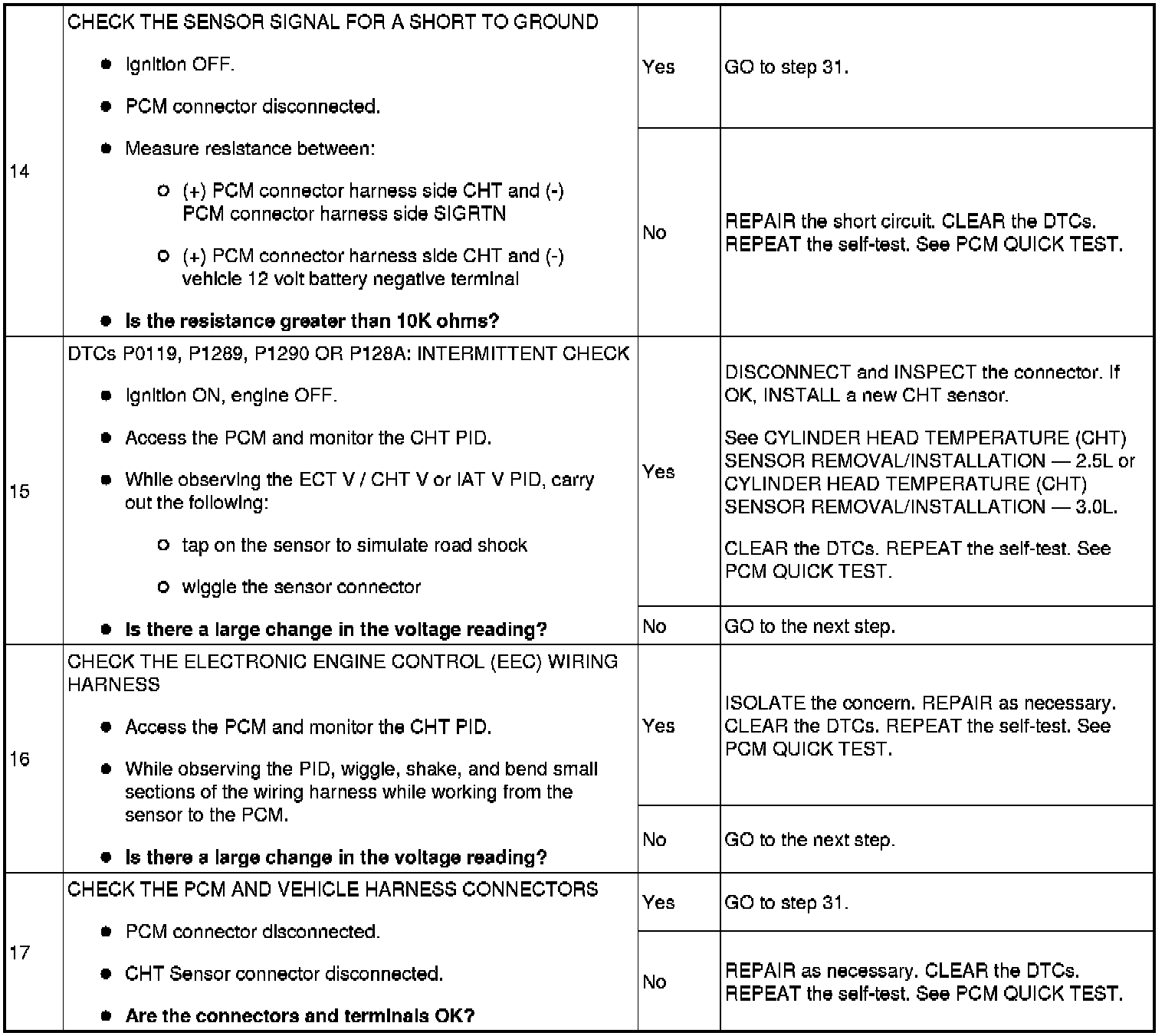

Step 14-Step 17:

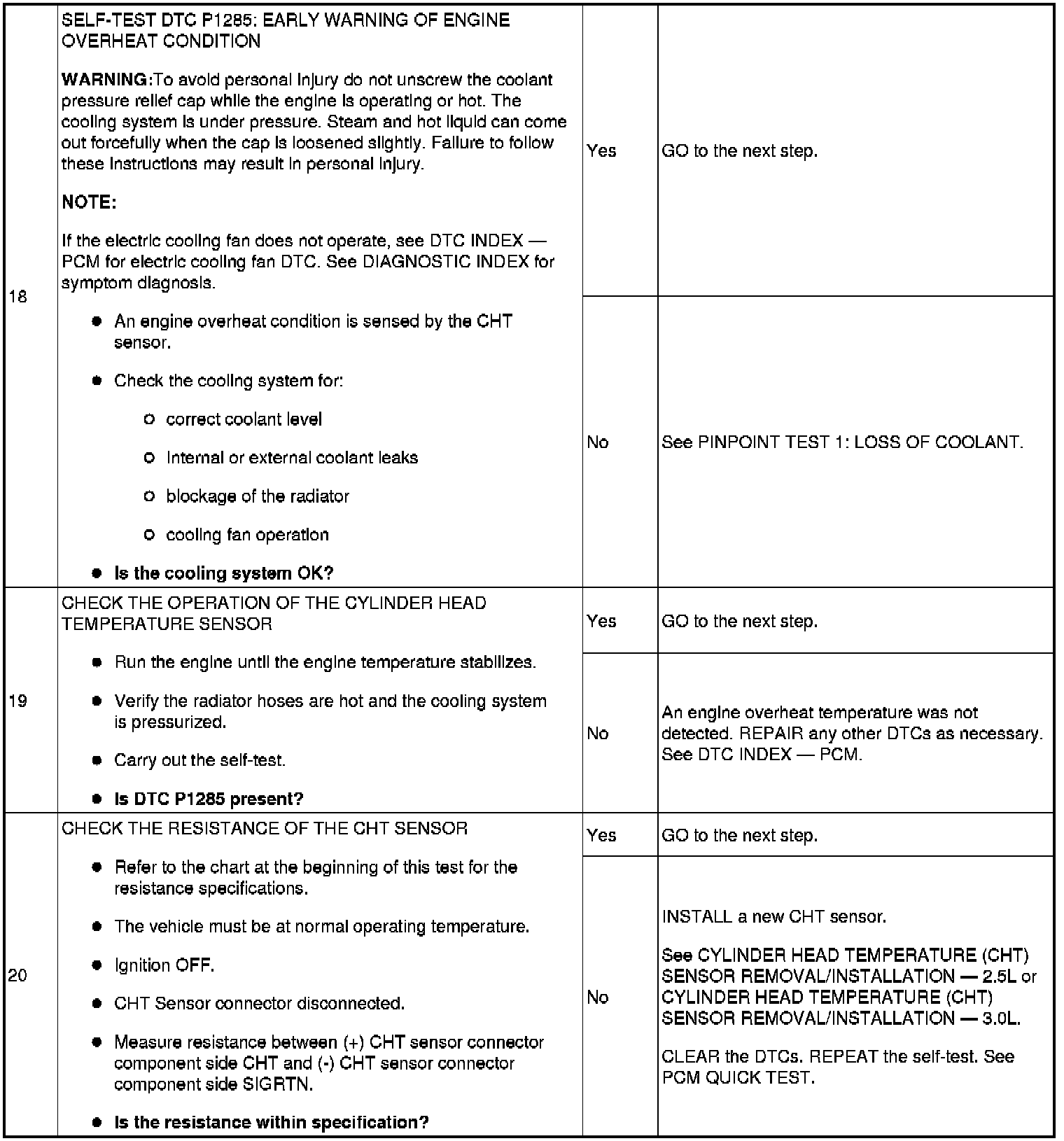

Step 18-Step 20:

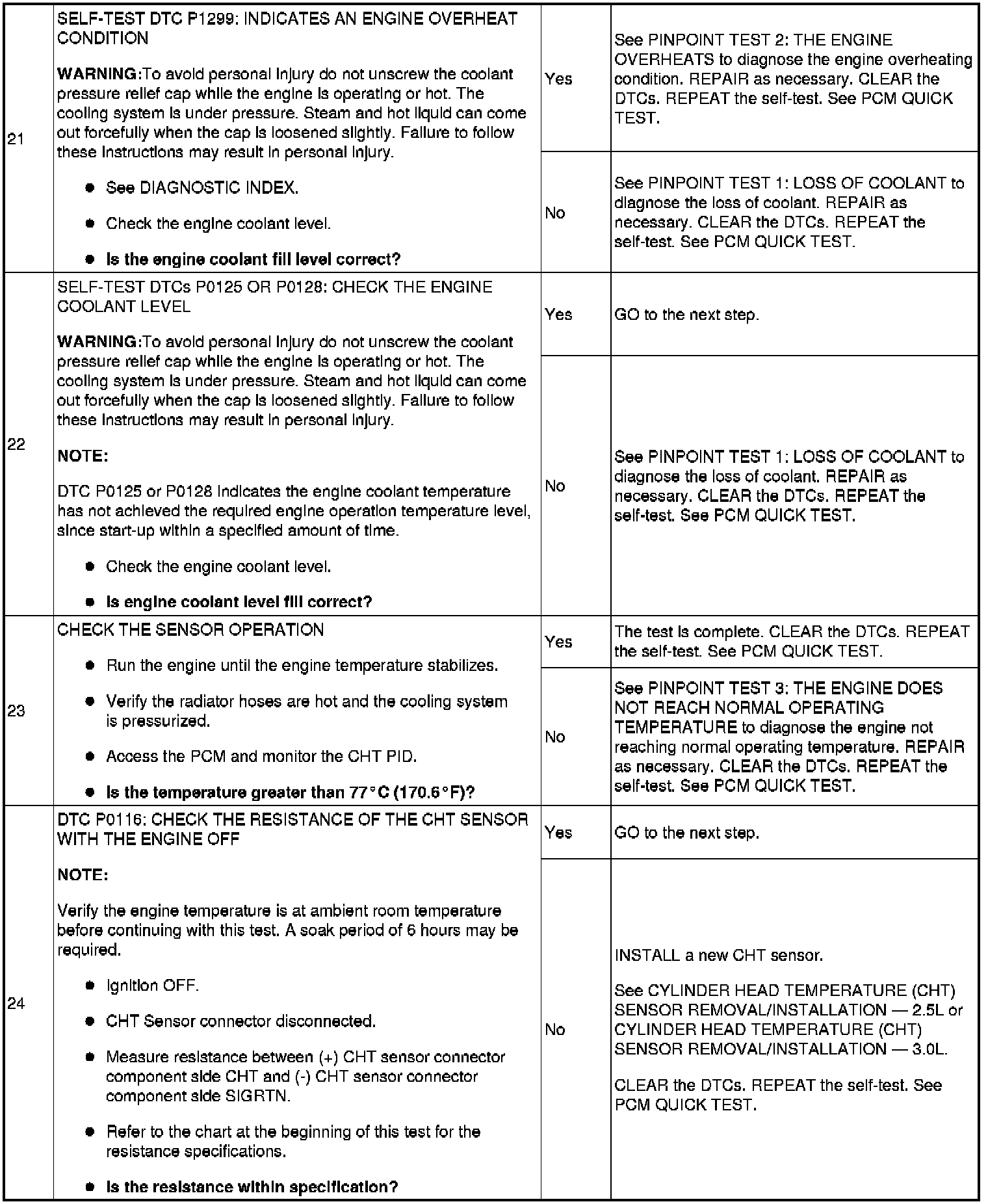

Step 21-Step 24:

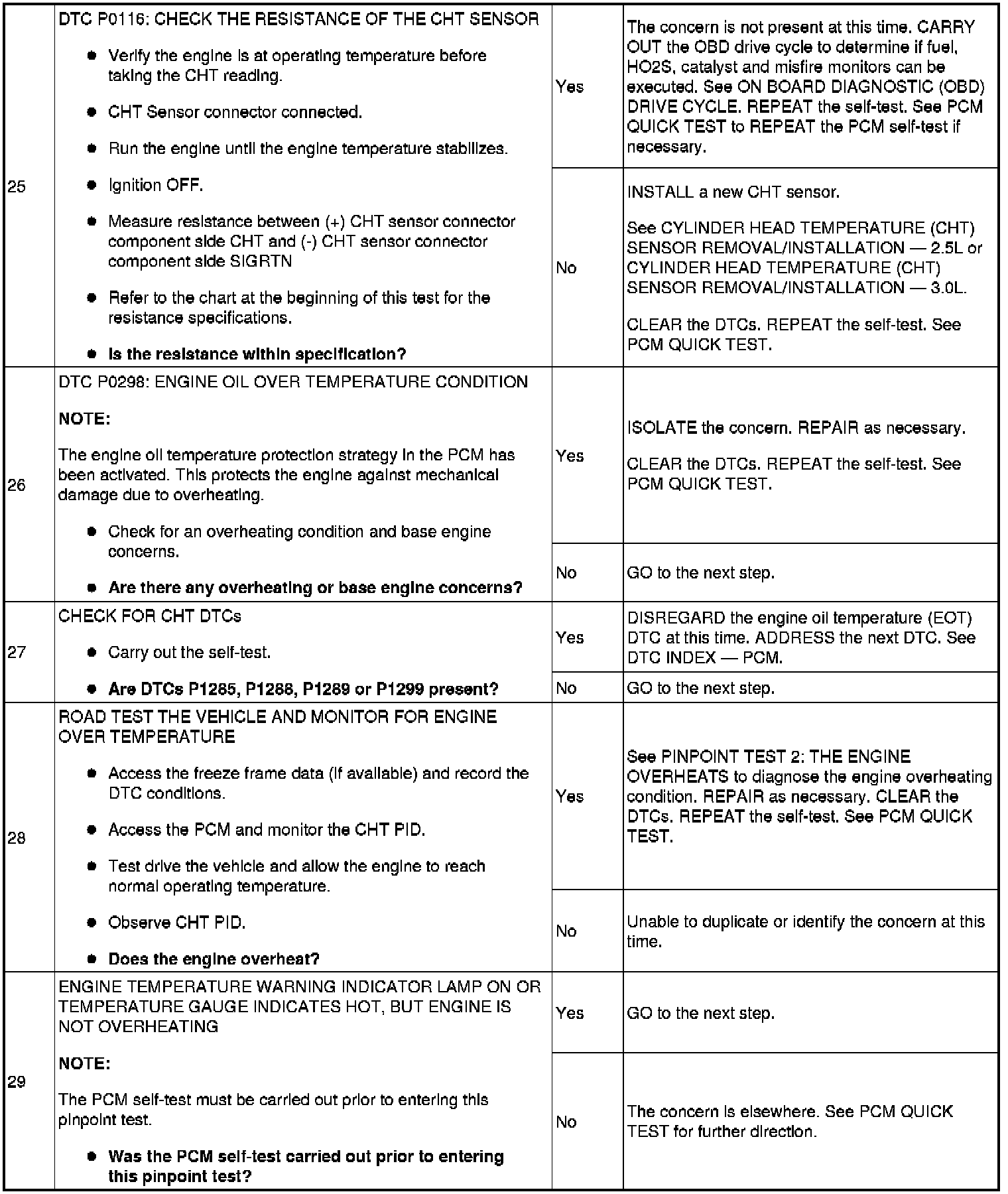

Step 25-Step 29:

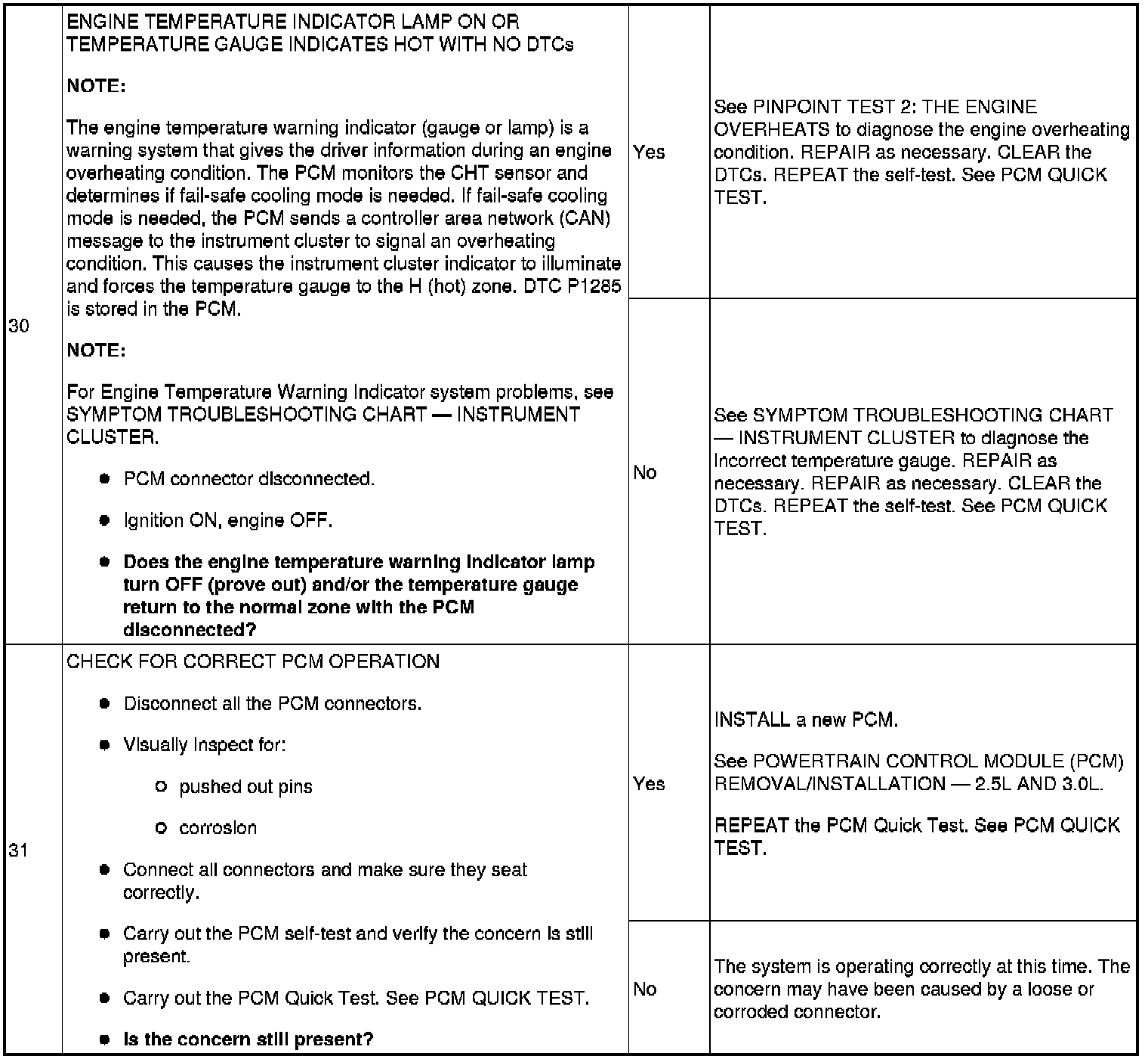

Step 30-Step 31:
