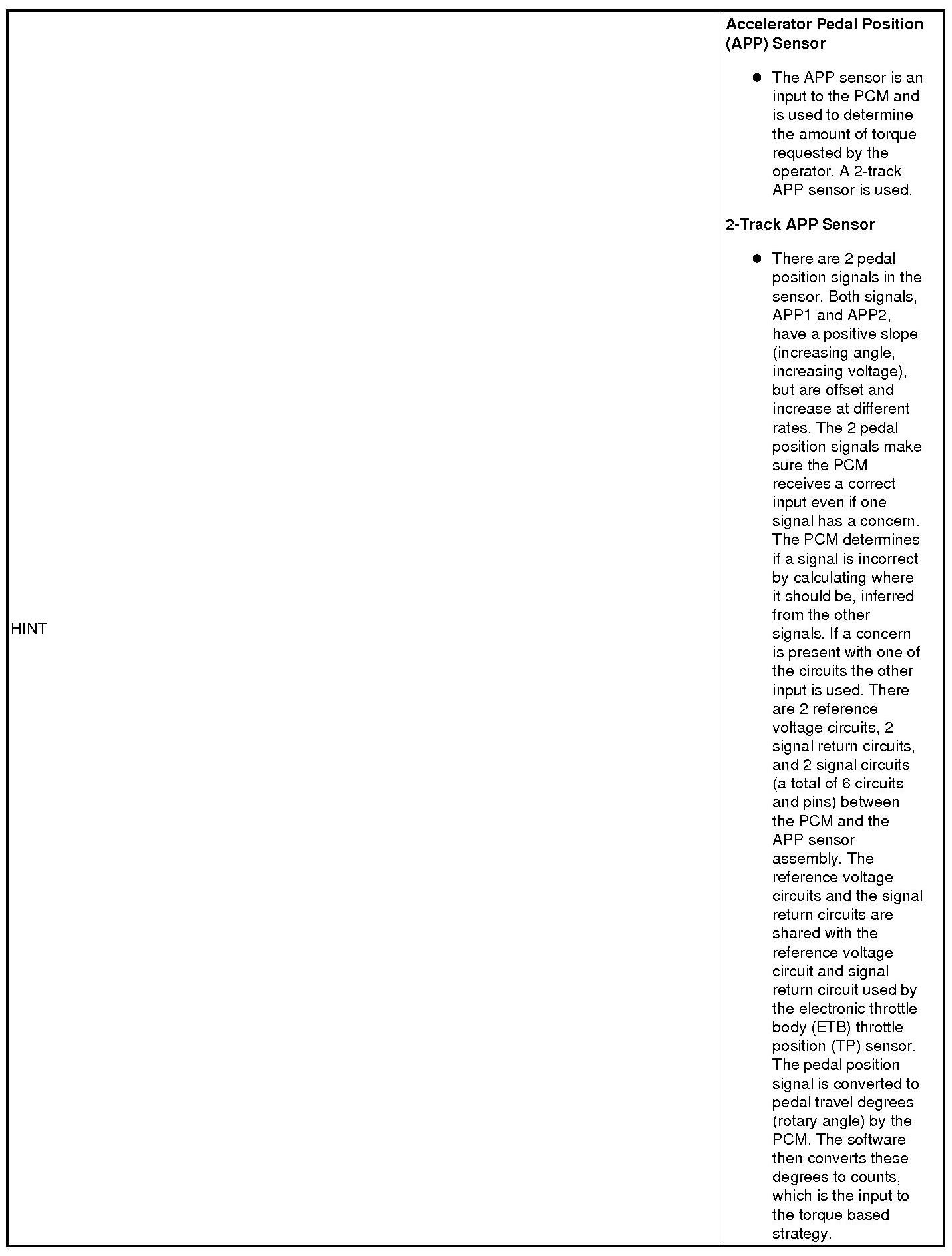

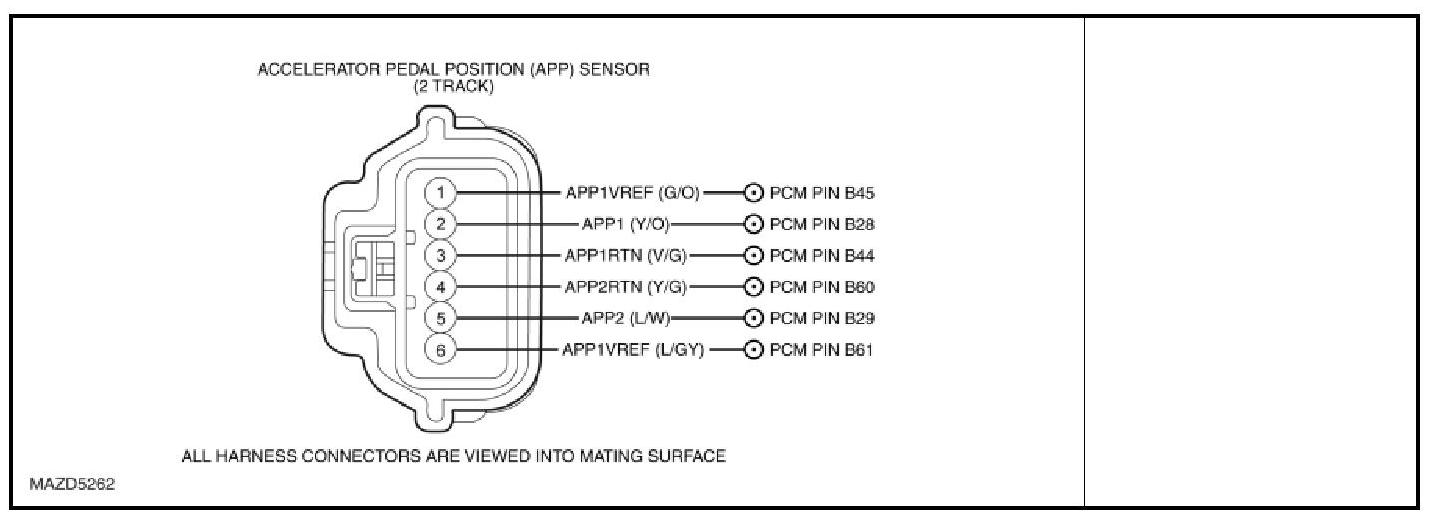

Accelerator Pedal Position Sensor: Testing and Inspection

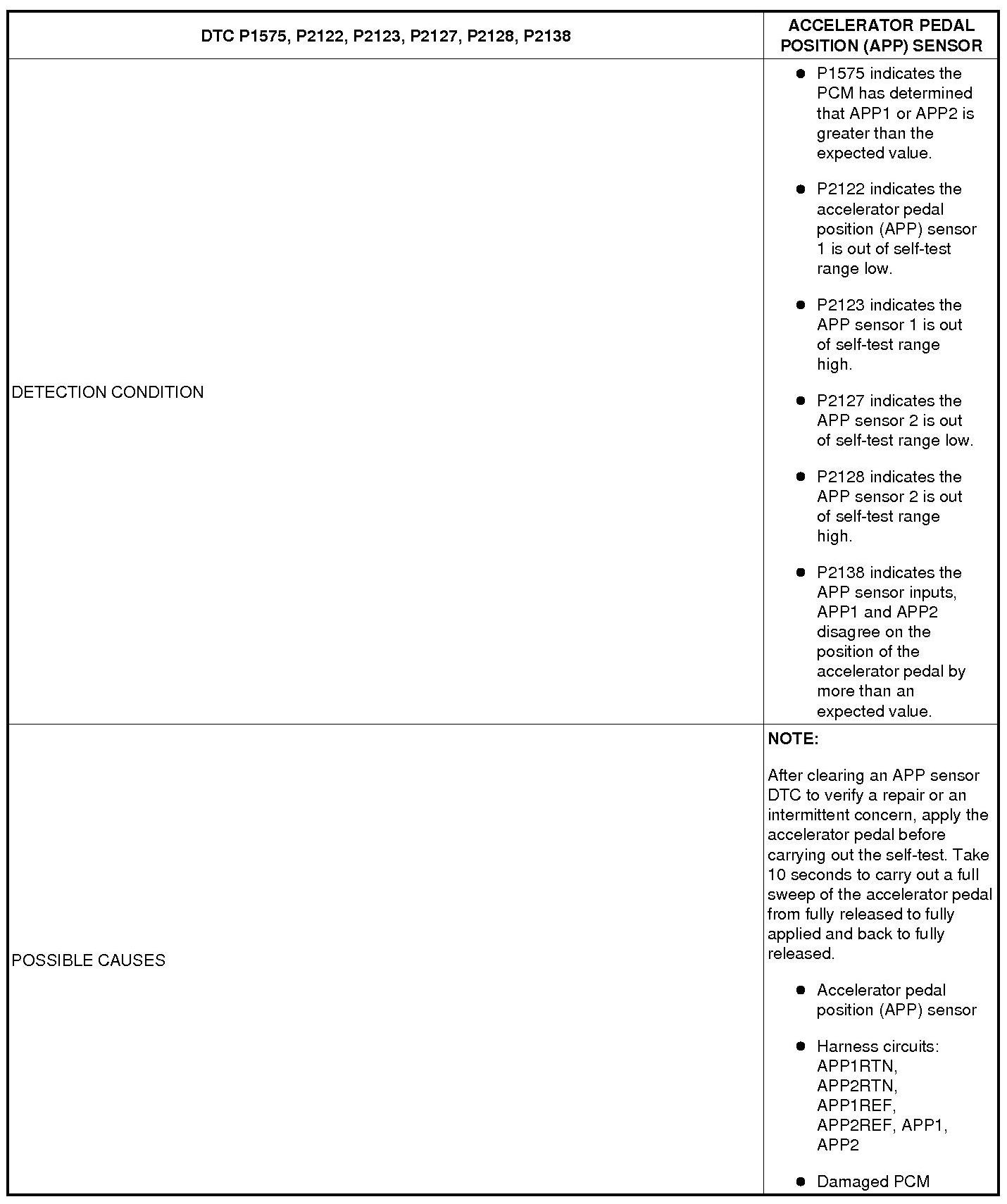

Detection Condition/Possible Causes:

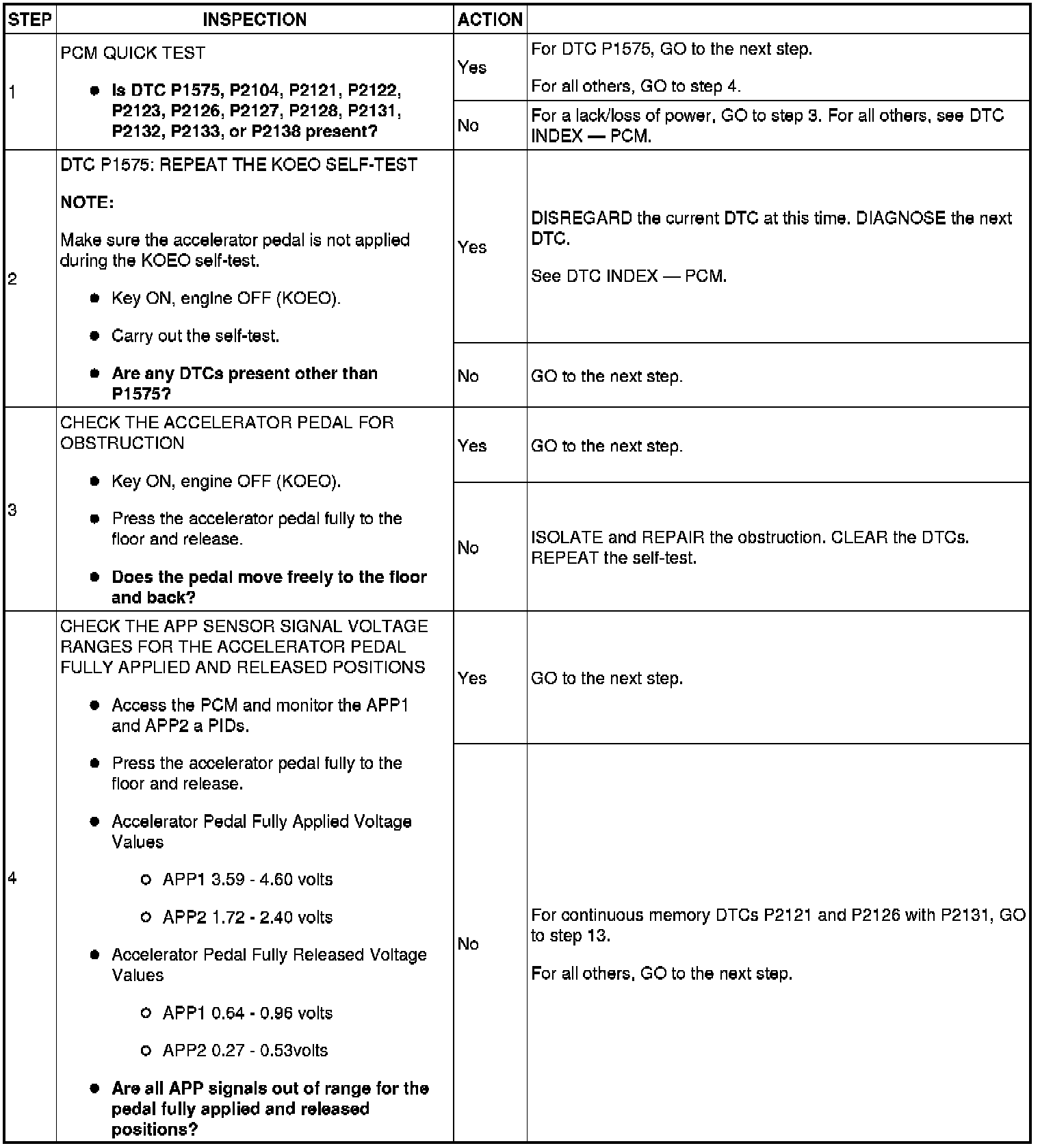

Step 1-Step 4:

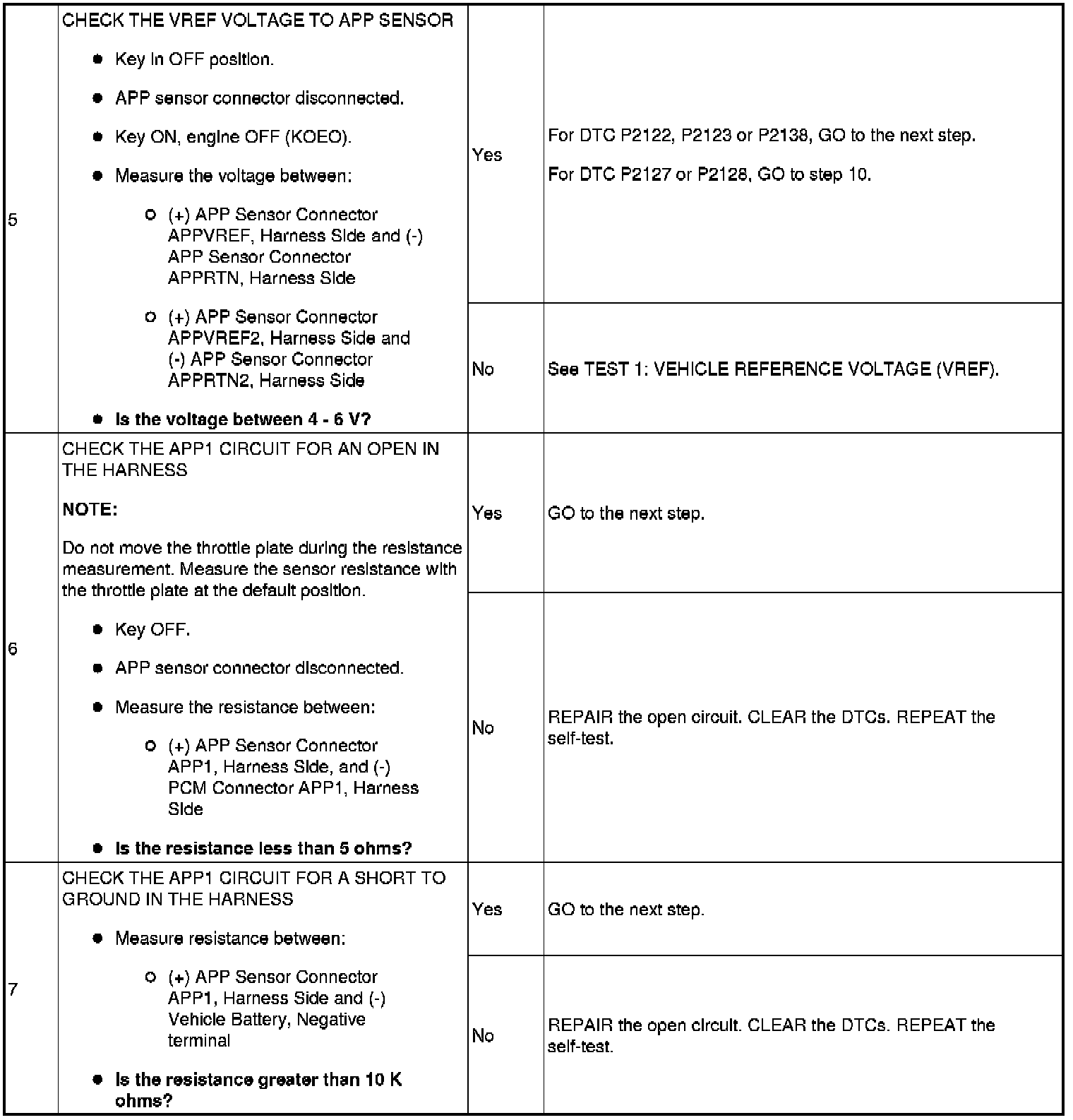

Step 5-Step 7:

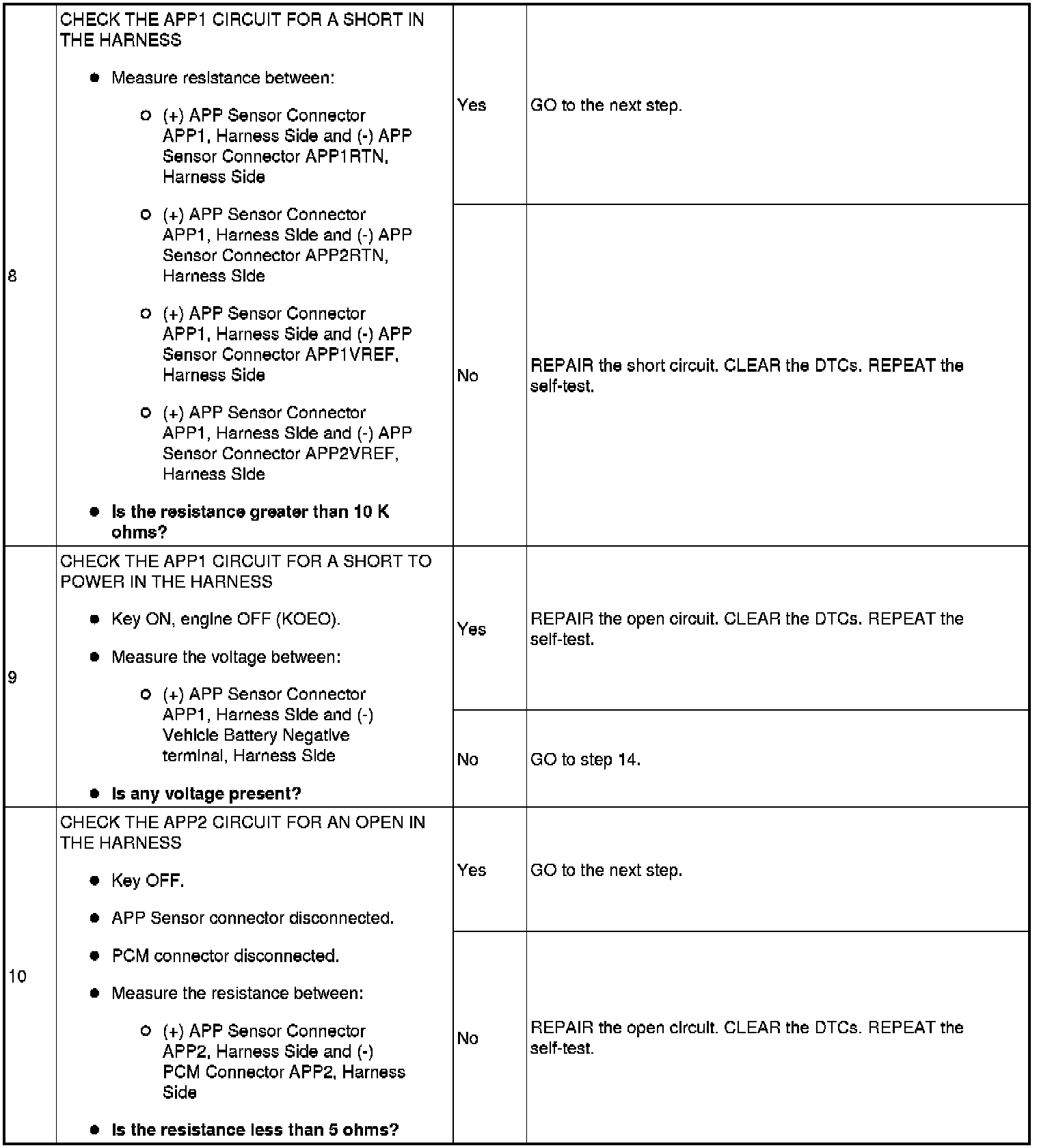

Step 8-Step 10:

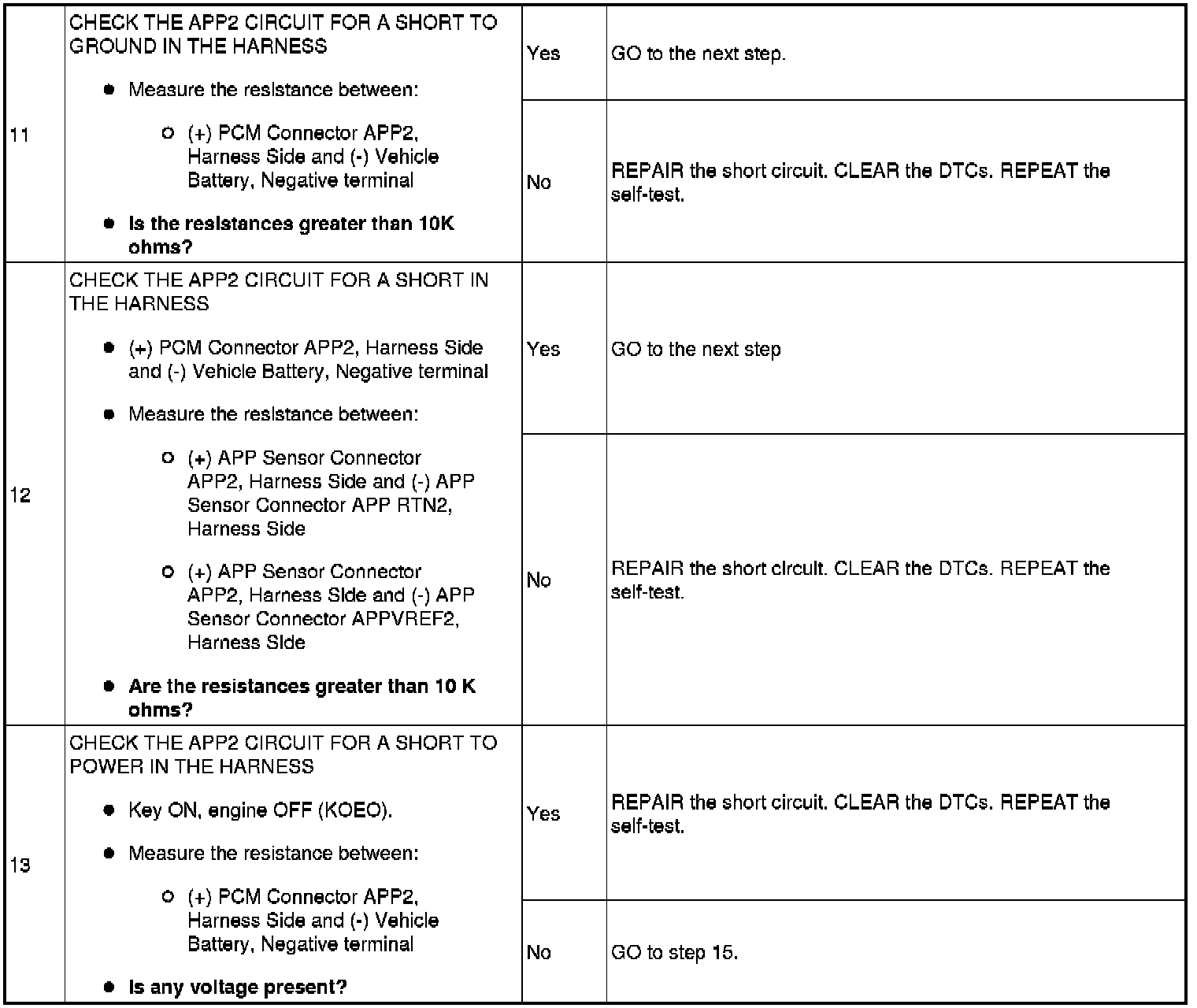

Step 11-Step 13:

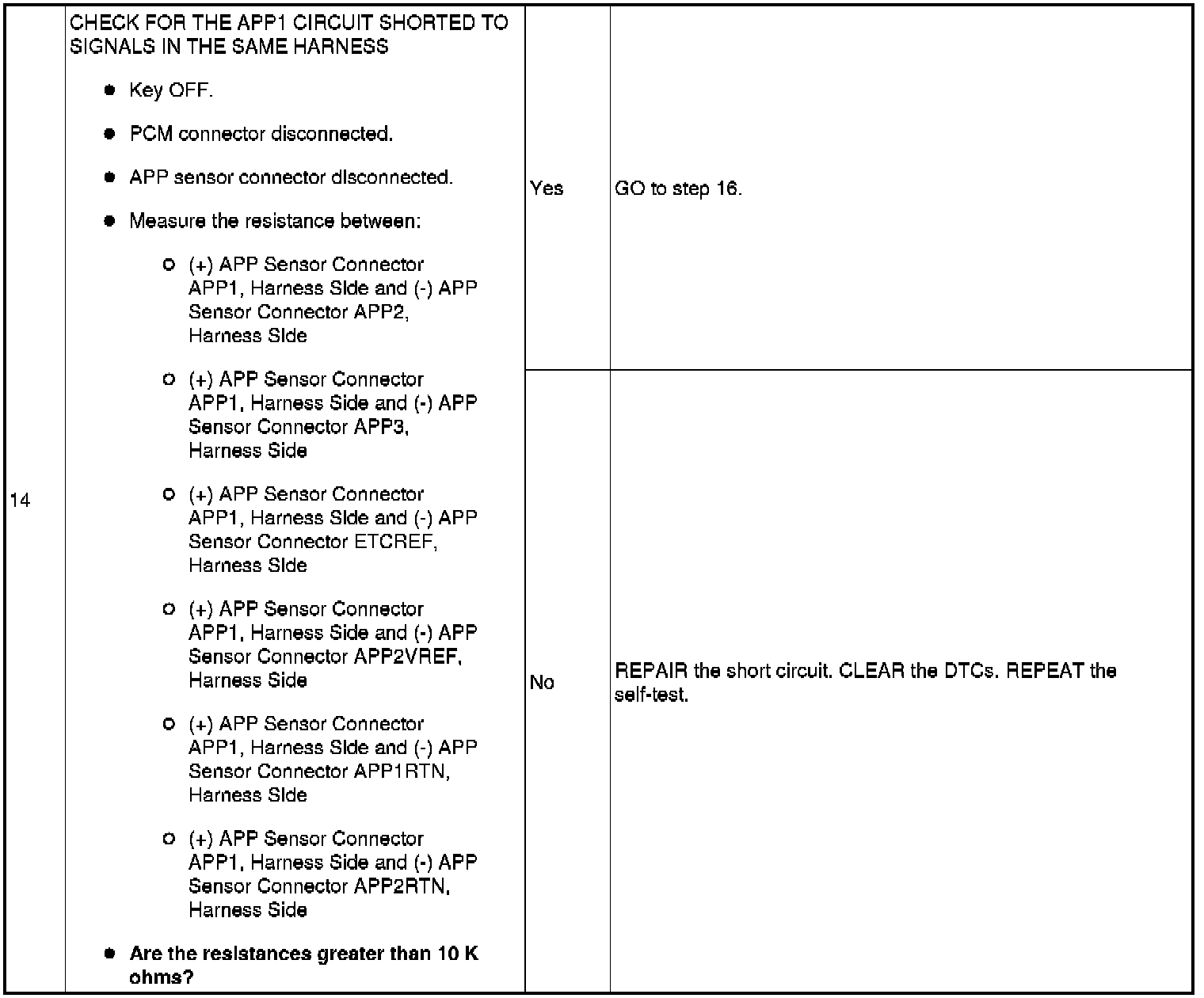

Step 14:

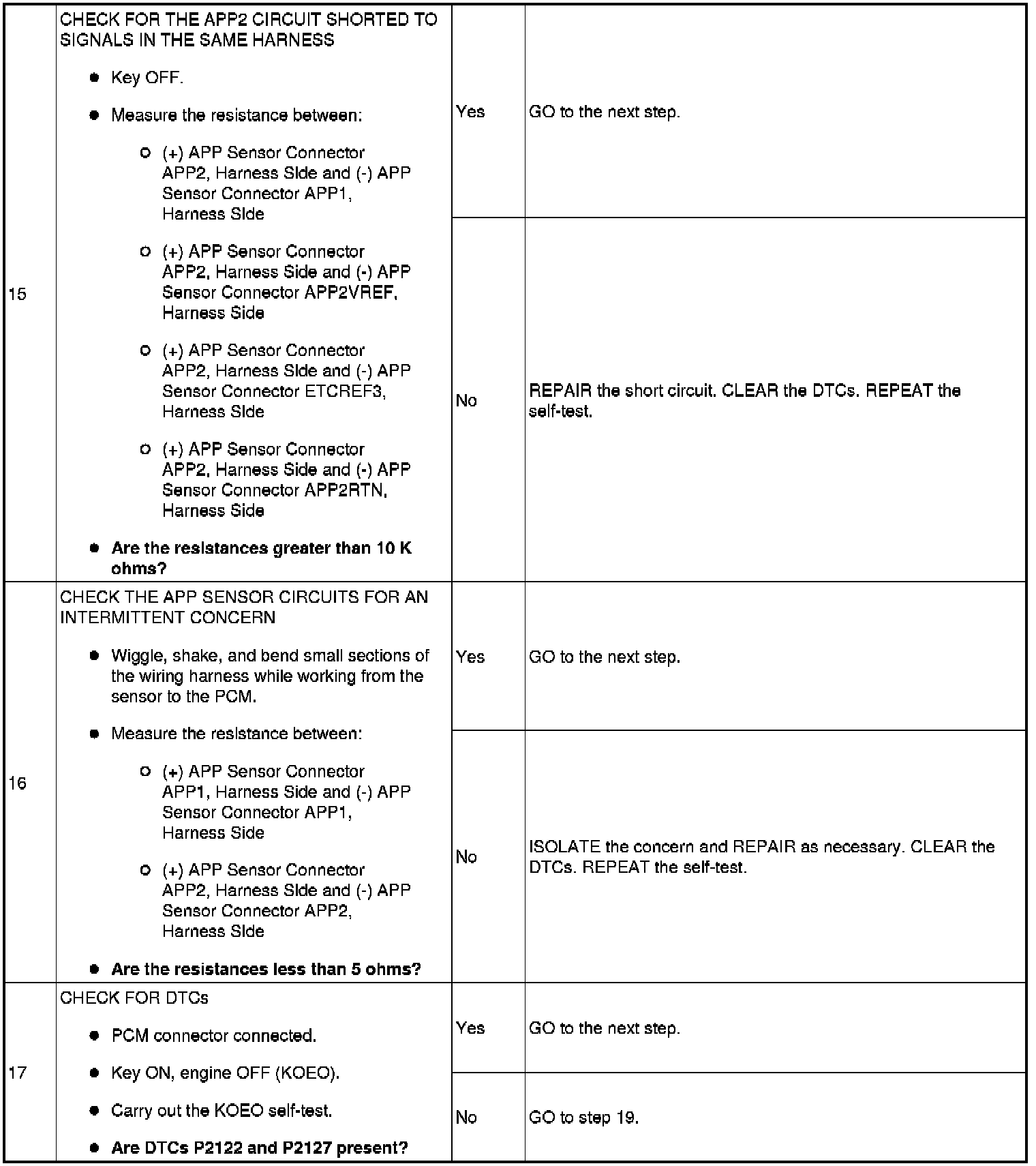

Step 15-Step 17:

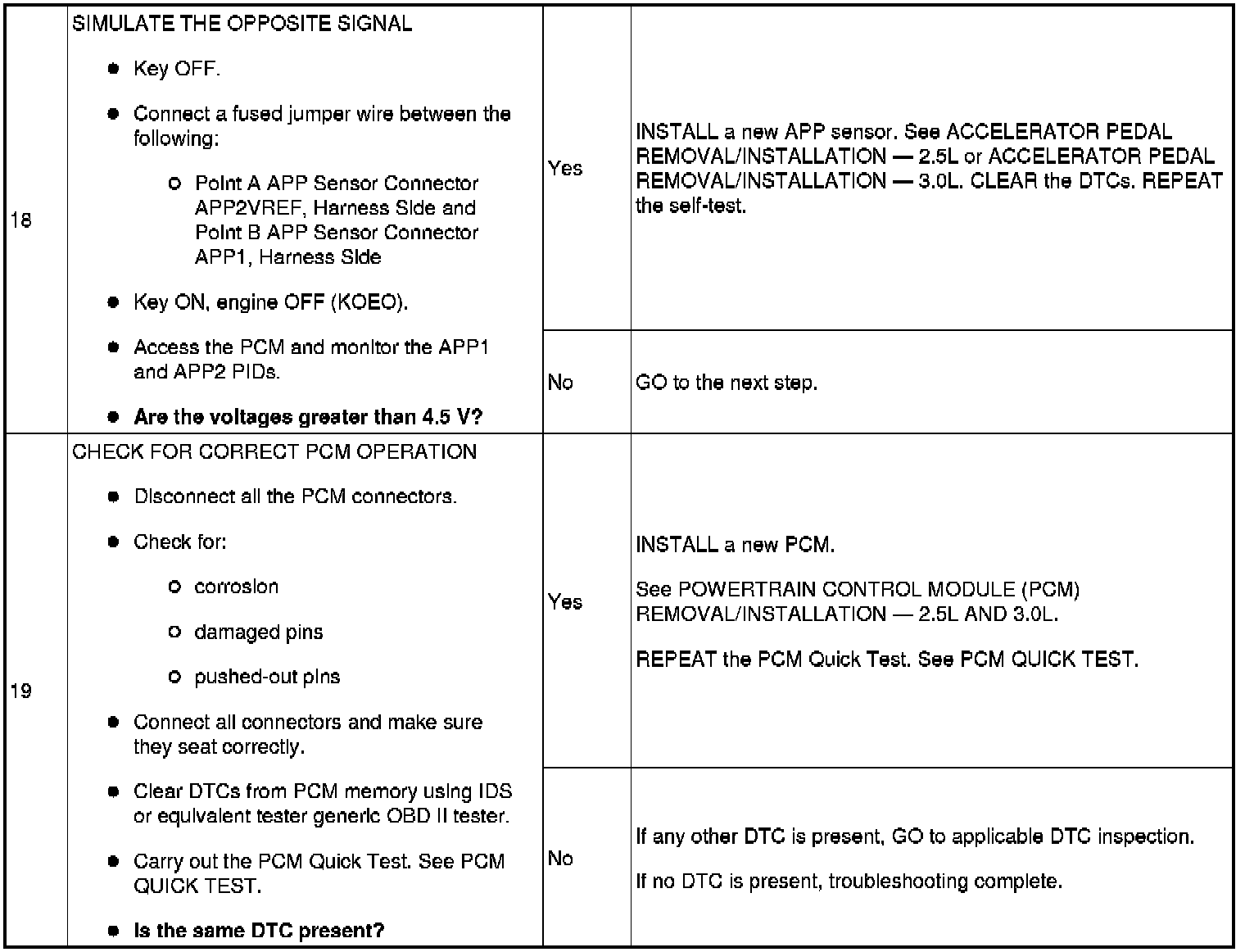

Step 18-Step 19:
